Waterproof Colour LCD Display Connector SM 5pin Cable 1800 mm Communication UART and USB Black for Electric Bicycle and Electric Scooter
You already have the maximum available quantity in your cart.

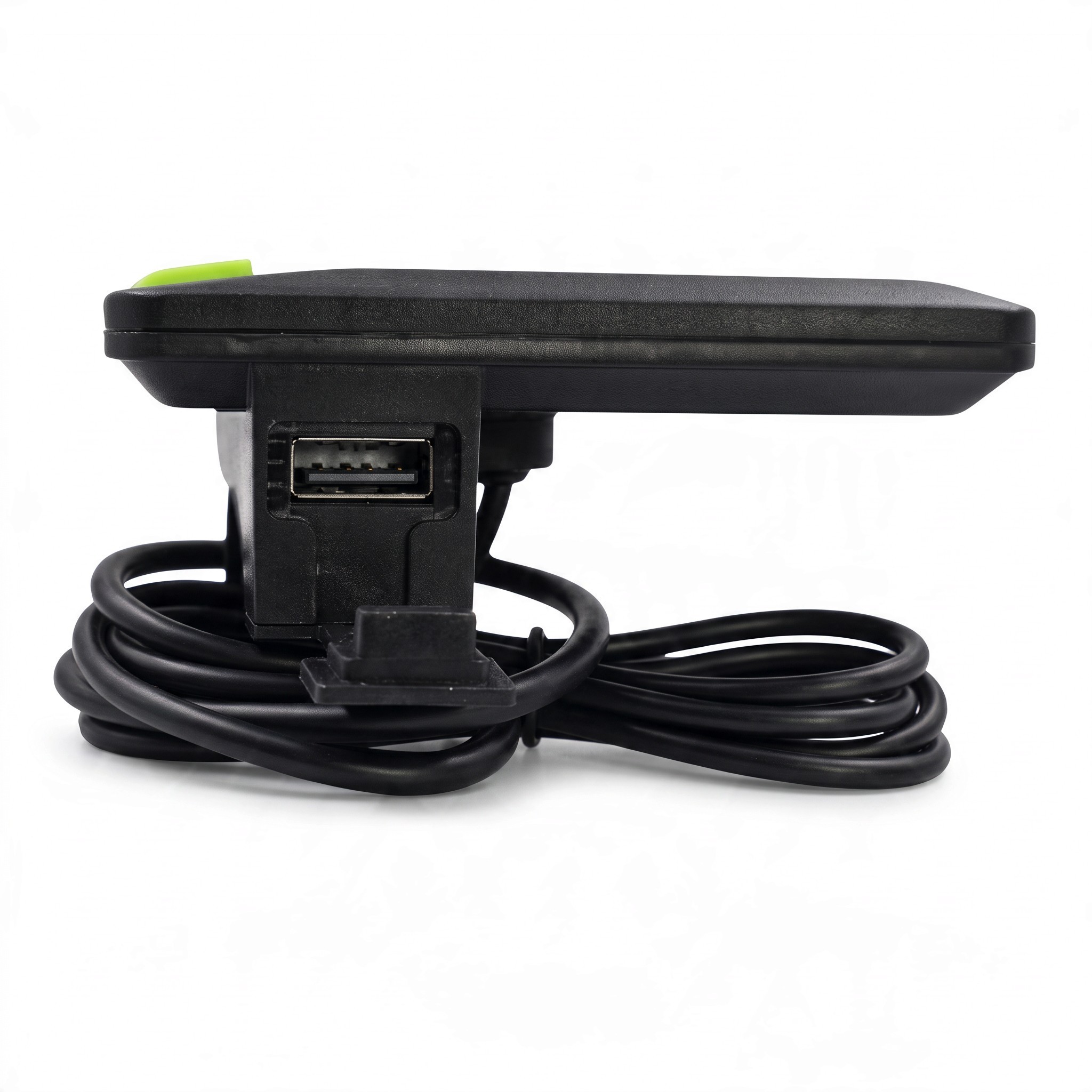

This waterproof colour LCD display is designed for electric bicycles, electric scooters and conversions of traditional bikes to electric drive. It communicates with the control unit via UART interface and also offers USB connectivity. It connects to the electrical installation using a five-pin SM 5pin connector, the wiring of which is described below. The clear display shows the current speed in km/h, battery charge status, voltage, assistance level, and total distance travelled. The display is supplied with a cable, allowing it to be mounted on the handlebars with the wires routed to the control unit.

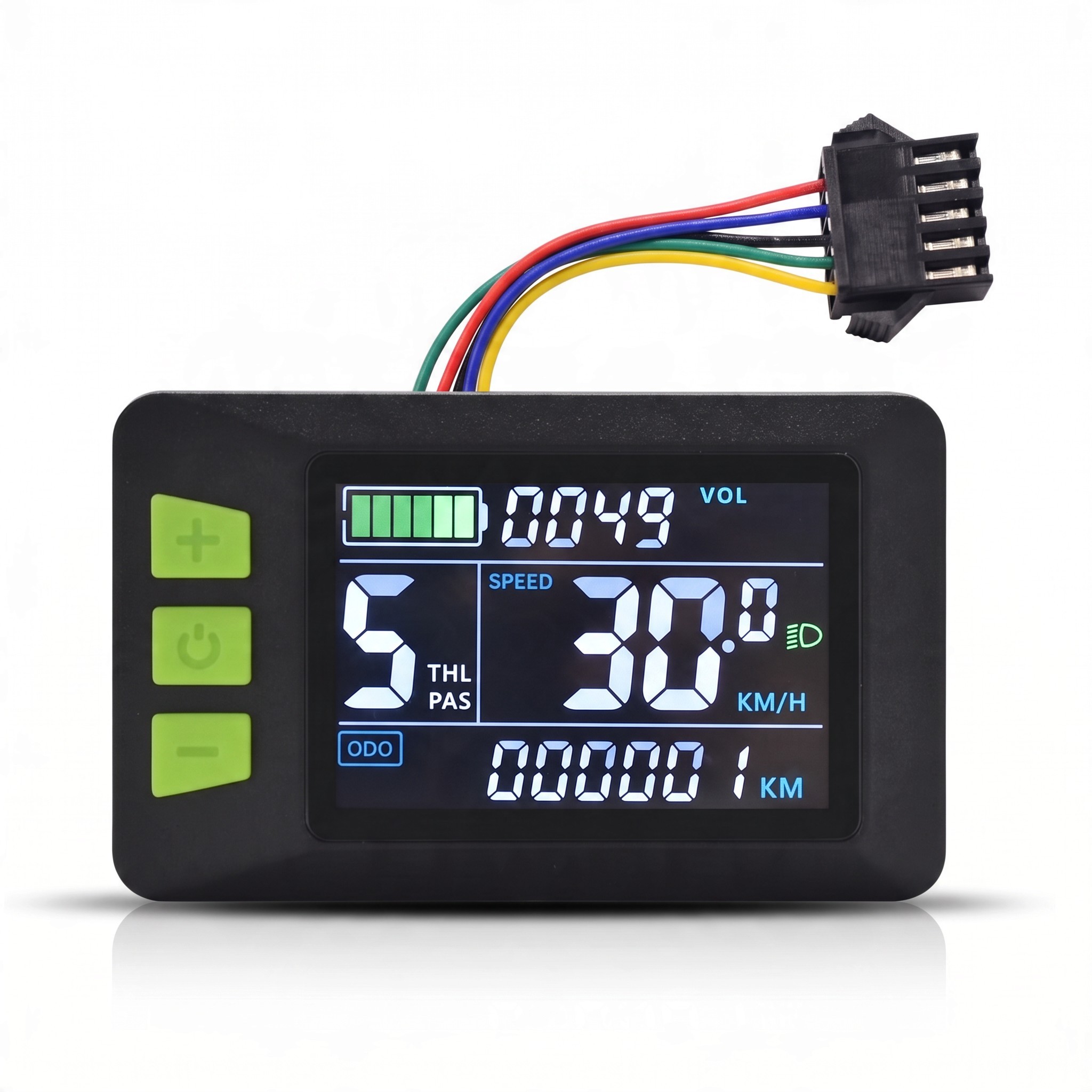

- Colour LCD Display – the screen displays the current speed in km/h with a decimal point, a graphical battery charge indicator, voltage (VOL), total distance travelled (ODO) and a symbol for the lights being switched on. The individual data is divided into clear sections, making it easy to orientate even during a brief glance while riding.
- Assistance Level – on the left side of the screen, the current assistance level is displayed in large digits marked PAS and THL, keeping the drive settings in view at all times.

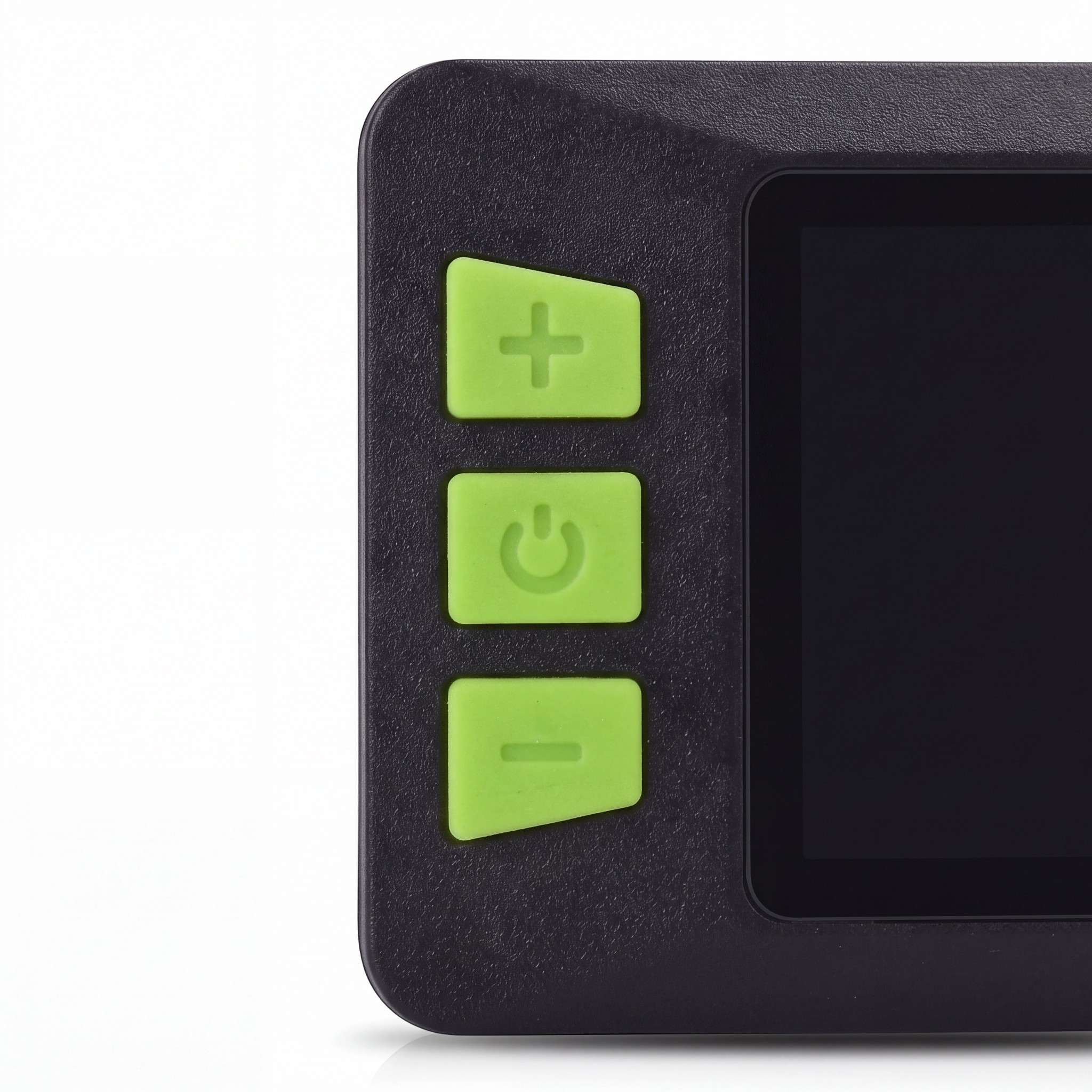

- Three Control Buttons – the plus, minus and power buttons are located to the left of the screen. They are colour-coded differently from the display body and each has a symbol indicating its function.
- UART Communication – data exchange with the control unit occurs over separate TX and RX lines. The display can thus receive data from the control unit while simultaneously sending settings selected by the buttons.
- SM 5pin Connector – the SM type connector with pin wiring: 1 red (D+), 2 blue (K), 3 black (GND), 4 green (RX) and 5 yellow (TX). Before connecting, check compatibility with your bike or scooter's wiring according to this description.
- Cable Length – the cable from the display measures 1800 mm and at its end, the individual wires are extended to a length of 30 mm leading to the connector. This length facilitates routing the cable from the handlebars to the control unit.
- Cable with Wires – the individual wires are colour-coded according to their function, which simplifies checking the connections during installation and any potential repairs to the wiring.
- Colour Design – the black body of the display is complemented by green control buttons, which are visually distinct from the screen at first glance.
Package Contents:
- 1x waterproof LCD display with cable and SM 5pin connector
The display is suitable for owners of electric bicycles and electric scooters who need a new or replacement riding data indicator with an SM type connector. It is also applicable in converting a bike to an electric bicycle, serving as the main information and control element of the entire assembly. Before installation, ensure that your control unit supports UART communication and that the wiring of its connector matches the described pin layout. The display is mounted on the handlebars and the 1800 mm cable is routed to the control unit, where it connects with the SM 5pin connector. Thanks to the waterproof design of the display, it can be used in varying weather conditions.
