Waterproof Colour LCD Display 5pin Handlebar Mount 22.2 mm UART Communication and USB Port Black For Electric Bicycle and Electric Scooter
You already have the maximum available quantity in your cart.
This colour LCD display is designed for electric bicycles, electric scooters and conversions of traditional bicycles to electric drive. It communicates with the control unit via UART interface and connects to it with a waterproof round 5pin connector. The clear display shows the current speed in km/h, battery charge status, voltage, assistance level and total distance travelled. The display is mounted using the integrated holder on 22.2 mm diameter handlebars. At the bottom of the display body, there is also a USB port.

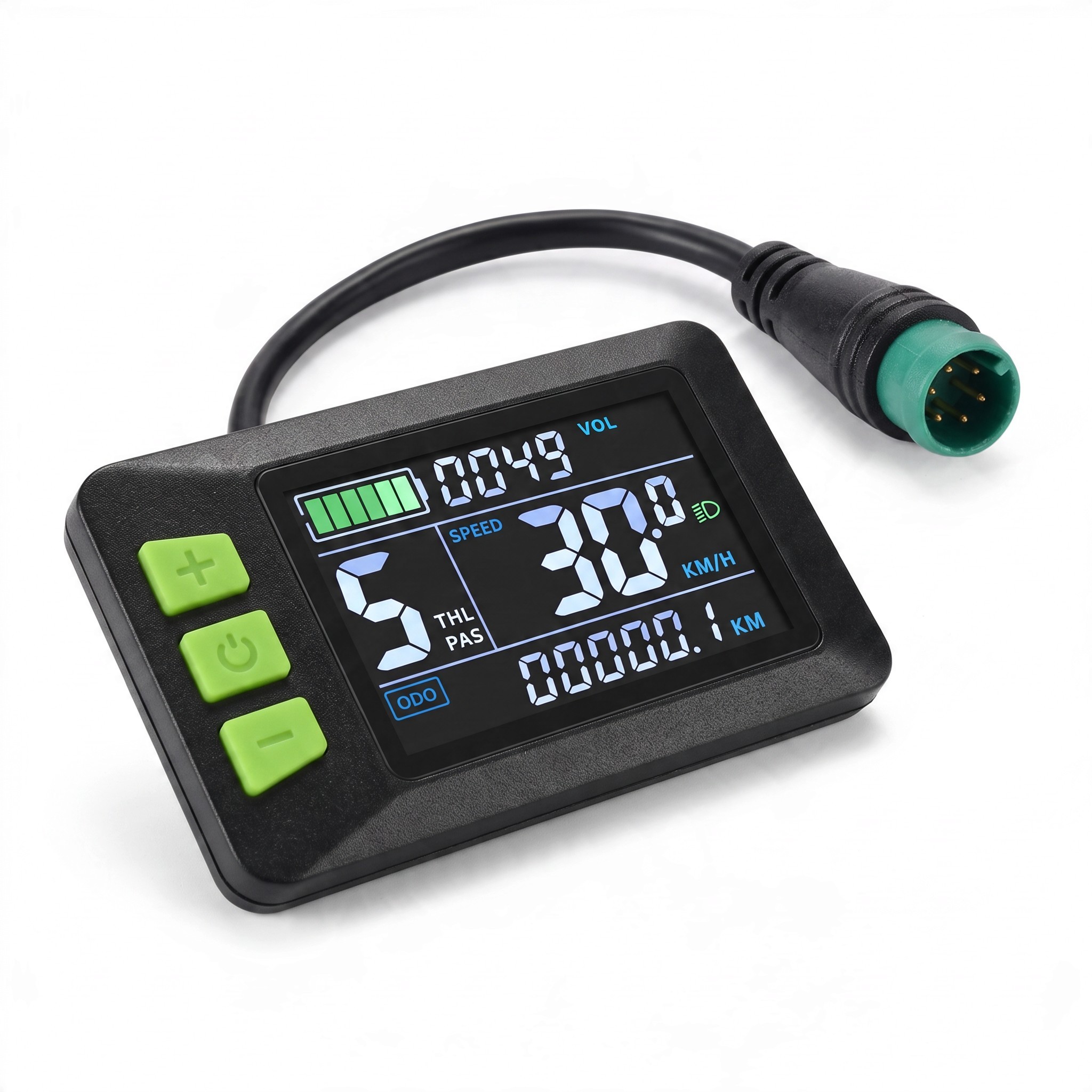

- Colour LCD Display – the screen displays the current speed in km/h with a decimal point, a graphical battery charge indicator, voltage (VOL), total distance travelled (ODO) and a light on symbol. The individual data are organised into clear sections.
- Assistance Level – on the left side of the screen, the current assistance level is displayed in large digits marked PAS and THL, so you always have the drive settings in view.

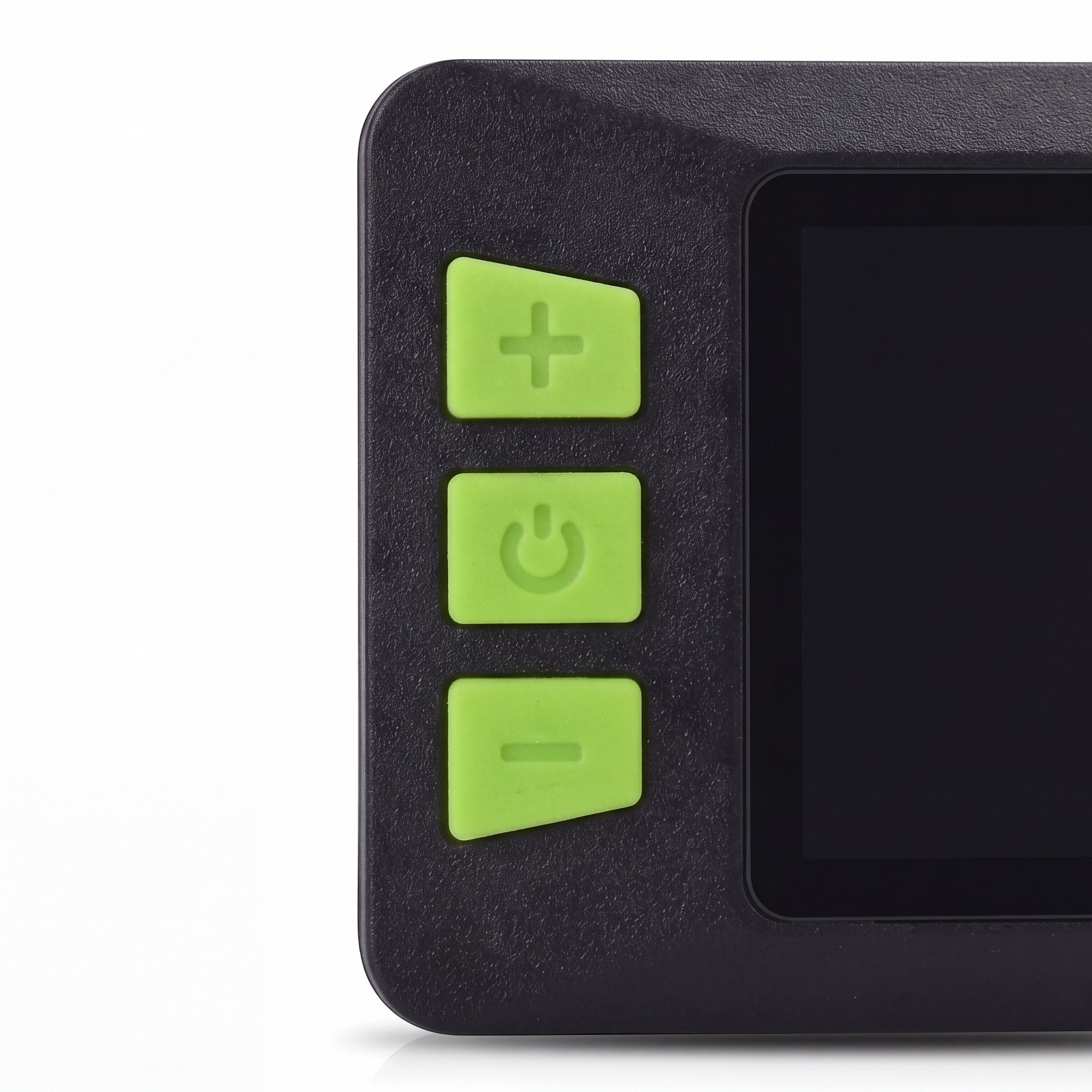

- Three Control Buttons – the plus, minus and power buttons are located on the left next to the screen. They are colour-coded differently from the display body and each has a symbol indicating its function.
- UART Communication – data exchange with the control unit occurs over separate TX and RX lines. The display can thus receive data from the control unit while simultaneously sending settings chosen by the buttons.
- Waterproof 5pin Connector – round male connector with pin connections: red (D+), black (GND), yellow (TX), green (RX) and blue (K). Before connecting, please check compatibility with your bicycle's wiring according to this description.

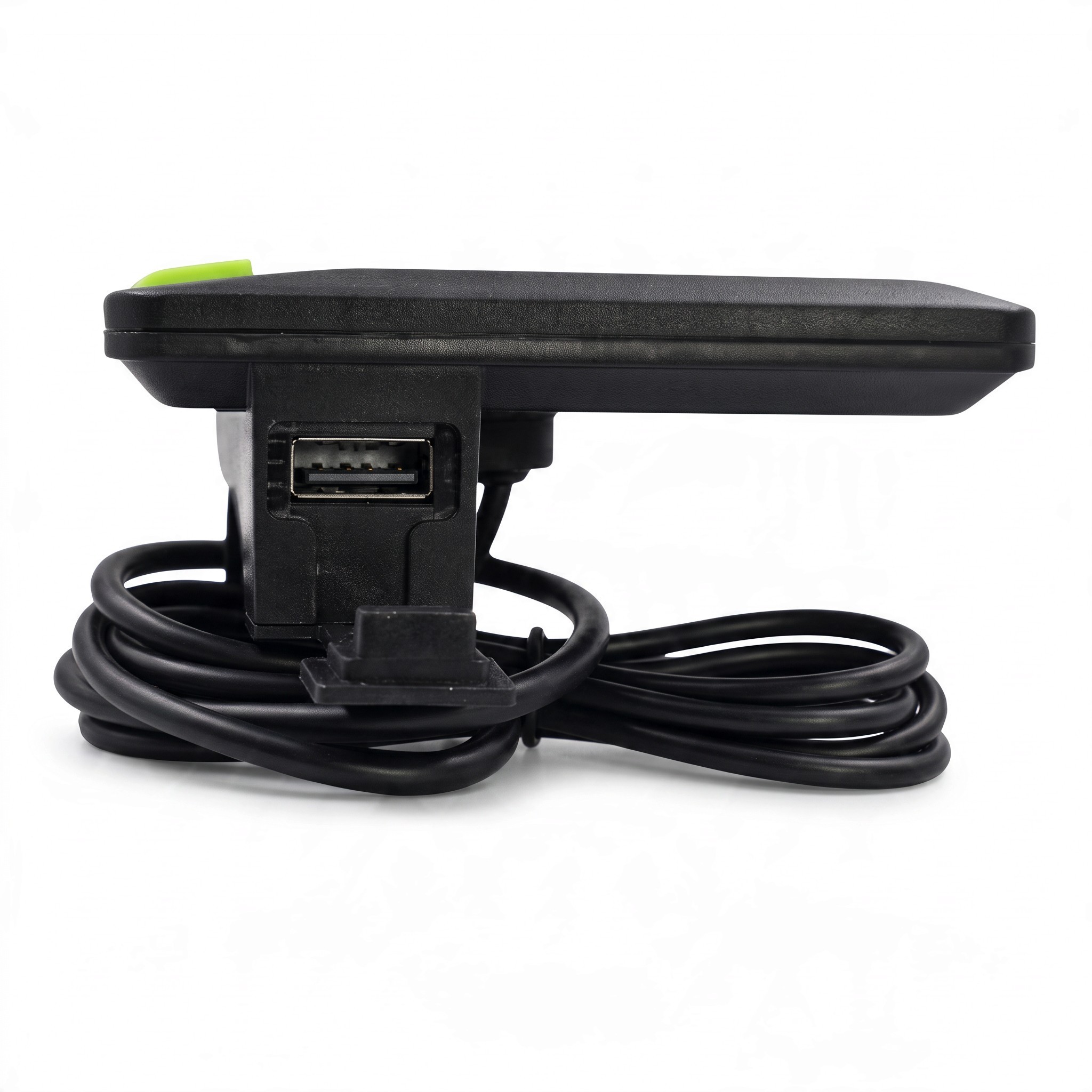

- USB Port – located on the underside of the display is a type A USB connector.

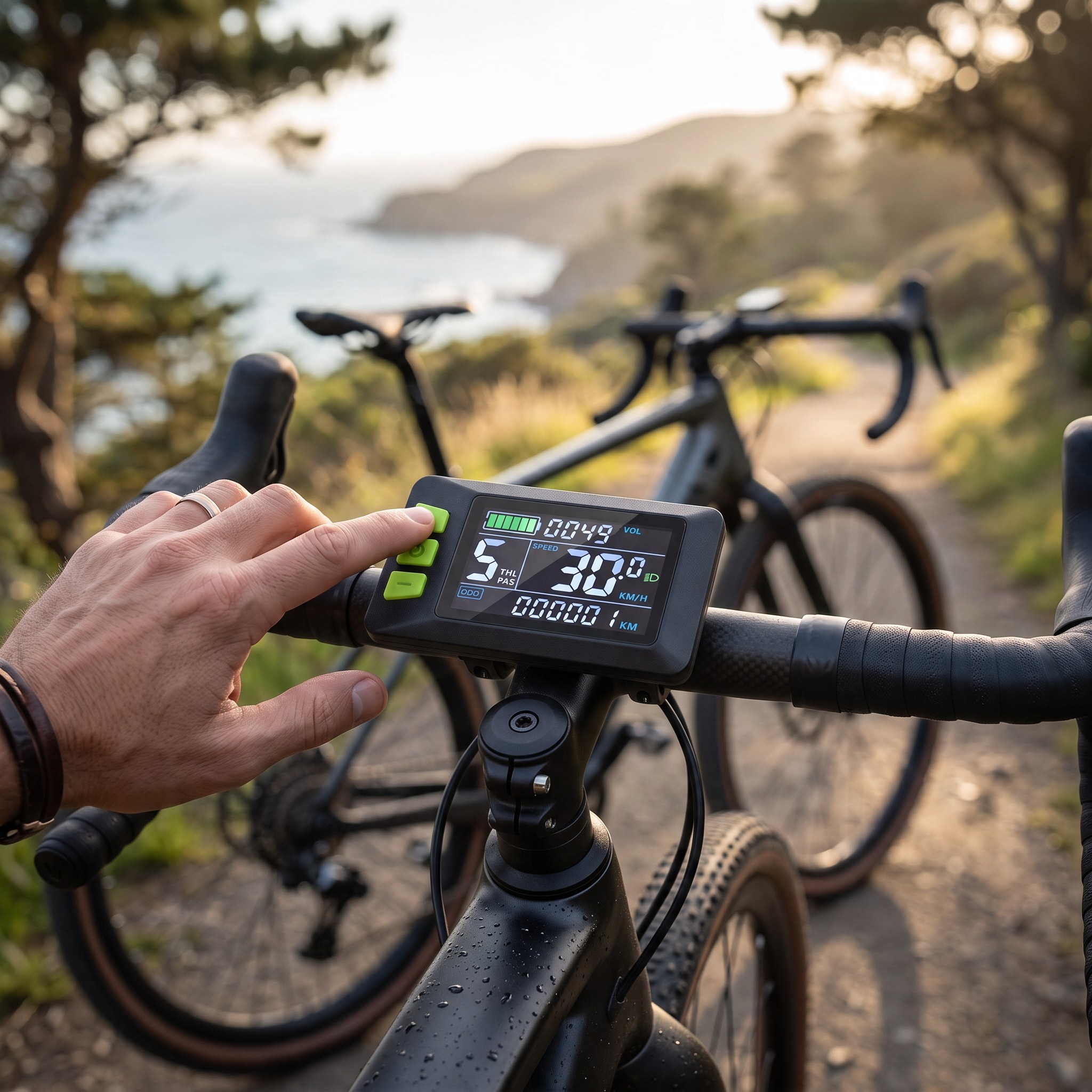

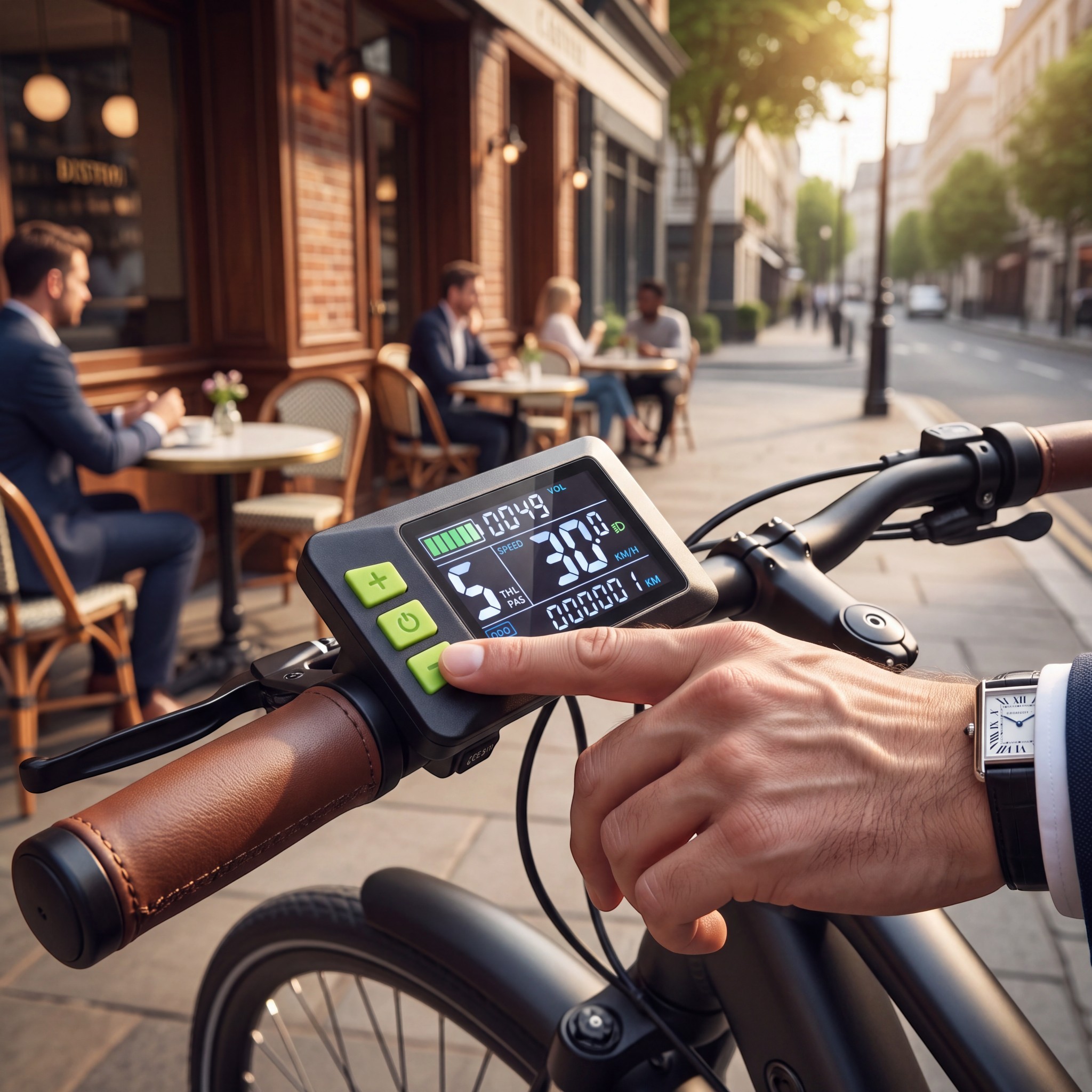

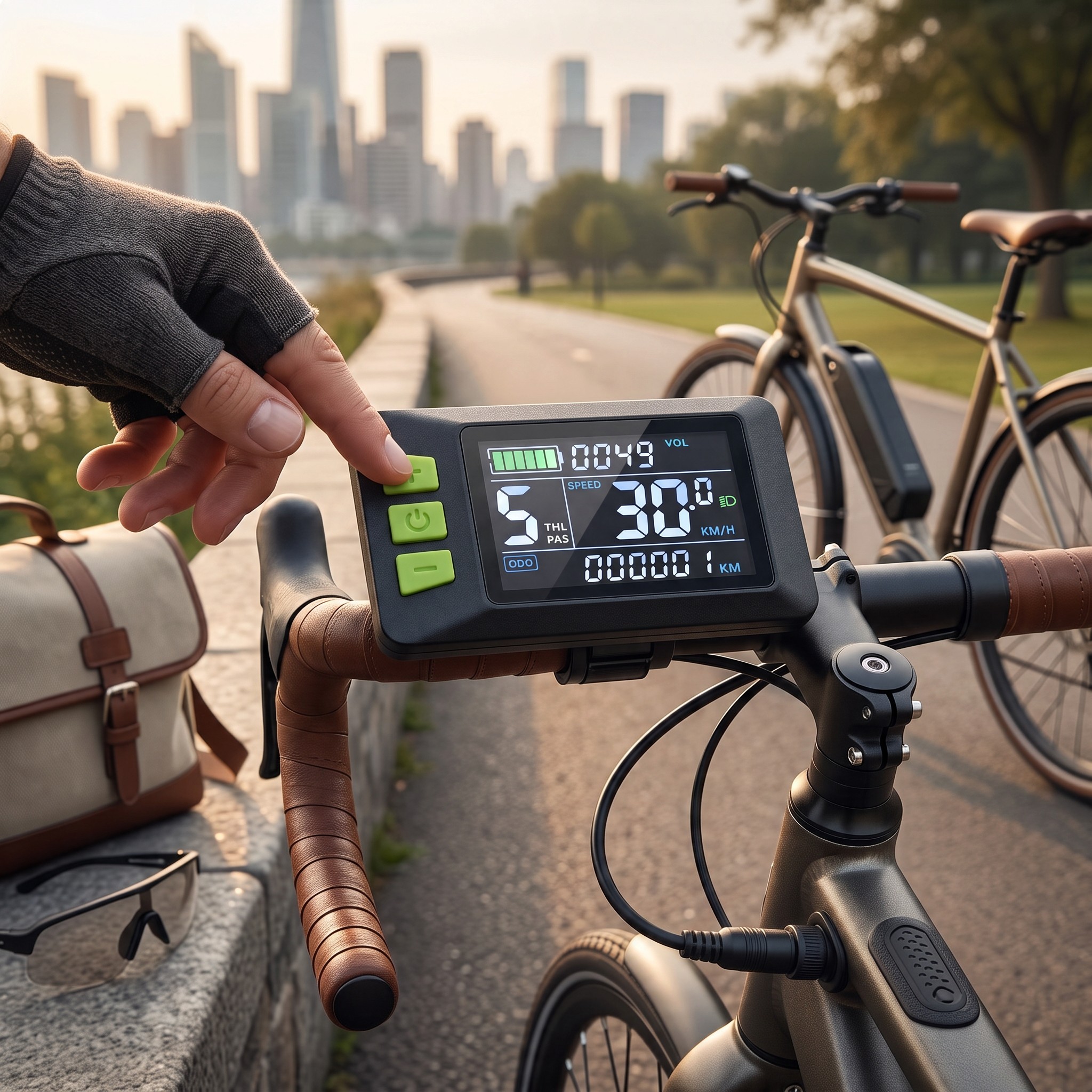

- Handlebar Mounting – the integrated holder is designed for 22.2 mm diameter handlebars, allowing the display to be mounted without additional accessories.
- Compact Dimensions – the display measures 87.8 x 51.3 x 13.4 mm, so it does not take up much space on the handlebars, leaving room for additional accessories next to the display.
- Colour Design – the black body of the display is complemented by green control buttons, which are visually distinct from the screen.
Package Contents:
- 1x waterproof LCD display with handlebar mount and cable with 5pin connector
The display is suitable for owners of electric bicycles and electric scooters who need a new or replacement riding data indicator. It is also applicable for converting a bicycle to an electric bicycle, where it serves as the main information and control element of the entire assembly. Before installation, ensure that your control unit supports UART communication and that the wiring of its connector matches the provided pin description. The display is secured using the integrated holder directly onto the handlebars, and the cable with the connector easily connects to the bicycle or scooter wiring. Thanks to the waterproof design, the display can be used even in variable weather conditions.
