Used Mini-STX Motherboard with LGA 1151 Socket and Intel H310 Chipset with 2 DDR4 SO-DIMM Slots up to 64 GB and M.2 for Wi-Fi and SSD Black

Used Mini-STX Motherboard with LGA 1151 Socket and Intel H310 Chipset with 2 DDR4 SO-DIMM Slots up to 64 GB and M.2 for Wi-Fi and SSD Black

Used unit with dual-channel DDR4 SO-DIMM memory and XMP, M.2 slot for Wi-Fi and SSD, HDMI, DisplayPort and VGA outputs, and USB-C for a small computer. Full description
In stock
Delivery €1.59
30-day return policy
€149.74
Safe shopping Safe shopping
Overview
Used Mini-STX Motherboard with LGA 1151 Socket and Intel H310 Chipset with 2 DDR4 SO-DIMM Slots up to 64 GB and M.2 for Wi-Fi and SSD Black

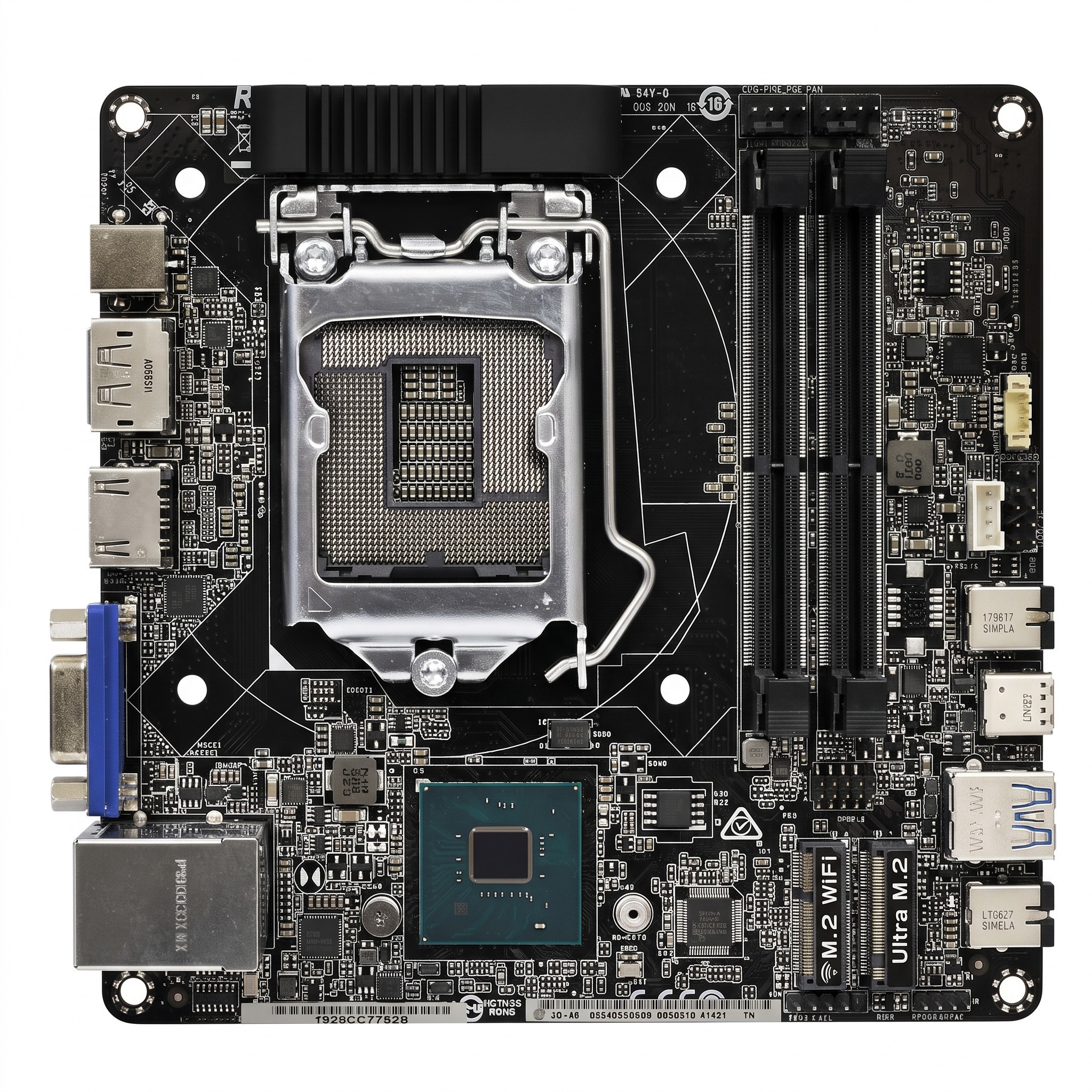

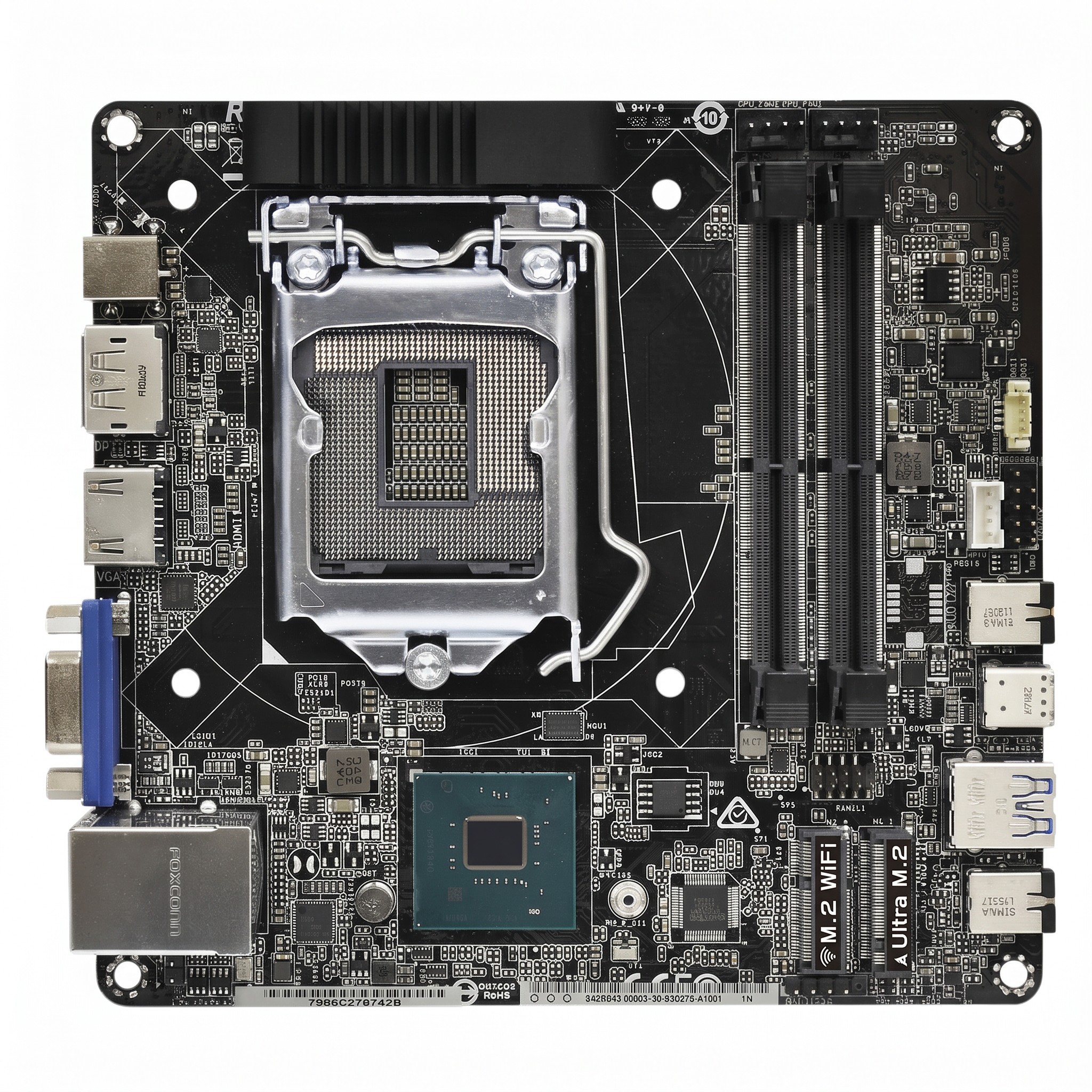

This used black motherboard in Mini-STX format with Intel H310 chipset and LGA 1151 socket is designed for building a small computer that fits on a desk, behind a monitor, or on a shelf. It is suitable for office work, a home multimedia centre, and a quiet computer for internet and films. The two slots for notebook SO-DIMM modules accommodate DDR4 memory, which operates in dual-channel mode and achieves a total capacity of up to 64 GB. The board features an M.2 slot for a wireless Wi-Fi and Bluetooth module and a second Ultra M.2 slot for an SSD. The monitor connects via HDMI, DisplayPort, or VGA, ensuring that the image is provided by the graphics integrated into the processor.

  • Memory – 2 DDR4 SO-DIMM slots in dual-channel configuration, supporting frequencies of 2133, 2400, and 2666 MHz, Intel XMP 2.0 profiles, and a maximum capacity of 64 GB; the board works with non-ECC and unbuffered memory.
  • M.2 Slots – M.2 Key E slot for Wi-Fi and Bluetooth modules of size 2230 with support for Intel CNVi and a separate Ultra M.2 slot for a fast SSD.

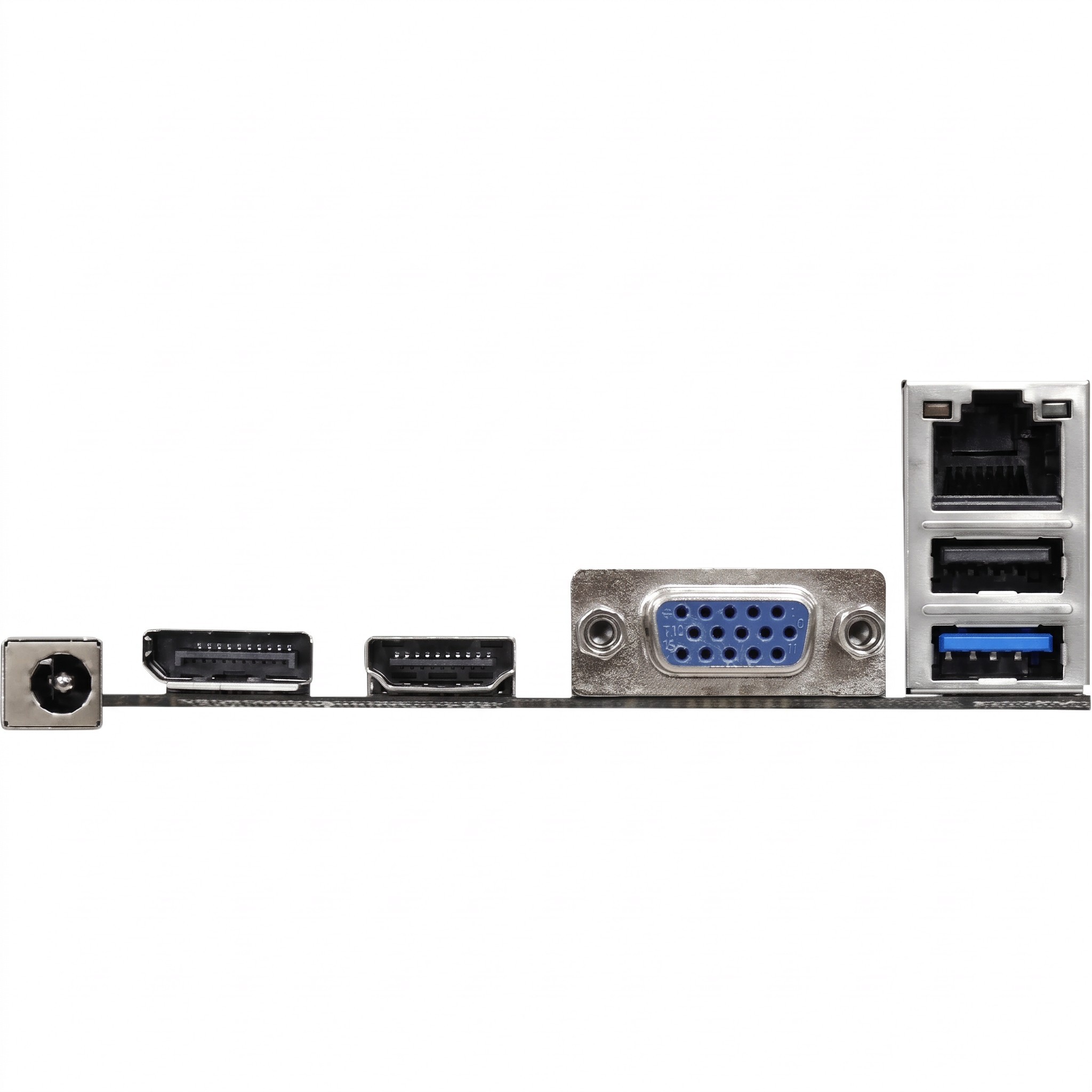

  • Rear Panel – DC power connector, DisplayPort, HDMI, VGA, RJ45 network port, 1x USB 2.0 and 1x USB 3.0.

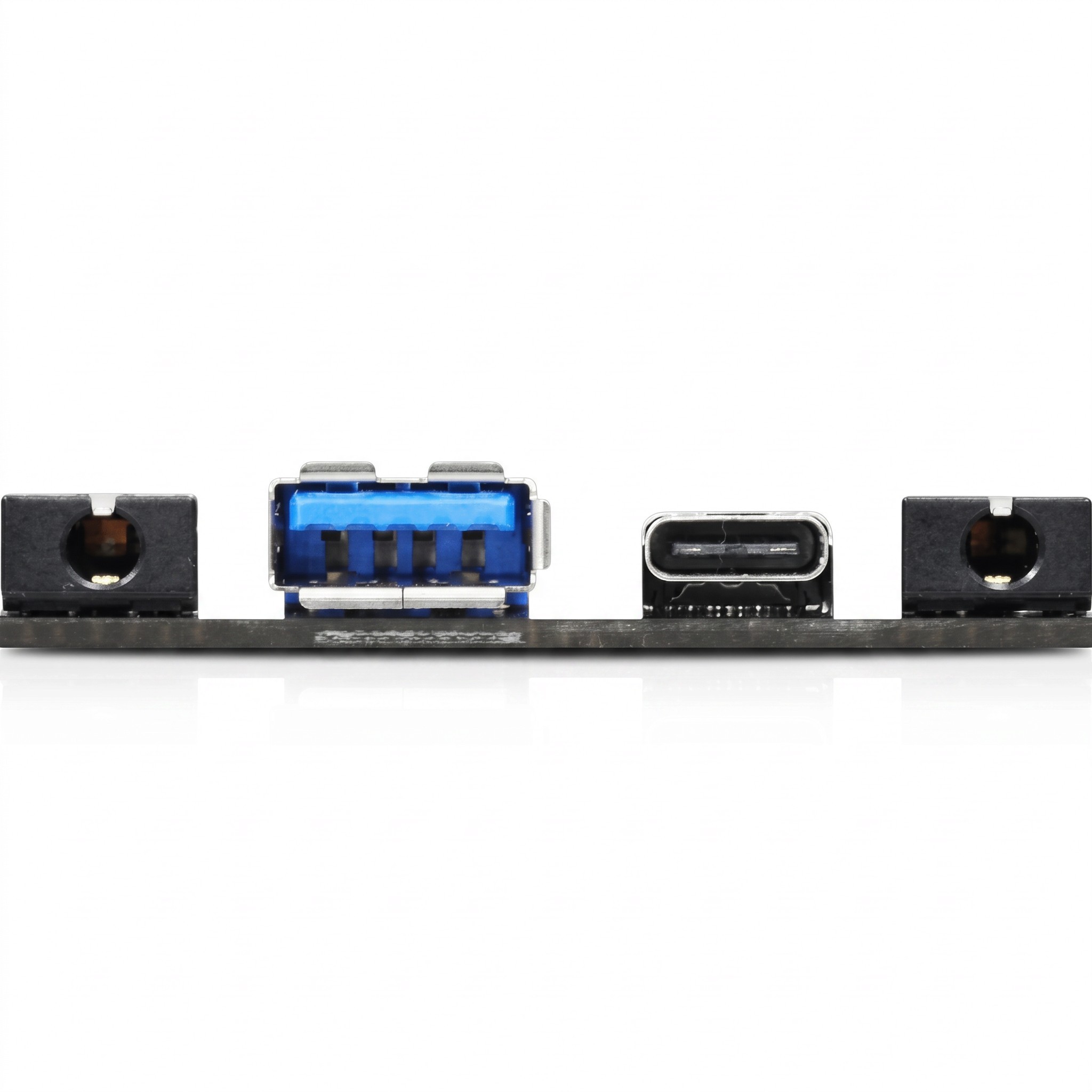

  • Front Connectors – USB 3.0, USB-C, and two audio jack connectors for headphones and microphone, which are accessible from the front when mounted in a Mini-STX case.

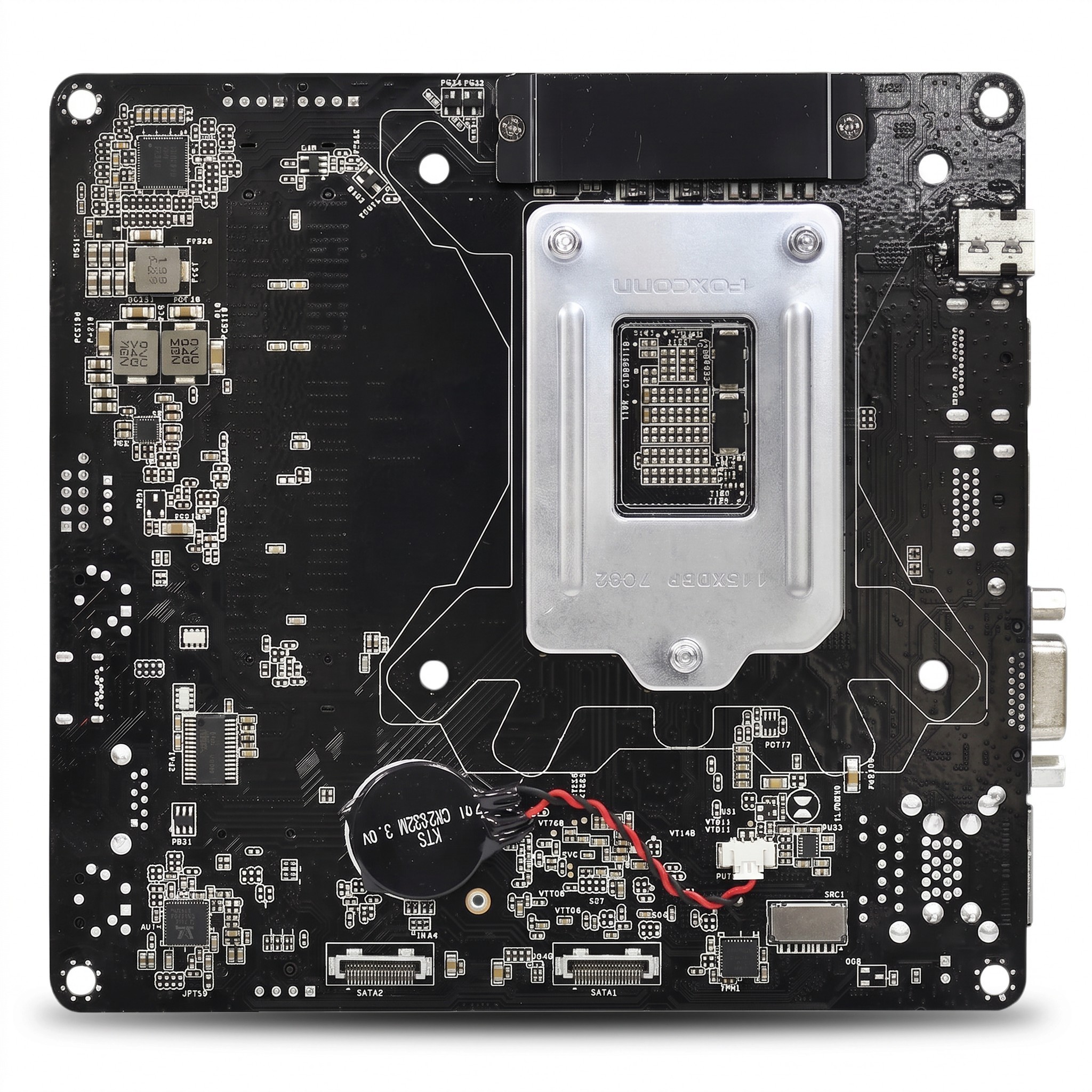

  • Additional Connections – on the underside of the board are 2 SATA connectors for connecting additional drives and a CR2032 battery for BIOS connected by cable, with 2 connectors for CPU cooler fans on the top side.
  • BIOS – graphical UEFI interface with language selection, memory voltage settings, and support for waking the computer according to ACPI 6.0 standards.

Package Contents:

  • 1x used motherboard

This used Mini-STX board allows you to build a fully functional desktop computer with a replaceable processor in the LGA 1151 socket, which takes up only a small amount of space compared to a standard case. Notebook SO-DIMM memory and an SSD in the Ultra M.2 slot keep the overall dimensions of the setup to a minimum while ensuring fast booting of the system and applications. Wireless internet connectivity can be enhanced by inserting a Wi-Fi module into the M.2 Key E slot, without the need for a USB adapter. The trio of outputs HDMI, DisplayPort, and VGA facilitates the connection of both older and newer monitors, televisions, and projectors, while the USB-C and USB 3.0 connectors on the front serve for quick connection of flash drives and peripherals. Thanks to powering via the DC connector, the computer can operate without a traditional computer power supply.
