Universal Car Air Conditioning 24 V Cooling and Heating 13700 Btu/h 32 Pass All-Aluminium Coil
You already have the maximum available quantity in your cart.
The universal car air conditioning system is a complete kit for retrofitting air conditioning in vehicles with a 24 V electrical system. The system manages cooling and heating and achieves a cooling capacity of 13700 Btu/h, making it usable all year round. The core of the evaporator unit consists of a 32-pass all-aluminium coil that transfers heat between the medium and the air flowing into the cabin. The black evaporator is installed under the dashboard and features four round adjustable vents on the front for directing the airflow. The packaging includes a compressor and condenser, as well as a valve, T-pieces, dehydrator, and connecting hoses, forming a complete circuit.
Features:
- Cooling and heating — the unit operates in two modes with a cooling capacity of 13700 Btu/h.

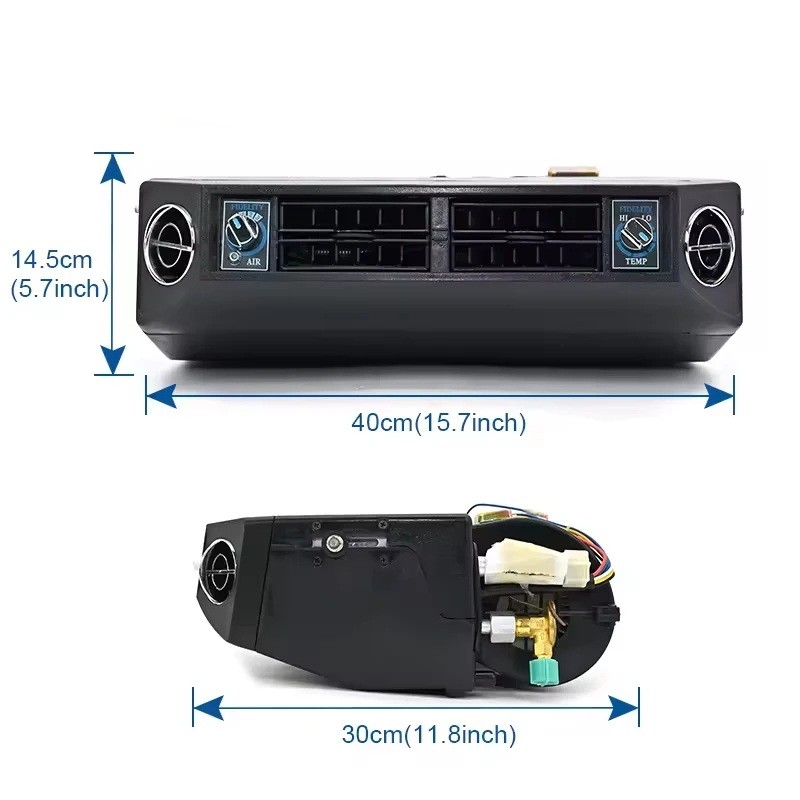

- Evaporator unit — black casing designed for installation under the dashboard, with four round air vents on the front.
- All-aluminium coil — the evaporator uses a 32-pass all-aluminium construction designed for heat transfer in the circuit.

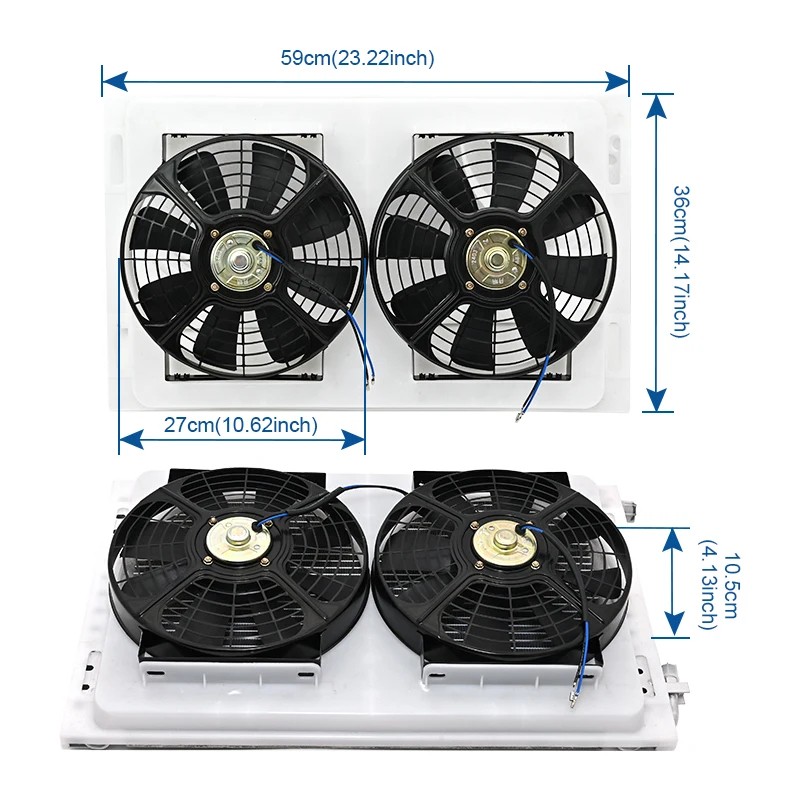

- Condenser with fans — assembly of the casing with fans measuring 59 x 36 x 10.5 cm, with an individual fan diameter of 27 cm.

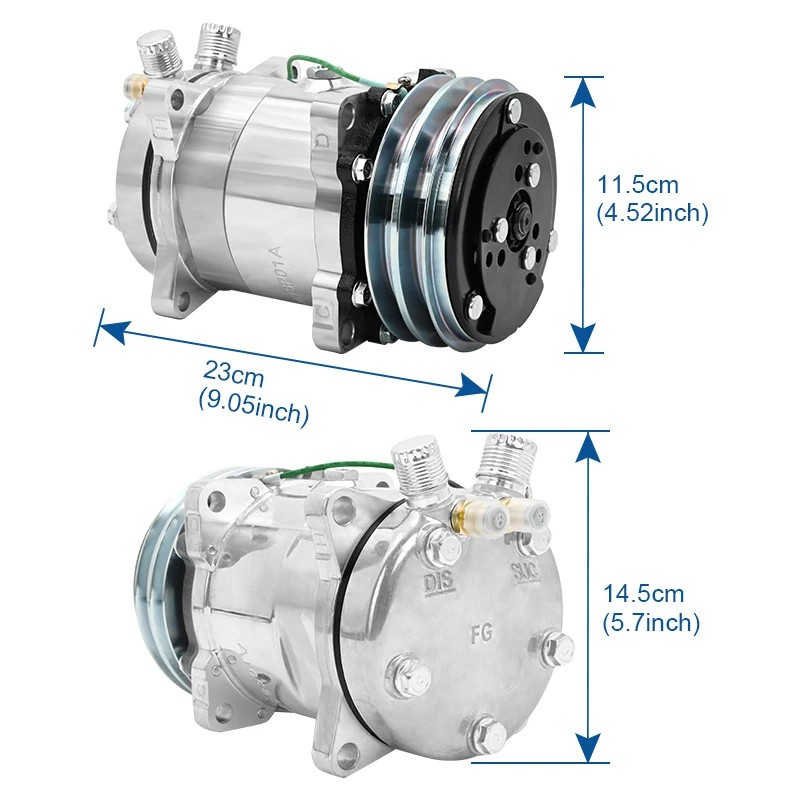

- Compressor — dimensions 23 x 14.5 x 11.5 cm, dual-groove pulley and electromagnetic clutch.
- Valve and T-pieces — brass T-pieces and valve for connecting the heating circuit with hoses.
- Adjustable vents — four rotating round vents allow for the distribution of cooled or heated air into the cabin space.
- Power supply 24 V — fans, relay, and compressor clutch are designed for a 24 V electrical system, with connection facilitated by a pair of relays with wiring.
- Mounting accessories — ten hose clamps, metal brackets, dehydrator mount, and a set of sealing O-rings.

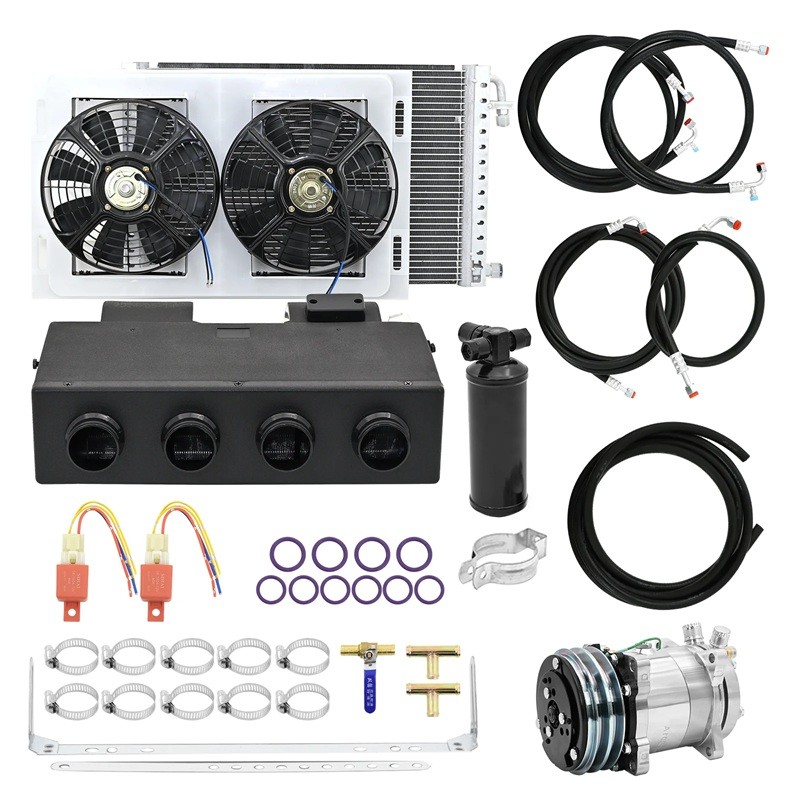

Package contents:
- 1x evaporator unit
- 1x condenser
- 1x fan cover
- 2x fan
- 1x compressor
- 1x dehydrator
- 1x dehydrator mount
- 4x hoses with fittings
- 1x rubber hose
- 1x valve
- 2x T-piece
- 2x relay with wiring
- 10x hose clamp
- 2x mounting bracket
- 8x O-ring
The universal air conditioning kit is designed for retrofitting in vehicles that do not have air conditioning from the factory, and thanks to the heating mode, it also serves in cold periods. The core of the system is the 32-pass all-aluminium coil of the evaporator complemented by a condenser with two fans of 27 cm diameter. The black evaporator unit with four round vents is installed under the dashboard, from where it distributes conditioned air into the cabin. The package includes a compressor, hoses, valve, T-pieces, dehydrator, relay, and small mounting materials, so there is no need to purchase individual parts separately. The entire system is designed for a 24 V electrical system, and it is advisable to entrust the refrigerant filling and circuit commissioning to a professional service.
