Universal Car Air Conditioning 12 V Cooling and Heating 13700 Btu/h 32 Passage Full Aluminium Coil
You already have the maximum available quantity in your cart.
The universal car air conditioning system is a complete kit for retrofitting air conditioning into vehicles with a 12 V electrical system. The system handles cooling and heating and achieves a cooling capacity of 13700 Btu/h, making it usable throughout the year. The core of the evaporator unit consists of a 32-passage all-aluminium coil, which transfers heat between the medium and the air flowing into the cabin. The black evaporator is installed under the dashboard and features four round adjustable vents on the front for directing the airflow. The packaging includes not only the compressor and condenser but also a valve, T-pieces, dehydrator, and connecting hoses, thus forming a complete circuit.
Features:
- Cooling and Heating — the unit operates in two modes and achieves a cooling capacity of 13700 Btu/h.
- Evaporator Unit — black casing designed for installation under the dashboard, with four round air vents on the front.
- All-Aluminium Coil — the evaporator uses a 32-passage all-aluminium construction designed for heat transfer in the circuit.

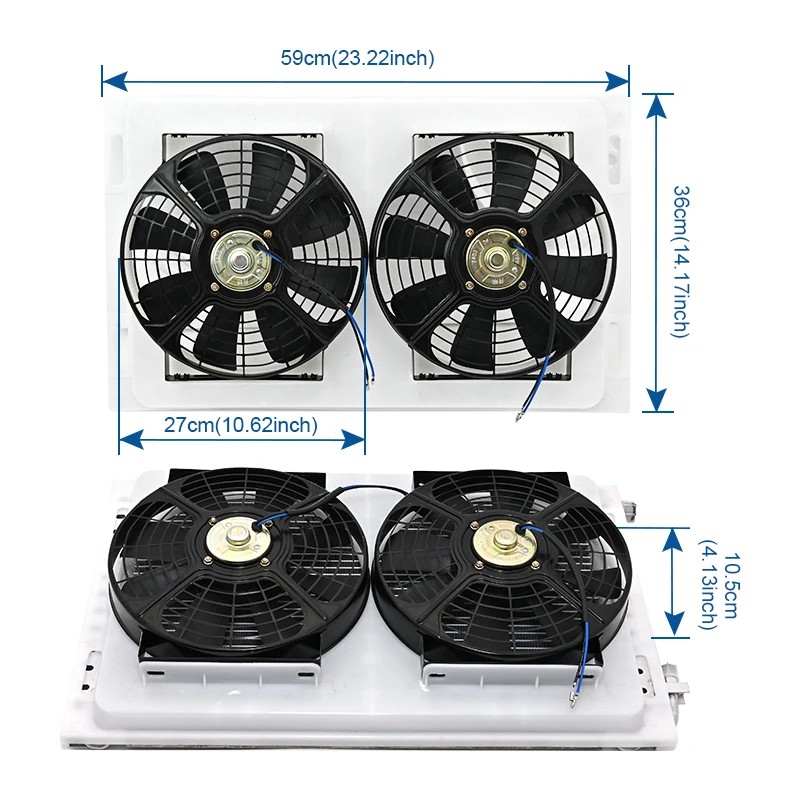

- Condenser with Fans — assembly with fan housing measuring 59 x 36 x 10.5 cm, with an individual fan diameter of 27 cm.

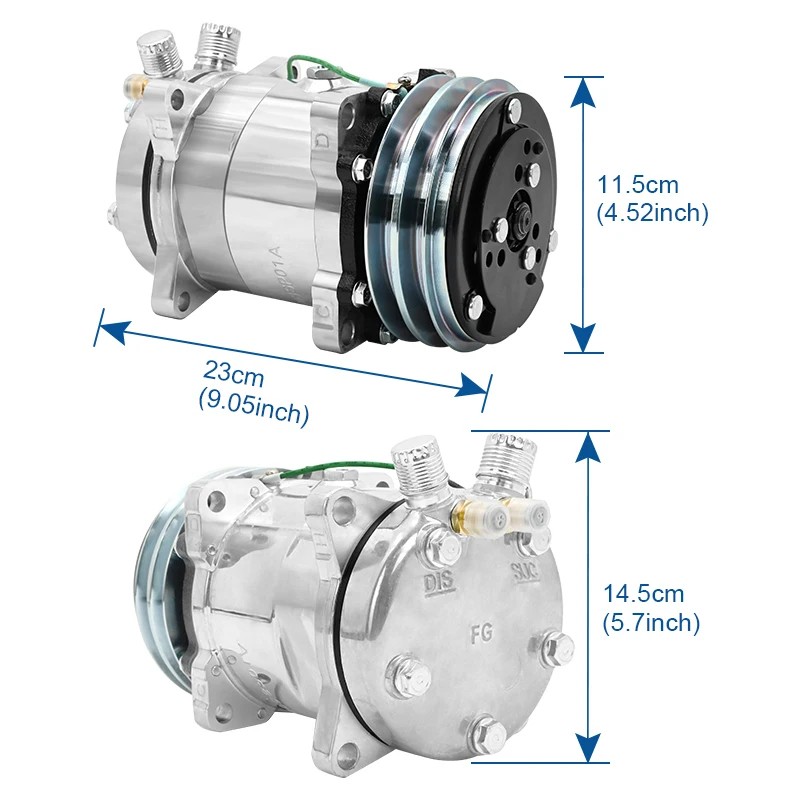

- Compressor — dimensions 23 x 14.5 x 11.5 cm, dual-groove pulley and electromagnetic clutch.
- Valve and T-Pieces — brass T-pieces and valve are used to connect the heating circuit with the hoses.
- Adjustable Vents — four rotating round vents allow for the distribution of cooled or heated air into the cabin space.
- 12 V Power Supply — fans, relay, and compressor clutch are designed for a 12 V electrical system, with connection facilitated by a pair of relays with wiring.
- Mounting Accessories — ten hose clamps, metal brackets, dehydrator bracket, and a set of sealing O-rings.

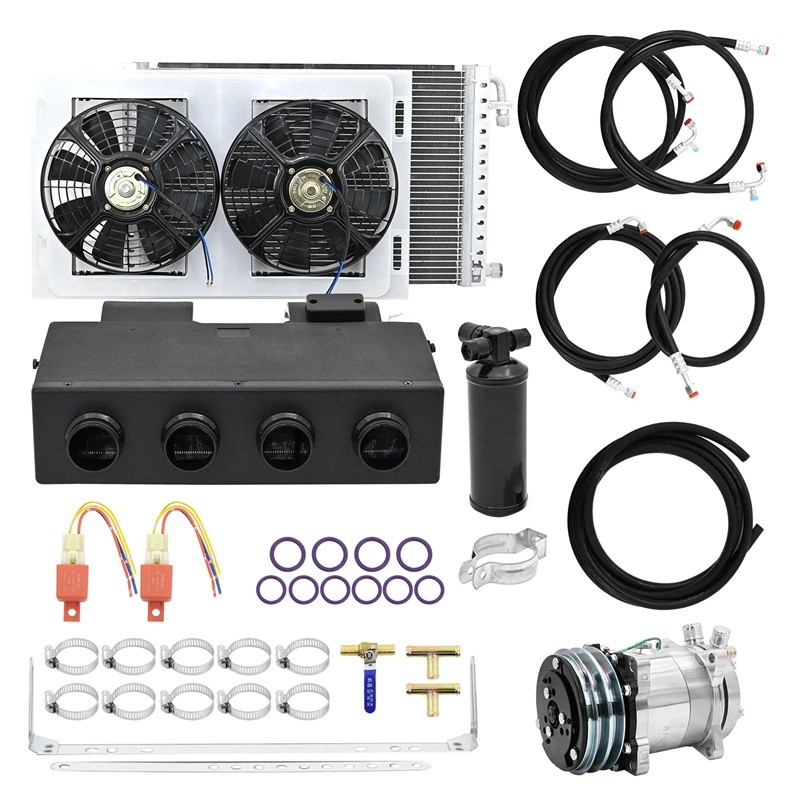

Package Contents:
- 1x evaporator unit
- 1x condenser
- 1x fan housing
- 2x fan
- 1x compressor
- 1x dehydrator
- 1x dehydrator bracket
- 4x hoses with fittings
- 1x rubber hose
- 1x valve
- 2x T-piece
- 2x relay with wiring
- 10x hose clamp
- 2x mounting bracket
- 8x O-ring
The universal air conditioning kit is intended for retrofitting into vehicles that do not have factory-installed air conditioning, and thanks to the heating mode, it also serves during colder periods. The core of the system is the 32-passage all-aluminium coil of the evaporator complemented by a condenser with two fans with a diameter of 27 cm. The black evaporator unit with four round vents is installed under the dashboard, from where it distributes conditioned air into the cabin. The package includes a compressor, hoses, valve, T-pieces, dehydrator, relay, and small mounting materials, so there is no need to purchase individual parts separately. The entire system is designed for a 12 V electrical system, and the refrigerant filling and commissioning of the circuit should ideally be entrusted to a professional service.
