TL-G12B Fan 120 x 120 x 25 mm with 4pin PWM Control and Hydraulic Bearing 1500 RPM 62.6 CFM Black for PC Case

TL-G12B Fan 120 x 120 x 25 mm with 4pin PWM Control and Hydraulic Bearing 1500 RPM 62.6 CFM Black for PC Case

120 mm fan with PWM control and hydraulic bearing. At 1500 RPM, it delivers up to 62.6 CFM of air with a noise level of no more than 23.6 dBA. Full description
In stock
Delivery €1.59
30-day return policy
€27.47
Safe shopping Safe shopping
Overview
TL-G12B Fan 120 x 120 x 25 mm with 4pin PWM Control and Hydraulic Bearing 1500 RPM 62.6 CFM Black for PC Case

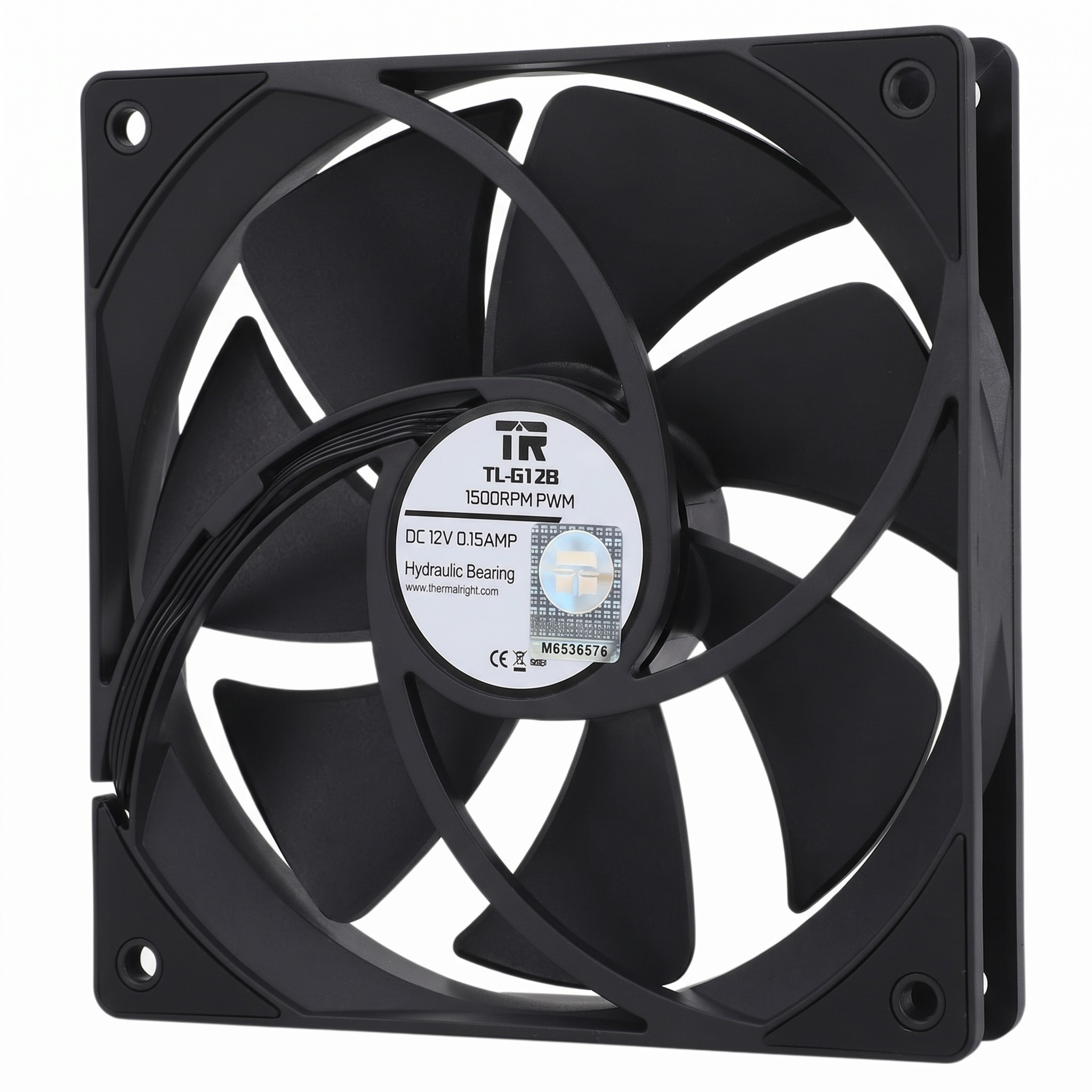

The TL-G12B fan in a 120 mm format is designed for computer cases as a replacement for an ageing fan or to enhance airflow. It connects via a 4pin PWM connector, allowing the motherboard to smoothly control its speed based on component temperature. At a rated speed of 1500 RPM, it delivers up to 62.6 CFM of air while maintaining a noise level of no more than 23.6 dBA. The rotor is housed in a hydraulic bearing and is powered by 12 V DC with a current draw of 0.15 A. The frame measures 120 x 120 x 25 mm and both the frame and blades are in black.

  • PWM Control – the fourth pin of the connector transmits a control signal from the motherboard. The speed automatically decreases under low load and increases when the processor or graphics card requires more cooling. The fan can also be connected to a hub with PWM ports.
  • Performance and Noise – rated speed is 1500 RPM with a tolerance of ±10%. Maximum airflow reaches 62.6 CFM, static pressure is 1.78 mm H2O, and maximum noise level is 23.6 dBA.
  • Hydraulic Bearing – the rotor spins in a bearing with a liquid layer that dampens friction between the shaft and housing. The type of bearing is specified in the technical parameters of the fan along with speed, airflow, and noise level.
  • Power Supply – the fan operates at 12 V DC with a rated current of 0.15 A. The low power consumption allows it to be connected to a standard fan header on the motherboard or to a hub along with other fans. The total current draw of connected fans should not exceed the capacity of the respective output.

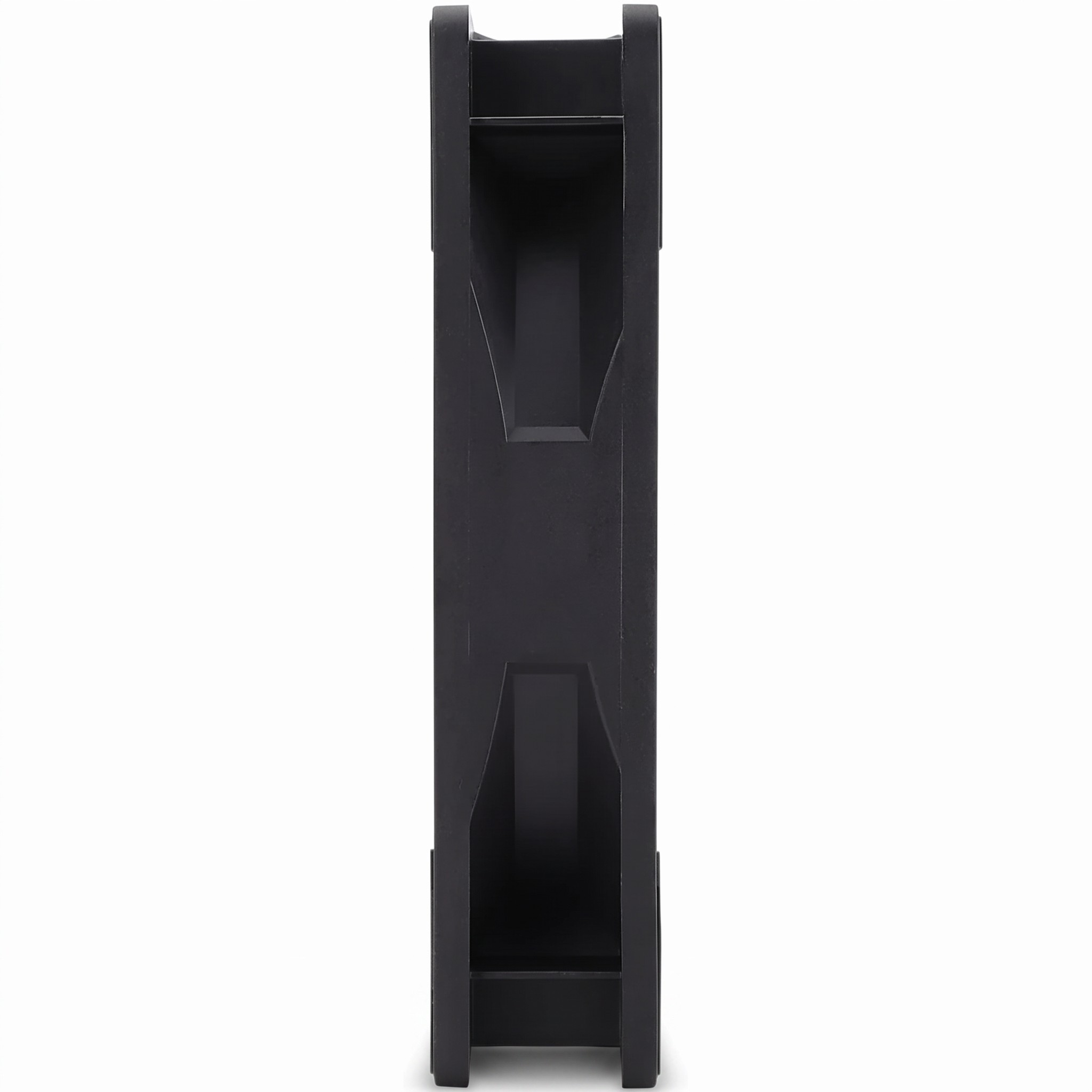

  • Standard Dimensions – the 120 x 120 mm frame with a depth of 25 mm fits the most common mounting positions in PC cases. The holes in the corners are used for screwing onto the front, top, or rear panel of the case.

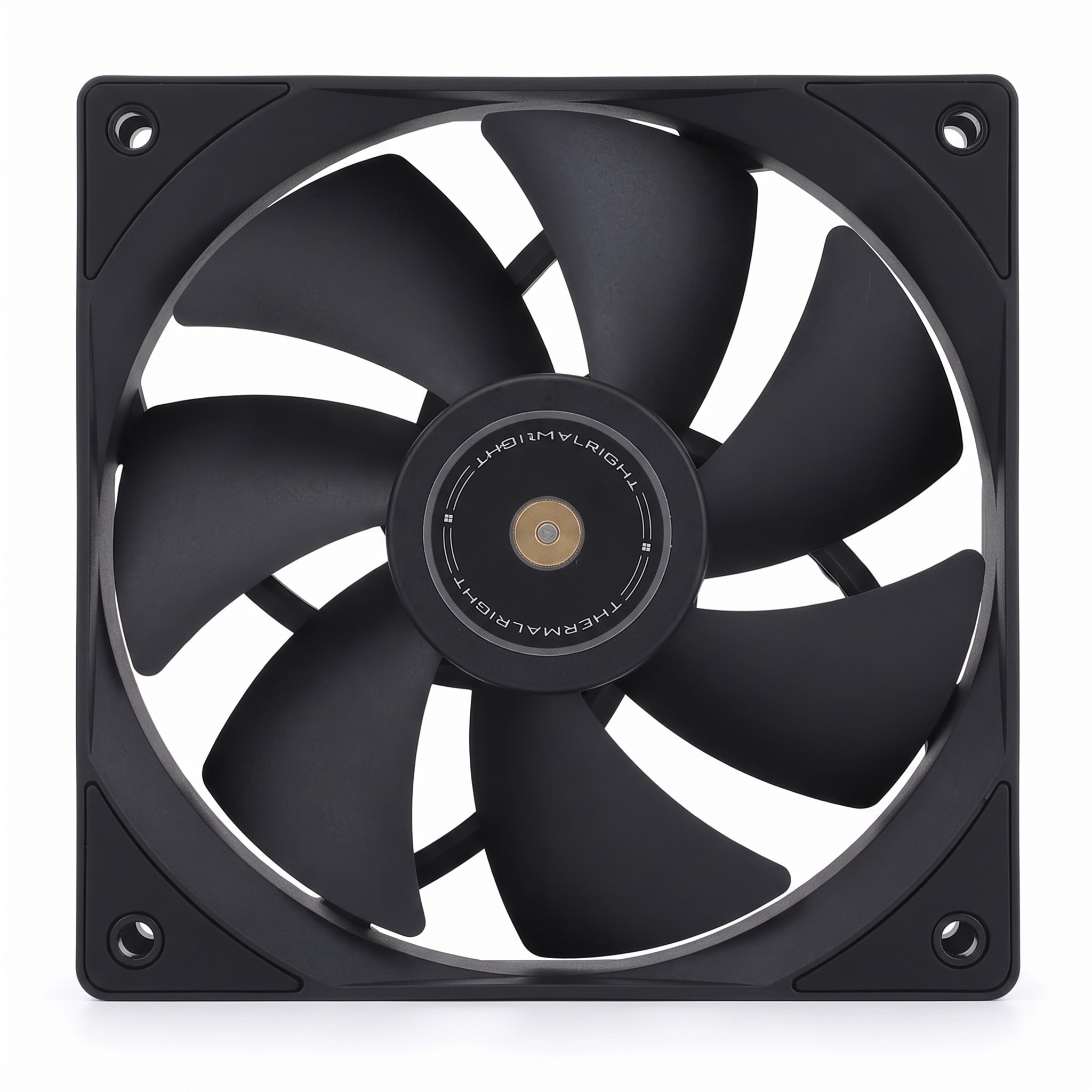

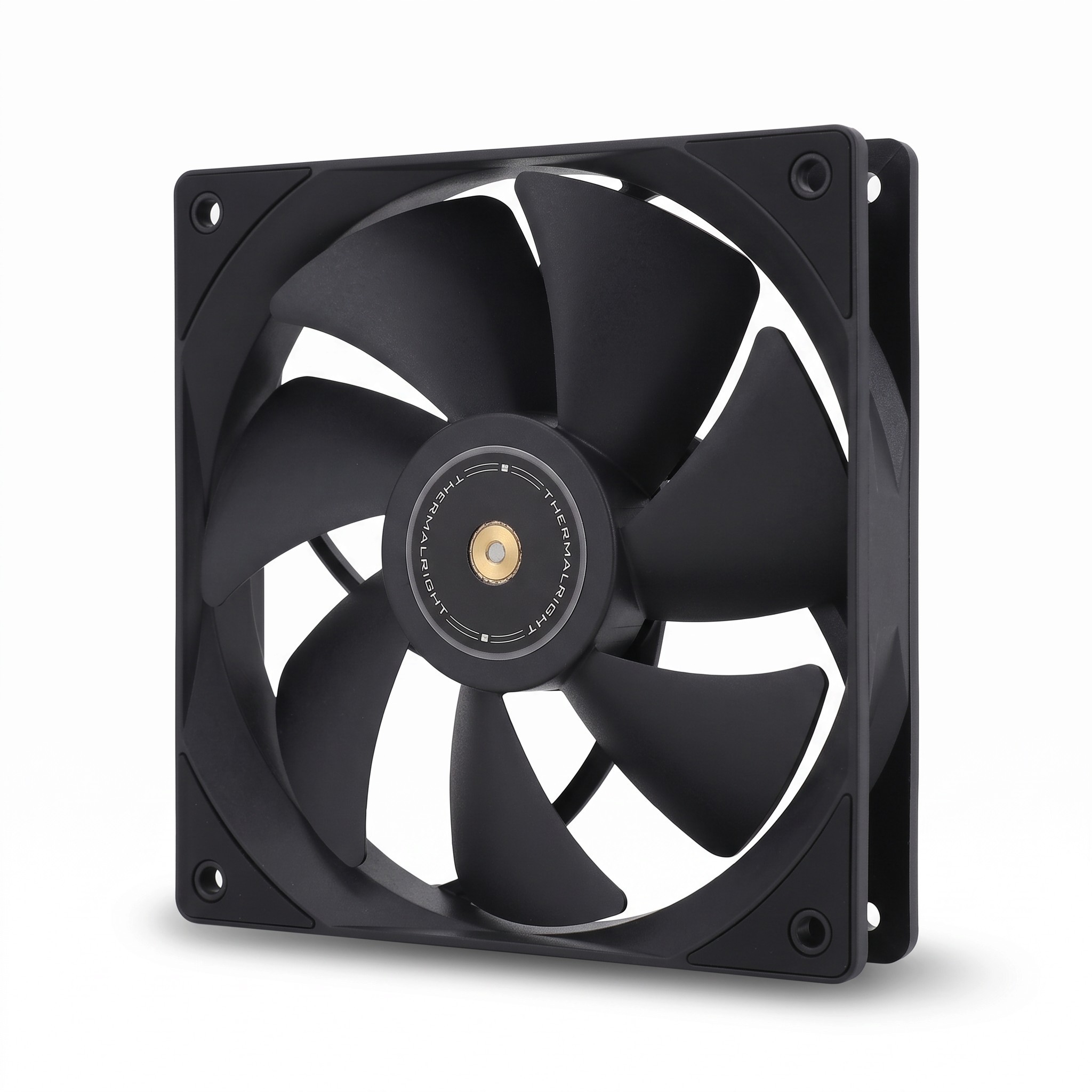

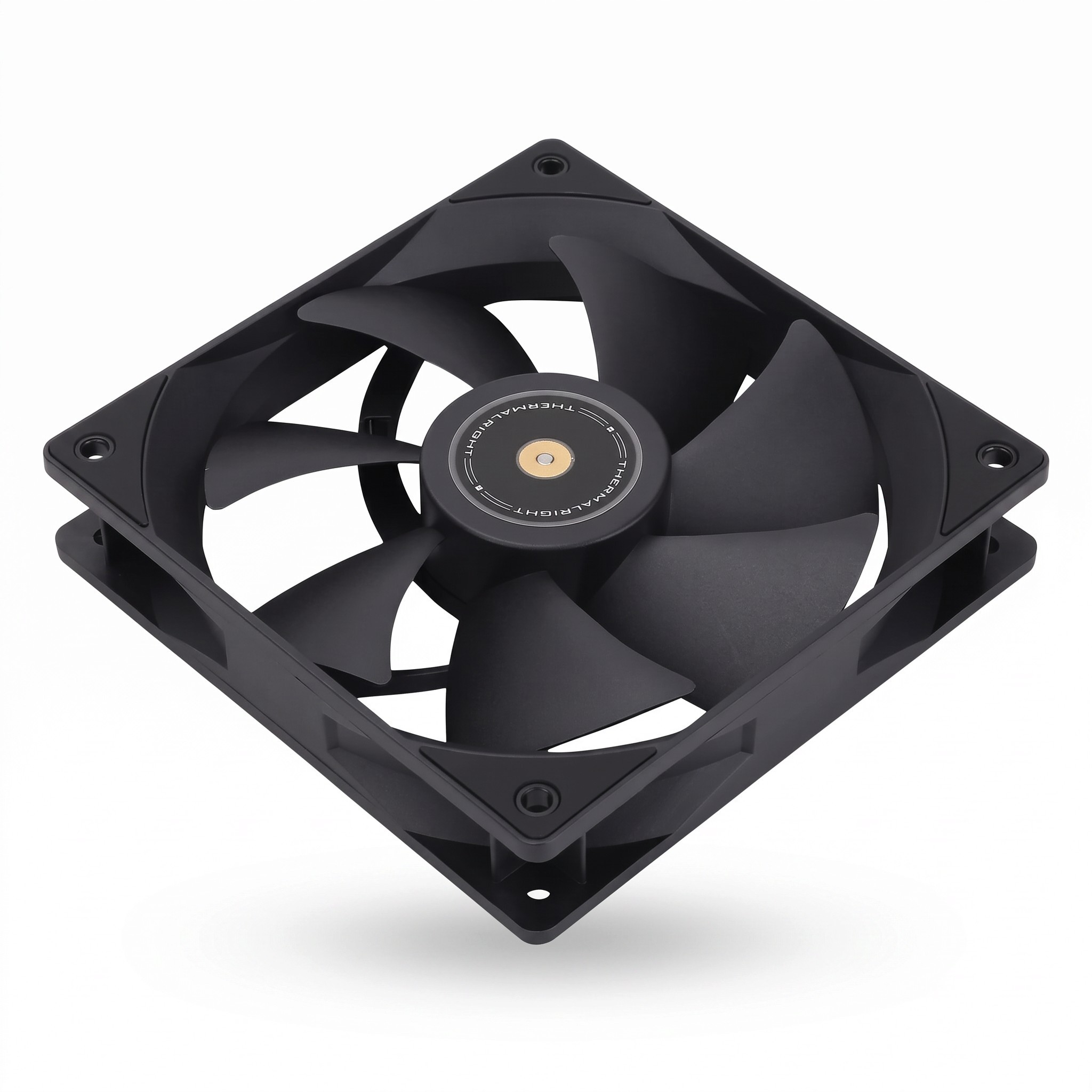

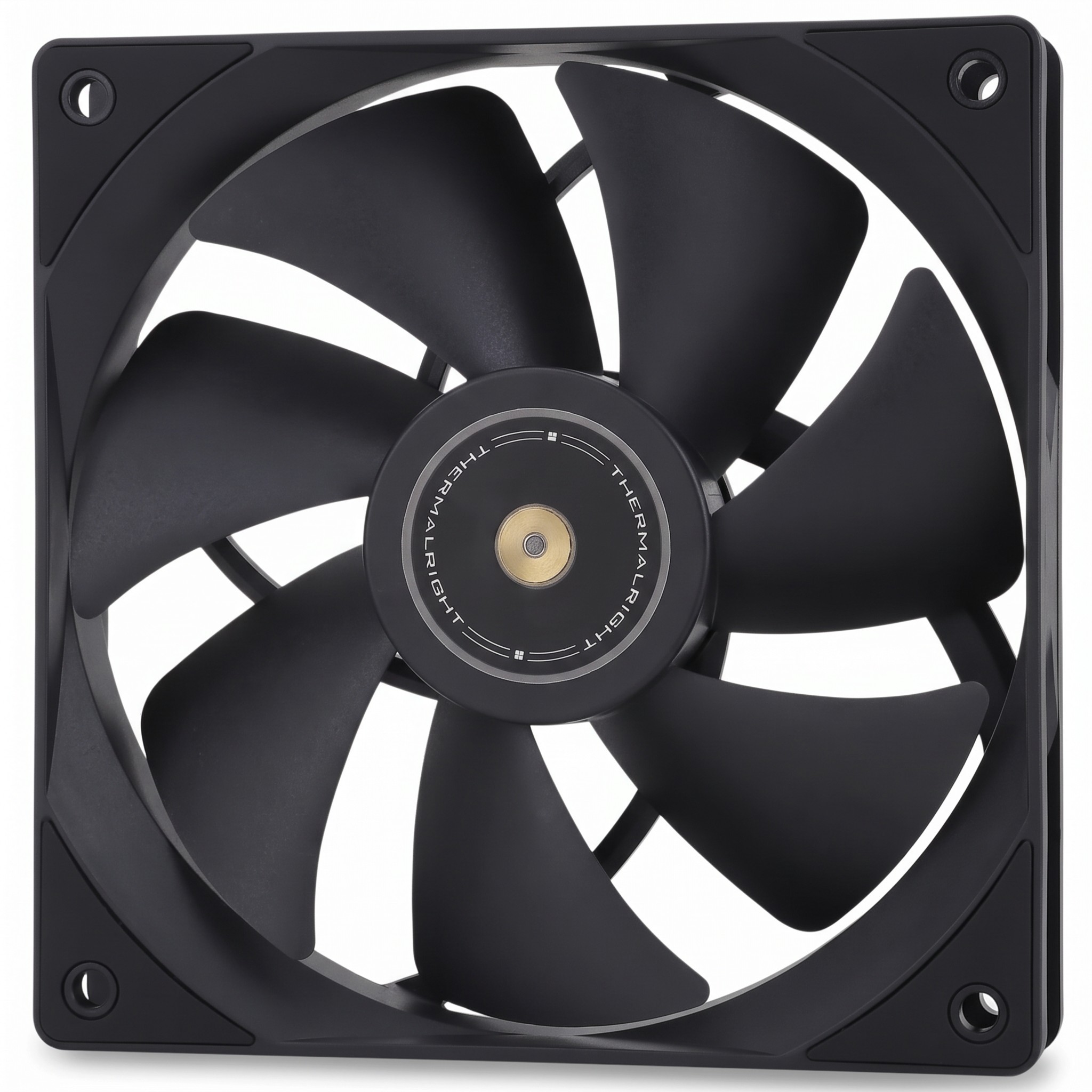

  • Black Finish – both the frame and rotor are entirely black, allowing the fan to blend into darker setups. The centre of the rotor is covered by a circular sticker, and the blades are wide and curved.

Package Contents:

  • 1x TL-G12B fan

The TL-G12B fan is suitable for gaming, work, and office computers where improved heat dissipation is needed or to replace a worn-out unit. Thanks to PWM control, its speed adapts to the current temperature, meaning it does not need to run at full speed during regular use. A static pressure of 1.78 mm H2O and airflow of 62.6 CFM allow it to be used as an intake fan at the front or an exhaust fan at the back or top. When installing, it is advisable to orient the fan so that the airflow direction matches that of other fans in the case. Connecting to a 4pin header on the motherboard or to a PWM hub can be done by anyone in just a few minutes.
