TL-C9 Fan 92 x 92 x 25 mm with 4pin PWM Control 2000 RPM and S-FDB Bearing 12 V 0.16 A Grey for Computer Cases

TL-C9 Fan 92 x 92 x 25 mm with 4pin PWM Control 2000 RPM and S-FDB Bearing 12 V 0.16 A Grey for Computer Cases

Grey 92 mm fan for smaller PC cases. Speed of 2000 RPM controlled via PWM, airflow of 44 CFM and noise level of no more than 27.3 dBA. Full description
In stock
Delivery €1.59
30-day return policy
€25.72
Safe shopping Safe shopping
Overview
TL-C9 Fan 92 x 92 x 25 mm with 4pin PWM Control 2000 RPM and S-FDB Bearing 12 V 0.16 A Grey for Computer Cases

The TL-C9 fan in 92 mm format is designed for computer cases and positions where a standard 120 mm fan cannot fit. The frame measures 92 x 92 x 25 mm and the rotor reaches a nominal speed of 2000 RPM. The rotation speed is controlled by the motherboard via the 4pin PWM connector, allowing it to adapt to the temperature of the components. At maximum speed, it delivers 44 CFM of airflow with a static pressure of 1.43 mm H2O and the noise level does not exceed 27.3 dBA. The light grey frame is complemented by dark grey corners and blades.

  • PWM Control – the fourth wire of the connector transmits the control signal from the motherboard. Under low load, the fan slows down and operates more quietly; at higher temperatures, the speed increases up to the nominal value of 2000 RPM with a tolerance of ±10 %.
  • Performance Parameters – the maximum airflow is 44 CFM, static pressure is 1.43 mm H2O and noise level of no more than 27.3 dBA. These values apply to maximum speed; during normal operation with PWM control, they are usually lower.

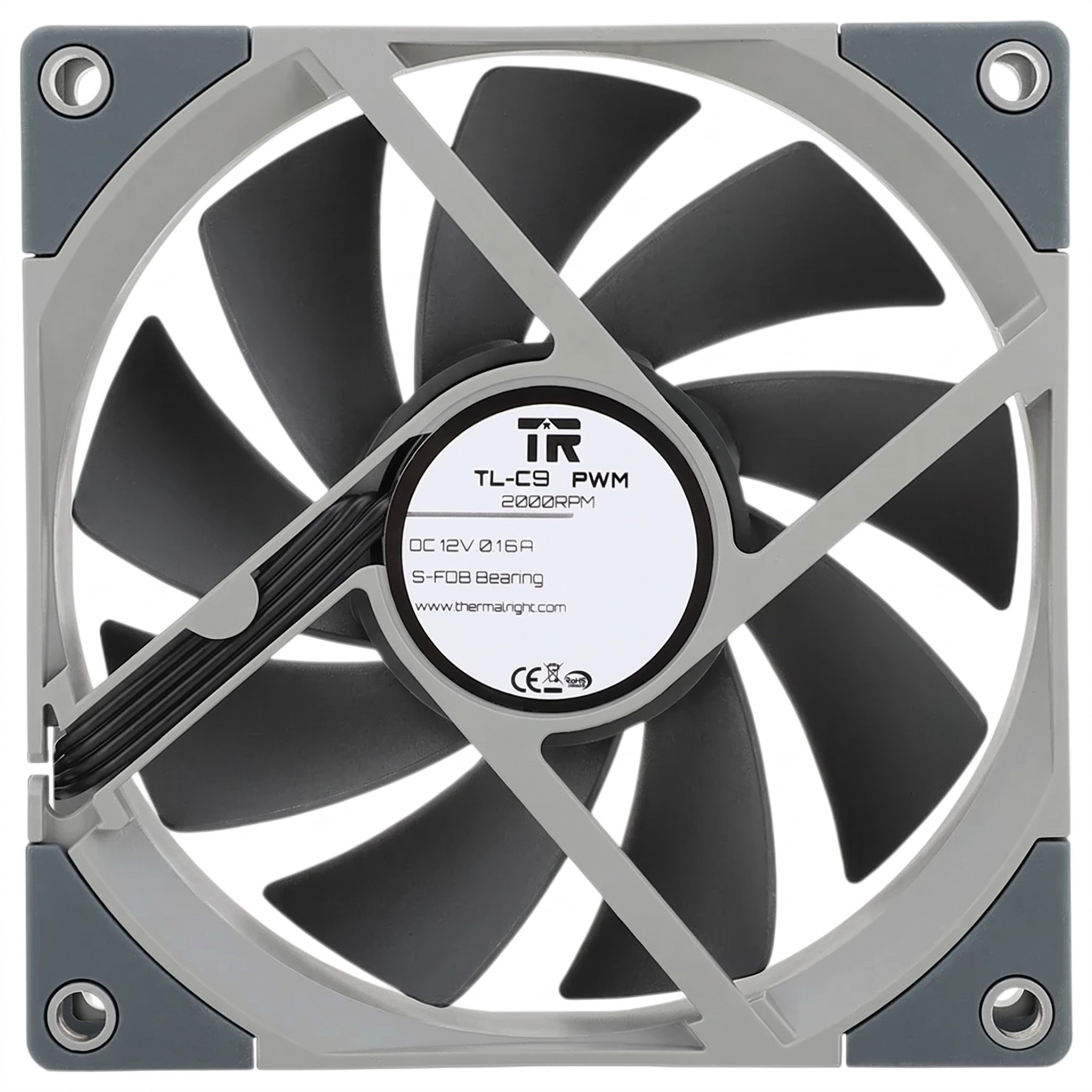

  • S-FDB Bearing – the rotor is mounted in an S-FDB bearing, as indicated on the label on the back of the fan along with the model number, voltage, and current. The label allows for easy verification of the model when purchasing an additional unit for the setup.
  • 12 V DC Power Supply – the nominal current of 0.16 A allows connection to the fan header on the motherboard or to a hub with PWM ports. When connecting multiple fans to one output, their consumption needs to be summed up.
  • 92 mm Size – the smaller format is suitable for compact cases, on the rear wall of smaller setups, or anywhere there is a mounting position for a 92 mm fan. The frame is screwed in through holes in all four corners.
  • Grey Finish – the light grey frame with darker corners and dark grey blades has a neutral appearance and fits well in both light and dark setups.

Package Contents:

  • 1x TL-C9 Fan

The TL-C9 fan is suitable as a replacement for a worn-out 92 mm fan or as an addition for better airflow in a smaller case. With speeds of 2000 RPM and an airflow of 44 CFM, it can effectively dissipate heat even in setups with limited space. The PWM control keeps the fan running at lower speeds during normal operation, speeding up only under load. Connecting to the 4pin header on the motherboard or to a hub is a matter of moments and requires no tools other than a screwdriver for securing the frame. The rotor mounted in the S-FDB bearing and the grey finish of the frame and blades make it a suitable addition for setups in neutral tones.
