ThinkScan Max 2 Car Diagnostics with 6-Inch Display, 28 Service Resets and Bluetooth VCI Black-Red for All System Diagnostics

ThinkScan Max 2 Car Diagnostics with 6-Inch Display, 28 Service Resets and Bluetooth VCI Black-Red for All System Diagnostics

Diagnostics of all vehicle systems, clearing faults and service resets for oil, brakes, and battery. The Bluetooth adapter communicates with the tablet from a distance of up to 10 m. Full description
In stock
Delivery €1.59
30-day return policy
€623.10
Safe shopping Safe shopping
Overview
ThinkScan Max 2 Car Diagnostics with 6-Inch Display, 28 Service Resets and Bluetooth VCI Black-Red for All System Diagnostics

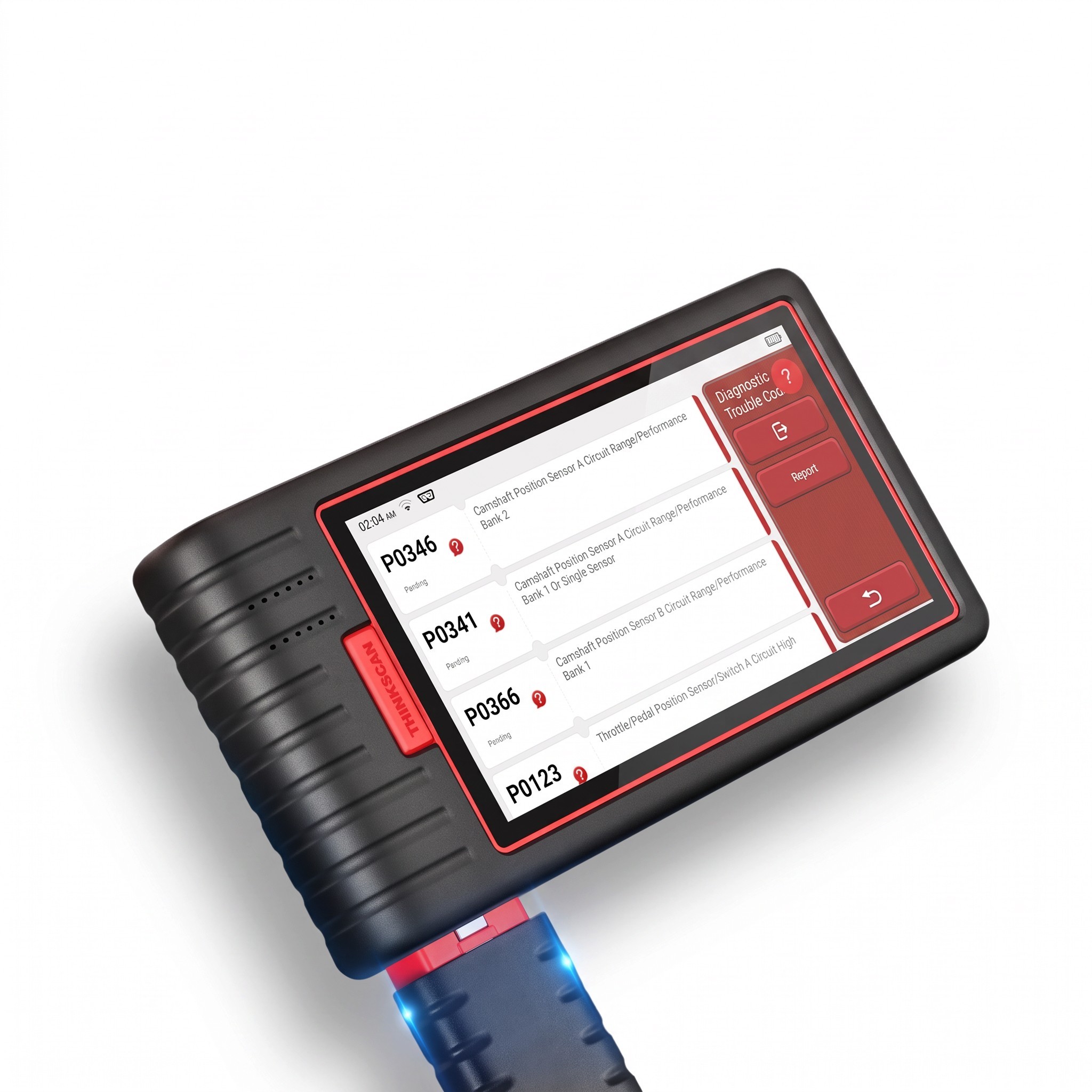

The ThinkScan Max 2 is designed for diagnosing all vehicle systems and performing service tasks from a single device. The tablet features a 6-inch touchscreen display running on Android 10, with 2 GB of RAM and 32 GB of storage. It communicates with the vehicle via a wireless VCI adapter, which plugs into the OBD diagnostic socket and connects to the tablet via Bluetooth at a distance of up to 10 m. In addition to reading and clearing fault codes, it offers 28 service resets, bidirectional tests, and support for the CAN FD protocol. Coverage includes over 93 vehicle brands, and the menu is available in 15 languages.

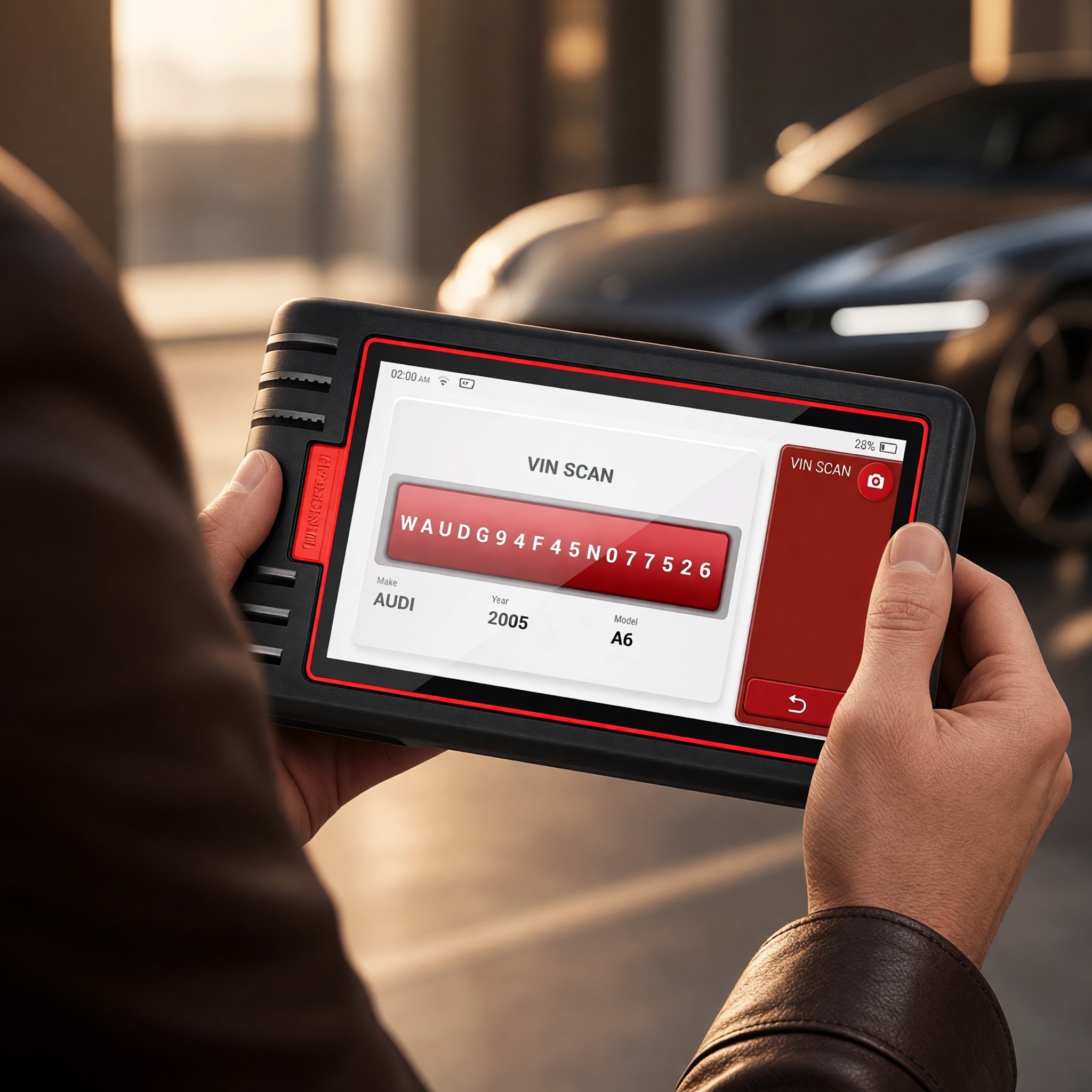

  • All System Diagnostics – the tablet reads the vehicle's VIN with a single touch, checks control units, and automatically generates a diagnostic report. The report can be shared via QR code or email, and can also be printed.
  • Service Functions – resets include oil service interval, electronic parking brake, steering angle sensor calibration, ABS bleeding, and battery registration. Additionally, it supports injector coding, DPF regeneration, TPMS, immobiliser, transmission adaptation, EGR, airbag, and AFS swivelling headlights.
  • Bidirectional Tests – the tablet can activate individual vehicle components and verify their functionality. When communicating with control units, it also supports the CAN FD protocol.
  • OBD2 Functions – all 10 OBD2 modes are available, including turning off the check engine light and resetting monitors. It also displays the readiness status of emission systems and a live data graph with four parameters simultaneously.

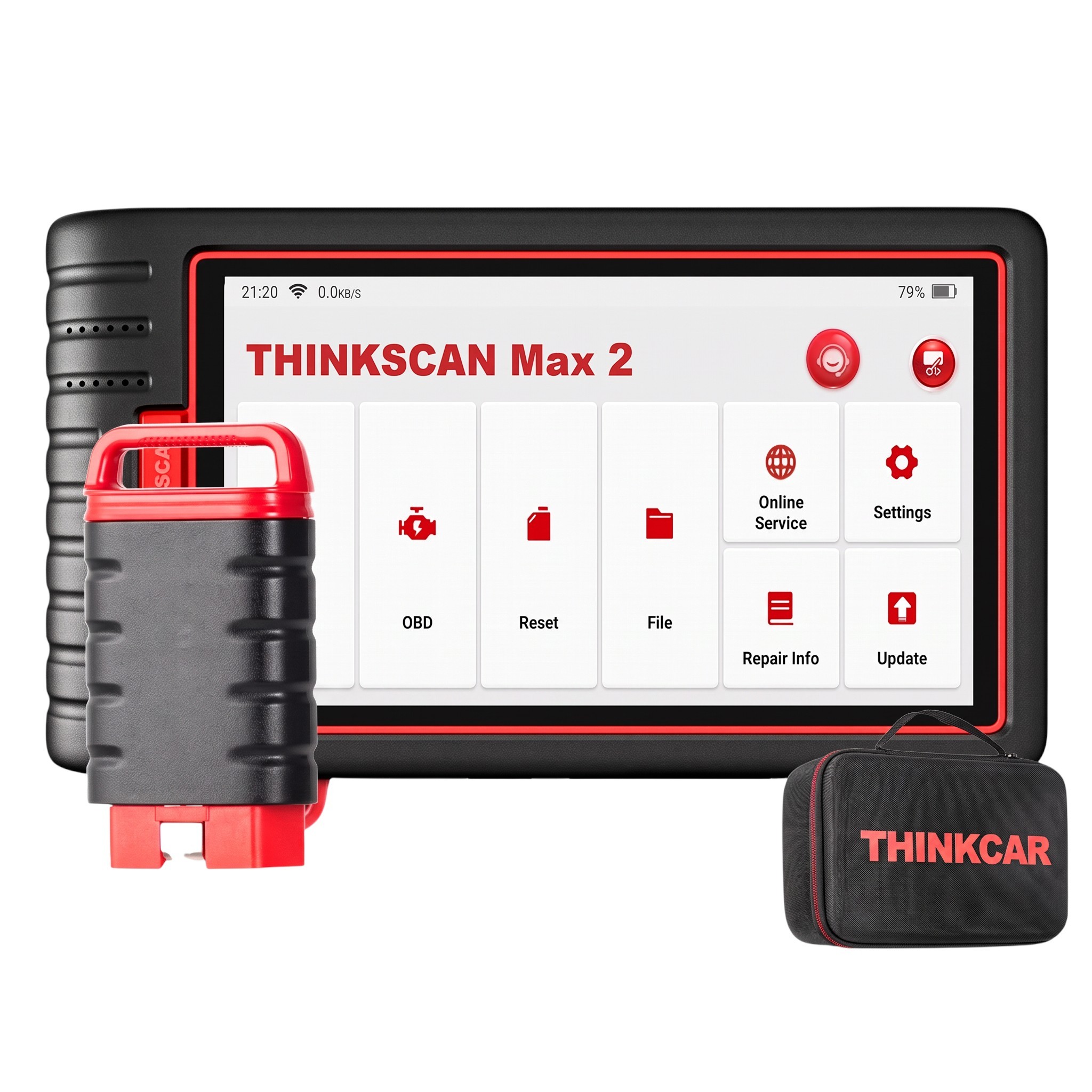

  • Wireless VCI Adapter – the compact black-red adapter plugs into the OBD socket and communicates with the tablet via Bluetooth. This means the tablet is not connected to the vehicle by a cable.

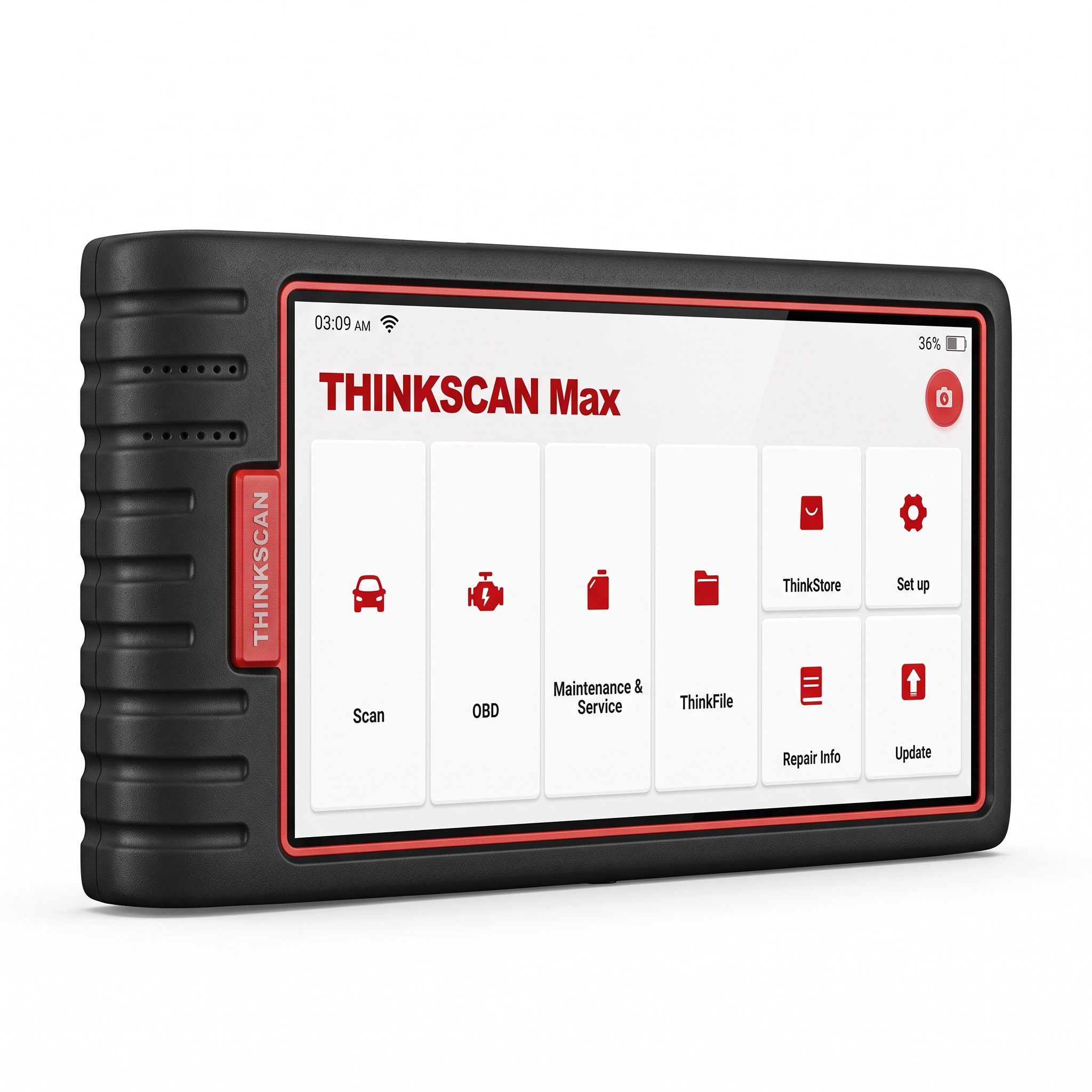

  • Tablet Design – the black body measures 21 x 12 cm and features a red frame around the display, ribbed sides, and a red strap at the bottom.

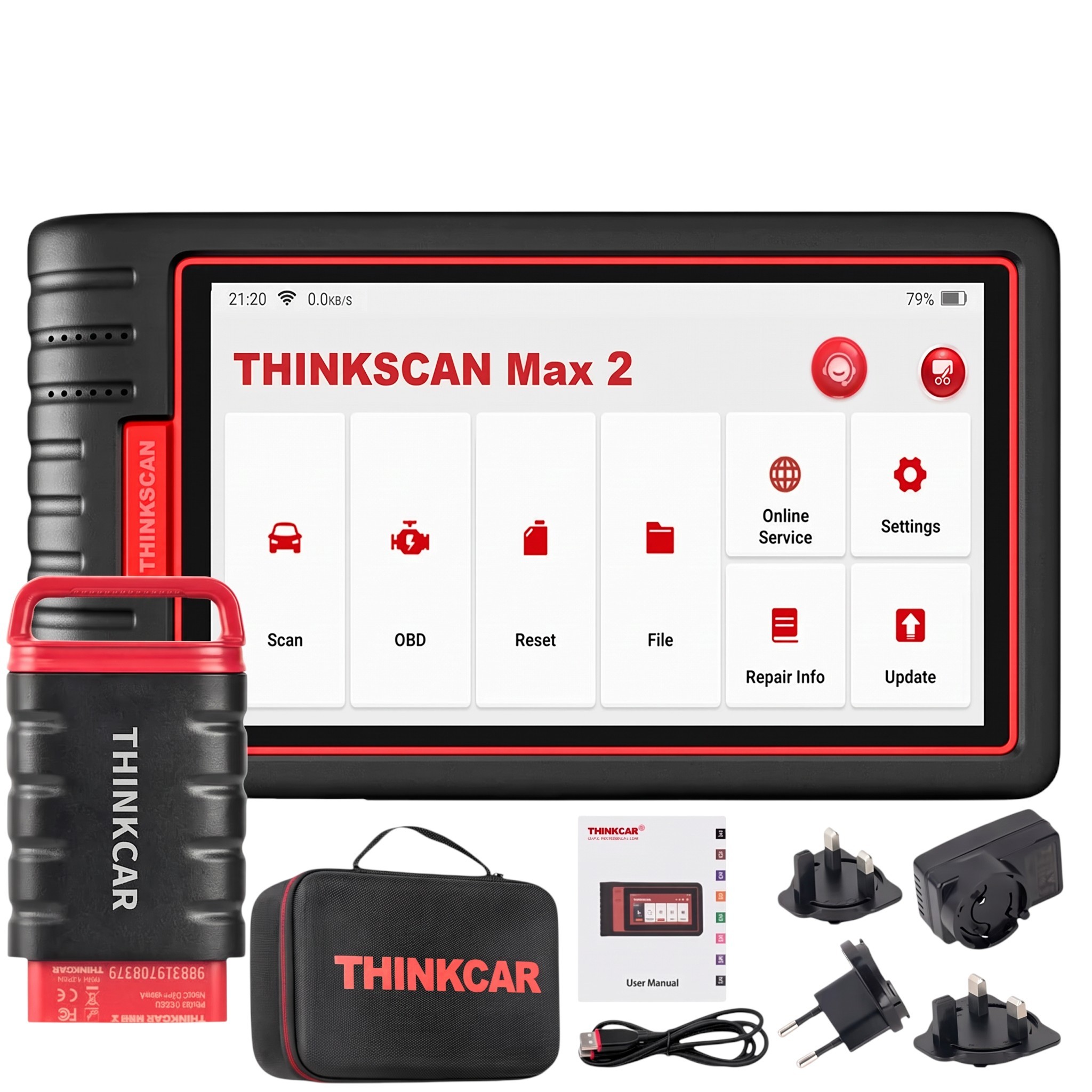

Contents of the Package:

  • 1x ThinkScan Max 2 diagnostic tablet
  • 1x wireless VCI adapter
  • 1x charging cable
  • 1x charging adapter
  • 3x interchangeable plugs
  • 1x storage case

The ThinkScan Max 2 combines all system diagnostics, service resets, and bidirectional tests in one tablet. The wireless connection with the VCI adapter allows you to move around the vehicle with the tablet without a cable leading to the diagnostic socket. Support for over 93 vehicle brands and the CAN FD protocol expands its use to a large portion of commonly repaired vehicles. Diagnostic reports can be saved, shared, and printed, making it easier to convey results. The case and charging accessories with 3 interchangeable plugs allow the tablet to be stored and charged both in the workshop and on the go.
