Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD 1
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD 1
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD 2
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD 3
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD 4
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD 5
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD 6

Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD

The grey sheet 100 x 100 x 3 mm fills the large gap between the chip and the cooler and transfers heat with a conductivity of 21 W/m.K. It is electrically non-conductive and can be cut. Full description
In stock
Delivery €1.59
30-day return policy
€31.40
Safe shopping Safe shopping
Overview
Thick Thermal Conductive Pad 100 x 100 x 3 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive for Cutting Parts for GPU CPU and M.2 SSD

The thick thermal conductive pad measuring 100 x 100 mm is a grey square sheet from which parts for graphics cards, processors, M.2 SSDs, laptops and gaming consoles can be prepared with scissors. With a thickness of 3 mm, it is designed for situations where the cooler is positioned a considerable distance from the component and the space between them needs to be filled. The material with a conductivity of 21 W/m.K transfers heat from the chip to the cooler and, due to its flexibility, conforms well to the surfaces of the components. A blue protective film is adhered to both sides.

  • Square Area 100 x 100 mm – the sheet provides enough material for multiple parts of various sizes. Pads for memory chips and graphics card power supplies, M.2 SSDs, and chips on the motherboard or in the gaming console can be prepared from it.
  • Thickness 3 mm – the layer fills the space in devices where there is a large gap between the chip and the cooler. It is advisable to measure the thickness of the original pad before replacement, as the cooler must sit evenly on all components after installation.
  • Conductivity 21 W/m.K – the pad is intended for components that heat up significantly under load, such as graphics memory, power circuits, processors, and SSD controllers. It transfers heat across the entire area covered by the part.
  • No Electrical Conductivity – the material is electrically non-conductive and the specification table states breakdown voltage of at least 9.8 kV per 1 mm. Therefore, the pad can be placed directly on mounted components of the printed circuit board.

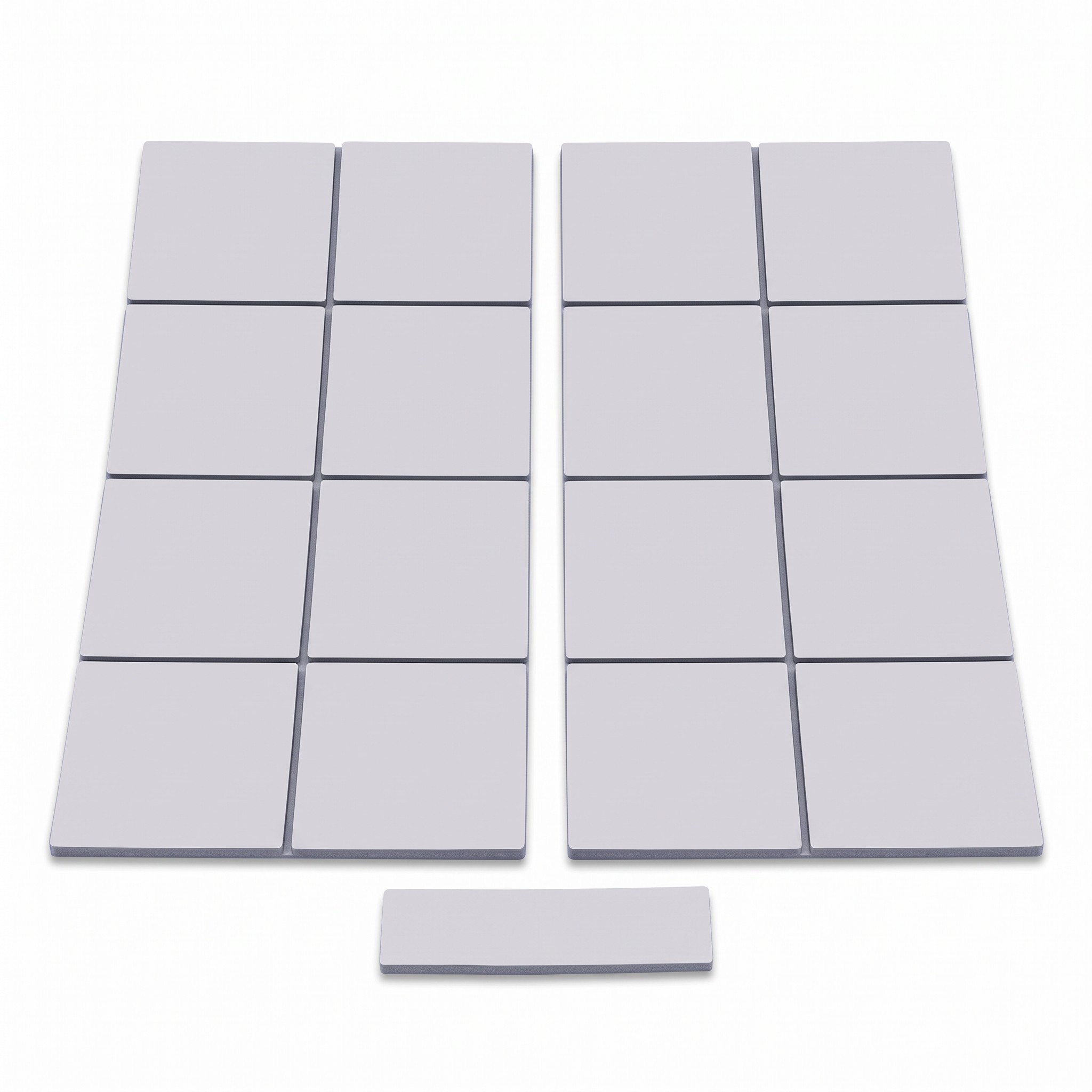

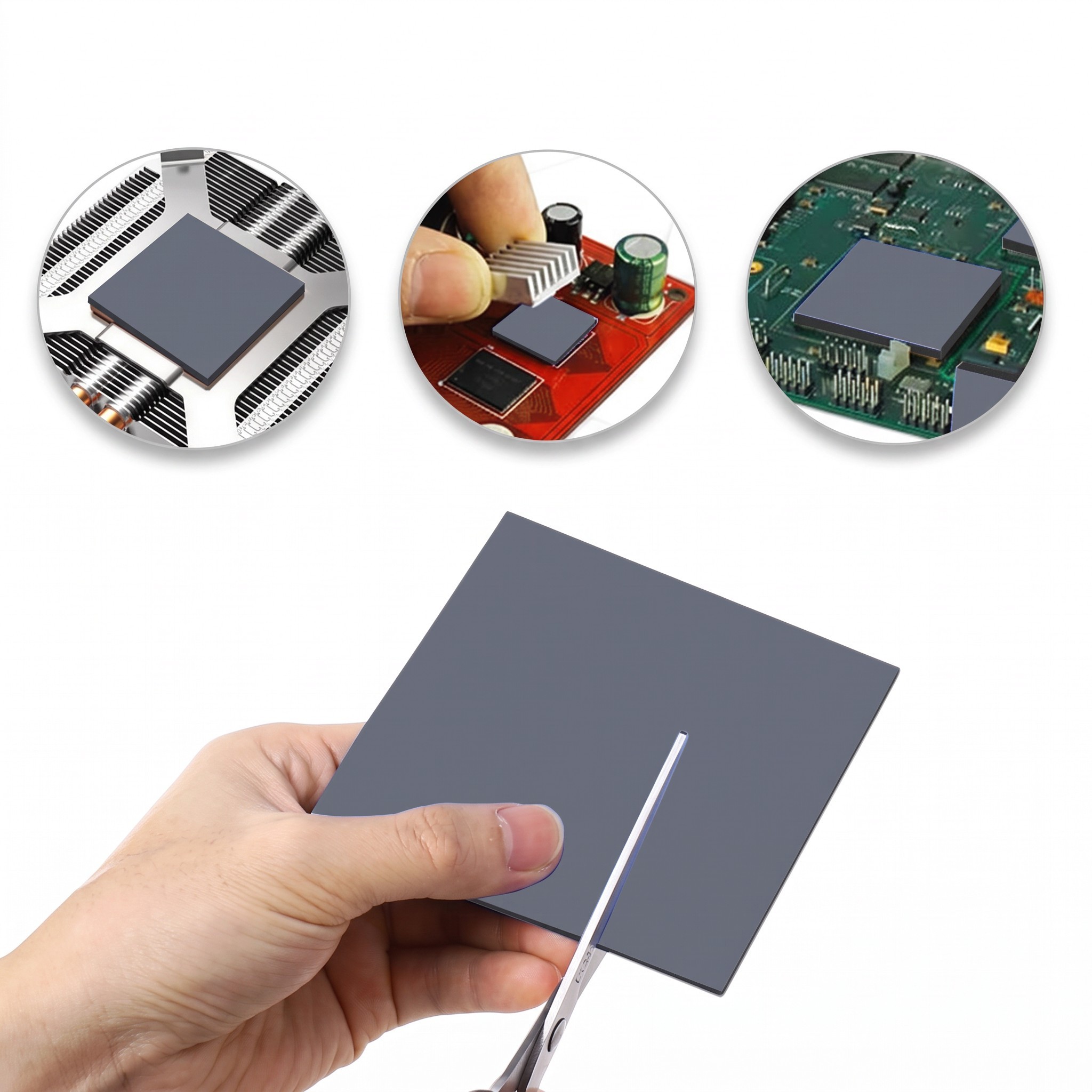

  • Cut to Size as Needed – parts corresponding to the size of the chip or group of components can be easily prepared from the sheet with scissors. The remaining material can be stored for future repairs.

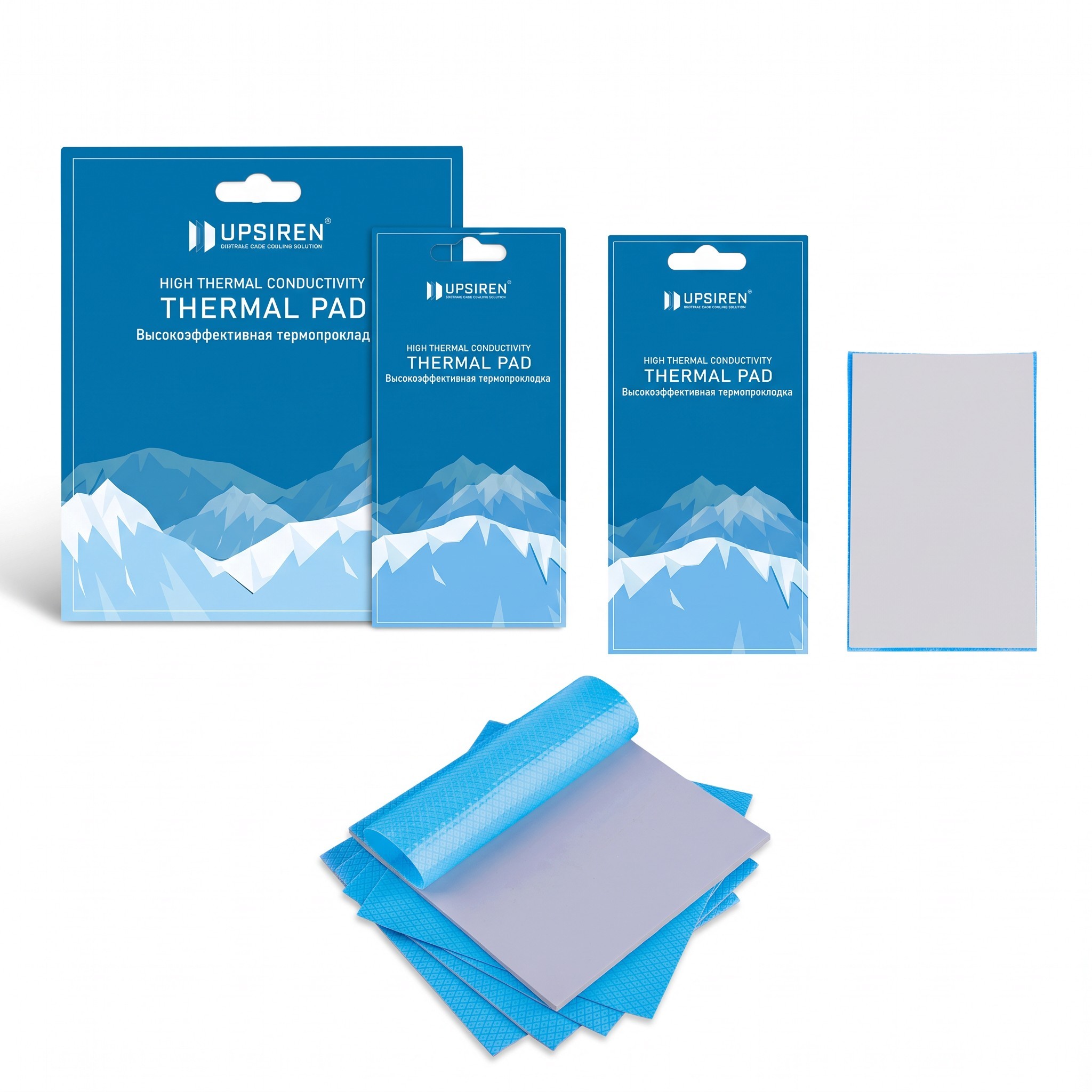

  • Double-Sided Film – the blue film protects both sides of the pad from dust and fingerprints. It is removed just before placing the part onto the component.
  • Use in Electronics – graphics cards, processors, M.2 SSDs, laptops, gaming consoles, chips on motherboards, and other devices with cooling systems. It is always necessary for the thickness of 3 mm to match the gap in the specific device.

Contents of the Package:

  • 1x Thermal Conductive Pad 100 x 100 mm

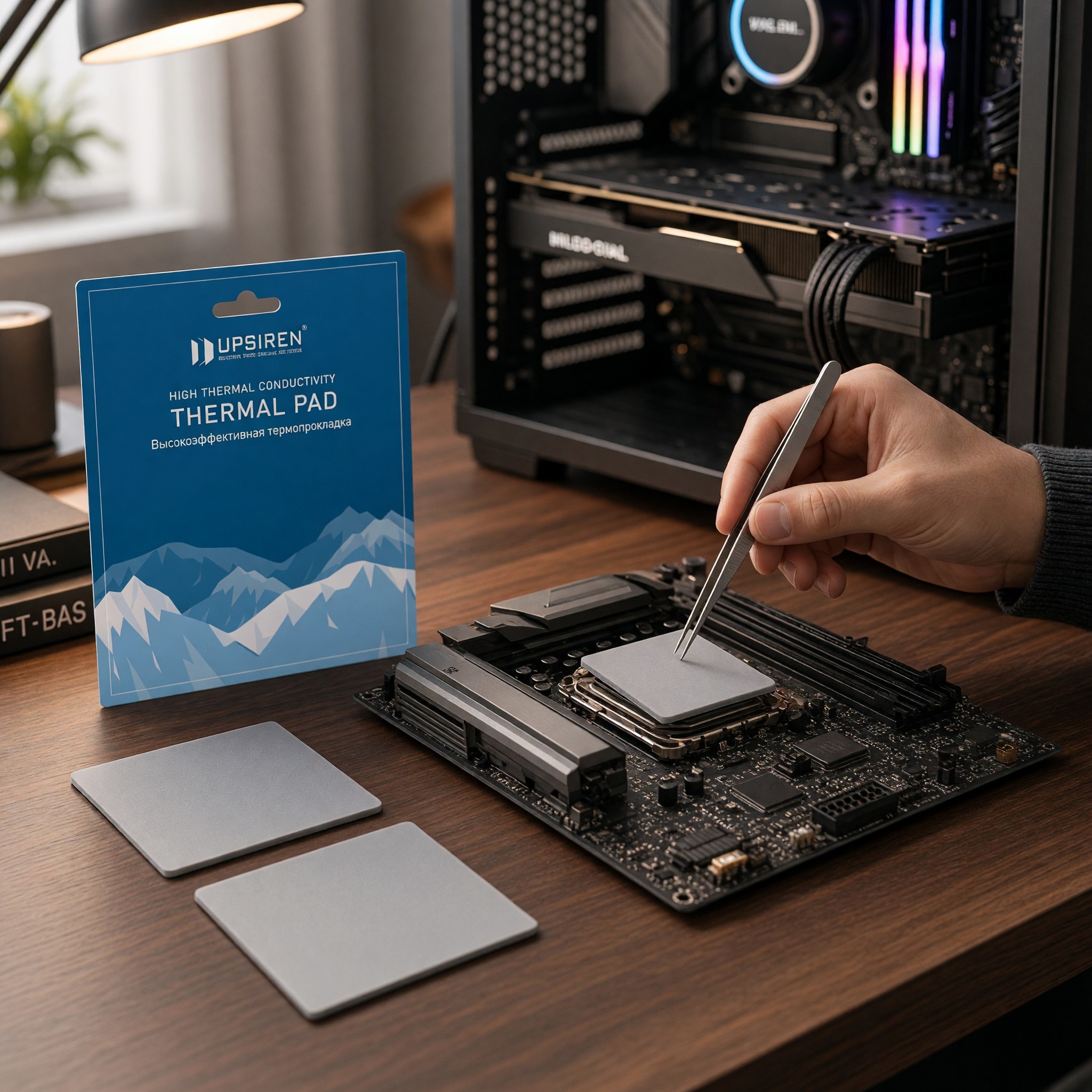

The grey thermal conductive pad 100 x 100 x 3 mm will assist in maintaining the cooling of computers, laptops, and gaming consoles. The large format of the sheet is sufficient for parts for multiple components, and there will be material left for later repairs. The replacement process begins by removing the cooler, taking off the original pad, and cleaning the surface of the chip. Subsequently, a part of the appropriate shape is cut out, the film is removed, the part is placed on the component, and the cooler is reinstalled. Because the pad is electrically non-conductive, it can also be used on boards with densely placed components.
