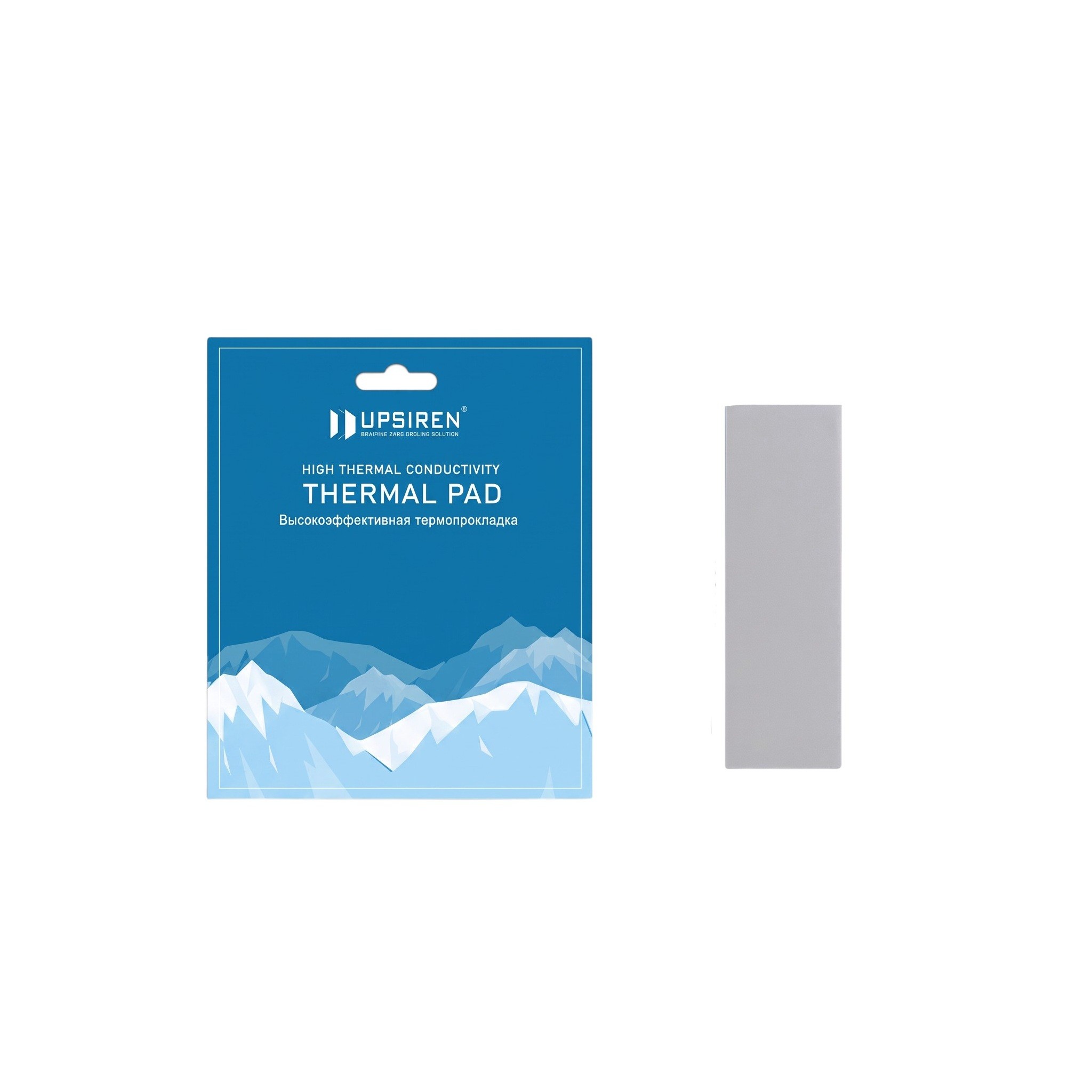

Thermally Conductive Pad for Heatsink 120 x 20 x 1.5 mm 21 W/m.K Grey for Cutting for Memory and Power Supply of Graphics Card

Thermally Conductive Pad for Heatsink 120 x 20 x 1.5 mm 21 W/m.K Grey for Cutting for Memory and Power Supply of Graphics Card

Heatsink pad with a thickness of 1.5 mm and conductivity of 21 W/m.K. Grey strip 120 x 20 mm fills the gap above the memory and power supply of the graphics card. Full description
In stock
Delivery €1.59
30-day return policy
€17.42
Safe shopping Safe shopping
Overview
Thermally Conductive Pad for Heatsink 120 x 20 x 1.5 mm 21 W/m.K Grey for Cutting for Memory and Power Supply of Graphics Card

The thermally conductive pad for heatsink connects the chip to the heatsink where there is a gap of around one and a half millimetres between them. Such a gap can be found, for example, on graphics cards above the memory chips and power circuits, where the heatsink is positioned higher than on the main core. Thanks to thermal conductivity of 21 W/m.K, the pad transfers heat from the components to the heatsink, which then dissipates it. It is supplied as a grey strip 120 x 20 x 1.5 mm designed to be cut into smaller pieces. Both sides are covered with a blue protective film.

  • Thickness 1.5 mm – the pad is intended for devices where the manufacturer anticipates a gap of 1.5 mm. It is most reliable to base it on the thickness of the original pad, which can be measured with a caliper after removing the heatsink.
  • Heat Transfer – conductivity of 21 W/m.K is applicable for components that heat up significantly under load, such as graphics card memory, power transistors, or SSD controllers. The pad also fills in minor irregularities on the surface of the chips.
  • Electrically Insulating – the material does not conduct electricity and the parameter table states breakdown voltage of at least 9.8 kV per 1 mm. Therefore, the pad can lie directly on the mounted components without further modifications.

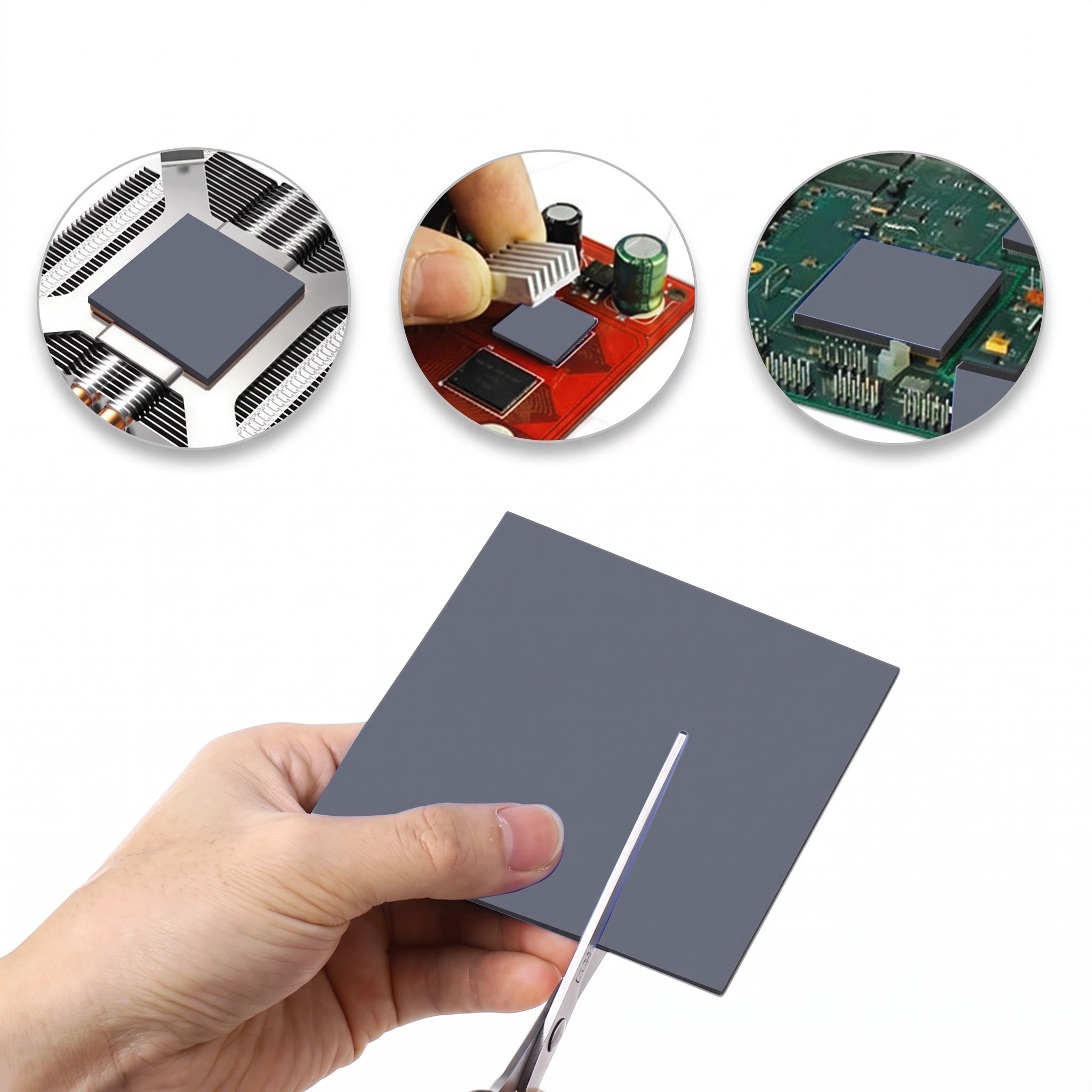

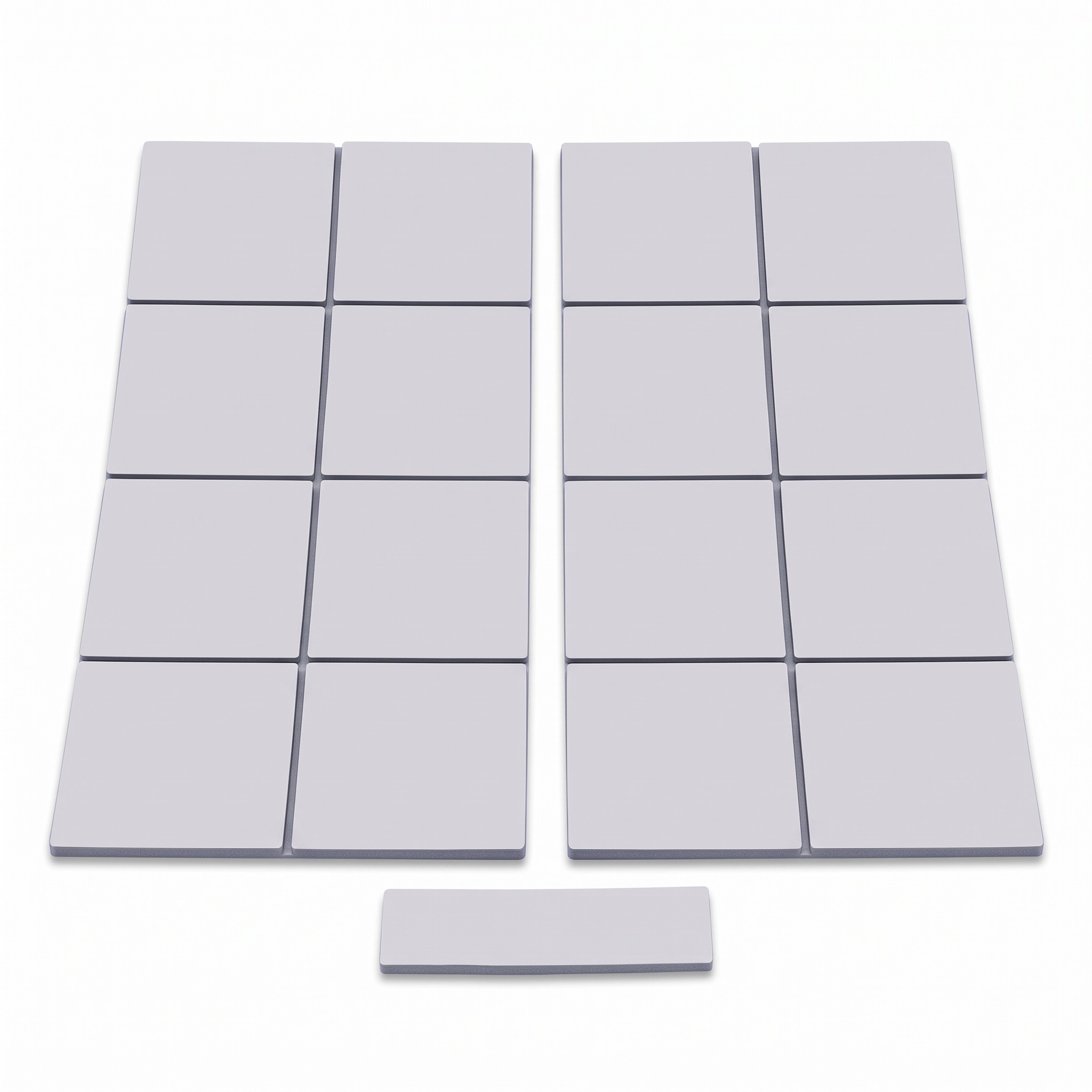

  • Easy Customisation – the strip 120 x 20 mm can be cut with ordinary scissors into pieces according to the size of individual chips. From one strip, several pieces can be created for a whole range of memory or transistors.

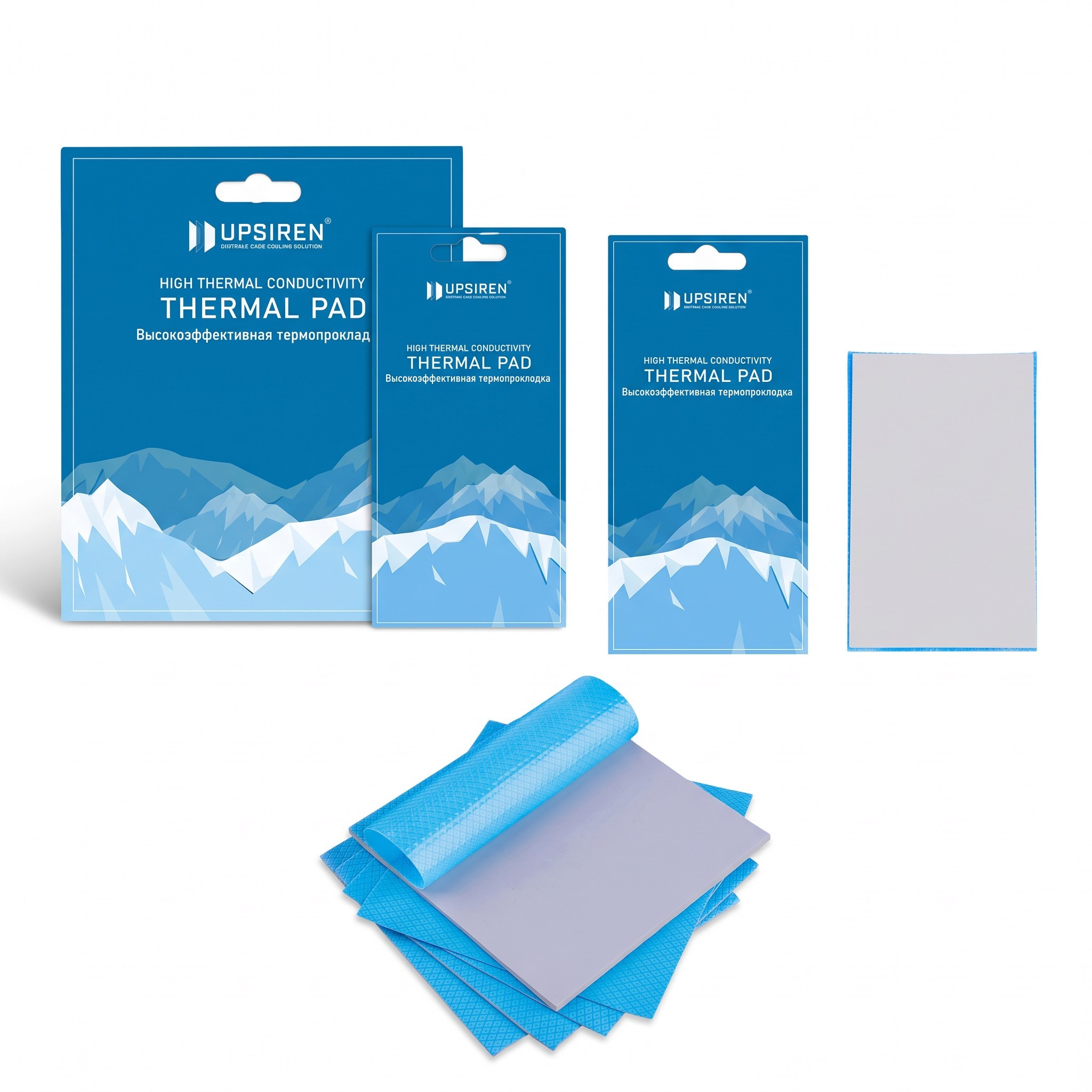

  • Surface Protection – the blue cover films keep the pad clean during storage and cutting. They are removed only when the piece is applied to the chip and the heatsink is mounted.
  • Where to Use It – graphics cards, processors, M.2 SSDs, chips on motherboards, laptops, gaming consoles, and other electronics where it is necessary to transfer heat to the heatsink. However, it is always essential that the thickness of the pad matches the gap in the given location.

Contents of the Package:

  • 1x thermally conductive pad 120 x 20 mm

The grey pad 120 x 20 x 1.5 mm is useful for maintaining graphics cards, repairing laptops, and replacing heatsinks when it is necessary to replace old and hardened pads. First, the heatsink is removed and any remnants of the original material are cleared from the chips. Then, the pad is cut into the necessary pieces, the films are removed, and it is applied to the components, after which the heatsink is finally reattached. The strip with thickness of 1.5 mm is intended for places where the manufacturer of the device anticipates this gap. One piece can cover multiple components, such as an entire group of memory chips around the core of the graphics card.
