Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD 1
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD 1
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD 2
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD 3
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD 4
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD 5
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD 6

Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD

Thermal pad 100 x 100 x 1 mm with conductivity 21 W/m.K fills the gap between the chip and the cooler. The grey non-conductive material can be cut to the shape of the component. Full description
In stock
Delivery €1.59
30-day return policy
€21.79
Safe shopping Safe shopping
Overview
Thermal Pad for Cooling Chips 100 x 100 x 1 mm with Conductivity 21 W/m.K Grey Electrically Non-Conductive Cuttable for GPU CPU and SSD

The thermal pad for cooling chips comes as a square sheet measuring 100 x 100 mm, from which pieces can be cut precisely as needed. It is suitable for graphics cards, processors, M.2 SSDs, laptops, and gaming consoles. Thanks to the thickness of 1 mm, it fills the gap between the component and the cooler where the cooler does not directly contact the chip. The grey material with thermal conductivity of 21 W/m.K transfers heat to the cooler and compensates for minor irregularities on both surfaces. The pad is protected by a blue film on both sides and can be trimmed with scissors.

  • Sheet 100 x 100 mm – a large square area provides material for multiple pieces at once. It can be prepared for pads on memory and power supply of the graphics card, for M.2 SSD controller, and for smaller chips on the motherboard or in the laptop.
  • Thickness 1 mm – the layer corresponds to the gaps that often occur between memory or power circuits and the cooler. However, it is always advisable to measure the original pad to ensure that the cooler fits evenly against all components after installation.
  • Conductivity 21 W/m.K – the material is designed for components that generate a lot of heat under load, such as graphics memory, power circuits, processors, and SSD controllers. It transfers heat across the entire area covered by the pad.
  • No Electrical Conductivity – the pad does not conduct electricity and the parameter table indicates breakdown voltage of at least 9.8 kV per 1 mm. It can therefore be safely placed directly on populated components of printed circuit boards.

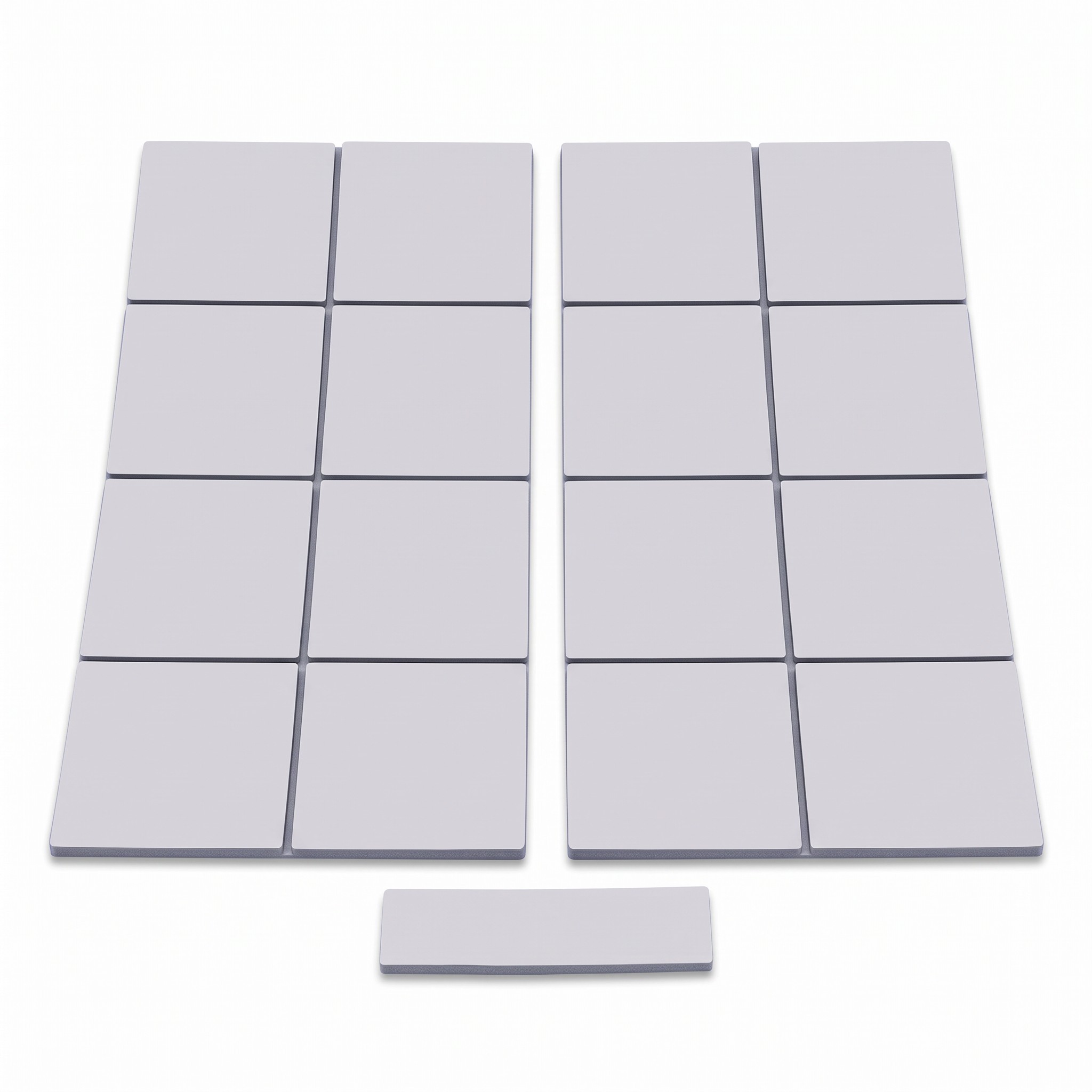

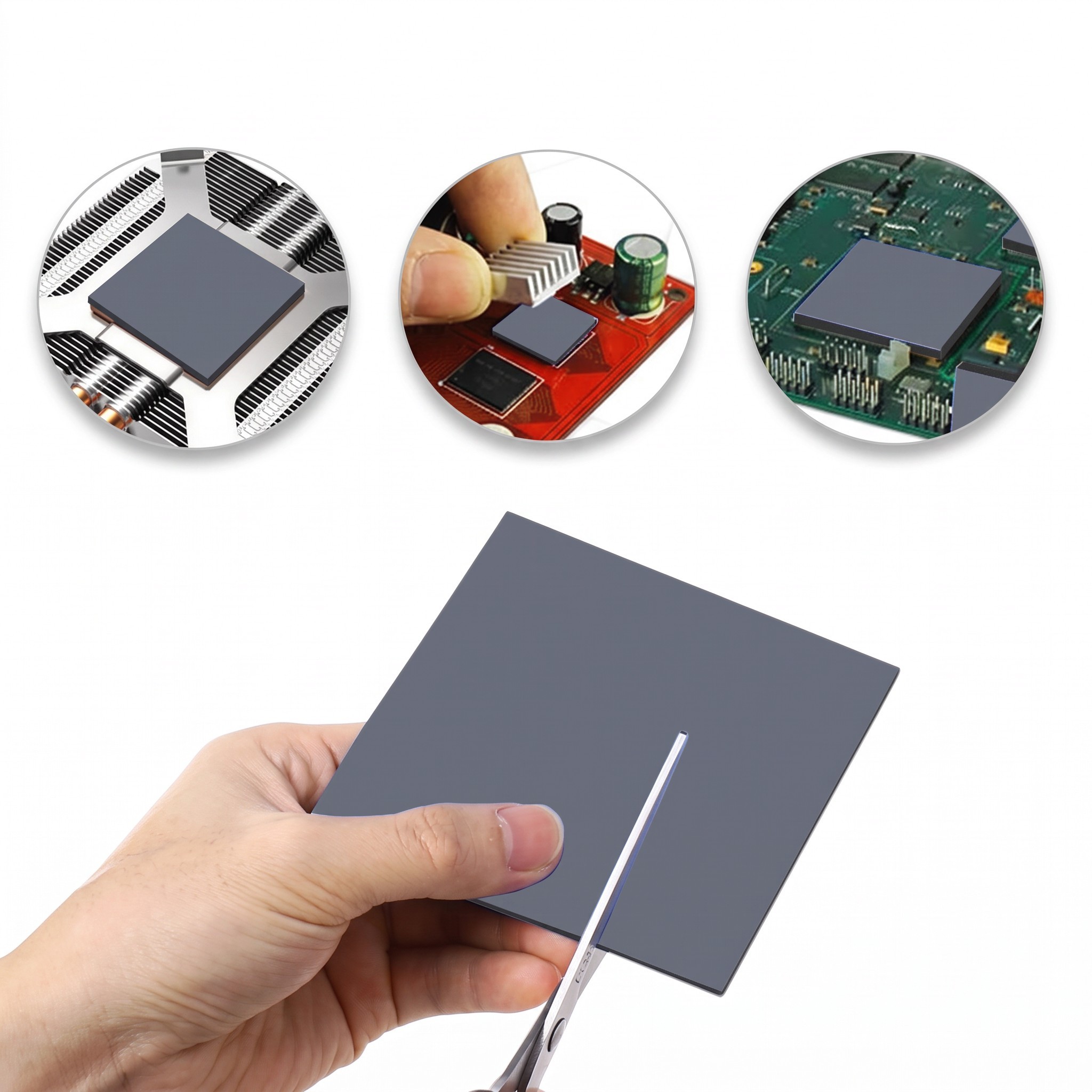

  • Cutting to the Shape of the Chip – ordinary scissors are sufficient to ensure that the pad accurately follows the outline of the component. Unused remnants can be stored for future maintenance.
  • Protective Blue Film – is applied to both sides and protects the surface of the pad from dust and fingerprints. It is removed just before placing the piece on the component.
  • Areas of Use – graphics cards, processors, M.2 SSDs, chips on motherboards, laptops, gaming consoles, and other electronics with a cooler. It is essential that the thickness of 1 mm matches the gap in the specific device.

Contents of the Package:

  • 1x thermal pad 100 x 100 mm

The grey thermal pad 100 x 100 x 1 mm facilitates the cooling restoration in a computer, laptop, or gaming console. The large square sheet is sufficient for multiple components, and some material will remain for later repairs. When replacing, the cooler is first unscrewed, the old pad is removed, and the surface of the chip is thoroughly cleaned. Then, a piece of the required shape is cut from the sheet, the film is removed, the piece is placed on the component, and the cooler is reattached. Because the pad does not conduct electric current, it is suitable for densely populated boards.
