Thermal Pad 120 x 20 x 0.75 mm 21 W/m.K Grey with Protective Film for Cutting to Fit Memory and Chips of Graphics Cards and Processors

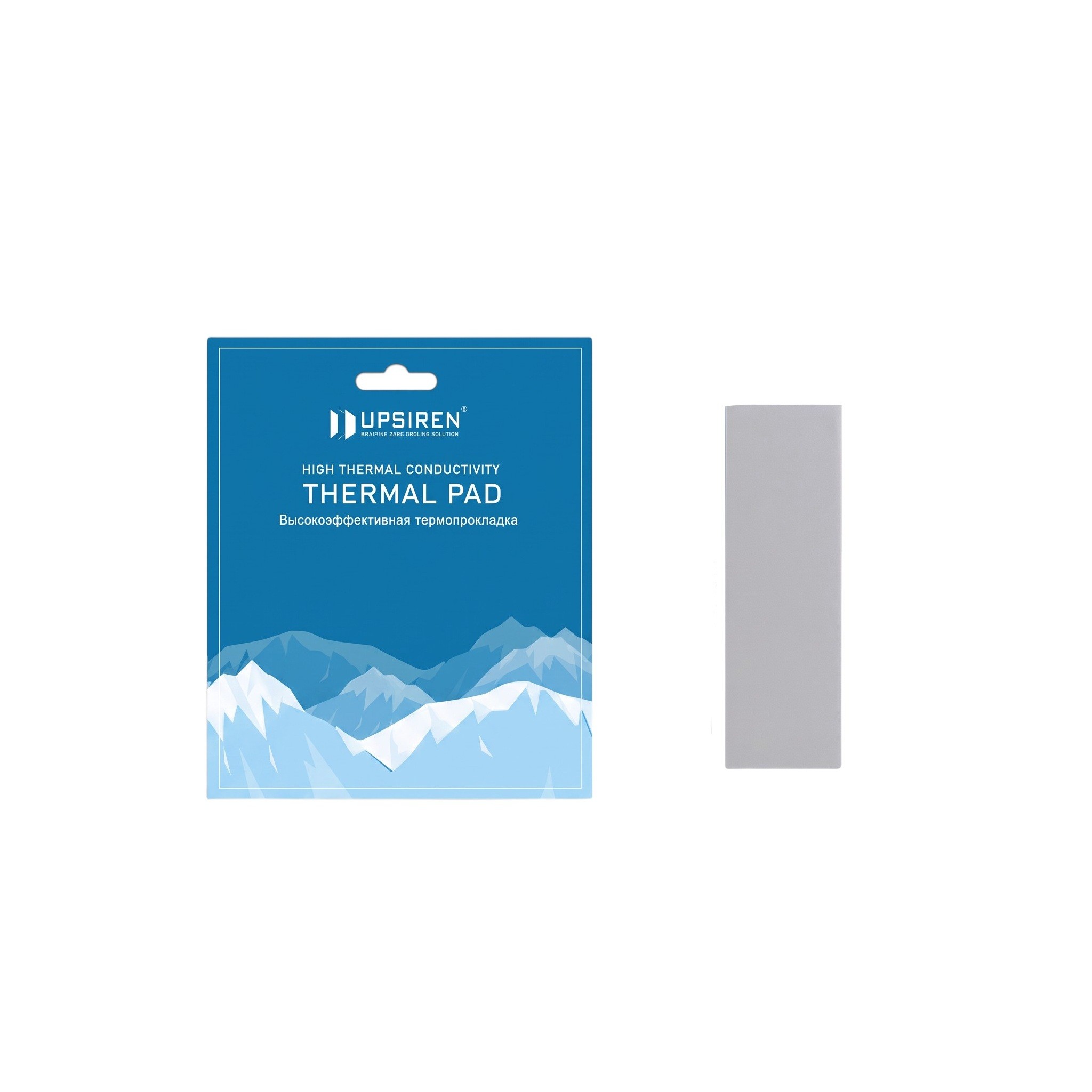

The thermal pad with a thickness of 0.75 mm fills the gap between the heating component and the cooler where thermal paste would not bridge the gap. It is typically used on memory chips and power circuits of graphics cards, but it is also applicable to processors and other chips. The material exhibits thermal conductivity of 21 W/m.K, allowing heat from the component to smoothly transfer to the metal cooler. The pad is sold as a grey strip 120 x 20 x 0.75 mm, which can be cut to size. It is protected on both sides by a blue film before use.

  • Height 0.75 mm – the thickness of the pad must match the distance between the chip and the cooler. The easiest way is to measure the original pad with a caliper, or refer to the manufacturer's specifications for the graphics card or device. The correctly chosen thickness ensures that the cooler makes contact with all components simultaneously.
  • Conductivity 21 W/m.K – this parameter indicates the material's ability to conduct heat. The pad is designed for components with higher thermal loads, such as graphics memory or power cascades, which heat up the most during gaming and load.

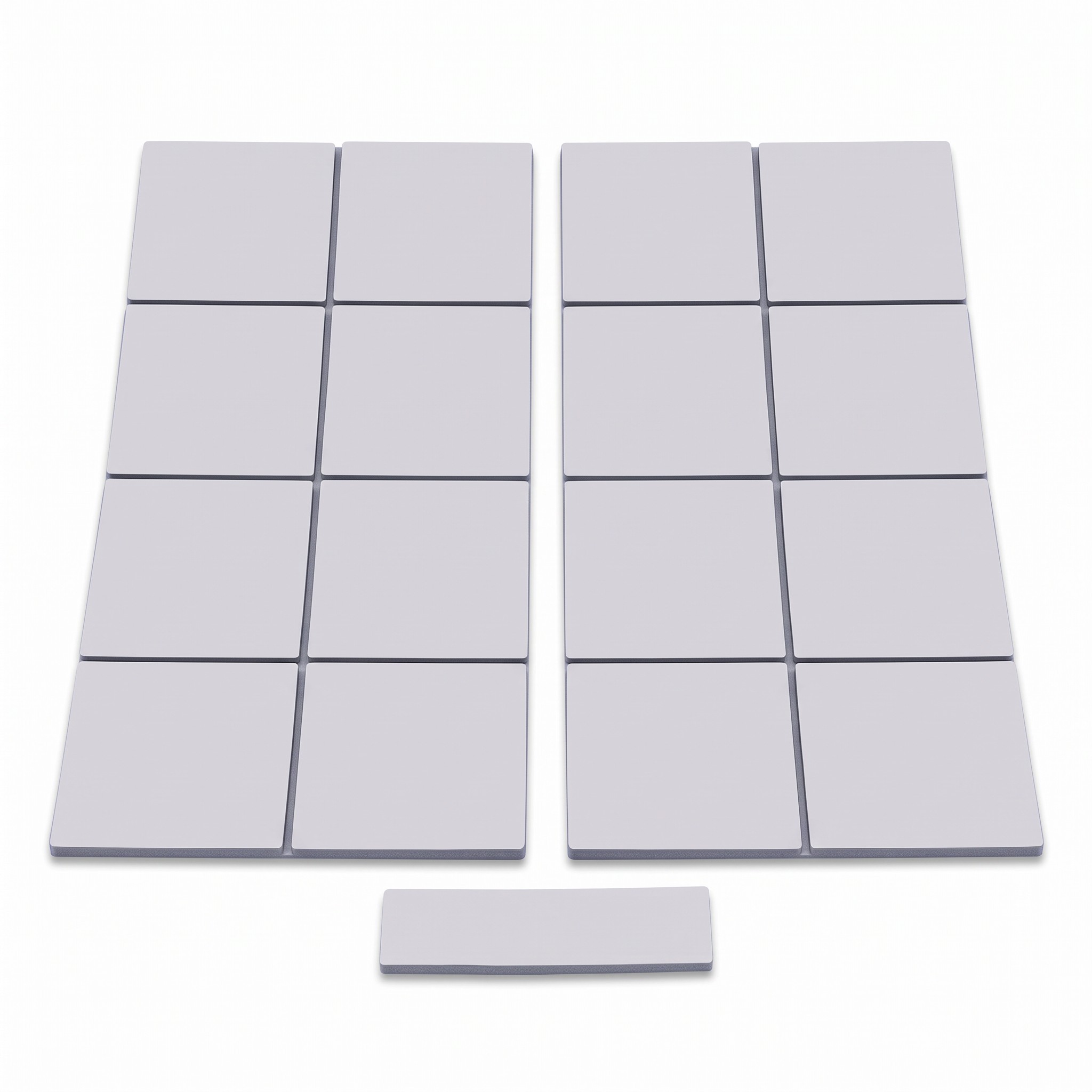

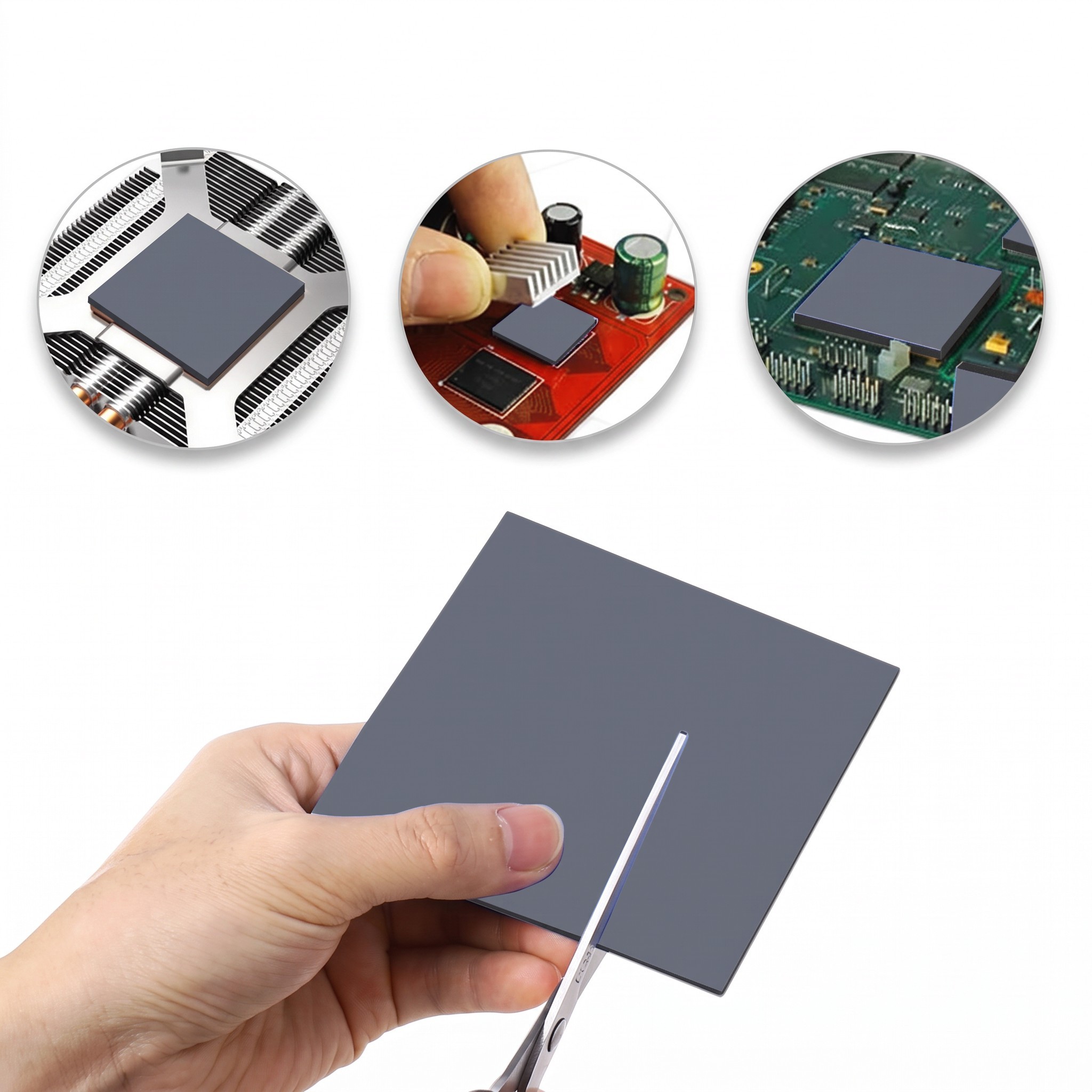

  • Custom Cutting – the strip measuring 120 mm in length and 20 mm in width can be cut into smaller pieces with scissors according to the shape of individual chips. Pieces can be placed side by side to cover an entire row of memory modules. Offcuts can be saved for later repairs.

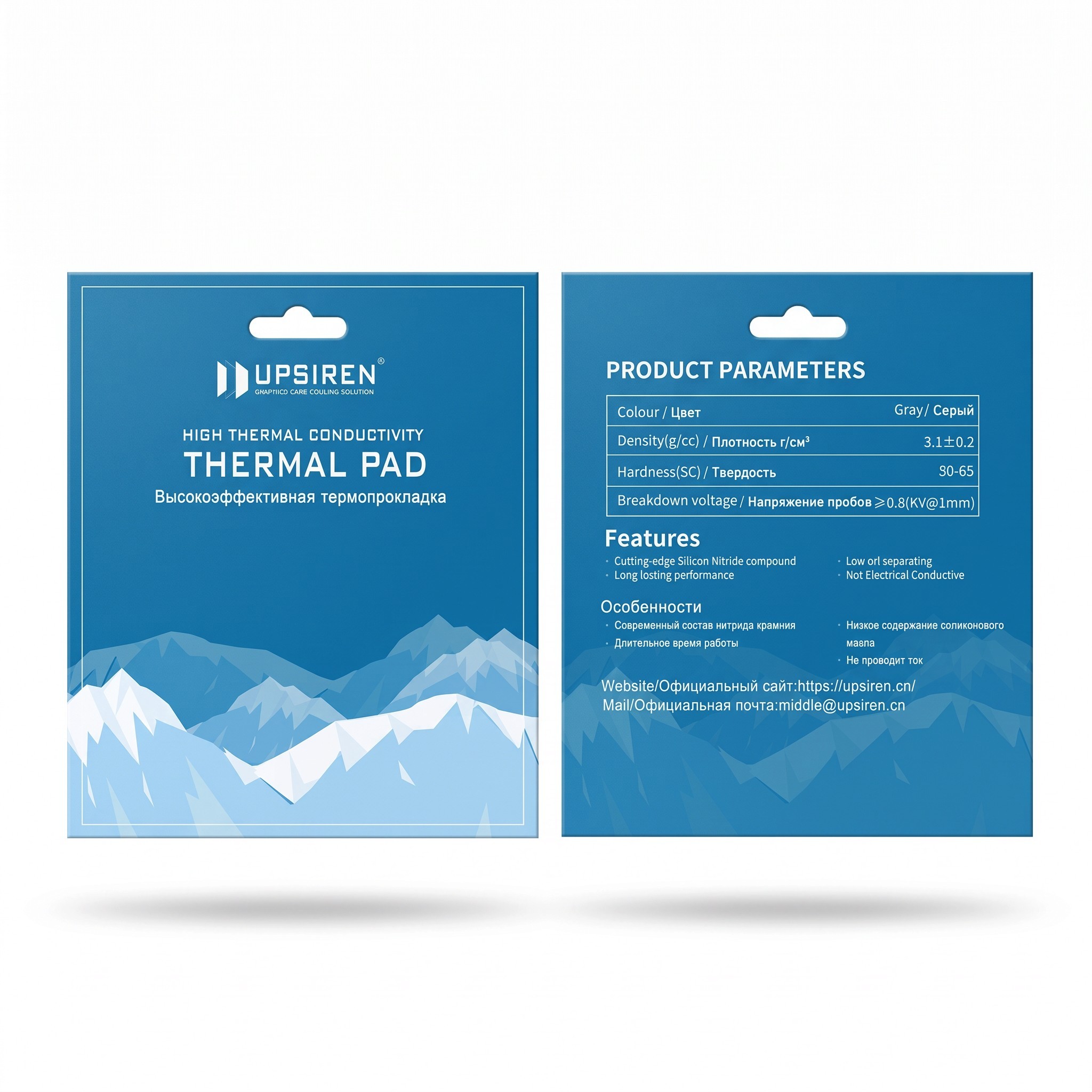

  • Electrically Non-Conductive – the material does not conduct electricity, and the parameter table indicates dielectric strength of at least 9.8 kV per 1 mm. Therefore, the pad can be placed directly on components mounted on the board.

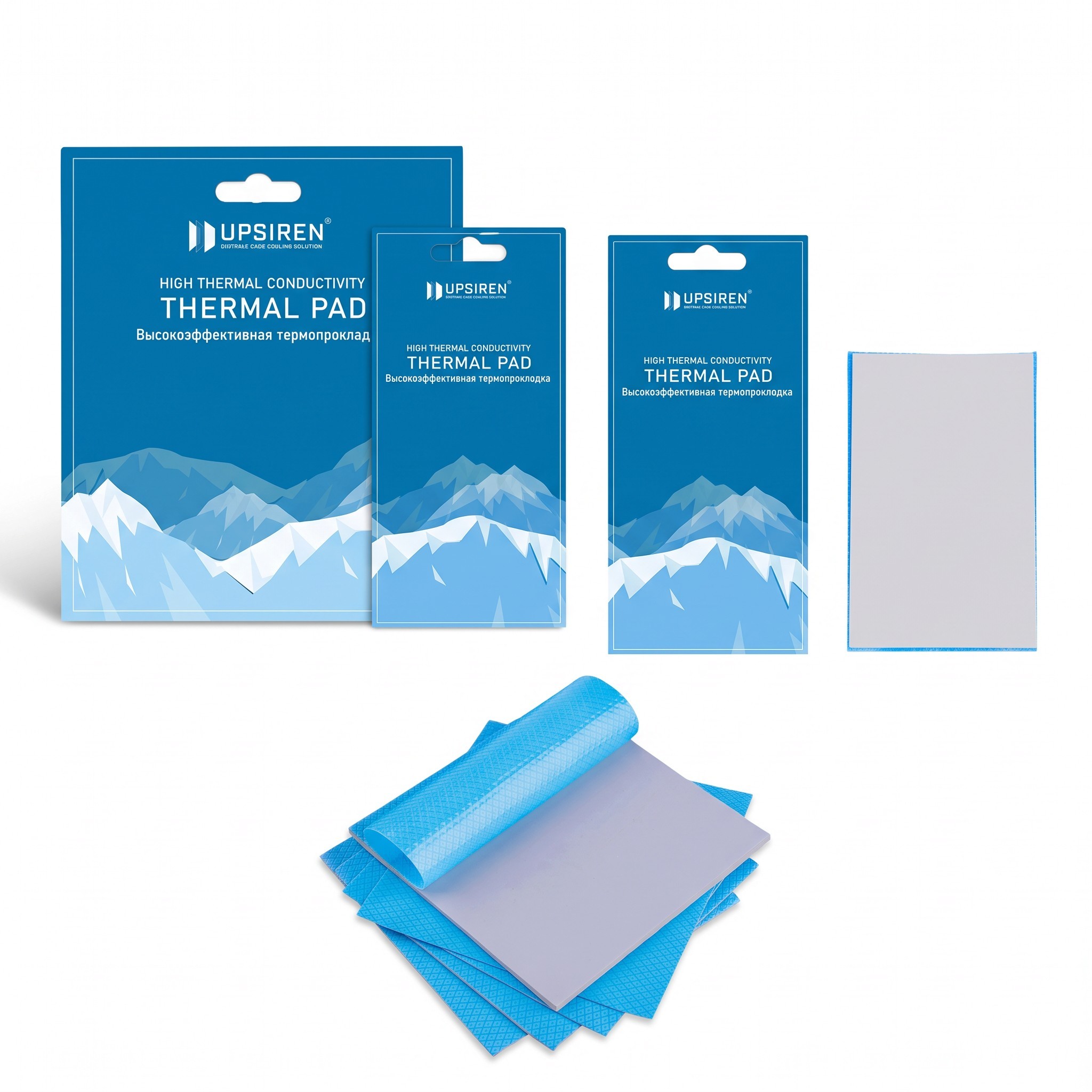

  • Double Film – the blue films on both sides keep the surface of the pad clean. The bottom film is removed before placing it on the chip, and the top film just before the cooler is fitted.
  • Where It Is Used – graphics cards, processors, M.2 SSD drives, chipsets of motherboards, laptops, and gaming consoles. For each device, it is advisable to check in advance what thickness of pad is required for the specific location.

Contents of the Package:

  • 1x thermal pad 120 x 20 mm

The grey thermal pad 120 x 20 x 0.75 mm is intended for replacing hardened or damaged pads during cleaning and maintenance of cooling systems. When working, the cooler is first removed, the remnants of the original pad are removed, and the surfaces of the chips are cleaned. The pad is then cut into the required pieces, placed on the components, and the cooler is re-fitted and tightened. Thanks to the thickness of 0.75 mm, it is suitable for devices where the manufacturer accounts for this gap between the chip and the cooler. One strip is sufficient for multiple components, for example, for graphics card memory chips arranged around the core.
