The deep gap between the chip and the heatsink is filled by the grey pad 100 x 100 x 2.25 mm with conductivity 21 W/m.K. It does not conduct electricity and can be cut to size with scissors. Full description
In stock
Delivery €1.59
30-day return policy
€29.65
Safe shopping Safe shopping
Overview
Thermal Conductive Square for Heatsinks 100 x 100 x 2.25 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting to Size for GPU CPU SSD and Consoles

The thermal conductive square for heatsinks measuring 100 x 100 mm is a grey pad from which parts for graphics cards, processors, M.2 SSDs, laptops, and gaming consoles can be cut with scissors. With a thickness of 2.25 mm, it is designed for areas where a deep gap remains between the chip and the heatsink that needs to be filled. The material with conductivity of 21 W/m.K transfers heat from the component to the heatsink and, due to its flexibility, adheres well to the surface of the chip. Both sides of the pad are covered with a blue protective film, which is removed before use.

  • Size 100 x 100 mm – the square area is sufficient for cutting out many parts of various sizes. It can be used on memory chips and power supply for graphics cards, on M.2 SSDs, or on chips on the motherboard and in gaming consoles.
  • Thickness 2.25 mm – the layer fills the deep space between the component and the heatsink in devices that require it due to their construction. It is advisable to measure the original pad before replacement to ensure that the heatsink fits evenly against all chips after installation.
  • Conductivity 21 W/m.K – the pad is intended for components that heat up significantly under load, such as graphics memory, power circuits, processors, or SSD controllers. It transfers heat evenly across the entire contact surface.
  • Non-Conductive – the material does not conduct electricity and the parameter table indicates a breakdown voltage of at least 9.8 kV per 1 mm. Parts can therefore be placed directly on populated components of the printed circuit board.

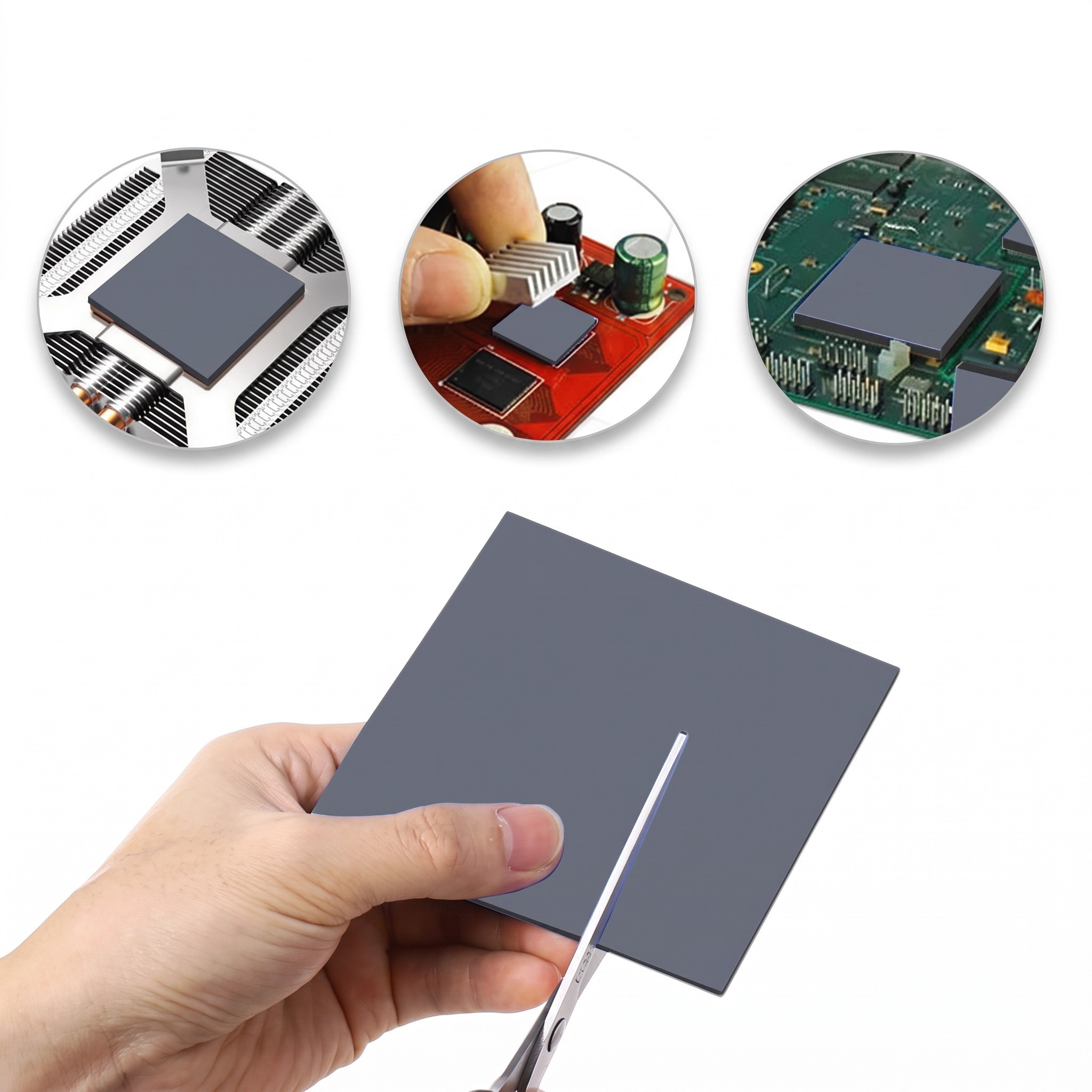

  • Cutting with Scissors – the pad can be easily cut into the shape of a specific chip or an entire group of components. The remaining material can be stored for future use.

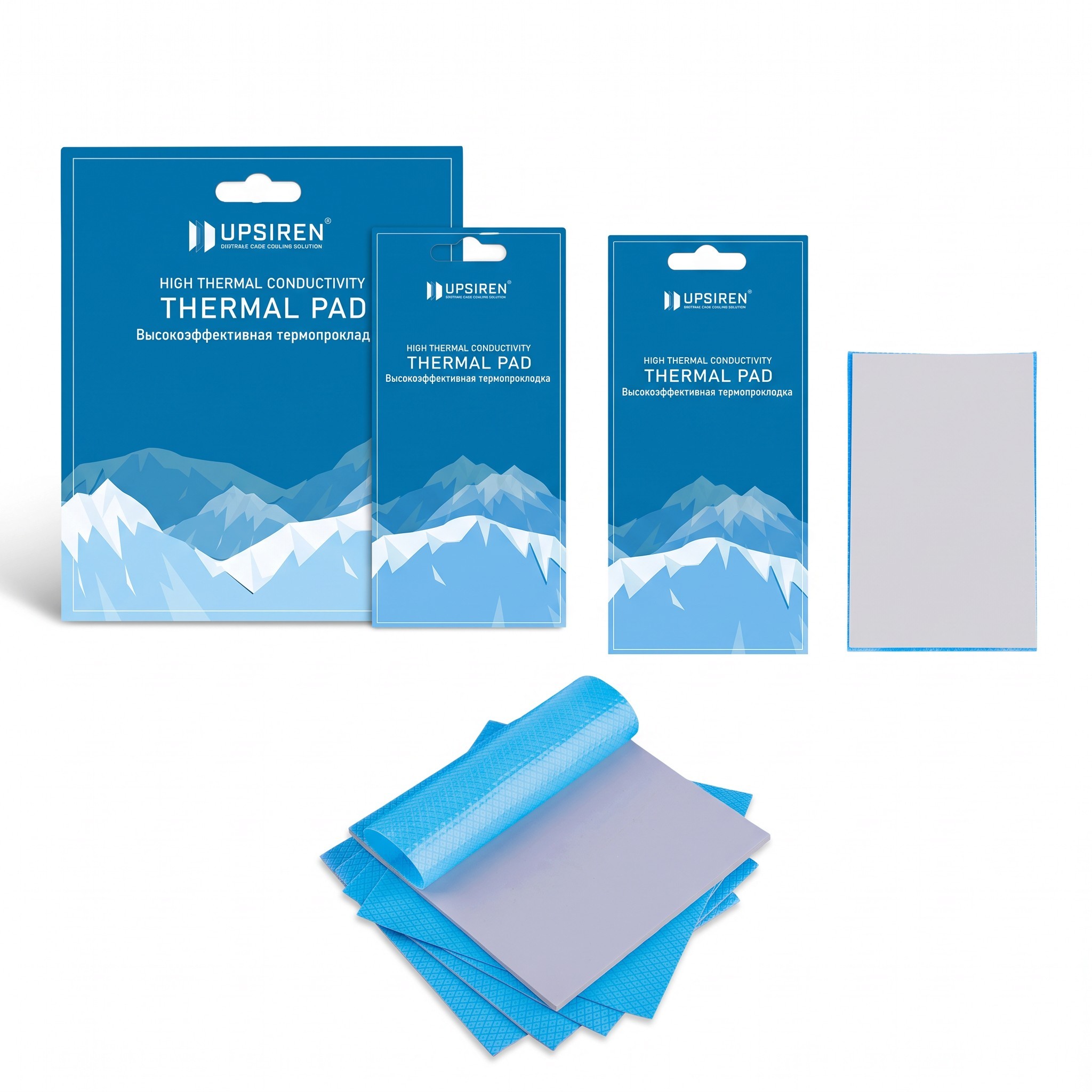

  • Film on Both Sides – the blue film protects the surface of the pad from dust and fingerprints during cutting and handling. It is removed just before applying the part.
  • Practical Uses – graphics cards, processors, M.2 SSDs, laptops, gaming consoles, chips on motherboards, and other electronics with heatsinks. It is always necessary for the thickness of 2.25 mm to match the gap in the given device.

Contents:

  • 1x thermal conductive pad 100 x 100 mm

The grey thermal conductive pad 100 x 100 x 2.25 mm is suitable for maintaining the cooling of computers, laptops, and gaming consoles. The large square area is sufficient for multiple parts and some material will remain for later repairs. During replacement, the heatsink is first removed, the original pad is taken off, and the surface of the chip is cleaned of residues. Then, a piece of the required size is cut out, the film is removed, the piece is placed on the component, and the heatsink is re-mounted. As the material is electrically non-conductive, it can also be used on boards with densely spaced components.
