Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor 1
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor 1
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor 2
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor 3
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor 4
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor 5
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor 6

Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor

Square sheet 100 x 100 mm thick 0.75 mm with conductivity 21 W/m.K transfers heat from chips to the heatsink. Grey non-conductive pad can be cut with scissors. Full description
In stock
Delivery €1.59
30-day return policy
€20.92
Safe shopping Safe shopping
Overview
Thermal Conductive Pad for Heatsink 100 x 100 x 0.75 mm with Conductivity 21 W/m.K Grey Non-Conductive Cuttable for Graphics Card and Processor

The thermal conductive pad for heatsink is in the form of a large square sheet 100 x 100 mm, designed to transfer heat from chips on the graphics card, processor, M.2 SSD, or motherboard to the heatsink. With a thickness of 0.75 mm, it is suitable for devices where there is a small but not entirely minimal gap between the component and the heatsink. The grey material with conductivity of 21 W/m.K fills in small surface irregularities and ensures continuous contact between the chip and the heatsink. The sheet can be cut with scissors and is covered on both sides with a blue protective film.

  • Dimension 100 x 100 mm – the square area provides enough material for both larger and smaller parts. From one sheet, pads can be cut for memory modules and power circuits of the graphics card, for the controller and memory of M.2 SSDs, or for chips on the motherboard.
  • Thickness 0.75 mm – the layer is intended for places where there is a narrow gap between the chip and the heatsink. It is advisable to measure the thickness of the original pad before replacement, as the heatsink must properly contact all components simultaneously.
  • Thermal Conductivity 21 W/m.K – the pad is suitable for chips that heat up significantly under load, such as graphics memory, power supplies, processors, or SSD controllers. Heat is transferred across the entire area where the pad covers the chip.
  • Non-Conductive Material – the pad does not conduct electricity and the specification table states breakdown voltage of at least 9.8 kV per 1 mm. Therefore, it can rest directly on the mounted components of the printed circuit board.

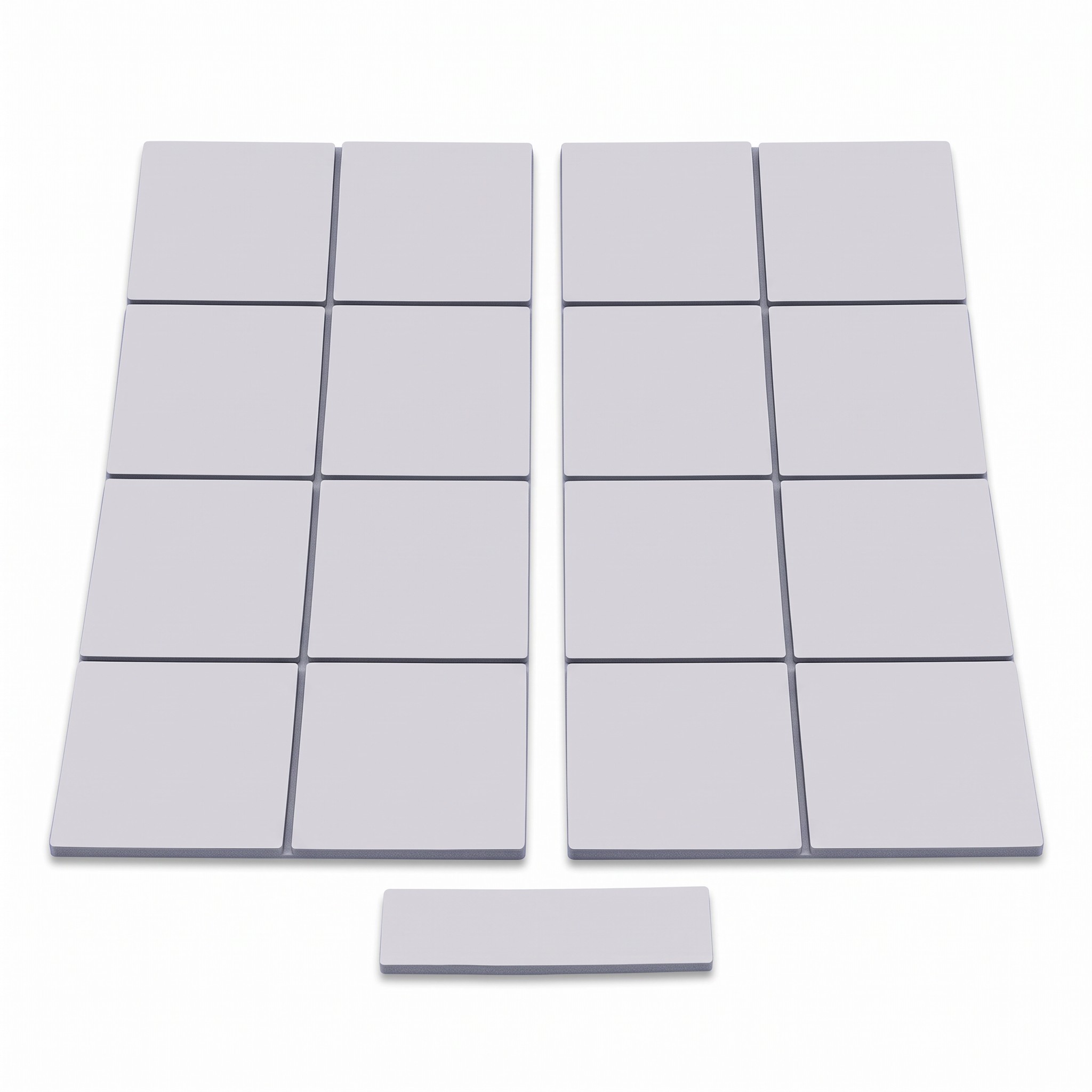

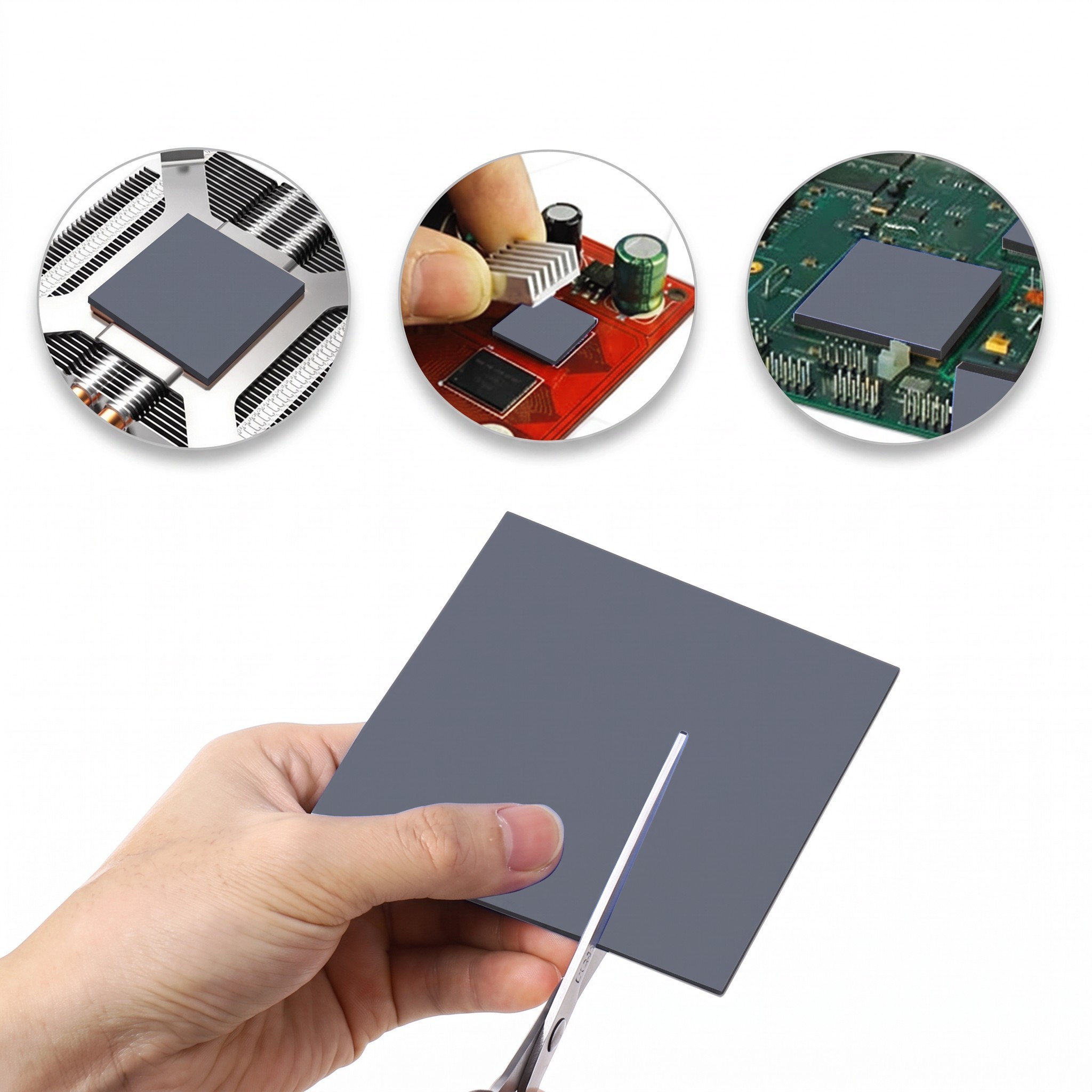

  • Scissor Adjustment – the sheet easily adapts to the contour of a specific chip or group of chips. The remaining material can be set aside and used later during further maintenance.

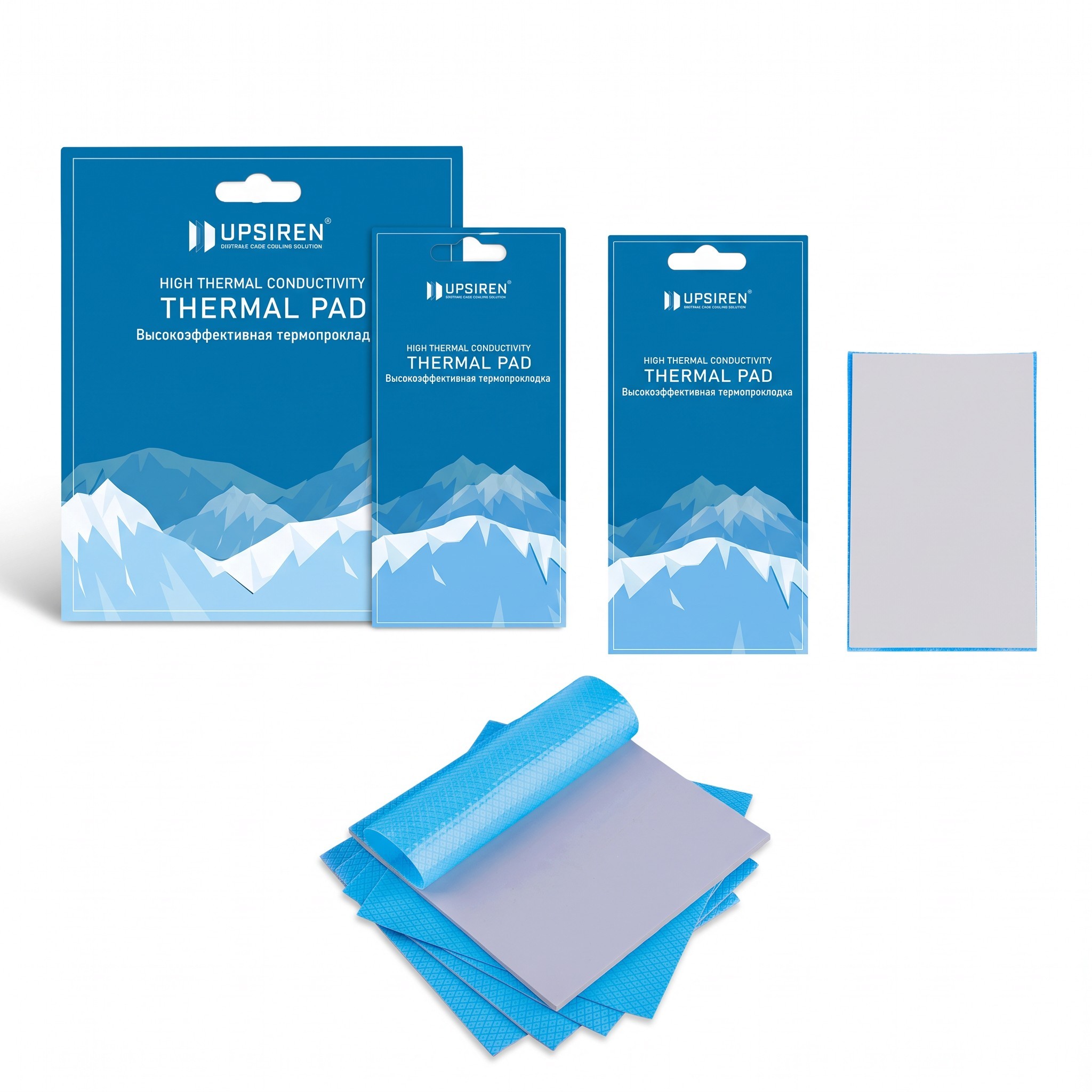

  • Blue Film on Both Sides – protects the surface from dirt and fingerprints during cutting and handling. It is removed only when the part is placed on the component.
  • Where to Use the Pad – graphics cards, processors, M.2 SSDs, laptops, gaming consoles, chips on motherboards, and other electronics with a heatsink. It is always necessary for the thickness of 0.75 mm to match the gap in the given device.

Contents of the Package:

  • 1x thermal conductive pad 100 x 100 mm

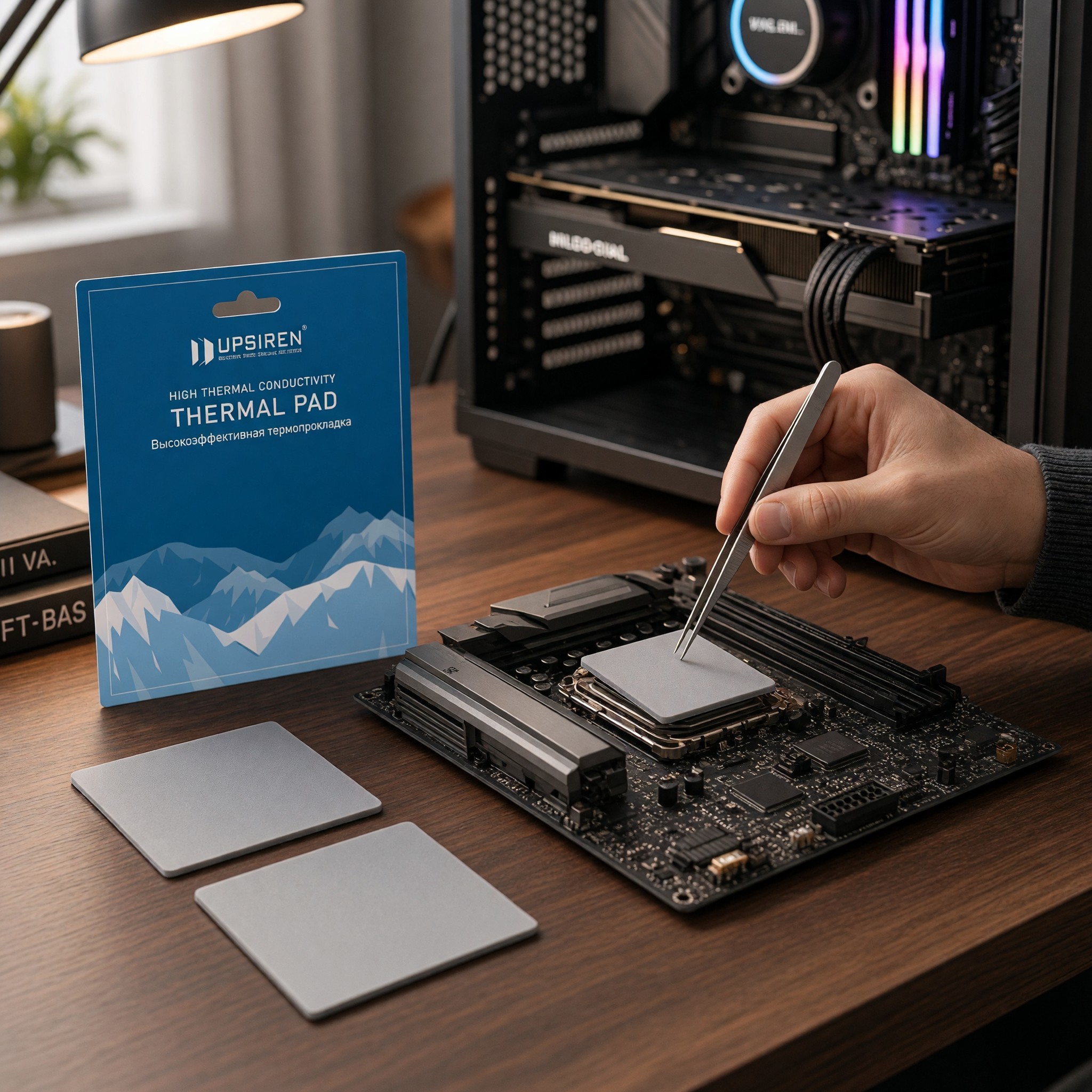

The grey thermal conductive pad 100 x 100 x 0.75 mm is a practical aid for maintaining the cooling of a computer, laptop, or gaming console. The large area of the sheet allows for the cooling of multiple components at once or having a supply of material for future repairs. The replacement procedure begins with removing the heatsink, taking off the old pad, and cleaning the surface of the chip. The pad is then cut to the required shape, the film is removed, it is placed on the component, and the heatsink is reinstalled. Because the pad is electrically non-conductive, it can also be used in areas with densely packed components.

Delivery and Returns
Price incl. VAT €20.92
