Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor 1
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor 1
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor 2
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor 3
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor 4
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor 5
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor 6

Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor

The grey pad 100 x 100 x 1.5 mm with conductivity 21 W/m.K serves for a noticeable gap between the chip and the cooler. It is electrically non-conductive and can be cut with scissors. Full description
In stock
Delivery €1.59
30-day return policy
€24.85
Safe shopping Safe shopping
Overview
Thermal Conductive Pad Between Chip and Cooler 100 x 100 x 1.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for Graphics Processor and SSD

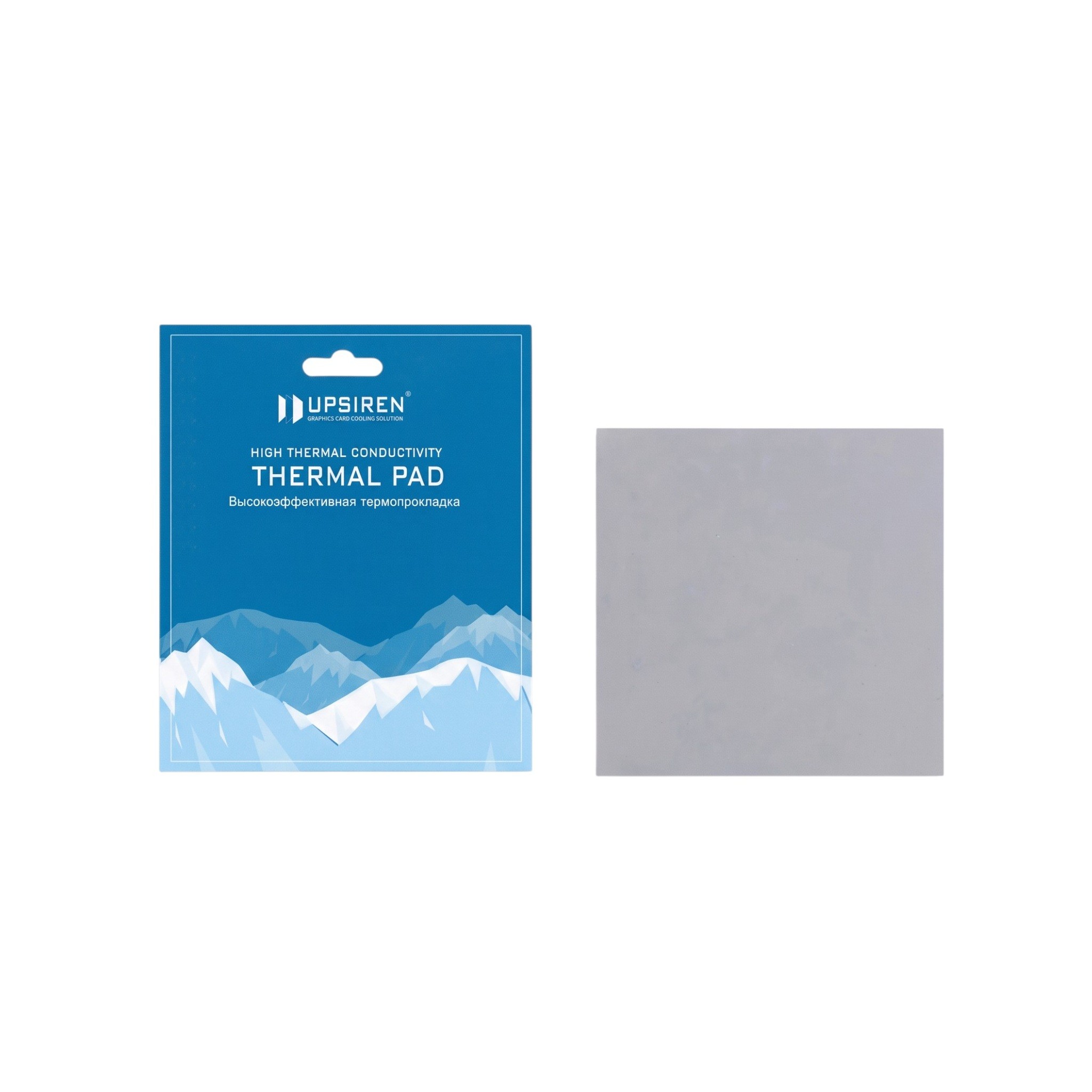

The thermal conductive pad between the chip and cooler is in the shape of a square pad 100 x 100 mm, from which parts for graphics cards, processors, M.2 SSD drives, laptops, and gaming consoles can be cut using scissors. With a thickness of 1.5 mm, it is designed for devices where there is a noticeable gap between the component and the cooler. The grey material with thermal conductivity of 21 W/m.K fills this gap and transfers heat from the chip to the cooler. At the same time, it adapts to the minor irregularities of the component's surface. Both sides of the pad are covered with a blue protective film.

  • Size 100 x 100 mm – the square pad provides enough material to cut out several parts. It can be used, for example, on memory and power circuits of the graphics card, on the M.2 SSD controller, or on the chipset chips of the motherboard.
  • Thickness 1.5 mm – the layer is suitable where the cooler does not sit tightly against the component due to the design of the device. It is advisable to measure the original pad before replacement to ensure the cooler properly contacts all chips after tightening.
  • Conductivity 21 W/m.K – the pad is intended for components that heat up significantly under load, such as graphics memory, power circuits, processors, or SSD controllers. It transfers heat evenly across the entire contact area.
  • Electrically Non-Conductive Pad – the material does not conduct electricity, and the parameter table states breakdown voltage of at least 9.8 kV per 1 mm. This allows the pad to be placed directly on populated components of the printed circuit board.

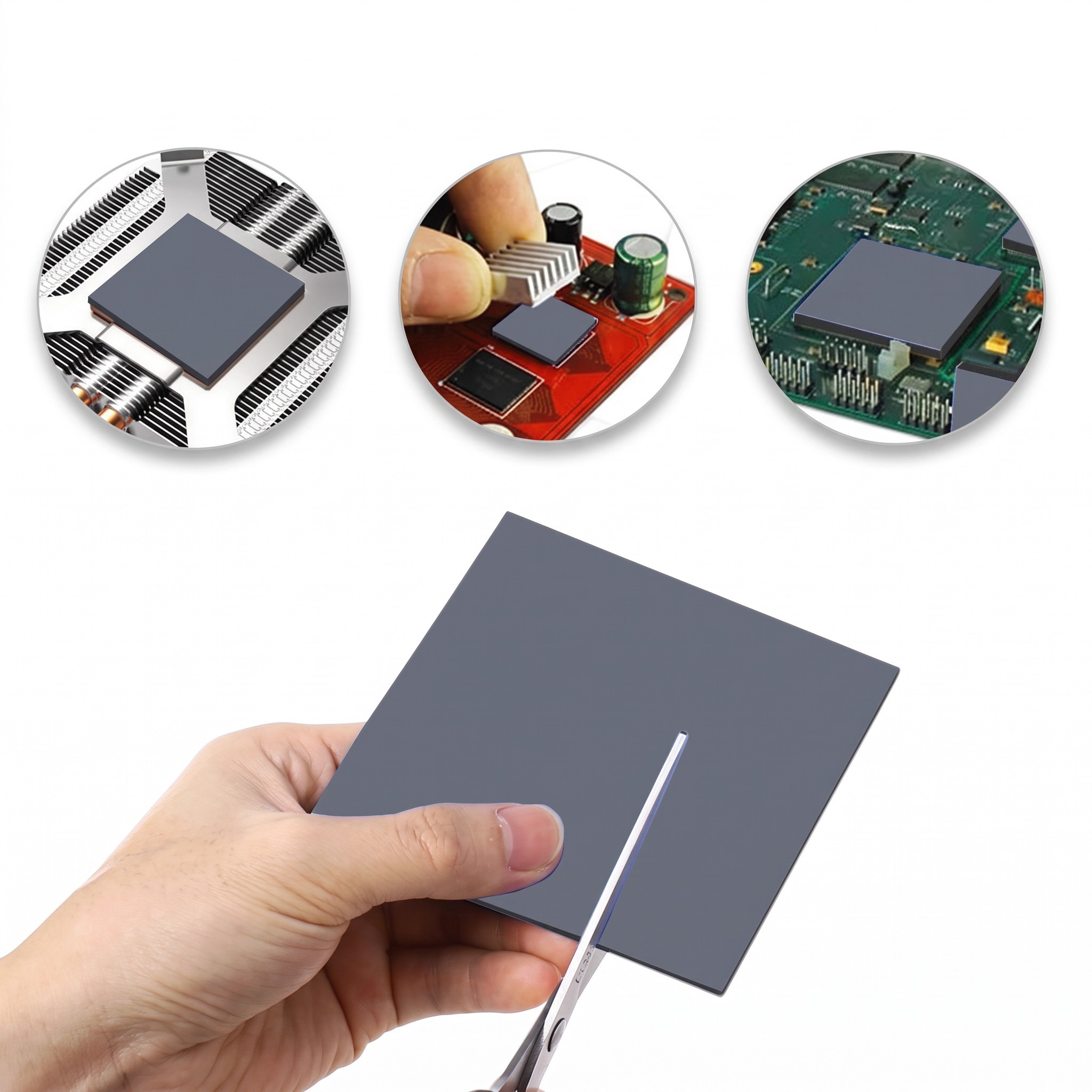

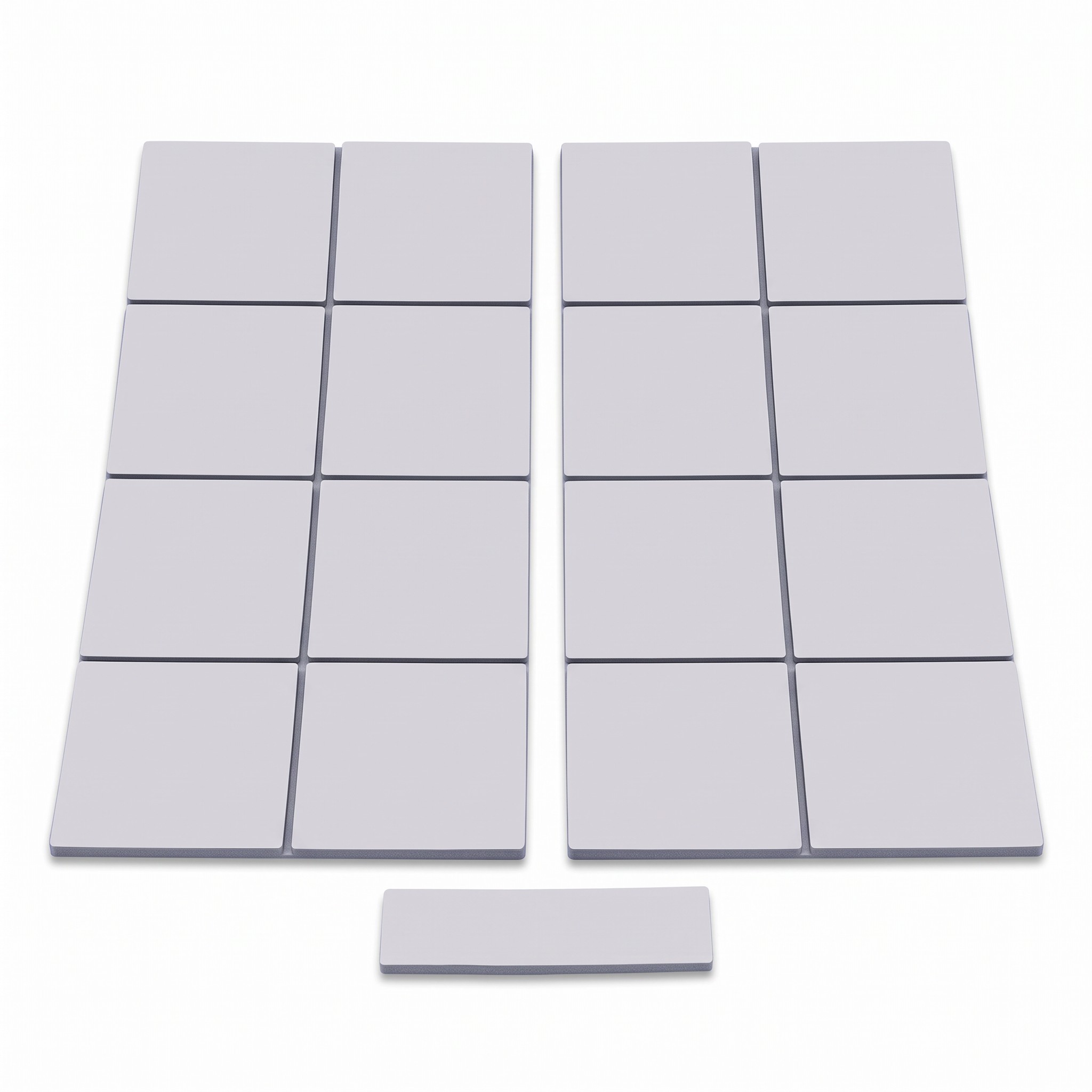

  • Shape as Needed – the pad can be cut with regular scissors, allowing it to be precisely tailored to the size of the chip or group of components. The remaining material can be saved for future use.

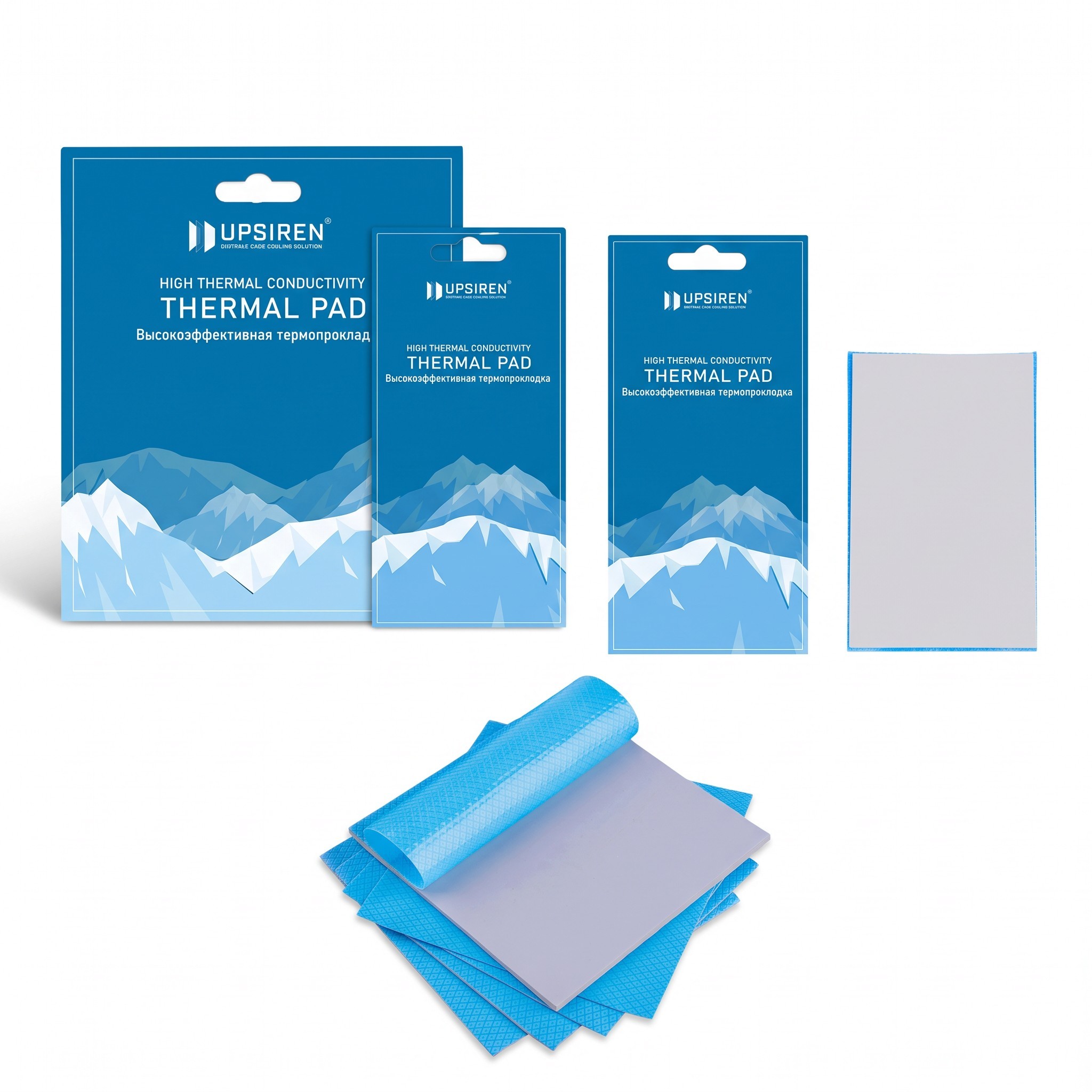

  • Blue Film – this is on both sides of the pad and protects it from dust and fingerprints. It is removed only when the part is applied to the component.
  • Usage – graphics cards, processors, M.2 SSD drives, laptops, gaming consoles, chips on motherboards, and other electronics with a cooler. It is crucial that the thickness of 1.5 mm matches the gap in the specific device.

Contents of the Package:

  • 1x thermal conductive pad 100 x 100 mm

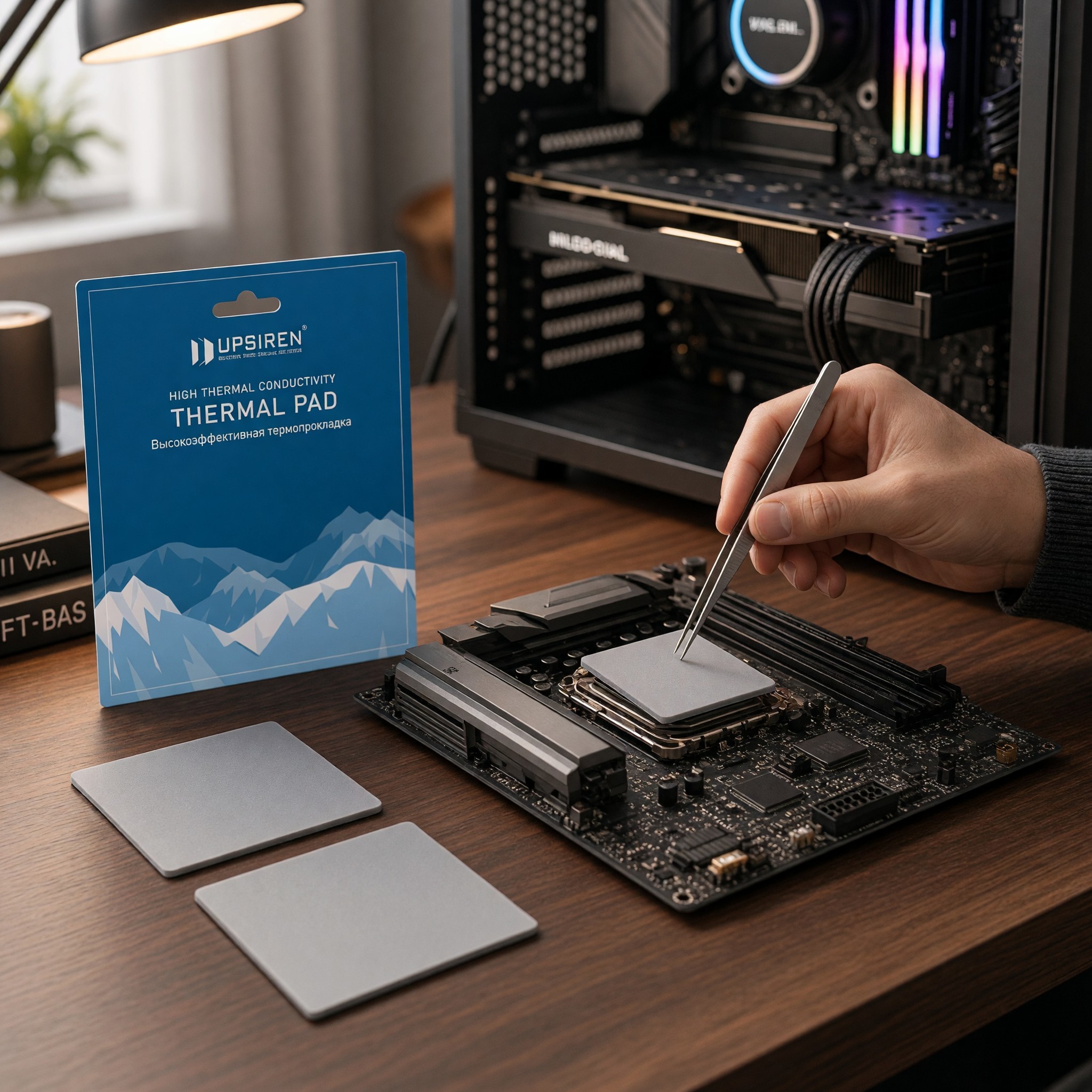

The grey thermal conductive pad 100 x 100 x 1.5 mm is designed for restoring cooling in a computer, laptop, or gaming console. The large square format allows for cutting parts for multiple components and keeping material for later repairs. During replacement, the cooler is first removed, the old pad is taken off, and the surface of the chip is cleaned of residues. Then, a part of the required shape is cut out, the protective film is removed, the part is applied to the component, and the cooler is returned to its place. Because the pad is electrically non-conductive, it is also suitable for boards with densely arranged components.
