TCMT110204 VP15TF Turning Inserts 10 pcs Triangular Carbide Dark Grey For Lathes and Metal Machining
You already have the maximum available quantity in your cart.

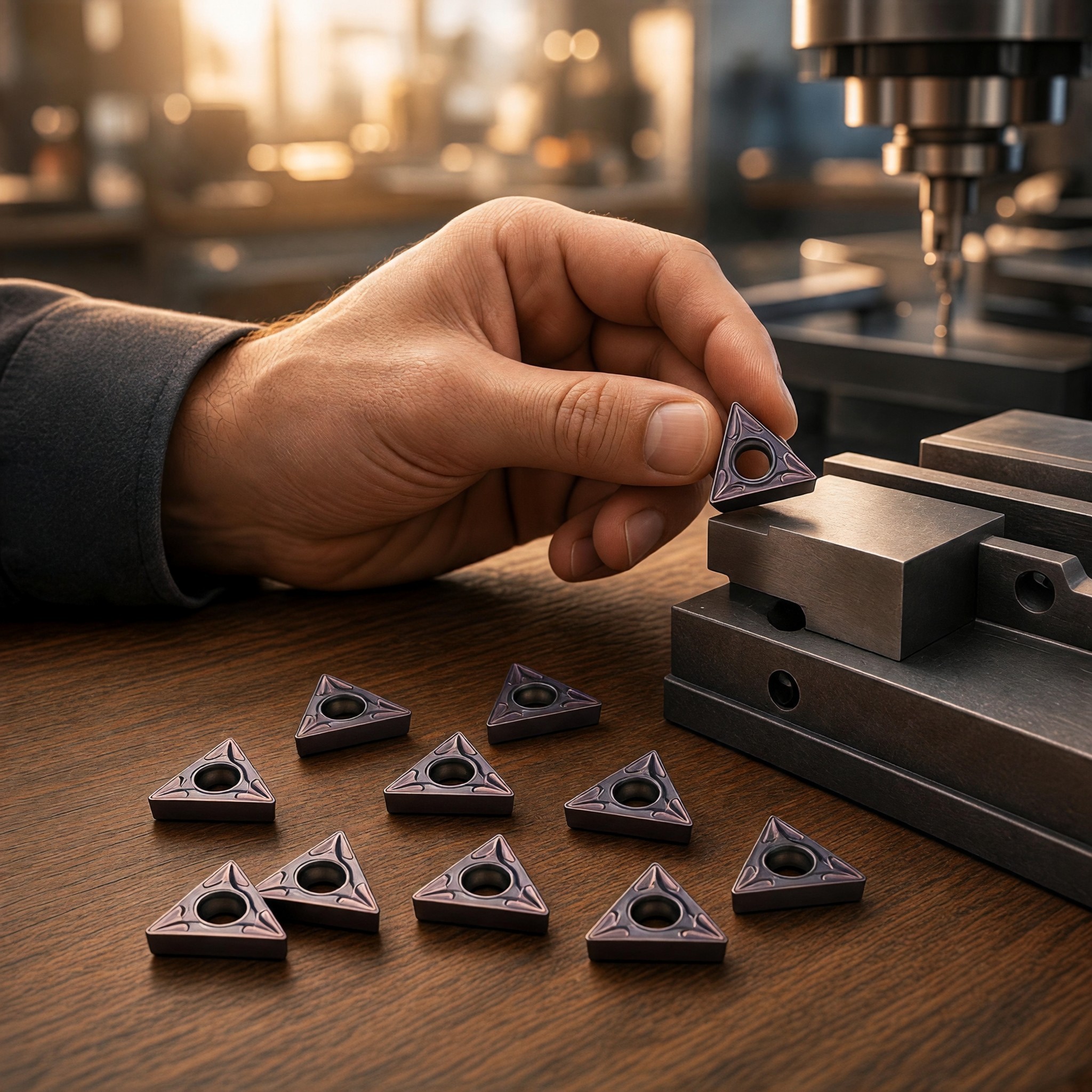

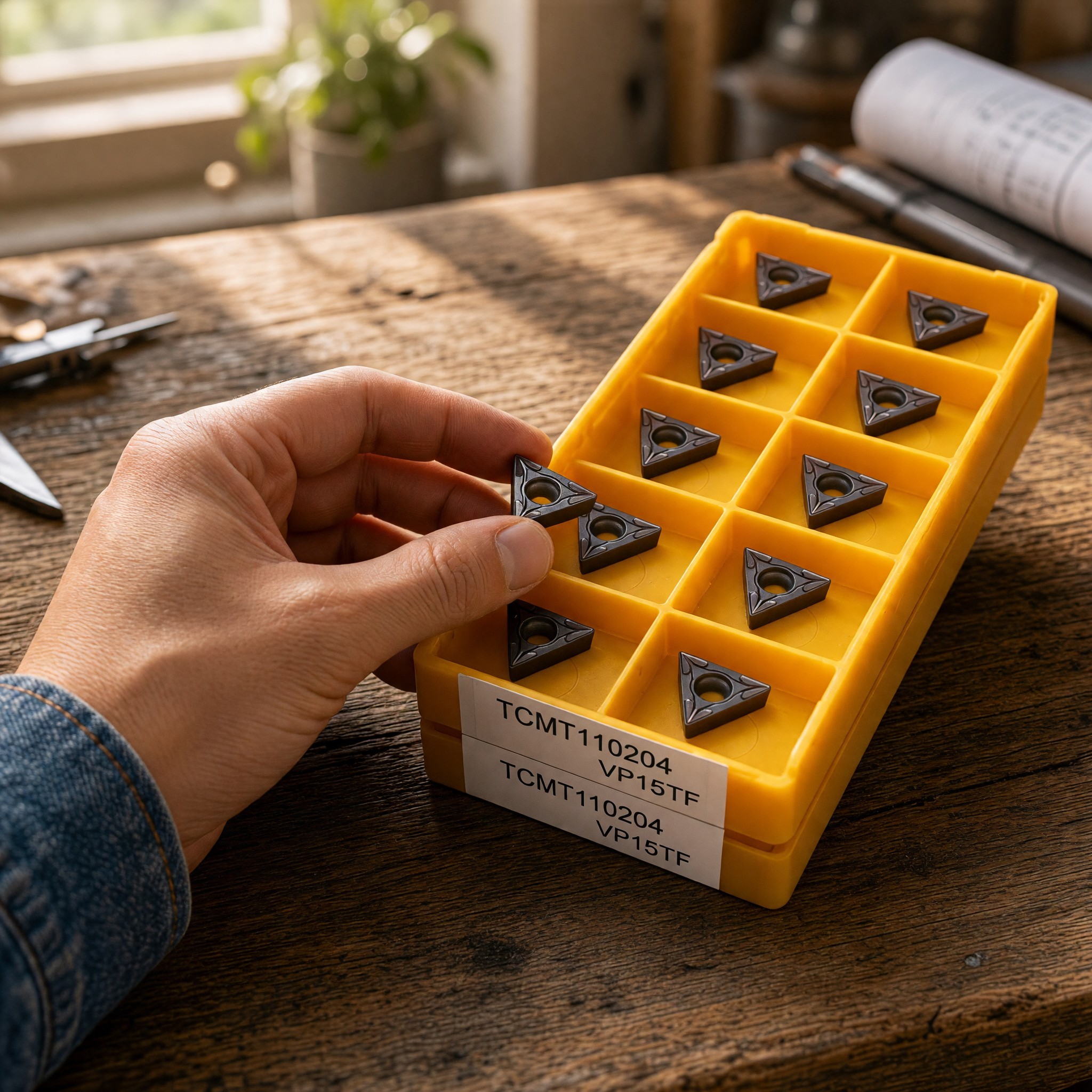

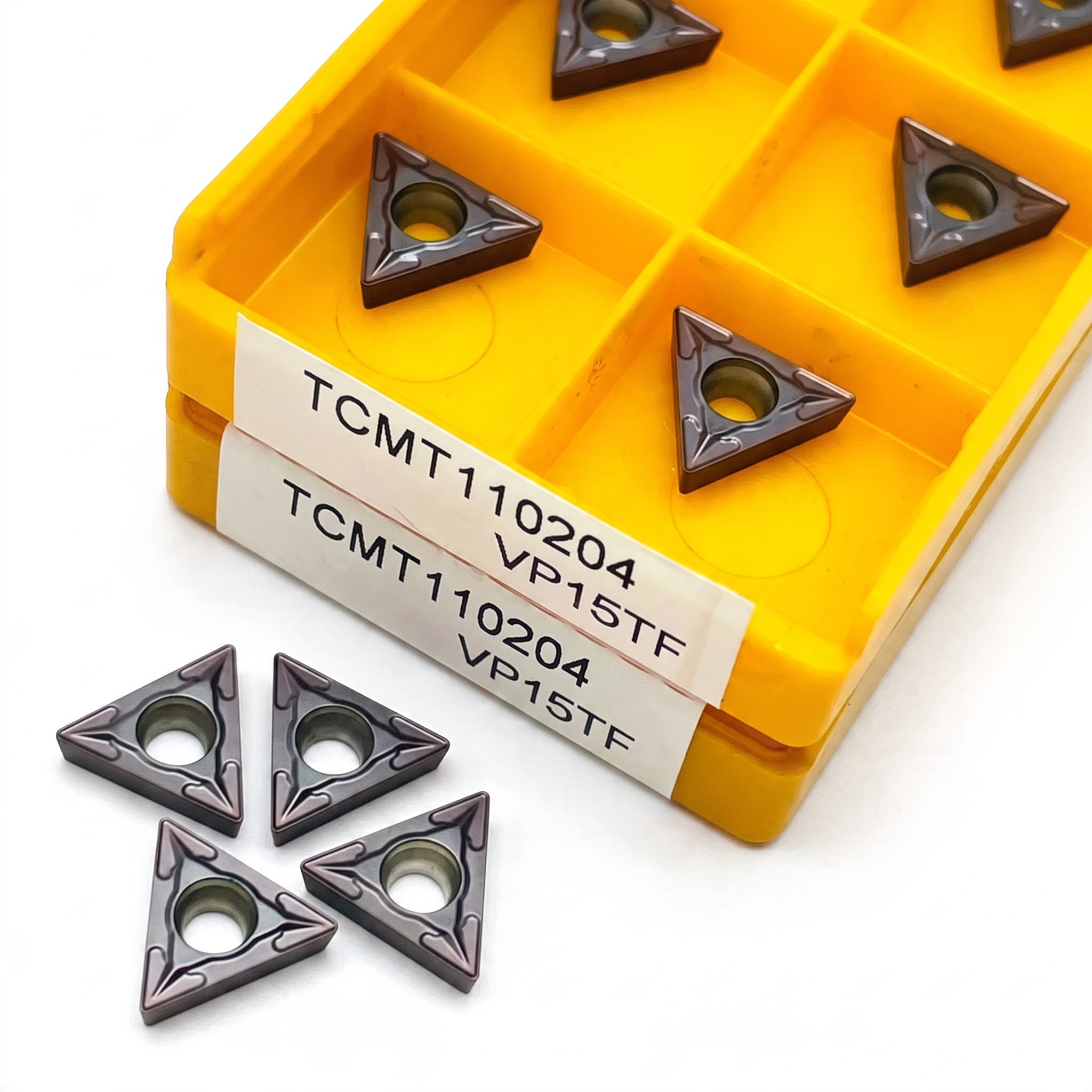

TCMT110204 VP15TF turning inserts are replaceable cutting edges made of sintered carbide for machining metal workpieces. The pack contains 10 pcs of inserts stored in a plastic box with compartments. The inserts have a triangular shape and a central hole for fastening to the tool holder with a screw. Each insert has three cutting edges that can be used sequentially before replacing it with a new one. The surface of the inserts is dark grey.
- Type TCMT110204 — the designation TCMT110204 describes the shape and dimensions of the insert according to ISO standards. With this code, you can easily select the corresponding holder or reorder the same inserts. The same code is indicated on the box label.
- Grade VP15TF — the designation VP15TF indicates the grade of carbide. It is marked on the box label, so you know which material the cutting edge is made of. When reordering, you can easily choose the same grade with which you have tested cutting conditions.
- Triangular Shape — the insert has three cutting edges. When one edge wears out, you loosen the insert, rotate it, and continue with the next edge. One insert thus replaces three separate cutting edges, and the pack of 10 pieces offers a total of 30 cutting edges.
- Screw Fastening — the central hole is used to attach the insert to the holder with a screw. The insert holds firmly in the holder, making replacement quick.
- Chip Former — on the top side of the insert, there are grooves shaped at each corner that direct the chip flow away from the workpiece. The grooves are the same at all three corners, allowing you to alternate them.
- Sintered Carbide — the inserts are made of sintered carbide, which is used for metal turning due to its hardness and wear resistance.
- Compatibility — the inserts are designed for turning tools and holders for TCMT type inserts size 11. The holder is not included in the package, so please verify what type of inserts your tool is designed for before purchasing.
- Pack of 10 Pieces — ten inserts with three edges will last you a long time. The box with compartments protects the cutting edges from damage and facilitates storage.
- Usage — external and internal turning depending on the type of holder, in engineering production, maintenance, and in a home workshop with your own lathe. The inserts are suitable for longitudinal turning as well as face turning if the holder allows it.
- Contents of the Package — 10x TCMT110204 VP15TF turning insert, 1x plastic box.
TCMT110204 VP15TF turning inserts are consumables for anyone working on a lathe. Triangular inserts with three cutting edges are fastened with a screw and can be easily rotated after one edge wears out. The pack contains 10 pieces made of sintered carbide in a handy box. Before purchasing, ensure you have a holder for TCMT inserts of the appropriate size. The inserts are suitable for production, maintenance, and home workshops.
