Submersible Brushless Pump 24 V with a Head of 7 m and a Flow Rate of 800 l/h with a Power Consumption of 26 W and IP68 Rating with 1/2 Inch Threads
You already have the maximum available quantity in your cart.

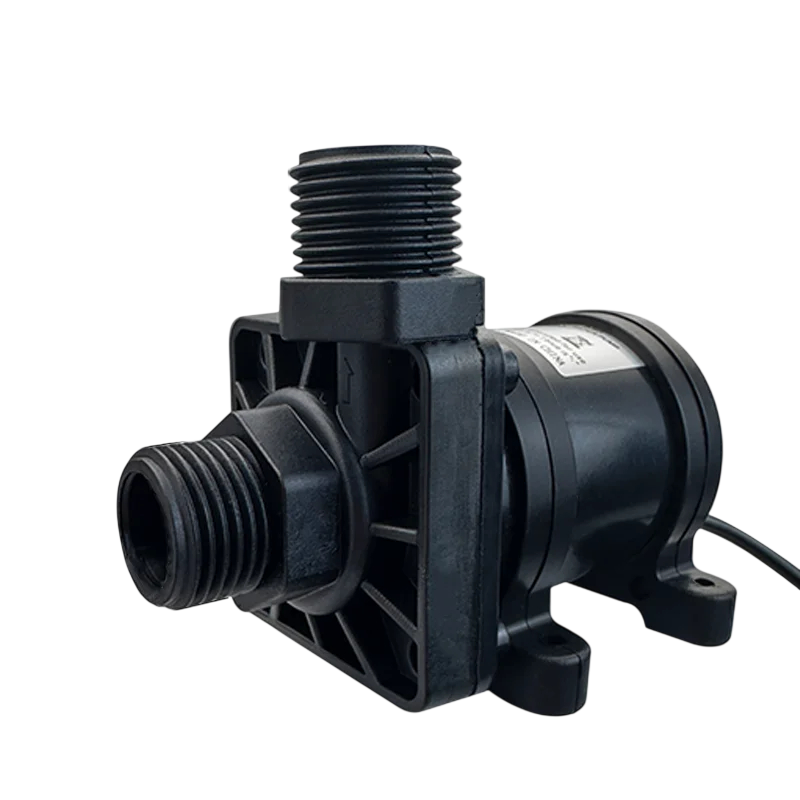

Longer distribution or higher lift requires a pump with greater capacity than the twelve-volt version offers. This centrifugal pump with a brushless motor operates at 24 V, draws 1.1 A, and has a power consumption of 26 W. The maximum head reaches 7 m and the maximum flow rate is 800 litres of water per hour. Both inlets have an external thread of 1/2 inch with a diameter of 20 mm and the entire body of the pump is black. The IP68 rating allows for continuous operation underwater and the noise level remains below 35 dB.
Key Features:
- Maximum Head of 7 m — water can rise even two storeys or through a longer horizontal branch
- Flow Rate up to 800 l/h — approximately 13 litres of water per minute with completely free discharge
- Power Consumption of 26 W — draws 1.1 A at twenty-four-volt direct current supply
- Brushless Drive — the motor operates without carbon brushes and their wear
- IP68 Rating — the entire body is designed for permanent immersion in water
- Noise Level below 35 dB — the pump operates below the threshold of 35 decibels

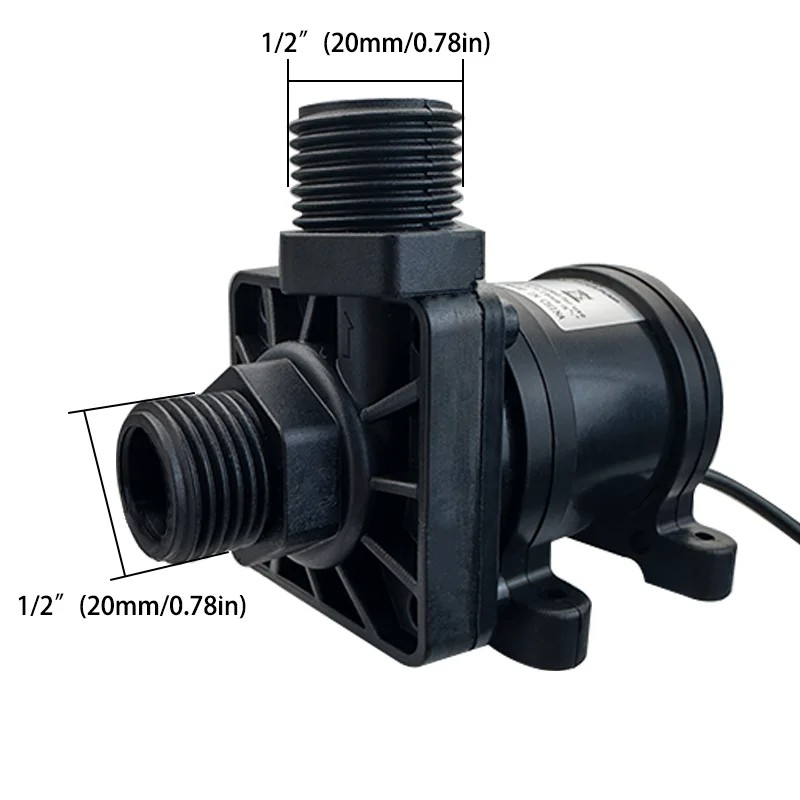

- External Thread of 1/2 Inch — both inlet and outlet with a neck of external diameter 20 mm
- Stainless Steel Shaft — the shaft made of stainless steel 316 withstands permanent contact with water and diesel
- Centrifugal Design — flow rate gradually decreases with increasing lift height
- Temperature Range -20 to 100 °C — applicable for surroundings and pumped liquid
- Humidity up to 90 % RH — operational range of ambient humidity around the pump
- Insulation Test — insulation passed at 1500 V for 60 seconds
- Pumped Media — water, alcohol, diesel, and similar liquids
- Unsuitable Media — acidic and alkaline solutions should not be pumped
- Contaminant Limit — particles larger than 0.35 mm may clog the pumping chamber
- Lifetime over 30,000 Hours — this value applies to continuous operation
- Side Feet — the body has side feet with holes for fastening with screws
- Power Supply Only from DC Source — battery, adapter, or transformer
- Must Be Primed with Water — the pump is not self-priming and must not run dry at any time
Contents of the Package:
- 1x brushless pump
The twenty-four-volt version is suitable where an appropriate power source is available and a higher lift is needed. The head of 7 m is the main difference compared to the twelve-volt version, which ends at five metres. The lower consumption of 1.1 A at a higher voltage also saves on the cross-section of the supply wires and circuit breakers. The 1/2 inch threads on both inlets allow the pump to be integrated into the existing system. Before the first start, it is necessary to prime the chamber with water and never allow the pump to run dry.
