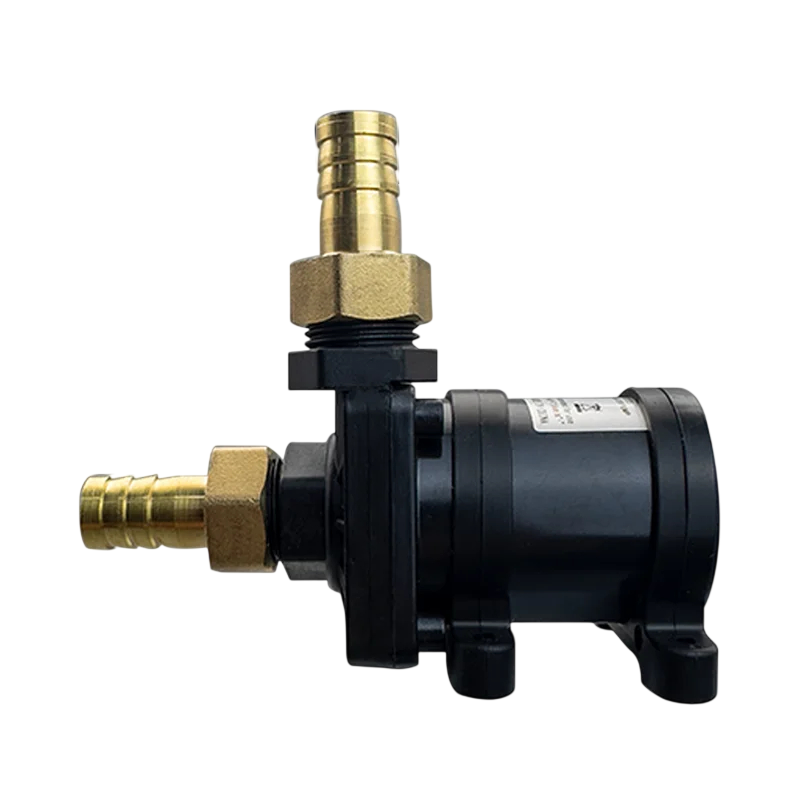

Submersible Brushless Pump 24 V 26 W IP68 with 14 mm Hoses, Flow Rate 800 l/h and Head 7 m
You already have the maximum available quantity in your cart.
The submersible pump with a brushless motor operates on circuits powered by a direct current of 24 V and has a current draw of 1.1 A under full load. Both the suction and discharge fittings feature brass outlets for 14 mm hoses, allowing for a connection without threaded reducers. The power cable ends in free wires that can be connected to a battery, transformer, or another direct current source. The centrifugal impeller delivers up to 800 l/h and lifts liquid to a height of seven metres, with flow decreasing with height. The black body with side feet and a power consumption of 26 W is designed for operation below the surface.
- Maximum flow reaches 800 litres per hour at 24 V supply
- Lifts liquid to a height of seven metres above the pump
- Power consumption of 26 W with a current draw of 1.1 A from the source
- Power cable ends with free wires without a connector
- Brass outlets are fitted on both the suction and discharge

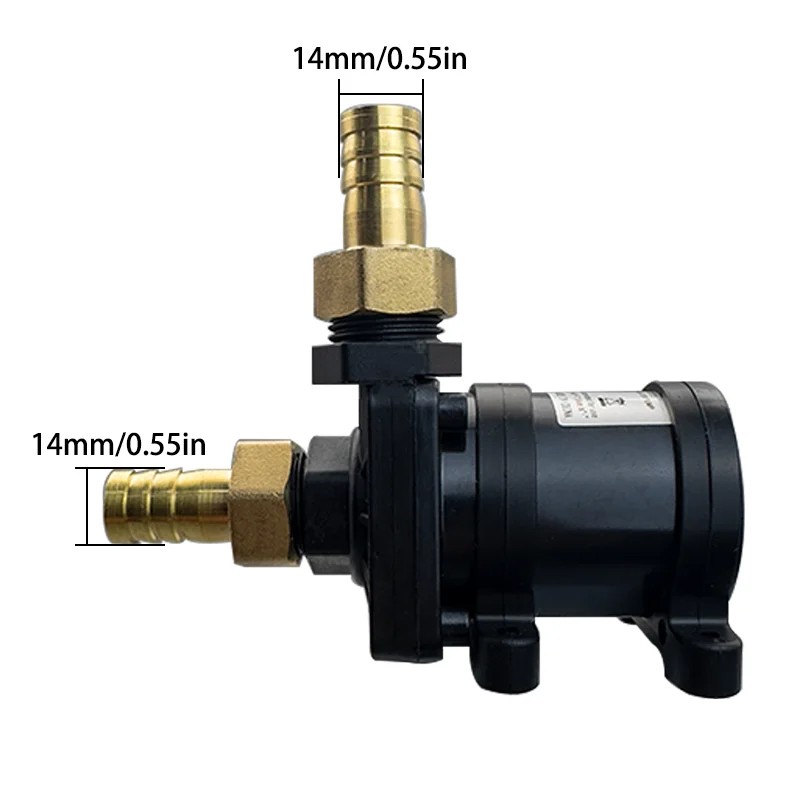

- Outlet size of 14 mm corresponds to 0.55 inches
- Each outlet is secured to the body with a retaining nut
- The brushless motor does not require regular replacement of carbon brushes
- IP68 rating allows for continuous operation of the entire body underwater
- Noise level during operation remains at up to 35 dB
- The shaft is made of stainless steel 316 inside the pumping chamber
- Pumping operates on a centrifugal principle with a closed impeller
- Ambient environment and medium can withstand temperatures from -20 to 100 °C
- Ambient humidity can reach up to 90%
- Insulation has passed a 1500 V test lasting 60 seconds
- Can pump not only water but also alcohol or diesel
- Acids and bases are not suitable for the pump
- Particles larger than 0.35 mm must be regularly rinsed from the chamber
- Lifetime of over 30,000 hours of continuous operation
- The feet with screw holes are located on both sides of the body
- Power supply is only direct current and within the specified voltage range
- The pump must be fully submerged in liquid during operation
- Dry operation is prohibited for this type
- The body and feet are finished in black
- The fittings point in two different directions from the pump body
- The power cable is routed from the rear of the motor
Contents of the package:
1x brushless pump
2x brass hose outlet 14 mm
Head of 7 metres will move water to a higher tank without the need for a second pump. The 24 V power supply is suitable for larger battery systems and transformers with a corresponding direct current output. The hose connection simplifies installation as the hose connects directly to the brass outlet without a threaded joint and sealing. It can be used in ponds, in water heating circuits, in cooling loops, and for transferring between containers. Before starting, it is necessary to fill the chamber with liquid and maintain it free of coarse impurities during operation.
