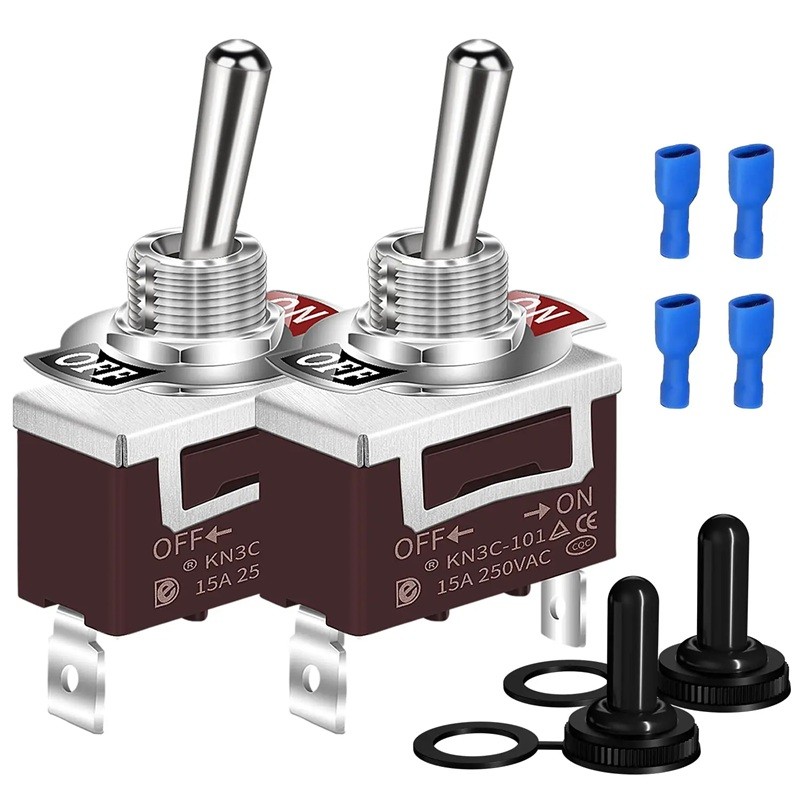

SPST Waterproof Toggle Switch 30 A 12 V DC and 15 A 250 V AC ON/OFF with Screw Terminals and Cover 2 pcs
You already have the maximum available quantity in your cart.
The SPST toggle switch is a universal two-position ON/OFF switch designed for switching a single circuit in cars, boats, offroad vehicles, and for home electrical installations. The switch is rated for 30 A at 12 V DC, 20 A at 125 V AC, and 15 A at 250 V AC, making it suitable for more demanding devices such as headlights, pumps, or fans. The robust metal body with screw terminals ensures a secure and reliable connection of wires, and the included rubber cover protects the lever from water and dust. The mounting hole with a diameter of 12.2 mm conforms to standard sizes, allowing easy installation into dashboards or panels. The package includes two switches, enabling you to equip multiple circuits at once.
Main Features:
- Type — SPST toggle switch with two positions ON/OFF for switching a single circuit
- Current Rating — 30 A at 12 V DC, 20 A at 125 V AC, and 15 A at 250 V AC
- Terminals — screw terminals with a thickness of 0.8 mm for secure wire connection
- Resistance — waterproof design with included rubber cover for the lever against water and dust
- Body — robust metal construction with a nickel-plated toggle actuator
- Mounting Hole — diameter 12.2 mm (0.48 in) with a guiding flat to prevent rotation
- Switching Angle — lever with a range of 30° between OFF and ON positions
- Mounting Depth — allow at least 27 mm of free space for installation
- Labeling — model KN3C-101 with clear OFF and ON markings on the body
- Usage — cars, vans, offroad vehicles, boats, quad bikes, and home wiring
Contents of the Package:
- 2x SPST Toggle Switch
- 2x Rubber Cover for the Lever
- 2x Sealing Ring
- 4x Cable Terminal
The switch is a practical and durable solution for switching lights, pumps, fans, and other devices in more demanding environments. With its high current carrying capacity, it can handle more powerful circuits that ordinary weaker switches may not be able to support. The combination of a metal body, screw terminals, and a rubber cover ensures long life even when exposed to moisture and shocks. The standard mounting hole of 12.2 mm makes replacement and new installation into dashboards or panels easier. The package of two switches with covers and terminals is also appreciated when wiring multiple circuits at once.
