Speedometer for Electric Bicycle LCD Display S866 with Backlight and 5 PAS Modes 8 x 5 x 1 cm SM 5 PIN Connector Black for Electric Bikes
You already have the maximum available quantity in your cart.

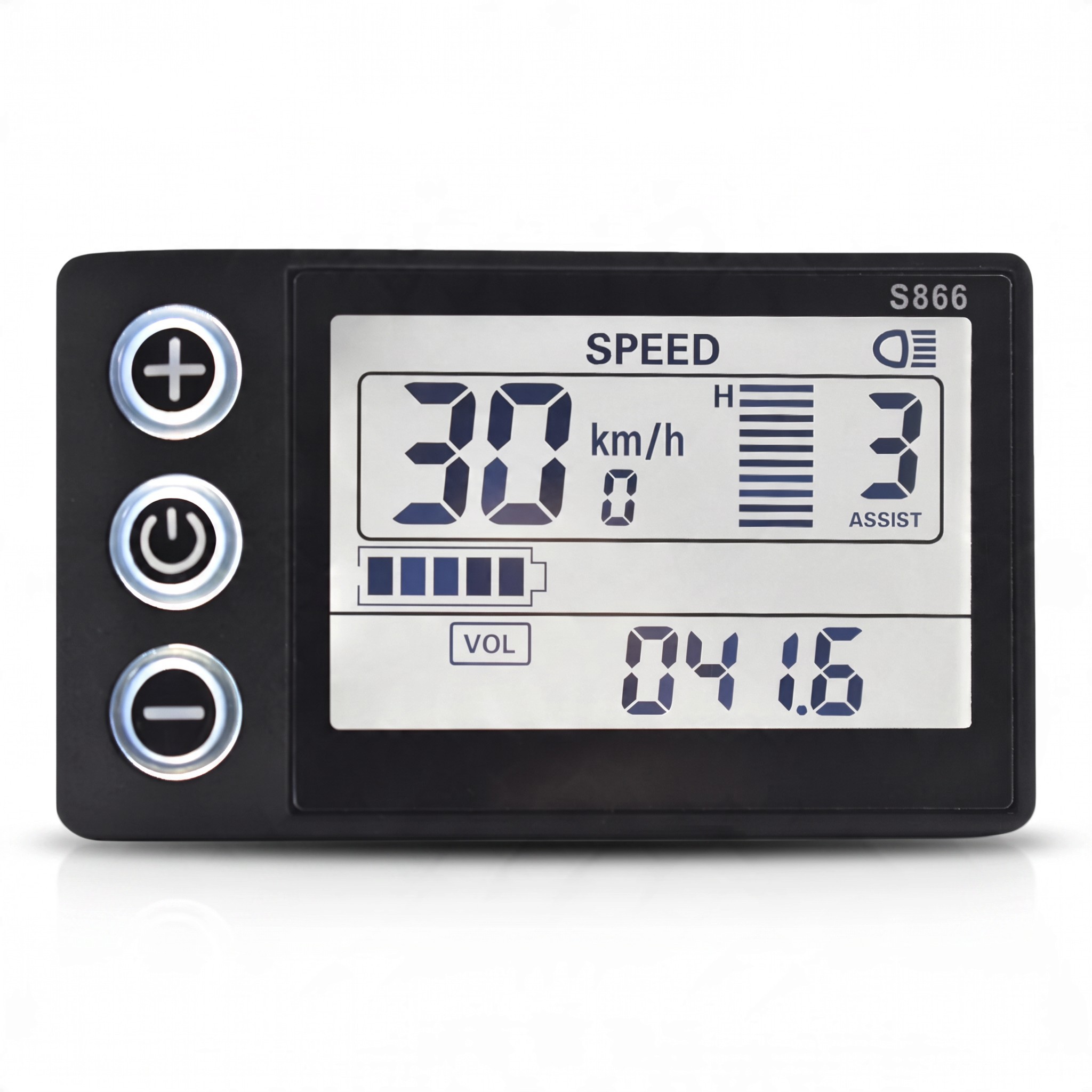

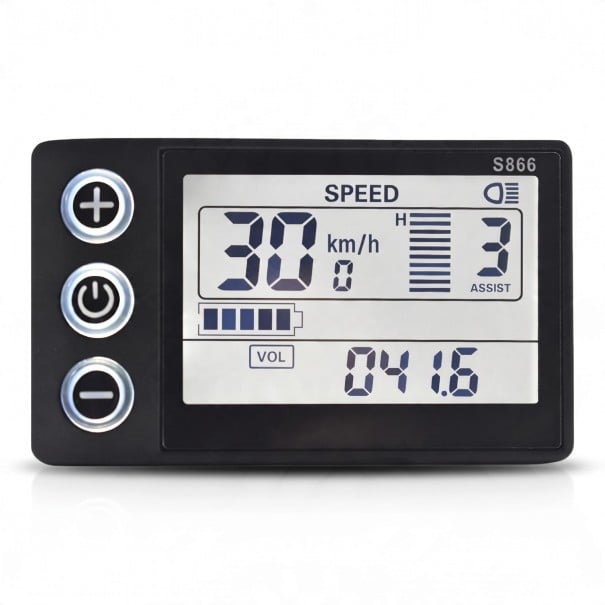

The S866 LCD display is an electric cycling speedometer designed for electric bicycles, clearly displaying the most important ride data. The backlit display shows current speed in km/h, distance travelled, battery status, voltage, and the selected level of assistance. Control is via three buttons located on the left side of the black casing. The display connects to the electric bicycle with a cable ending in a SM 5 PIN connector. You can use the speedometer as a replacement for a damaged display or as an addition when building or modifying an electric bicycle.
- Speed Display – large digits at the top of the display show the current speed in km/h, with a smaller numerical value located below the speed.
- Assistance Modes – the display supports 5 modes of pedal assistance PAS. The selected level is displayed as a number with the label ASSIST and a bar indicator.
- Battery Indicator – the battery charge status is displayed with a segment indicator in the form of a battery symbol.
- Voltage and Distance Travelled – at the bottom of the display, voltage is shown with the label VOL and information about the distance travelled.
- Backlight – the backlit LCD display makes it easier to read data in low light and at night. The display also features a light symbol.
- Control Buttons – on the left side of the casing are three buttons. The middle button with the power symbol is used to turn the display on and off, while the outer buttons plus and minus are for switching assistance levels.

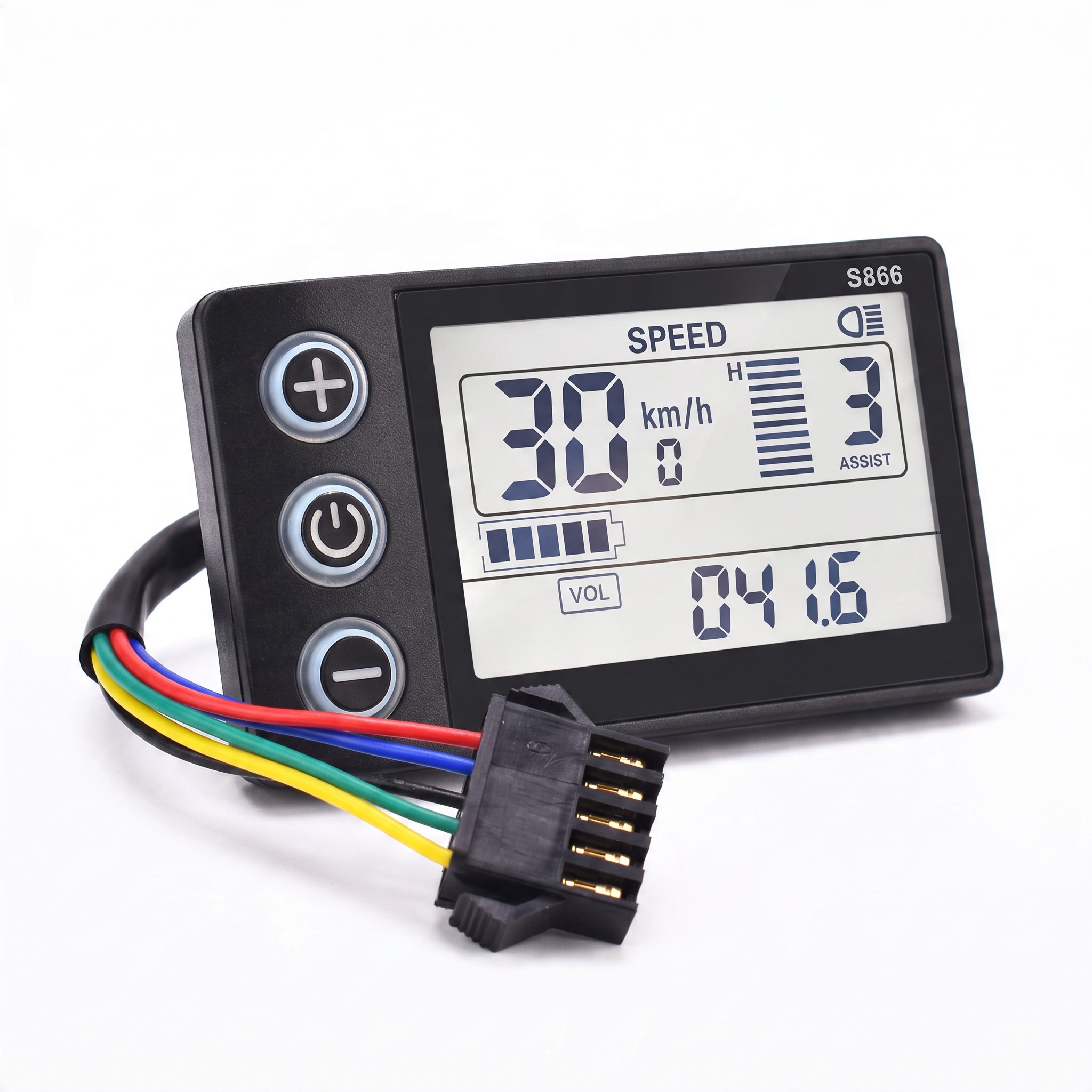

- Connection – the display cable ends with a SM connector with 5 pins. The individual wires are colour-coded red, blue, black, green, and yellow.
- Dimensions – 8 x 5 x 1 cm. The compact casing can be mounted on the handlebars of the electric bicycle.
- Colour – black casing, light display with dark digits, silver-trimmed buttons, and black connector.
- Model Designation – in the top right corner of the display frame, the model designation S866 is indicated, making it easier to find a replacement part.
- Usage – suitable as a replacement display when the original speedometer is damaged or as part of converting a bicycle to an electric bicycle.
- Compatibility – before purchase, we recommend checking whether your electric bicycle's control unit supports the S866 display with the SM 5 PIN connector and whether it matches the wiring configuration.
Package Contents:
- 1x LCD Display S866 with cable and SM 5 PIN connector
The electric cycling speedometer S866 offers speed, distance travelled, voltage, battery status, and level of assistance all on one display. The display supports 5 PAS assistance modes, which are switched using the plus and minus buttons. The backlight facilitates reading data in low light. With dimensions of 8 x 5 x 1 cm and a black casing, the display is mounted on the handlebars of the electric bicycle. Before installation, verify compatibility with your electric bicycle's control unit and connector type.
