Solar Panel Power Optimiser 600 W Set of 5 MPPT 7-60 V 103 x 21.3 x 105.3 mm IP68 Rating and MC4 Connectors Black For Photovoltaics
You already have the maximum available quantity in your cart.

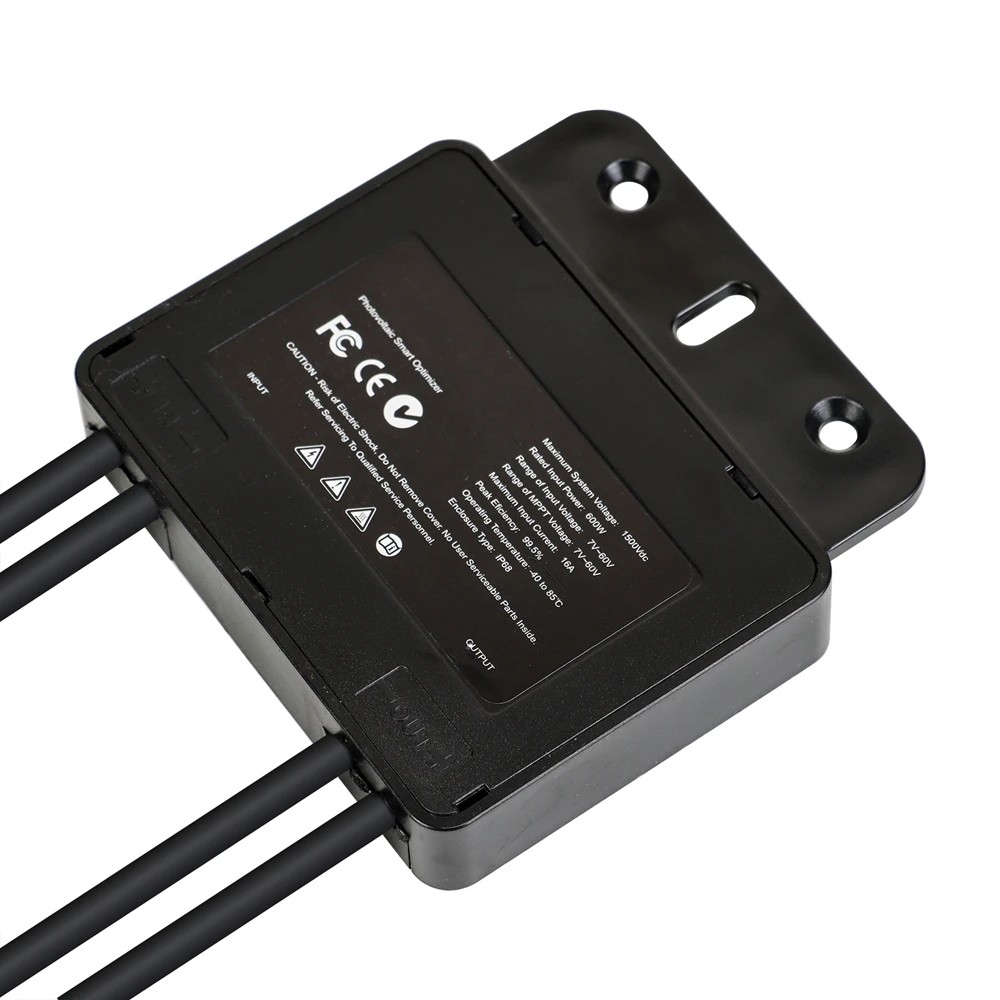

The power optimiser connects between the photovoltaic panel and the rest of the string, monitoring the operating point of each module individually. The set includes five units, and each can handle a panel with an input power of up to 600 W with an input current of up to 16 A. The MPPT range of 7-60 V covers standard modules, with an output voltage of 42 V and a maximum system voltage reaching 1500 V. A peak efficiency of 99.5% means that the device itself consumes very little of the generated energy, and at night, consumption drops to 0 W. Metal brackets on the back and IP68 rating are designed for permanent installation beneath the module in outdoor environments.
- Input power 600 W — one optimiser per photovoltaic panel
- MPPT range 7-60 V — operating voltage up to 60 V and input current up to 16 A
- Overcurrent protection 18 A — fuse value above the normal operating current
- Output 42 V and 16 A — maximum system voltage of the assembly 1500 V
- Efficiency up to 99.5% — night consumption of the device 0 W
- IP68 rating — water and dust resistant casing for year-round outdoor operation
- Operating temperature -40 to 85 °C — designed for both freezing and hot roofs

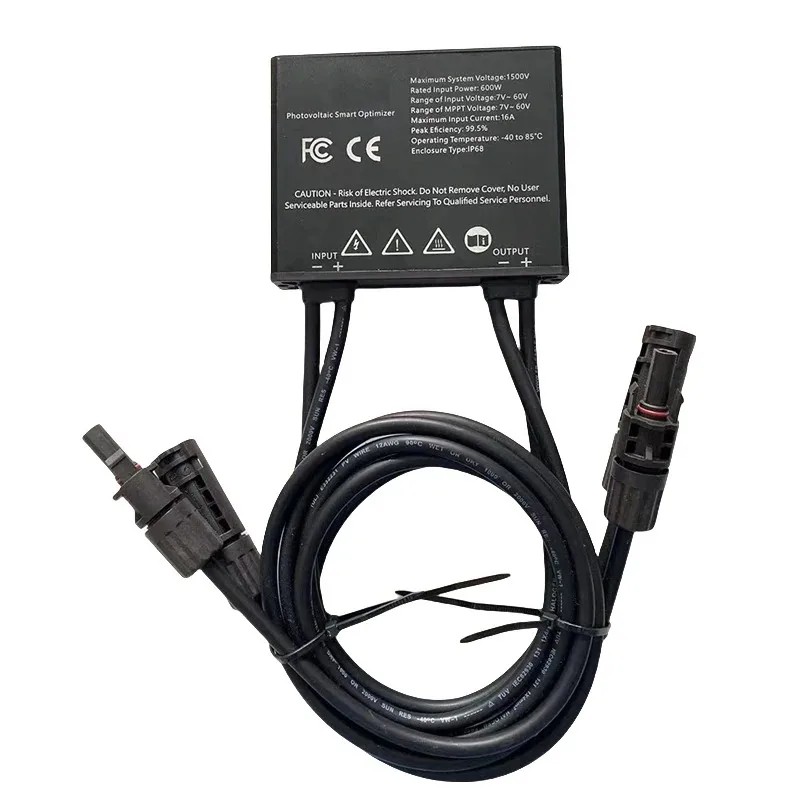

- 4 mm² cables with MC4 connectors — input cable 500 mm and output 1000 mm

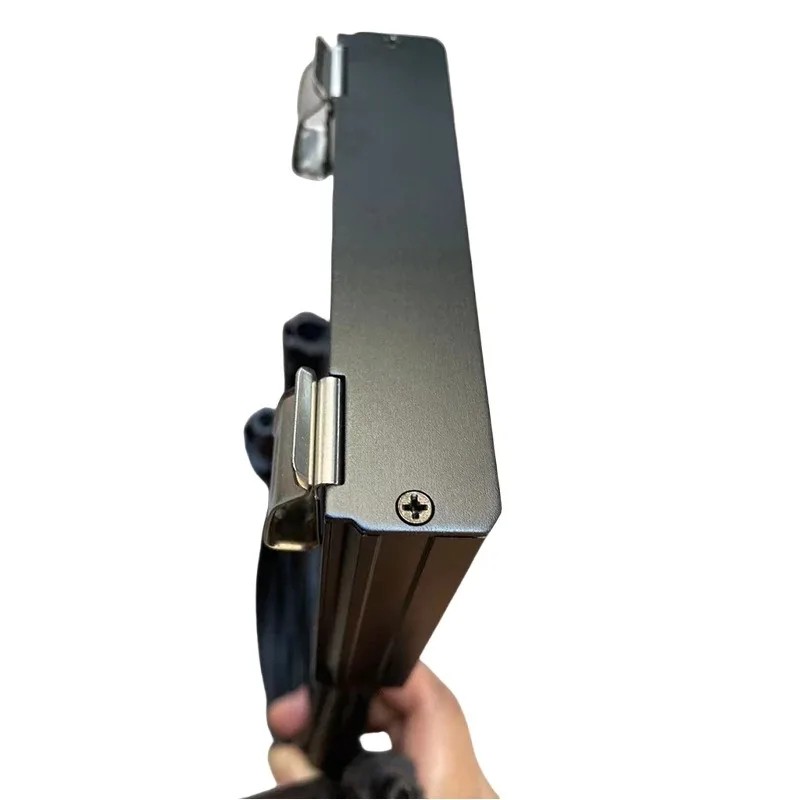

- Dimensions 103 x 21.3 x 105.3 mm — flat shape with brackets for mounting on the frame
- Black finish — discreet under the panel frame
Contents of the package:
- 5x power optimiser with cables and connectors

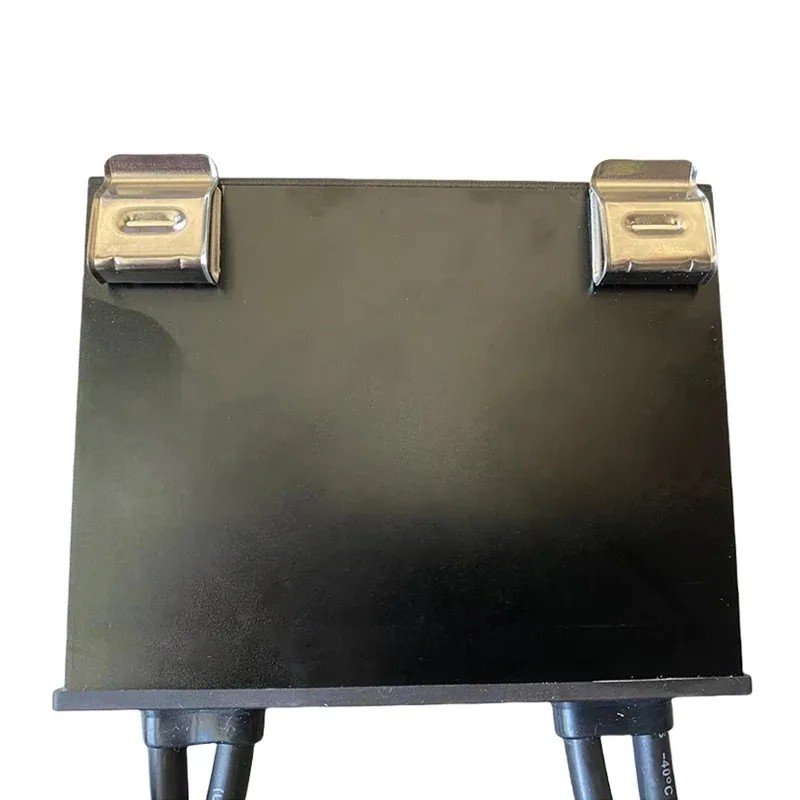

Optimisers are suitable for installations where not all panels have the same conditions — part of the area is shaded by a chimney, tree, or neighbouring building, modules are facing different directions, or have different ages. A weaker panel does not pull down the performance of the entire string, as each module maintains its own operating point. Metal brackets on the back allow for direct mounting on the support frame beneath the module, where the device remains in the shade of the panel. The set of five units will cover a typical smaller roof installation without the need to purchase additional individual units. Connecting to the photovoltaic system should be entrusted to a person with appropriate electrical qualifications.
