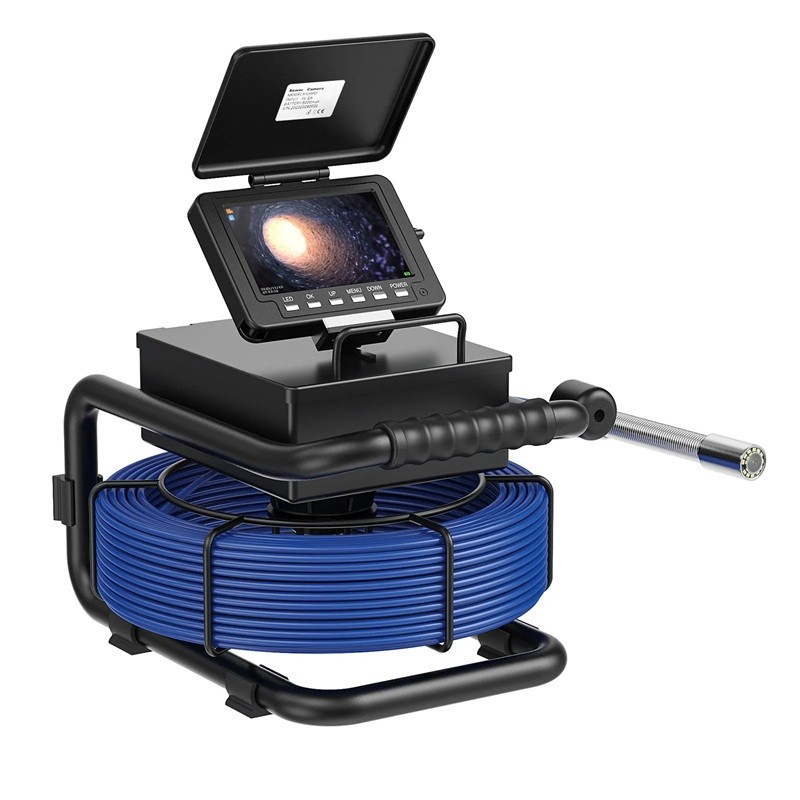

Self-levelling Inspection Camera for Pipes 1080P HD 5" Display Cable 30 m Head 23 mm IP68 Probe 512 Hz Black for Sewage
You already have the maximum available quantity in your cart.
The inspection camera for pipes with self-levelling image keeps the view horizontal, so even after turning the head in the pipe, you see the scene as it actually is. Capturing in 1080P HD resolution reveals cracks, deposits, and misaligned joints without disassembling the waste. The image is transmitted to a 5" display, which is part of the device and can be tilted to an angle that allows you to see it while working at ground level. The 30 m long cable is wound on a metal reel with a handle and unwinds gradually as you insert the probe deeper. The camera head with a diameter of 23 mm and IP68 rating is waterproof and has a ring of LED lights around the lens.
Features:
- Self-levelling image — the view remains horizontal even when rotating the head, making it easier to orient yourself in the pipe.
- 512 Hz probe — the transmitter in the head allows you to locate the camera's position with a locator above ground and identify the location of the fault.
- 1080P HD resolution — clear image, allowing you to distinguish cracks, deposits, overgrown roots, and misaligned pipe joints.
- 5" display — foldable screen firmly attached to the device, allowing you to view the image without a phone, tablet, or application.
- Video recording — the inspection process can be recorded as a video and reviewed later or passed on.
- Electronic zoom — zoom in on suspicious areas without needing to move the entire probe.
- 30 m cable — thin cable with a diameter of 5 mm can pass through bends, traps, and branches and reach long sections of drainage.
- Waterproof head IP68 — the camera can be submerged in water, making it suitable for flooded sections or in shafts.
- 23 mm head with LED — lighting around the lens is activated by an LED button directly on the panel.
- Date and time in the image — the recording bears a timestamp, which is useful for documenting the condition of the pipes.
- Reel with handle — metal frame with a handle keeps the cable tidy, and the entire set can be carried in one hand.
- Black design with blue cable — the cable is easily visible in the shaft and in the pipe.
- Applications — sewage, waste, traps, ventilation shafts, chimneys, boreholes, and construction cavities.
Package contents:
- 1x inspection camera for pipes with 5" display and reel
- 1x self-levelling camera head 23 mm with 512 Hz probe and 30 m cable
The camera combines the lens, lighting, display, and reel into one set, so you do not need a second device or mobile for waste inspection. The self-levelling head saves time in orientation as you do not need to mentally rotate the image according to how the probe has twisted in the pipe. The 512 Hz transmitter allows you to find the location of the fault from above, so you only dig where necessary. The thirty-metre cable can traverse the entire drainage from the house to the sewage connection, as well as longer sections between shafts. The set is thus suitable for sewage and waste pipe inspections, for plumbers, and in households where it is necessary to locate a blockage before demolition begins.
