Rotating Wall Mount for Electric Hoist DHZJ-300 180° Telescopic Load Capacity 300 to 600 kg 130 x 17 x 80 cm

Rotating Wall Mount for Electric Hoist DHZJ-300 180° Telescopic Load Capacity 300 to 600 kg 130 x 17 x 80 cm

Wall-mounted rotating 180° with telescopic arm and load capacity of 300 to 600 kg for securing an electric hoist made of solid carbon steel to a solid wall. Full description
In stock
Delivery €1.59
30-day return policy
€147.55
Safe shopping Safe shopping
Overview
Rotating Wall Mount for Electric Hoist DHZJ-300 180° Telescopic Load Capacity 300 to 600 kg Carbon Steel Red 130 x 17 x 80 cm

The DHZJ-300 rotating wall mount is an arm for securing an electric hoist to the wall. The arm rotates 180°, allowing for convenient loading and unloading of loads without the need for relocation. The mount can handle a load capacity of 300 to 600 kg depending on the extension of the telescopic tube and is made from solid carbon steel. The triangular brace and multipoint reinforcement increase stability, and the surface treatment protects against corrosion. The electric hoist is not included and must be purchased separately.

Main features:

  • Rotates 180° — easy loading and unloading of loads
  • Load capacity 300 to 600 kg — 600 kg at the arm and 300 kg when extended
  • Telescopic arm — three-stage length adjustment
  • Carbon steel — robust construction with corrosion protection

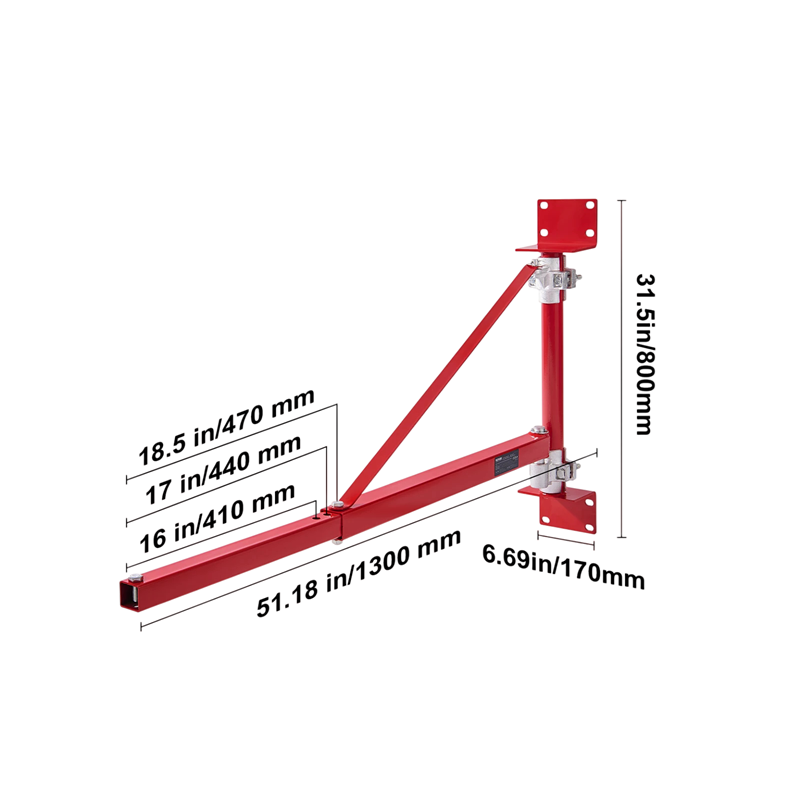

  • Dimensions — 130 x 17 x 80 cm in extended position
  • Triangular brace — reinforcement for greater stability
  • Wall plates — for secure anchoring to the wall
  • Durable paint — powder-coated finish for corrosion resistance
  • Weight 18.2 kg — model DHZJ-300
  • Red finish — highly visible colour
  • No hoist included — designed for a standalone electric hoist

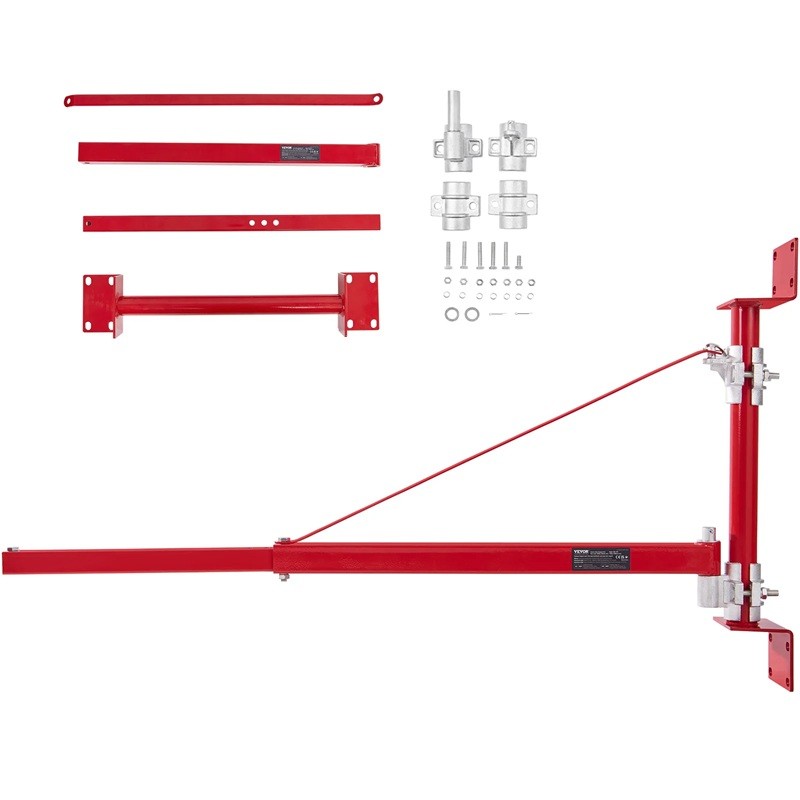

Package contents:

  • 1x rotating arm
  • 1x extension tube
  • 1x diagonal brace
  • 1x wall beam
  • 4x fastening clips
  • 1x set of screws, nuts, and washers

The DHZJ-300 rotating wall mount is suitable for mounting an electric hoist on the wall at construction sites, workshops, and warehouses. Thanks to the telescopic arm, the reach and load capacity can be adjusted as needed, with a load capacity of 600 kg when the arm is retracted and 300 kg when fully extended, covering even demanding material handling. The 180° rotation facilitates handling of loads without frequent relocation. The robust construction made from carbon steel with a powder-coated finish ensures resistance to corrosion and a long lifespan. The electric hoist must be purchased separately, and the arm will extend its operational reach.
