Home page Home page Auto & Moto Car Electronics Dash Cams Reversing camera built into the boot lid handle Waterproof design IP67 CMOS image sensor Powered by 12 V Handle dimensions 11 x 5 cm
Reversing camera built into the boot lid handle Waterproof design IP67 CMOS image sensor Powered by 12 V Handle dimensions 11 x 5 cm

Reversing camera built into the boot lid handle Waterproof design IP67 CMOS image sensor Powered by 12 V Handle dimensions 11 x 5 cm

The camera hidden in the handle shows you the space behind the vehicle on the car monitor when reversing and parking. It is reliably protected from water and dust with an IP67 rating. Full description
In stock
Delivery €1.59
30-day return policy
Variant:
€27.47
Safe shopping Safe shopping
Overview
Reversing camera integrated into the boot lid handle Waterproof design IP67 CMOS image sensor Powered by 12 V Handle dimensions 11 x 5 cm

The camera is integrated directly into the boot lid handle, so you do not need a separate mount for it. When reversing, it shows you the space behind the vehicle and makes parking in tight spots and manoeuvring around obstacles that you cannot see from the driver's seat easier. The image is provided by a CMOS image sensor with a resolution of 628 x 582 px. Thanks to the IP67 rating, the camera is protected against water and dust, allowing it to handle driving in rain and dusty environments. It is powered from the 12 V onboard system.

  • Camera in the handle — the camera lens is embedded directly into the handle body, so the camera does not protrude from the bodywork as a separate part. The handle measures 11 x 5 cm and is mounted on the boot lid.
  • Sensor and image — the image capture is handled by a 1/4 inch CMOS image sensor with a resolution of 628 x 582 px. The image from the camera is displayed on a monitor or screen in the vehicle.

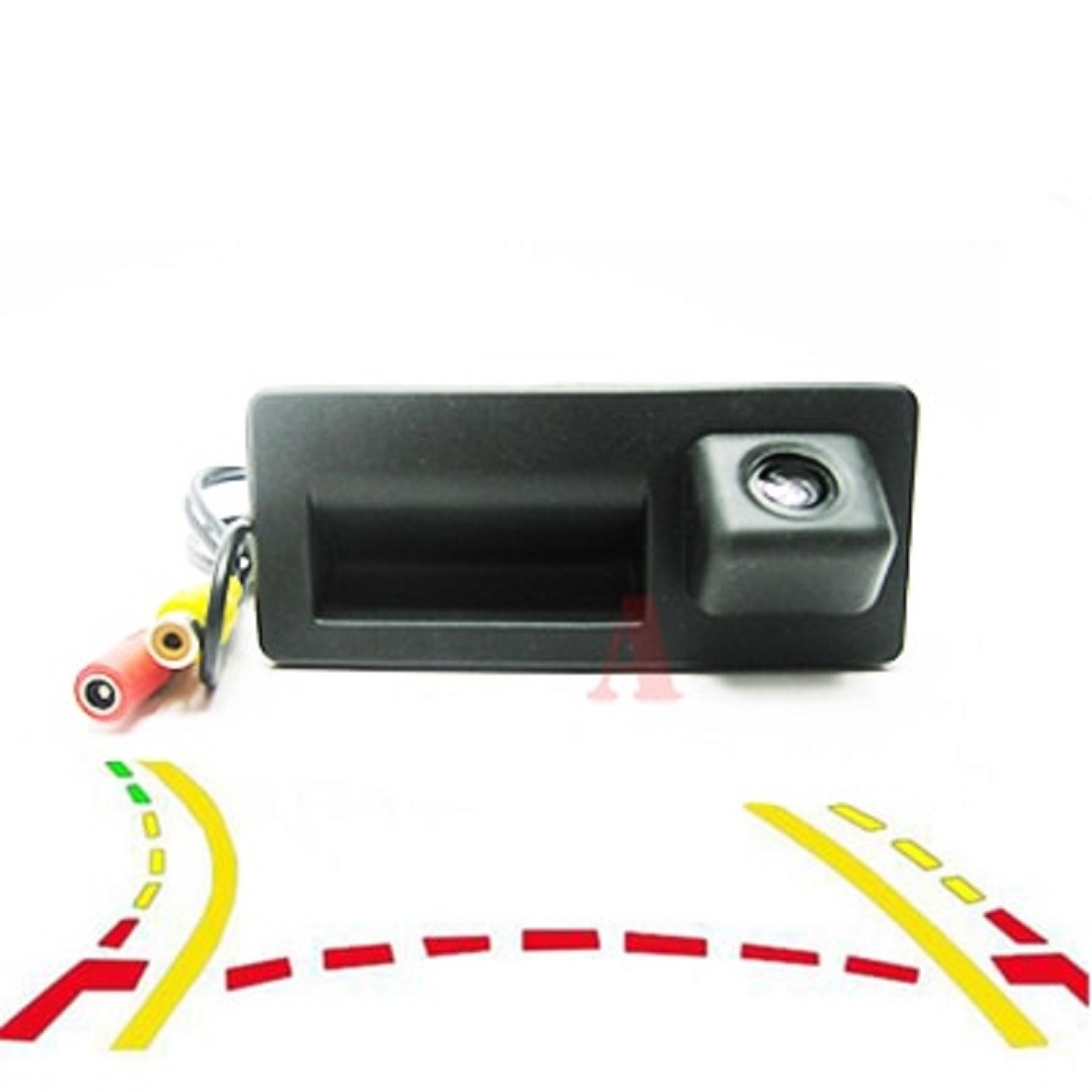

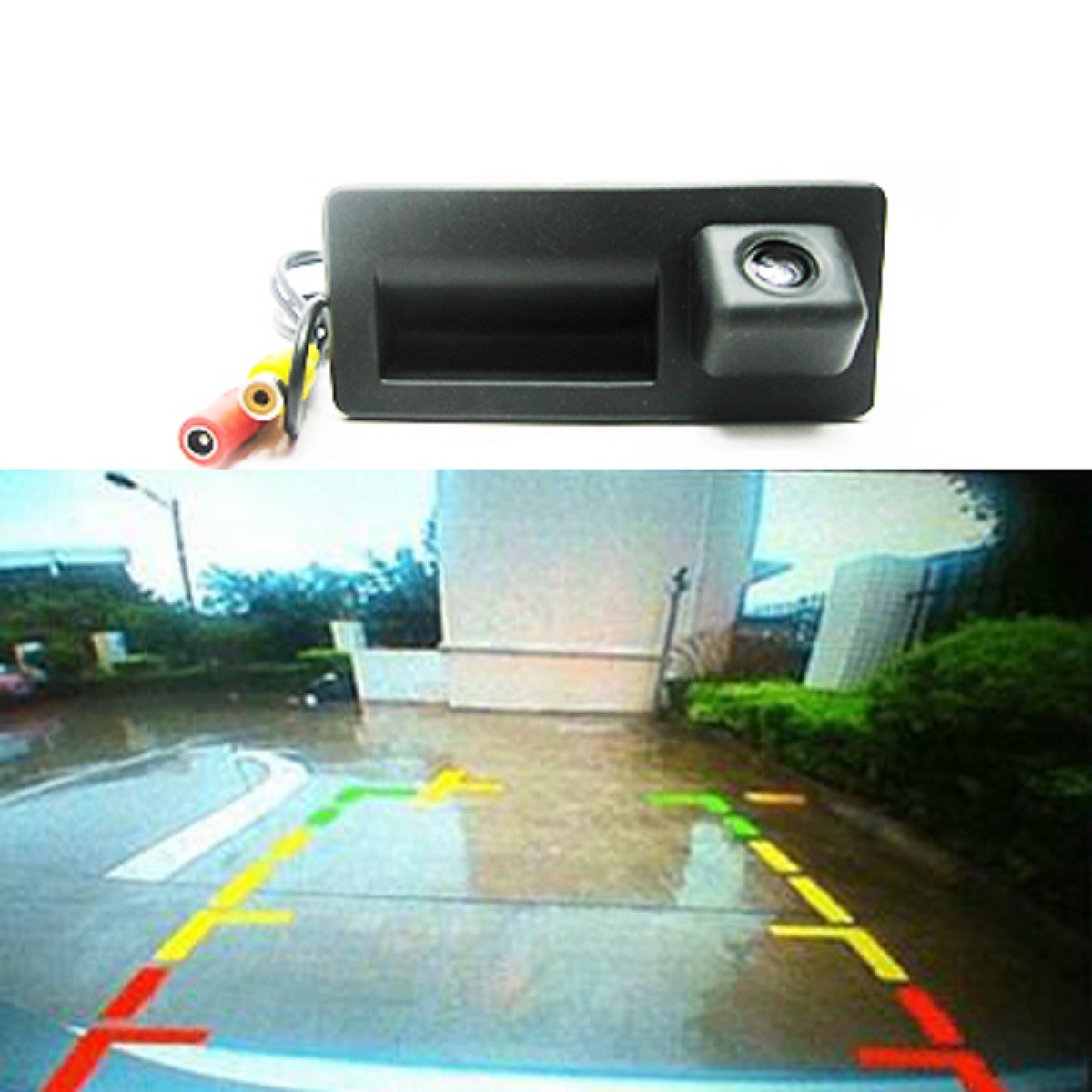

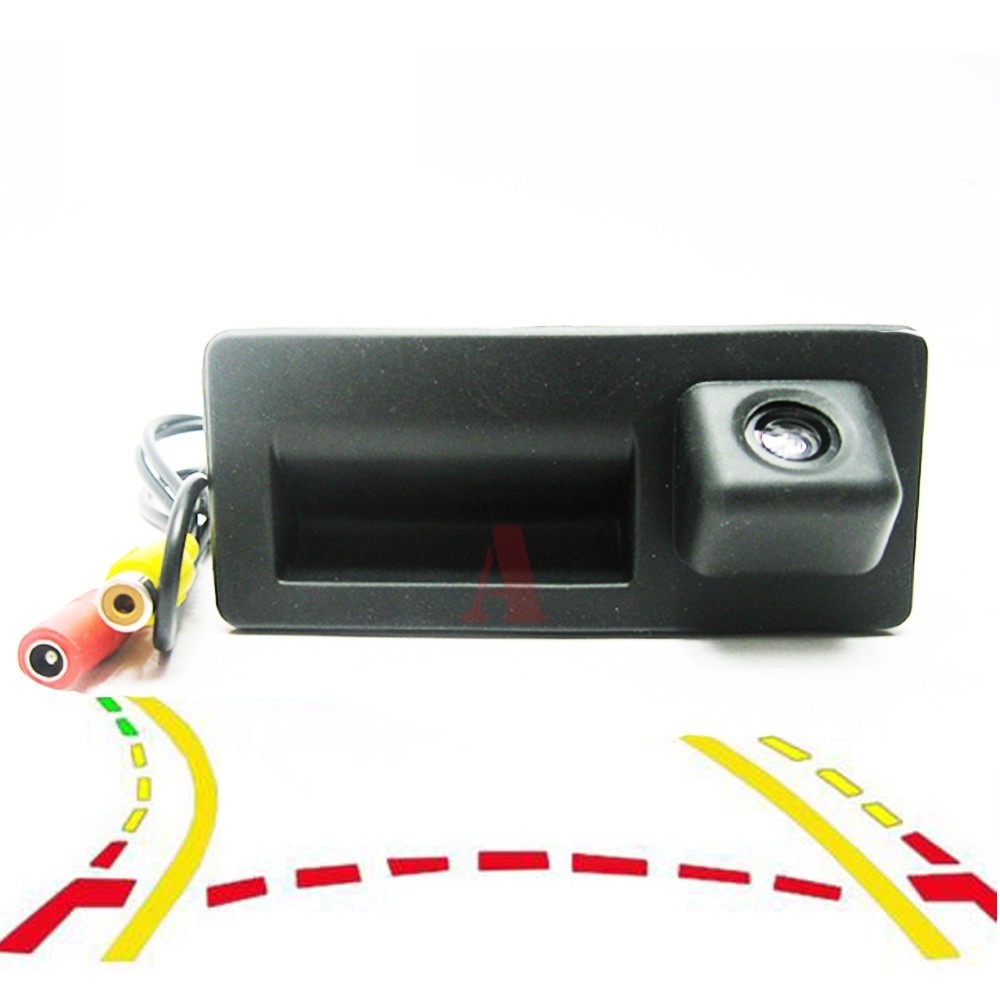

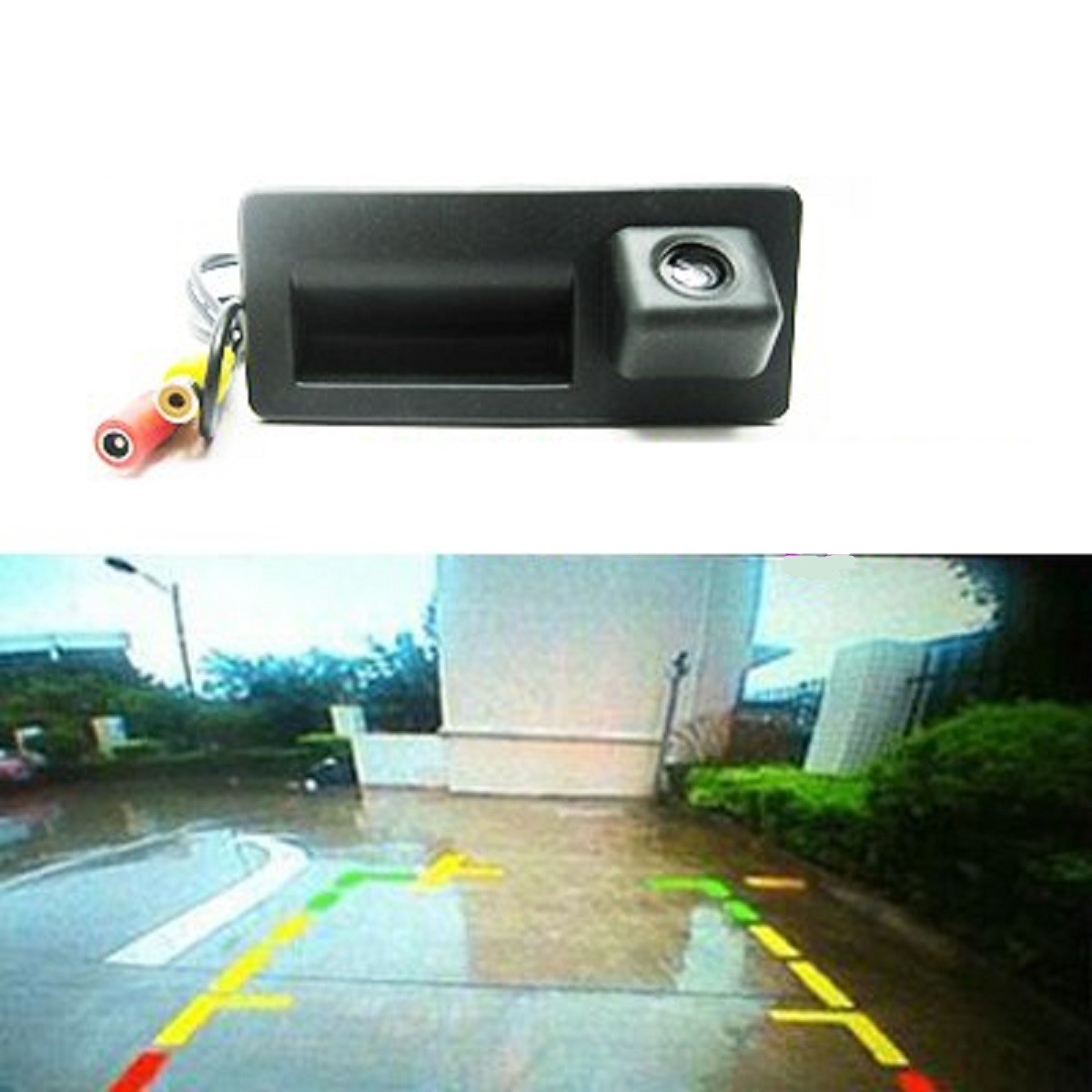

  • Guiding lines — in the photographs, the image from the camera is supplemented with coloured guiding lines that help estimate direction and distance when reversing. The coloured segments of the lines roughly indicate the distance from the vehicle. This helps you better estimate how much space is left behind the vehicle. Option 1 has a static trajectory, option 2 has a 190-degree field of view, and option 3 has a dynamic trajectory.
  • Usage — the camera is suitable for reversing into a garage, in parking lots between cars, or when parking next to curbs and posts. It will also show you the space directly behind the bumper that is not visible in the mirrors.
  • Durability — the IP67 rating means protection against dust and water, so the camera is unaffected by rain or dirt from the road. The lens only needs to be wiped occasionally to keep the image clear.

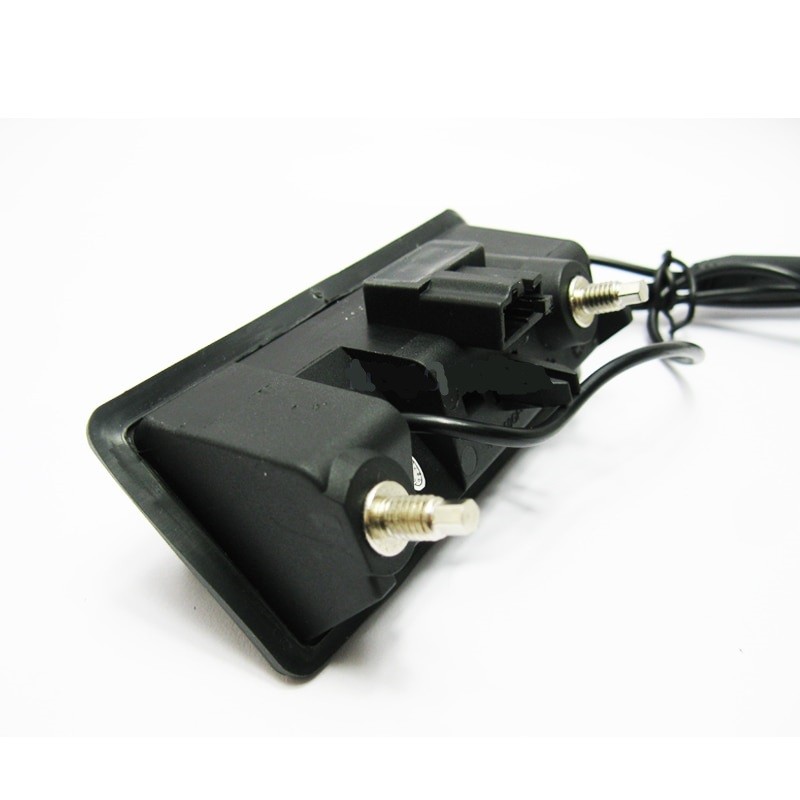

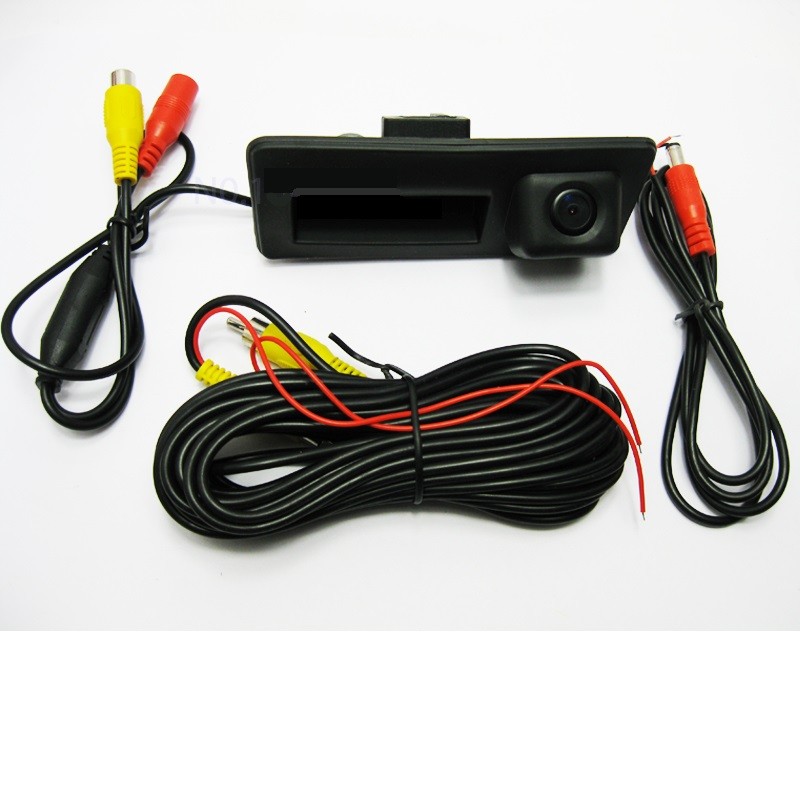

  • Installation and power supply — the handle is secured with two threaded pins on the back, from where a cable with connectors runs. The cable needs to be routed into the cabin to the monitor. The camera operates at 12 V, which corresponds to the standard onboard system of passenger cars. If you are inexperienced with installation, it is advisable to entrust it to a garage or auto electrician.
  • Package contents — 1x reversing camera in the boot lid handle. Monitor not included.

The reversing camera in the boot lid handle is a practical way to add a camera to your car for safer reversing. You will have a better overview of the space behind the vehicle and will be able to park with greater confidence even in tight spots. The camera is powered from the 12 V onboard system and the image is displayed on a monitor or screen in the vehicle. The handle measures 11 x 5 cm, so please compare it with the original handle on your vehicle before purchasing. The camera is only an aid, so continue to monitor the surroundings of the vehicle while reversing.
