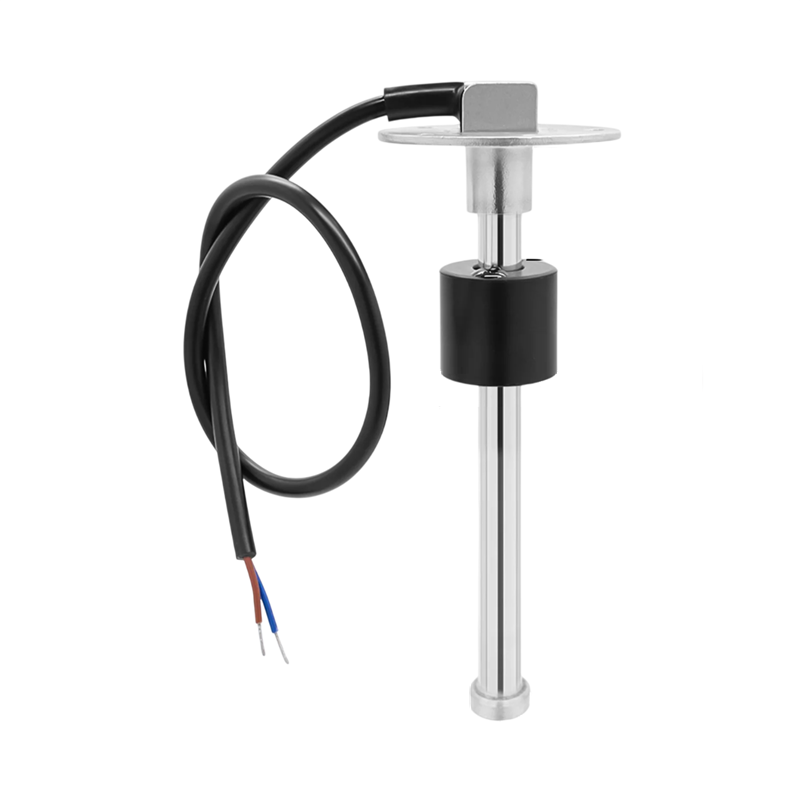

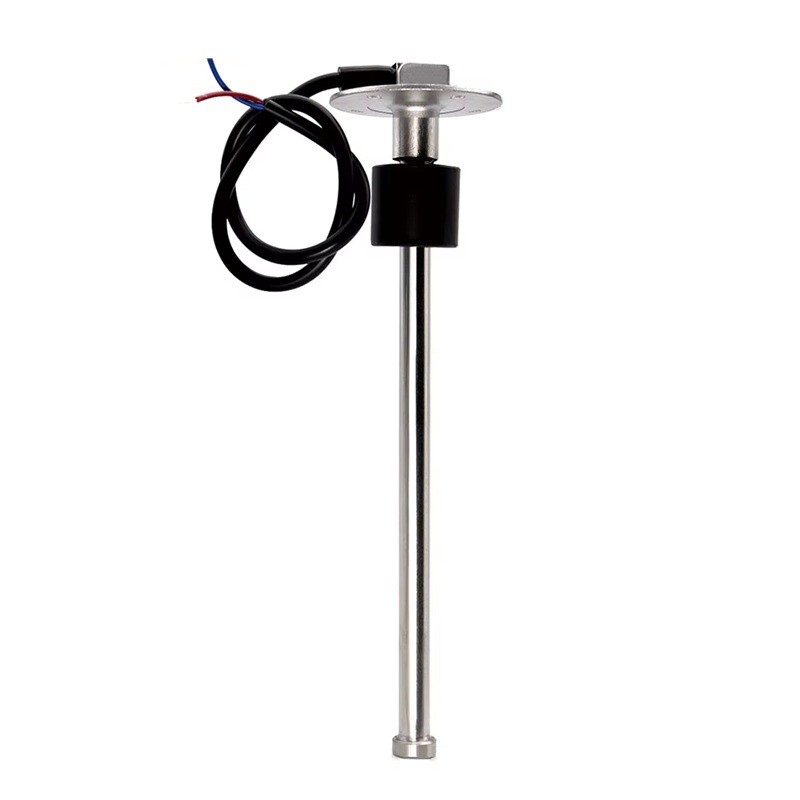

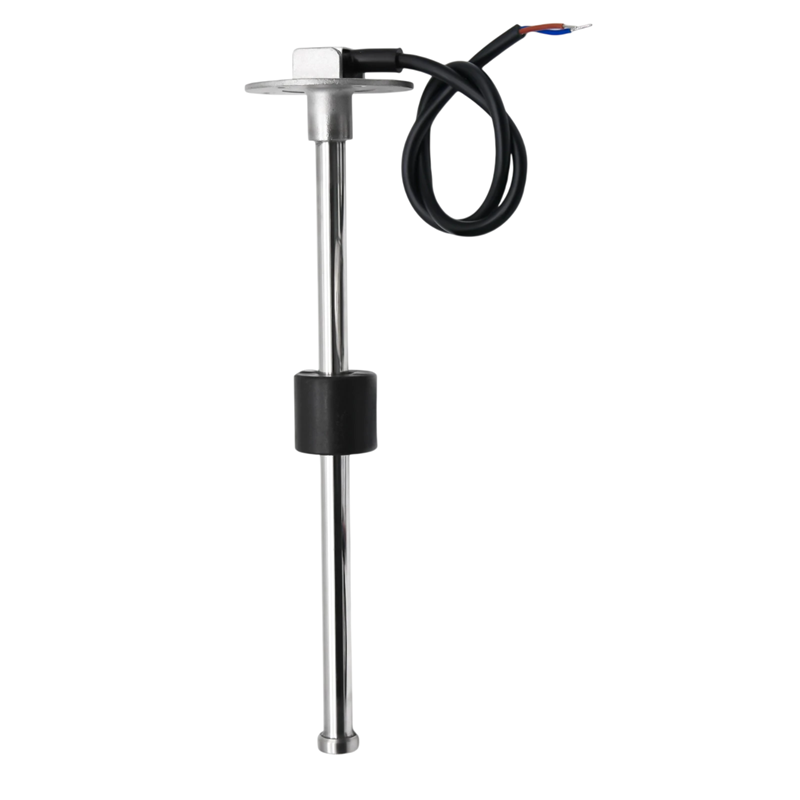

Resistive Fuel Level Sensor 0–190 Ω 325 mm 13" Electric Level Sensor IP67 for Measuring Fuel and Liquids in Tanks of Boats and Vehicles
The fuel level sensor is designed for monitoring the amount of liquid in tanks used in transport or technical systems. This type of sensor operates with a resistive output of 0–190 Ω, which is commonly used with fuel level indicators. Thanks to this standard, the sensor can be connected to various measuring devices used in boats, lorries or other technical equipment.
The measuring rod has a length of 325 mm (13"), which corresponds to the recommended tank size of approximately 335 to 350 mm. This dimension allows for use in tanks with a greater structural height, where it is necessary to monitor the level of fuel, oil or other liquids.
The device operates within a voltage range of 9–32 V DC and its maximum operating current does not exceed ≤60 mA. This allows the sensor to be connected to standard electrical systems used in transport or industrial technology.

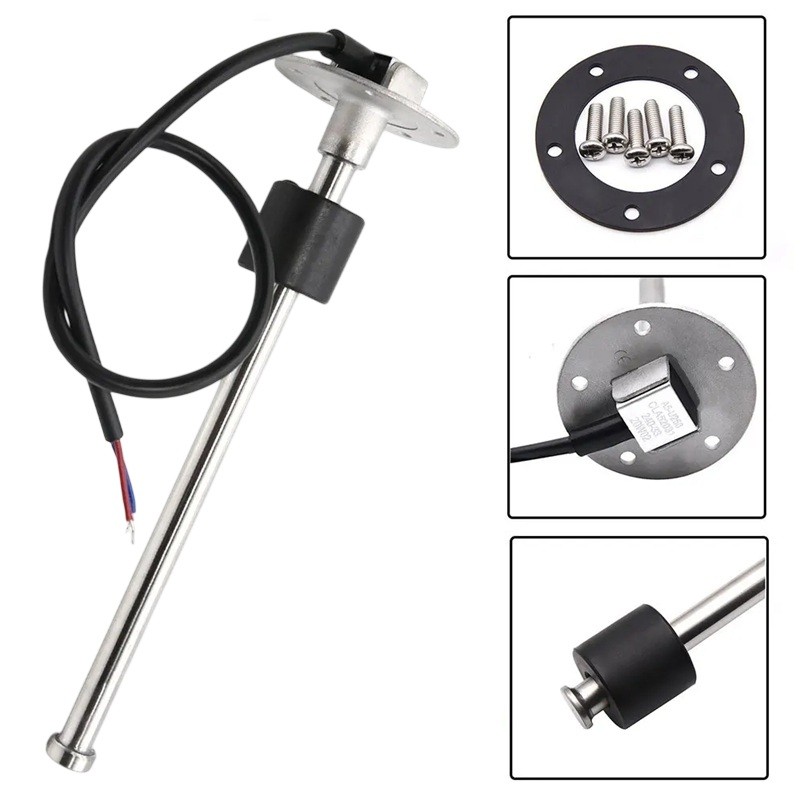

The sensor's design is intended for installation using a flange with five holes. Installation is carried out using the supplied M5 screws and a gasket of 2 mm thickness. The gasket helps ensure a proper seal between the sensor and the tank, reducing the risk of liquid leakage.
The device is protected by a IP67 rating, which provides protection against dust and short-term immersion in water. This makes it possible to use the sensor even in environments with higher humidity or when in contact with water. The measurement resolution of 21 mm allows for monitoring changes in the liquid level within the tank.
Main Features
- Sensor resistive range: 0–190 Ω
- Measuring rod length: 325 mm (13")
- Operating voltage: 9–32 V DC
- IP rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 335–350 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil and liquid tanks
- Used for example in marine, boating or freight systems

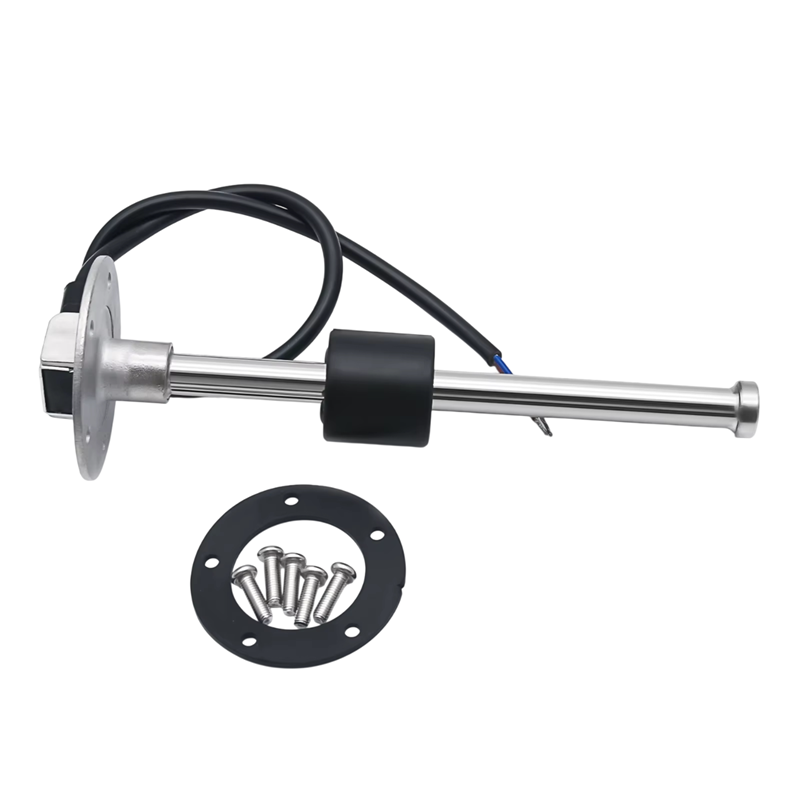

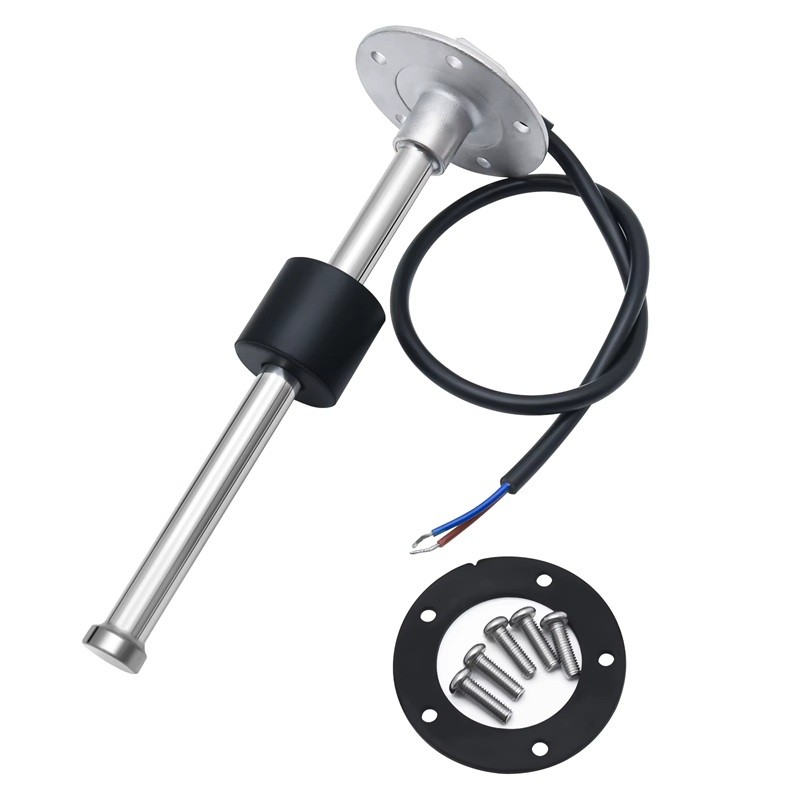

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows for monitoring the amount of liquid in the tank using a resistive signal compatible with standard level indicators. With a length of 325 mm, it is suitable for tanks with a greater structural height. The mounting flange allows for secure attachment of the sensor using five screws. The package includes mounting screws and a gasket, which help ensure a proper seal during installation. The IP67 rating allows for use of the device even in environments with higher humidity or when in contact with water.
