Resistive Float Level Fuel Sensor 0–190 Ω Length 550 mm 22" Measuring Probe IP67 for Monitoring Fuel and Liquid Levels in Tanks

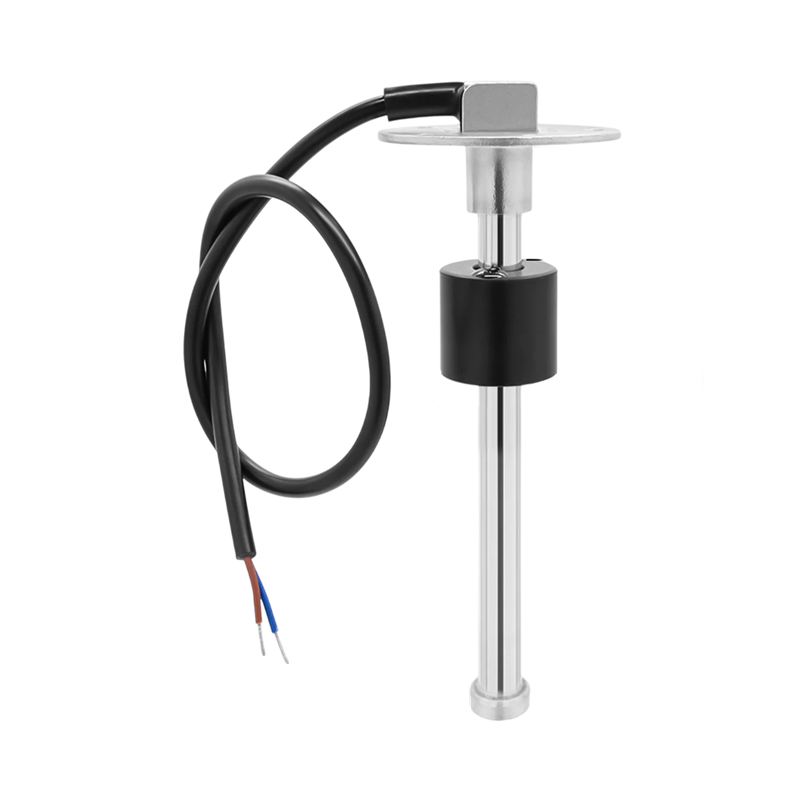

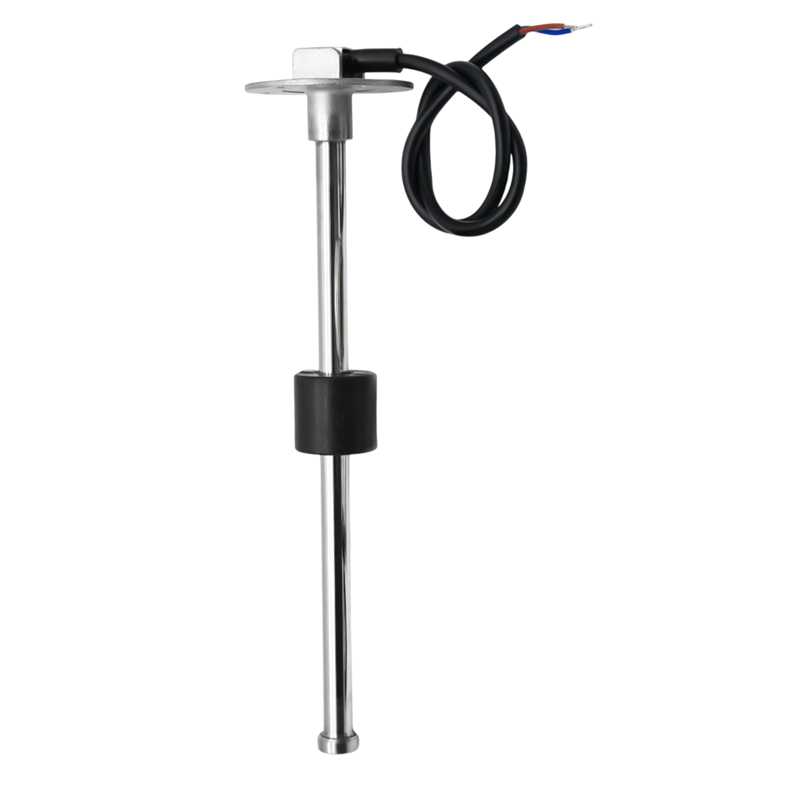

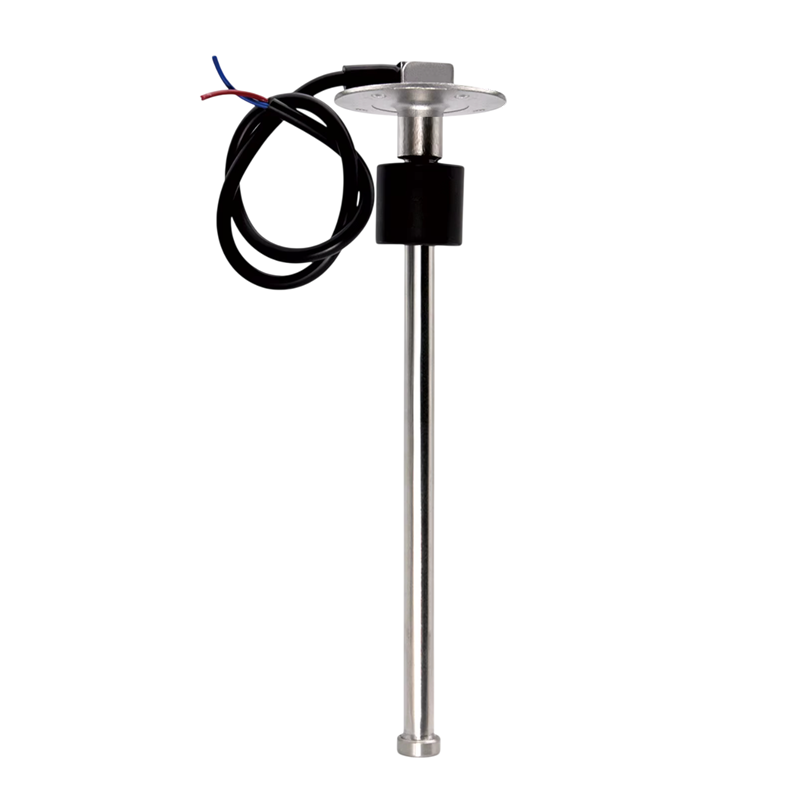

This fuel level sensor is designed to measure the amount of liquid inside a tank using a float mechanism. The movement of the float is converted into an electrical resistance signal in the range of 0–190 Ω, which is commonly used in fuel level indicators across various transport and technical applications.
The measuring rod has a length of 550 mm (22"), which corresponds to the recommended tank height of approximately 560 to 575 mm. This length makes the sensor suitable for larger tanks used in applications such as trucks, boats, or other technical devices intended for storing fuel, oil, or other liquids.
The sensor is designed for a power supply of 9–32 V DC and the maximum operating current reaches ≤60 mA. These parameters allow integration into standard electrical systems used in transport technology or industrial devices.
The device is constructed for operation in various temperature conditions. The operating temperature ranges from -30 to +75 °C, while the storage temperature can be from -40 to +85 °C. The sensor's design is also protected by an IP67 rating, which provides protection against dust and resistance to temporary immersion in water.
Installation is carried out using a circular flange with five mounting holes. The installation is performed using the included M5 screws and a 2 mm thick gasket, which helps ensure a tight connection between the sensor and the tank.
The measurement resolution of 21 mm allows monitoring of changes in the liquid level within the tank and provides an indicative information about the current amount of fuel or other liquid.
Main Features
- Sensor resistance range: 0–190 Ω
- Sensor length: 550 mm (22")
- Operating voltage: 9–32 V DC
- Protection rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 560–575 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil, and liquid tanks
- Used in applications such as boats, trucks, and technical systems

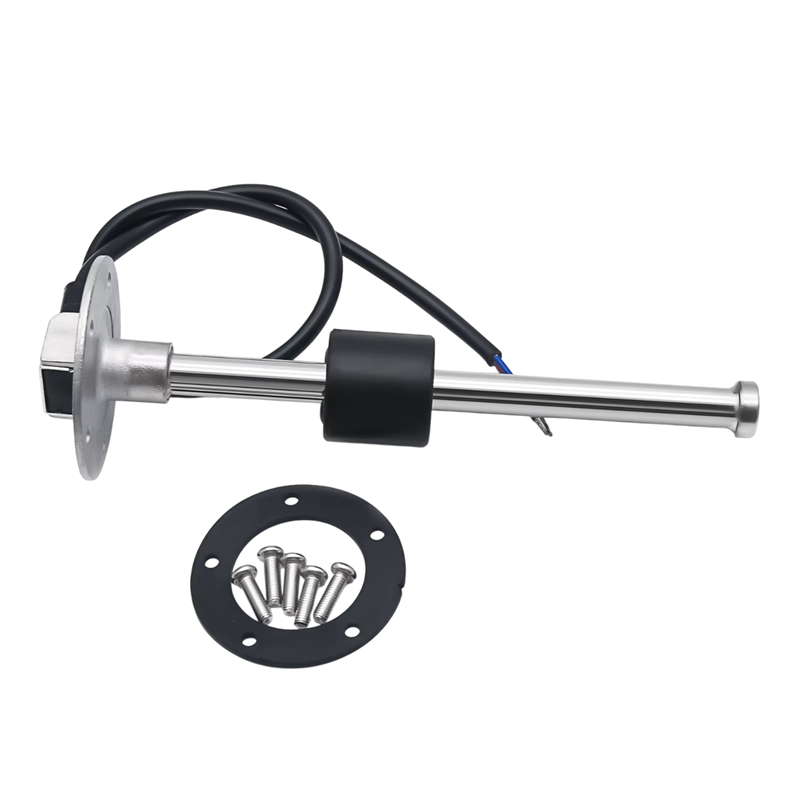

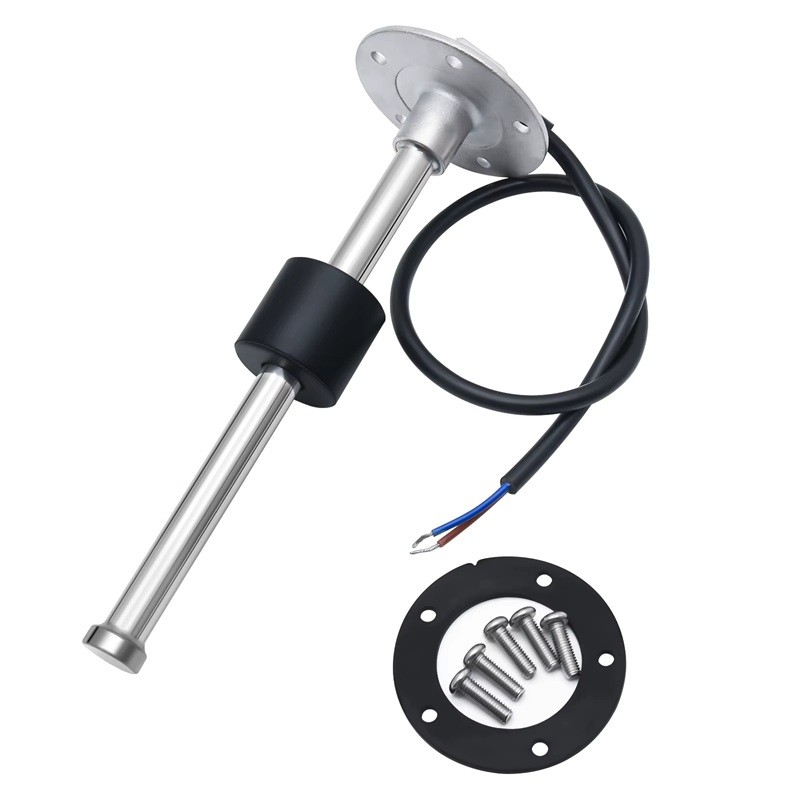

Contents of the Package
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor is intended for monitoring liquid levels in tanks using a float system and a resistance signal compatible with standard measuring devices. With a length of 550 mm, it is suitable for taller tanks. The design with a mounting flange allows for secure attachment using five screws, and the package also includes a gasket for sealing the joint. The IP67 protection rating enables the sensor to be used in environments with increased humidity or dust.
