Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU 1
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU 1
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU 2
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU 3
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU 4
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU 5
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU 6

Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU

Pad with a thickness of 2 mm and conductivity of 21 W/m.K for replacing old pads. Grey strip 120 x 20 mm can be cut to size for graphics card chips. Full description
In stock
Delivery €1.59
30-day return policy
€17.86
Safe shopping Safe shopping
Overview
Replacement Thermal Conductive Pad 120 x 20 x 2 mm with Conductivity 21 W/m.K Grey Cuttable for Cooling Memory and Powering GPU

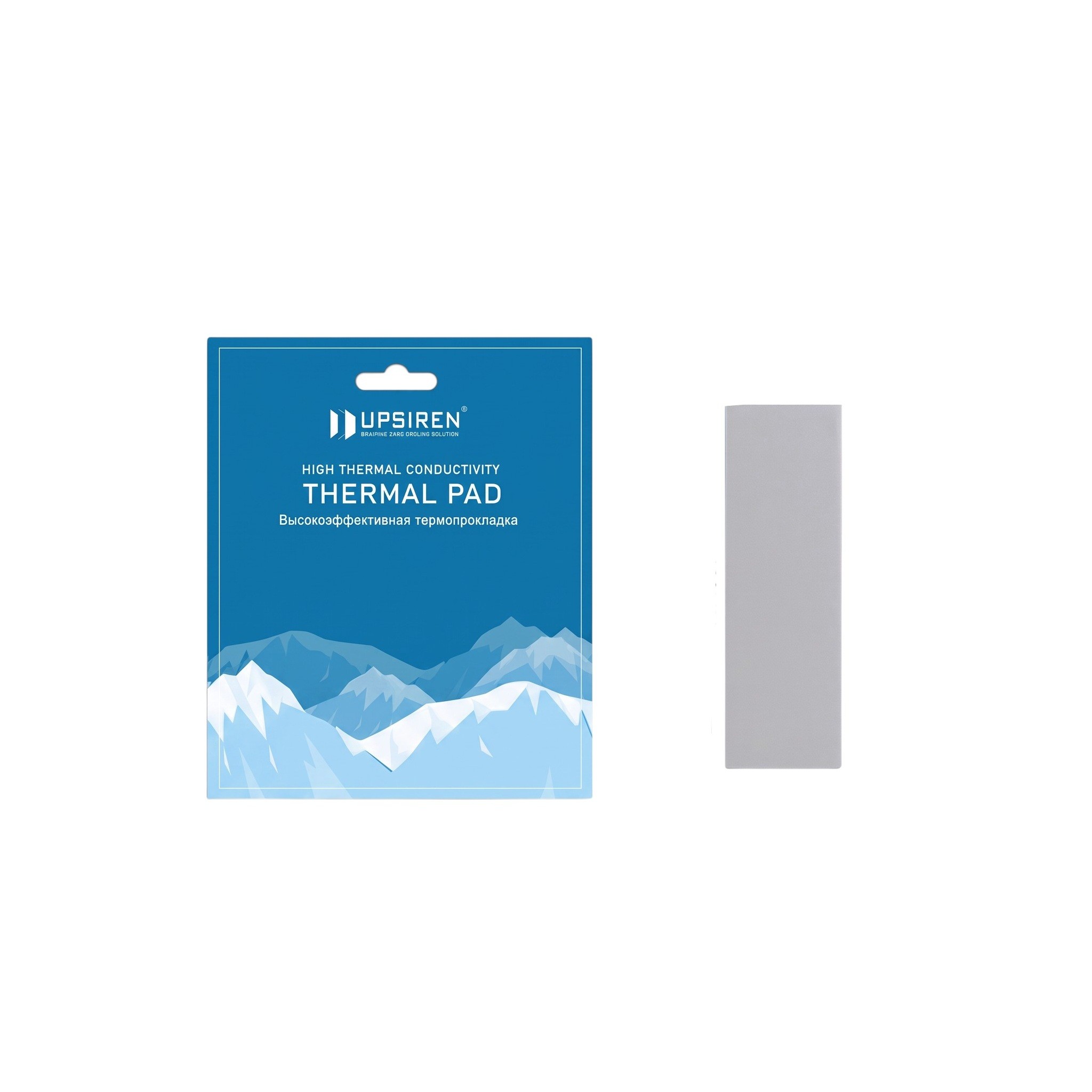

The replacement thermal conductive pad with a thickness of 2 mm is used when replacing worn pads in areas where a two-millimetre gap separates the chip from the cooler. Such areas are often found on graphics cards above the memory and power circuits or in gaming consoles and laptops. The pad with thermal conductivity of 21 W/m.K transfers heat from the components to the cooler and replaces the air, which conducts heat poorly. It is sold as a grey strip 120 x 20 x 2 mm, from which pieces of the appropriate size for the chips can be cut. The surface is protected on both sides by a blue film.

  • Thickness 2 mm – when selecting, it is crucial that the thickness of the pad matches the gap between the chip and the cooler. It is advisable to measure the original pad or look up the specification in the service documentation of the device.
  • Thermal Performance – conductivity of 21 W/m.K is designed for components with high thermal loads, such as GDDR memory, power cascade transistors, or SSD controllers. The pad also conforms to the slight irregularities of the chip surfaces.
  • Electrical Insulation – the material does not conduct electricity and the parameter table states breakdown voltage of at least 9.8 kV per 1 mm. Thus, the pad can be placed on components mounted on the board, even in areas where it overlaps adjacent parts.

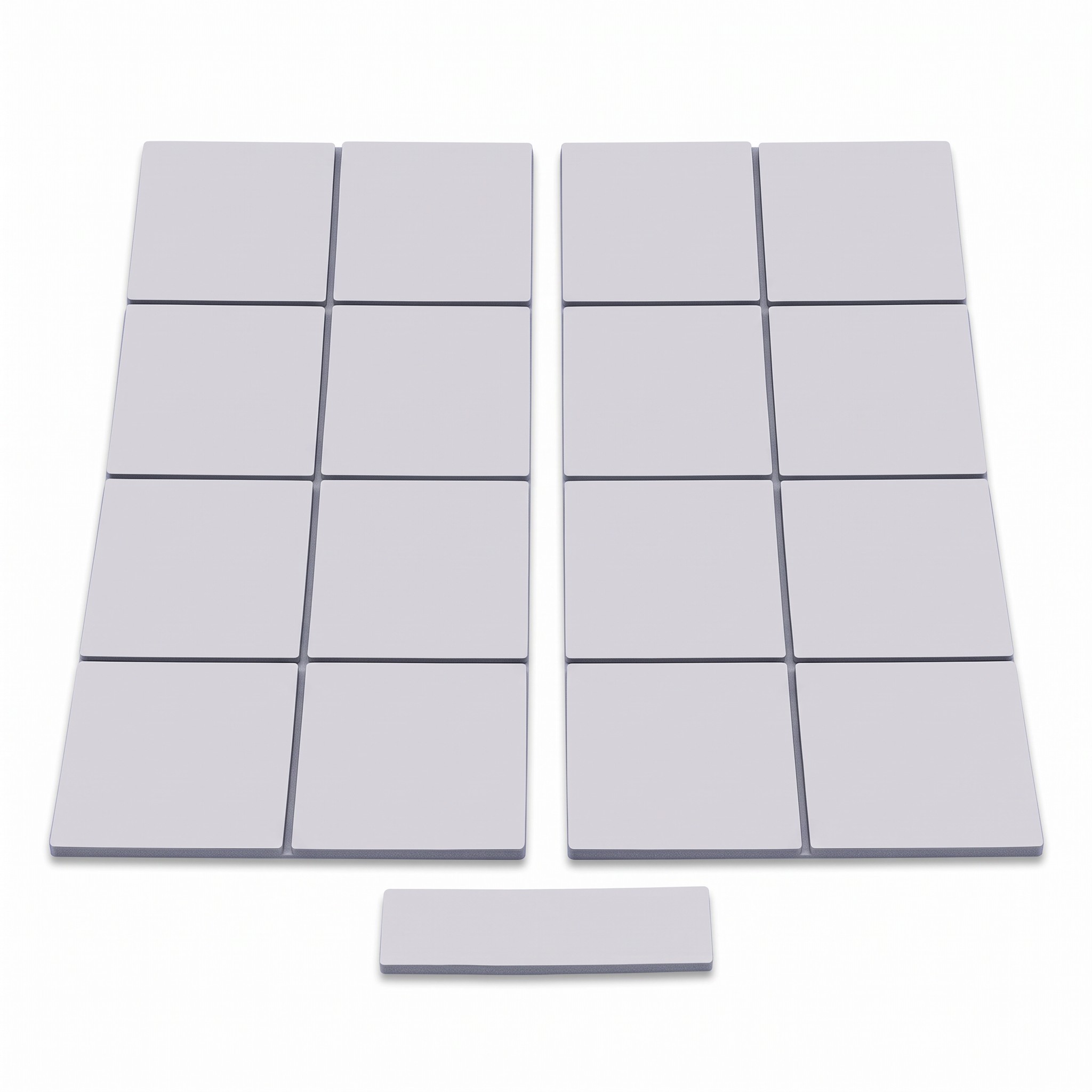

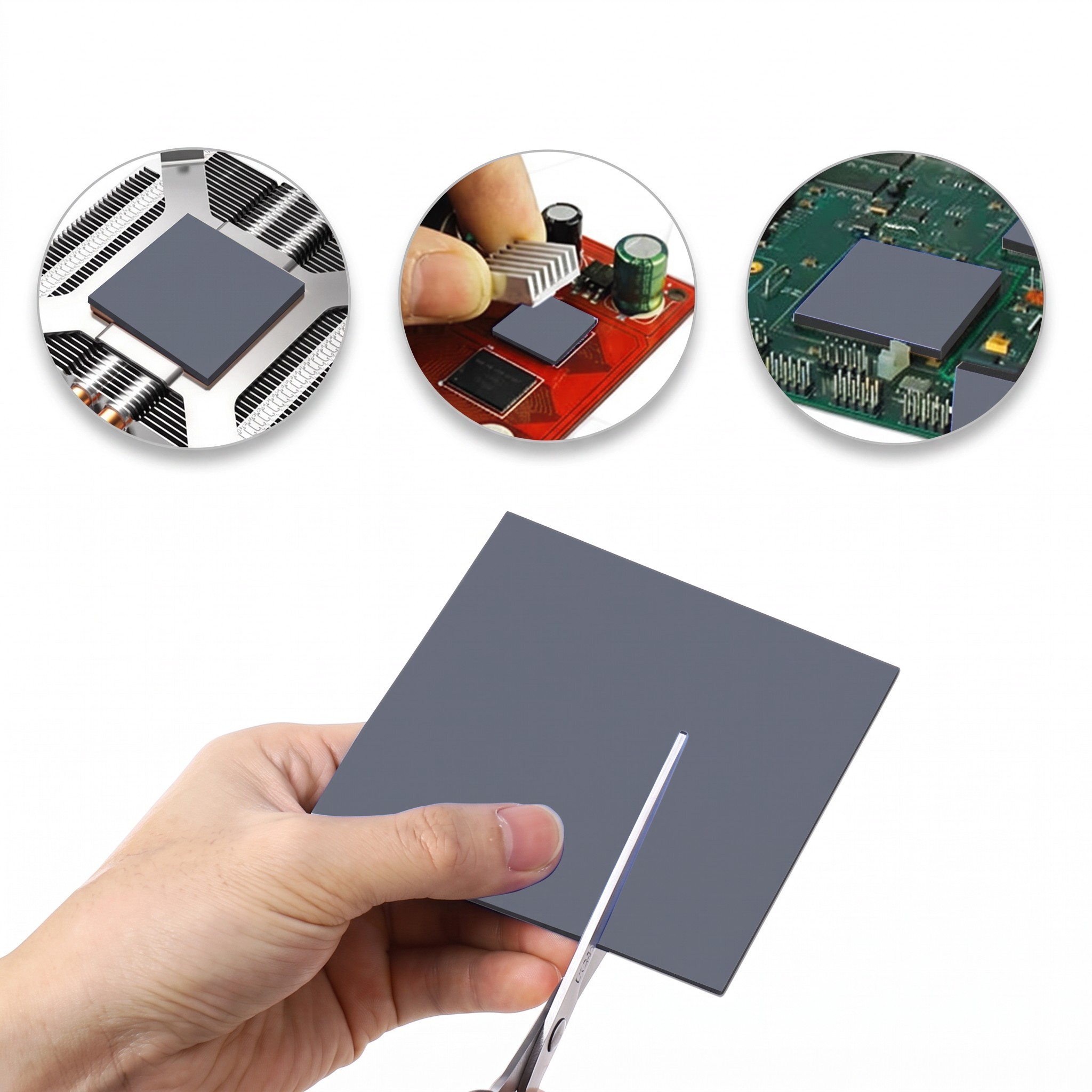

  • Cutting with Scissors – the strip 120 x 20 mm can be cut with ordinary scissors into rectangles of the required size. Individual pieces can be placed on chips separately or tightly next to each other across the entire row of components. Leftover strips can be used for later repairs of other devices.

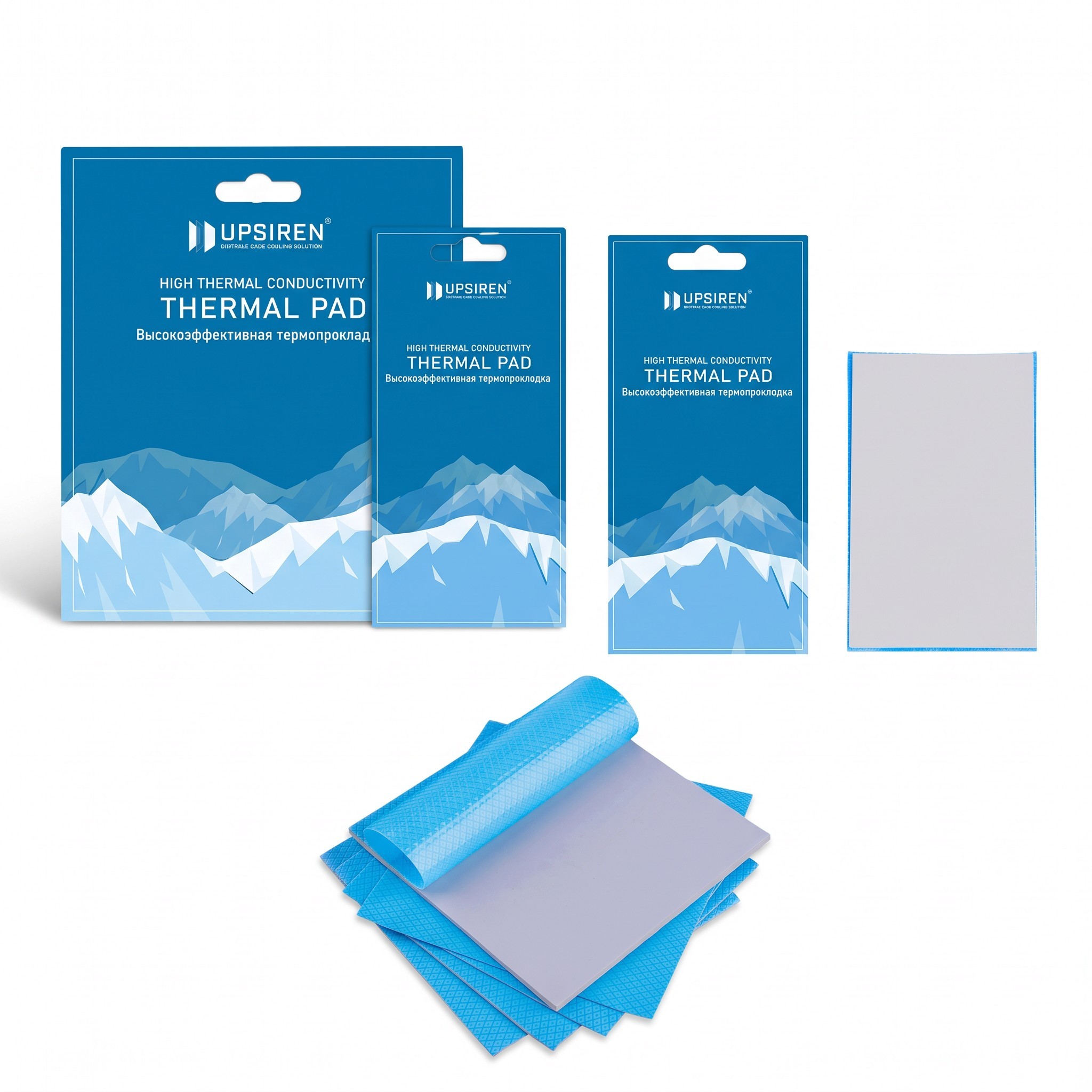

  • Blue Protective Films – protect the pad from dust and fingerprints during cutting and storage. They are removed gradually, first from the side facing the chip and finally from the side facing the cooler.
  • Usage – graphics cards, gaming consoles, laptops, M.2 SSD drives, processors, and chips on motherboards. Before installation, it is good to verify that the device indeed accommodates a thickness of 2 mm, as a pad that is too thick could prevent the cooler from seating properly.

Contents of the Package:

  • 1x replacement thermal conductive pad 120 x 20 mm

The thermal conductive pad 120 x 20 x 2 mm is suitable for maintaining cooling when the original pads have hardened, crumbled, or torn when removing the cooler. The replacement process begins with the removal of the old material and cleaning the chips. The pad is then cut to size, the film is removed, and it is placed on the components, and the cooler is returned to its position and gradually tightened. Thanks to the thickness of 2 mm, it is suitable for devices where the manufacturer anticipates a two-millimetre gap. One grey strip covers multiple components, typically memory chips and the power supply of the graphics card.
