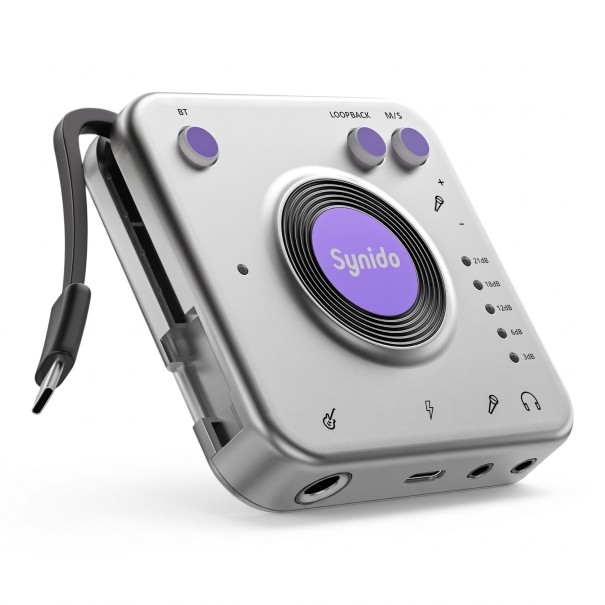

Portable USB-C A20 Audio Adapter for Music Recording, 24 bit/96 kHz Audio Interface with Loopback, Silver, for Mobile, Tablet and PC
You already have the maximum available quantity in your cart.
The Portable USB-C A20 Audio Adapter is a compact audio interface for recording music, singing, and spoken word, as well as for live streaming from a mobile phone, tablet, laptop, or desktop computer. It allows you to connect an electric guitar or other electronic instrument, a microphone, and headphones for continuous monitoring. The sound is processed at a resolution of 24 bit / 96 kHz with a signal-to-noise ratio and dynamic range exceeding 96 dB. The device connects via an integrated USB-C cable, which can be tucked away into a slot in the body of the adapter after use. With dimensions of 8.5 × 8.3 × 2 cm, it easily fits into a guitar case, backpack, or pocket.
- Inputs and outputs: 6.3 mm (1/4") instrument input, 3.5 mm (1/8") microphone input, 3.5 mm (1/8") headphone output, and USB-C port for power 5 V / 2 A.
- Supported instruments: electric guitar, bass guitar, electronic drums, digital piano, or electric trumpet.
- Instrument gain: adjustable in the range of 0–21 dB using side buttons, with the current level indicated by five LED indicators (3, 6, 12, 18, and 21 dB).
- Microphone gain: up to 32 dB, controlled by separate buttons independently of the instrument.
- Loopback: loopback function transfers sound played on the connected device into the recording or live stream.
- M/S switch: mono mode (red indicator) for mono sources and stereo mode (green indicator) for stereo sources, so the sound is not only heard in one ear.
- Wireless accompaniment: the BT button allows you to connect a second phone with one press and play music from it while the first phone is used for broadcasting.
- Monitoring: a volume control knob for headphones in the middle of the adapter.
- Charging during streaming: power can be connected via the USB-C port, allowing the adapter to be used even during long broadcasts.
- Compatibility: phones, tablets, laptops, and PCs with a USB-C port; devices must support audio input via USB-C.
- Uses: music recording, live streaming, gaming, voice calls, and listening to music.
- Design: silver body with purple buttons, dimensions 8.5 × 8.3 × 2 cm.
- Package contents: A20 audio adapter, 3.5 mm audio cable, 6.3 mm (1/4") adapter, brief connection guide.
The A20 audio adapter combines in one device an input for instruments, a microphone input, and a headphone output with volume control. It is suitable for recording music at home or on the go, for live broadcasting from a phone, and for practicing with headphones. Separate gain settings for the instrument and microphone help prevent distortion and signal overload. The mono/stereo mode and loopback function expand the possibilities for streaming with musical accompaniment. Power via USB-C allows the adapter to be used during longer broadcasts without interruption.
