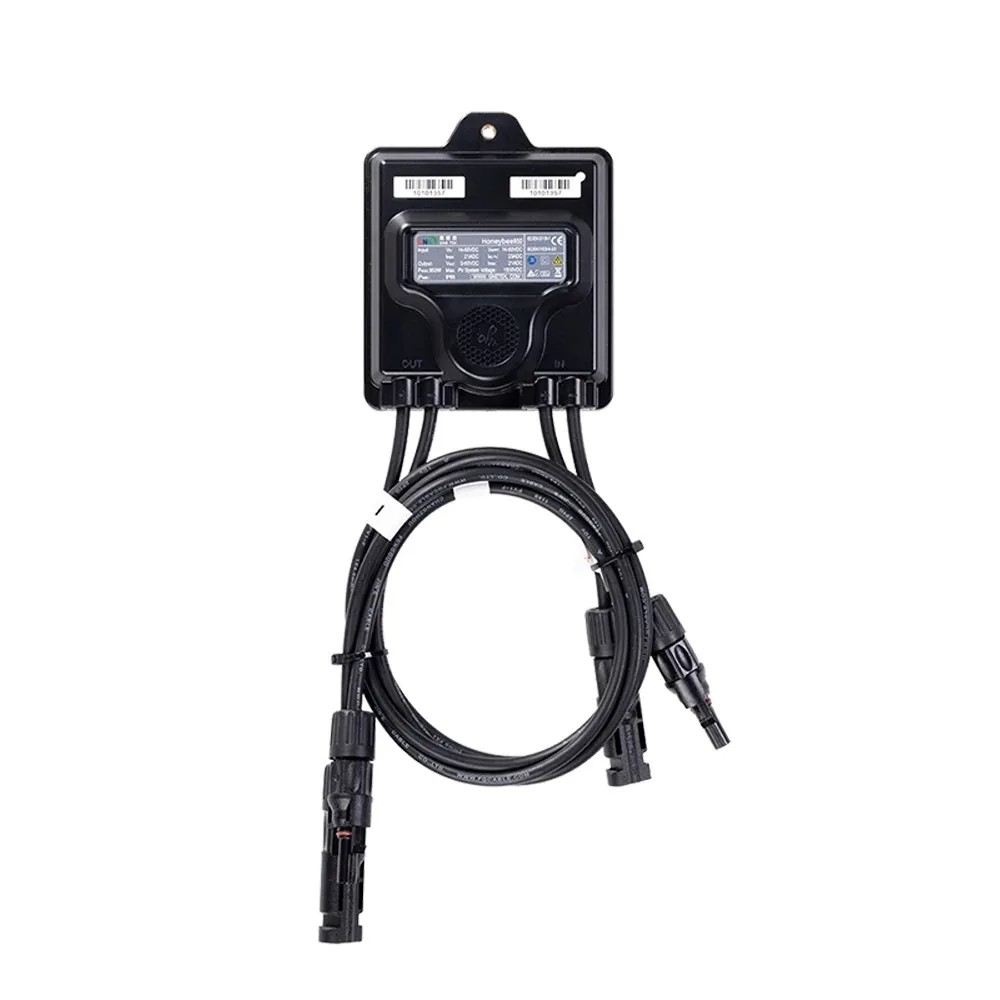

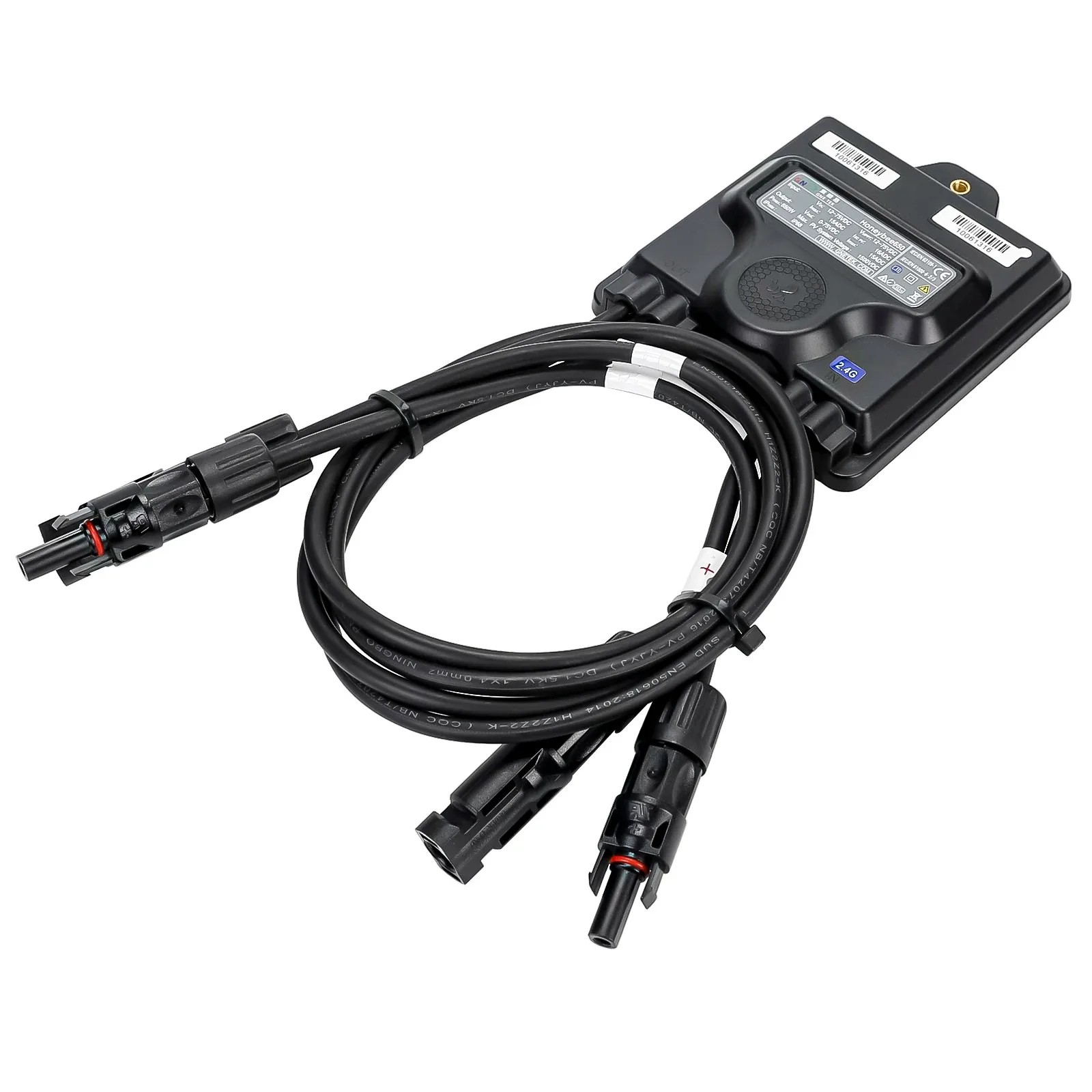

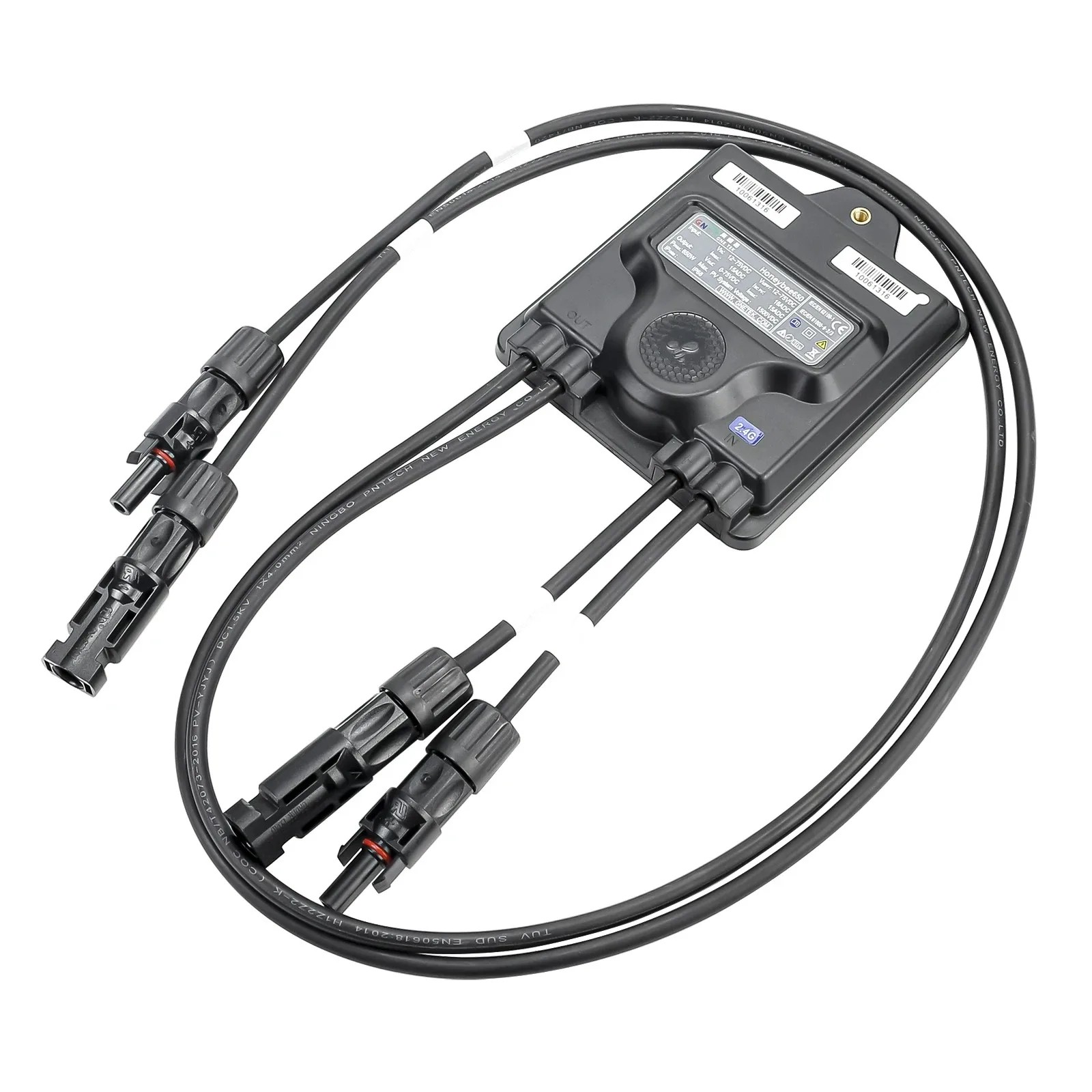

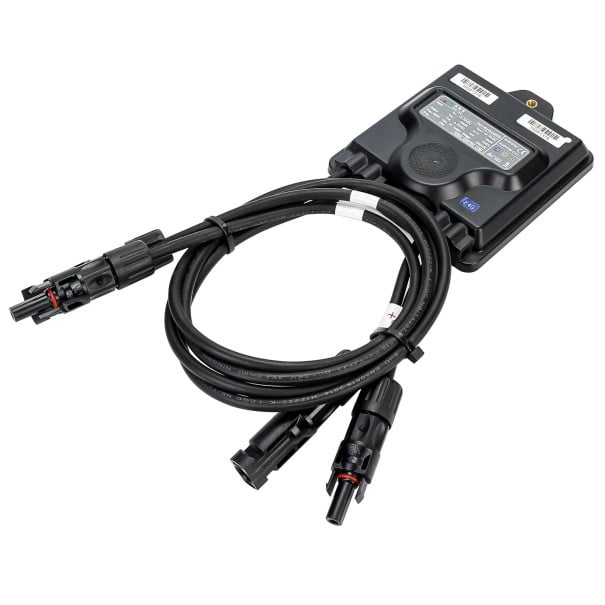

Photovoltaic Panel Performance Optimiser 650 W with MPPT 12-75 V 152 x 133 x 25.9 mm IP68 Rating and MC4 Connectors Black For Roof Installations
You already have the maximum available quantity in your cart.
The performance optimiser connects to an individual photovoltaic panel and monitors its operating point independently, regardless of the rest of the string. It can handle panels with a power of up to 650 W and operates in the MPPT range of 12-75 V with an output current of up to 15 A, making it suitable for common modules used in both domestic and larger systems. The maximum conversion efficiency reaches 99.6%, meaning the device itself consumes only a minimal amount of generated energy. The IP68 rated casing is designed for permanent outdoor installation under the module and can withstand temperatures from -40 to 85 °C and humidity up to 100%. The outputs are terminated with connectors compatible with MC4, allowing the optimiser to be integrated into existing wiring without modifications.
- Power up to 650 W — one optimiser per photovoltaic panel
- MPPT range 12-75 V — monitoring the operating point across a wide voltage range
- Output current up to 15 A — output voltage in the range of 0-75 V
- Efficiency of up to 99.6% — the device's own consumption remains very low
- System voltage 1000 V and 1500 V — usable in larger string configurations
- IP68 rating — waterproof and dustproof casing for permanent outdoor placement
- Operating temperature -40 to 85 °C — designed for frost and hot roofs in summer
- MC4 compatible connectors — integration into standard photovoltaic wiring
- Dimensions 152 x 133 x 25.9 mm — flat shape for mounting under the module
- Black finish — discreet under the panel frame
Contents of the package:
- 1x performance optimiser with cables and connectors
Optimisers are used where not all panels have the same conditions — part of the roof is shaded by a chimney or tree, modules are facing different directions or have different ages. Each panel then operates at its optimal point, and the weaker unit does not drag down the performance of the entire string. Mounting under the module on a supporting structure keeps the device in the shade of the panel, helping to maintain a lower operating temperature. Connection via connectors compatible with MC4 means that only one component is added to the assembly between the panel and the rest of the wiring. Entrust the integration into the photovoltaic system to a person with appropriate electrical qualifications.
