PC Fan TL-G12RB 120 x 120 x 25 mm with 7 Blades and 4-pin PWM Control 1500 RPM Black for Case and CPU Cooler

PC Fan TL-G12RB 120 x 120 x 25 mm with 7 Blades and 4-pin PWM Control 1500 RPM Black for Case and CPU Cooler

Seven blades, 62.6 CFM at 1500 RPM and PWM control. Black 120 mm fan with hydraulic bearing for case and air cooler. Full description
In stock
Delivery €1.59
30-day return policy
€27.47
Safe shopping Safe shopping
Overview
PC Fan TL-G12RB 120 x 120 x 25 mm with 7 Blades and 4-pin PWM Control 1500 RPM Black for Case and CPU Cooler

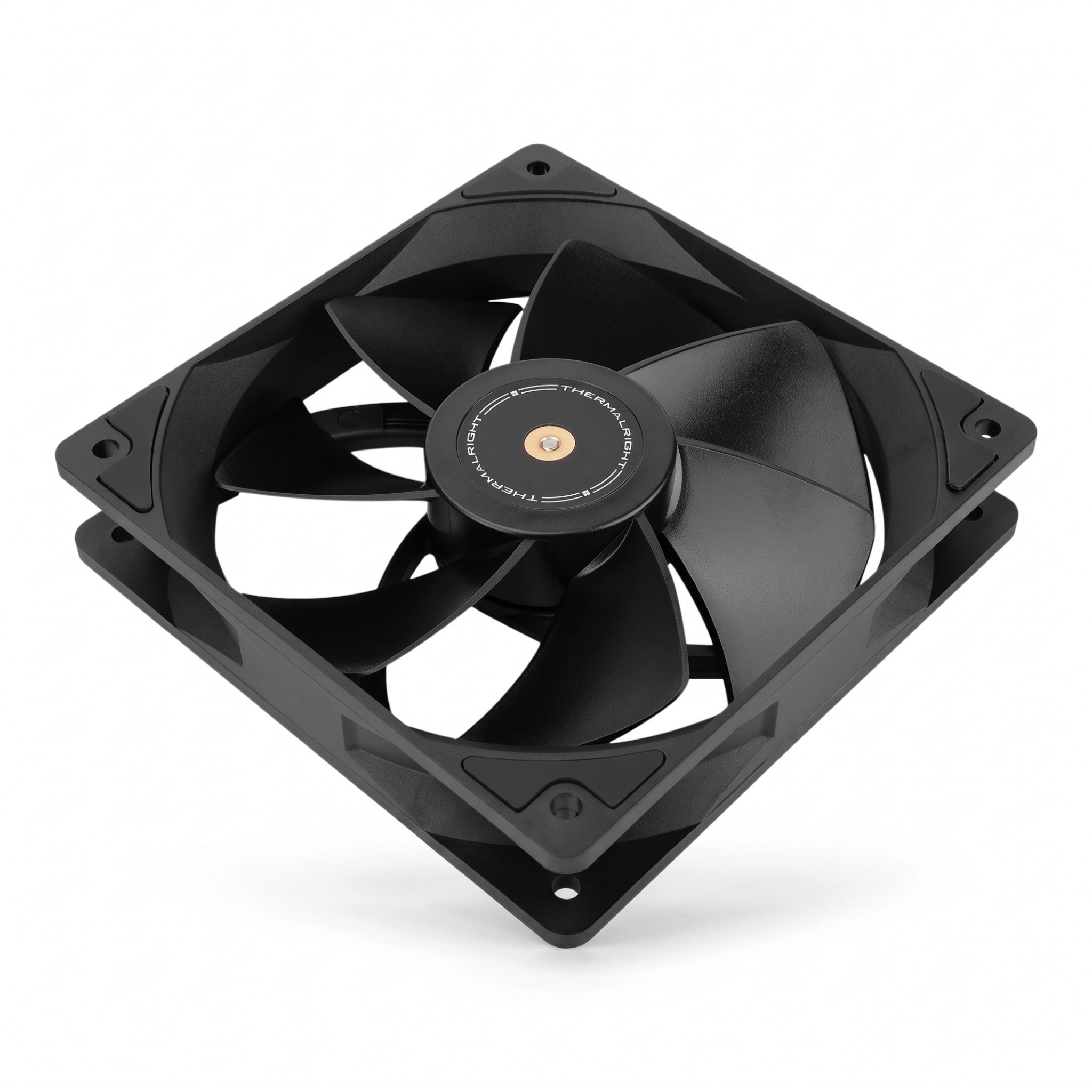

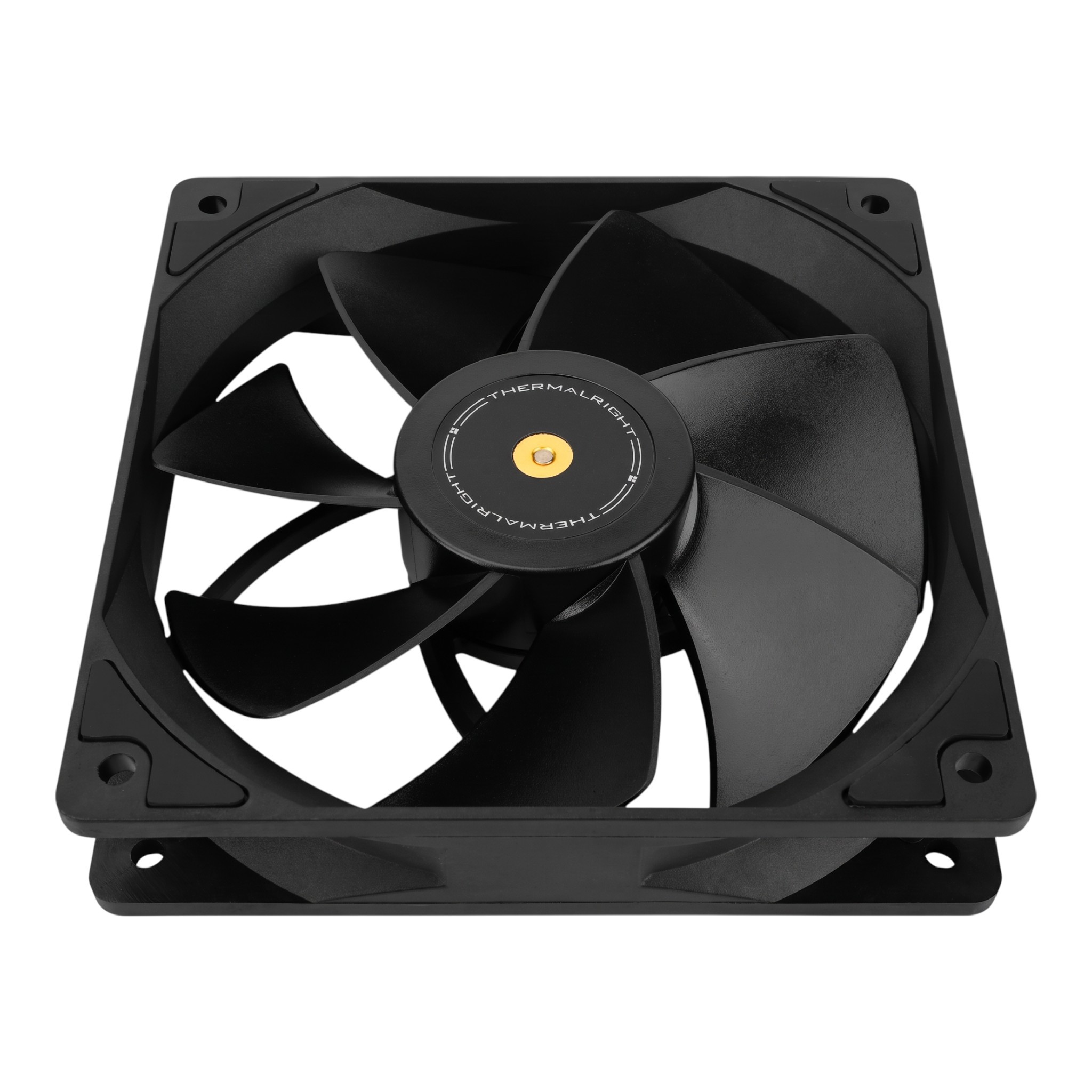

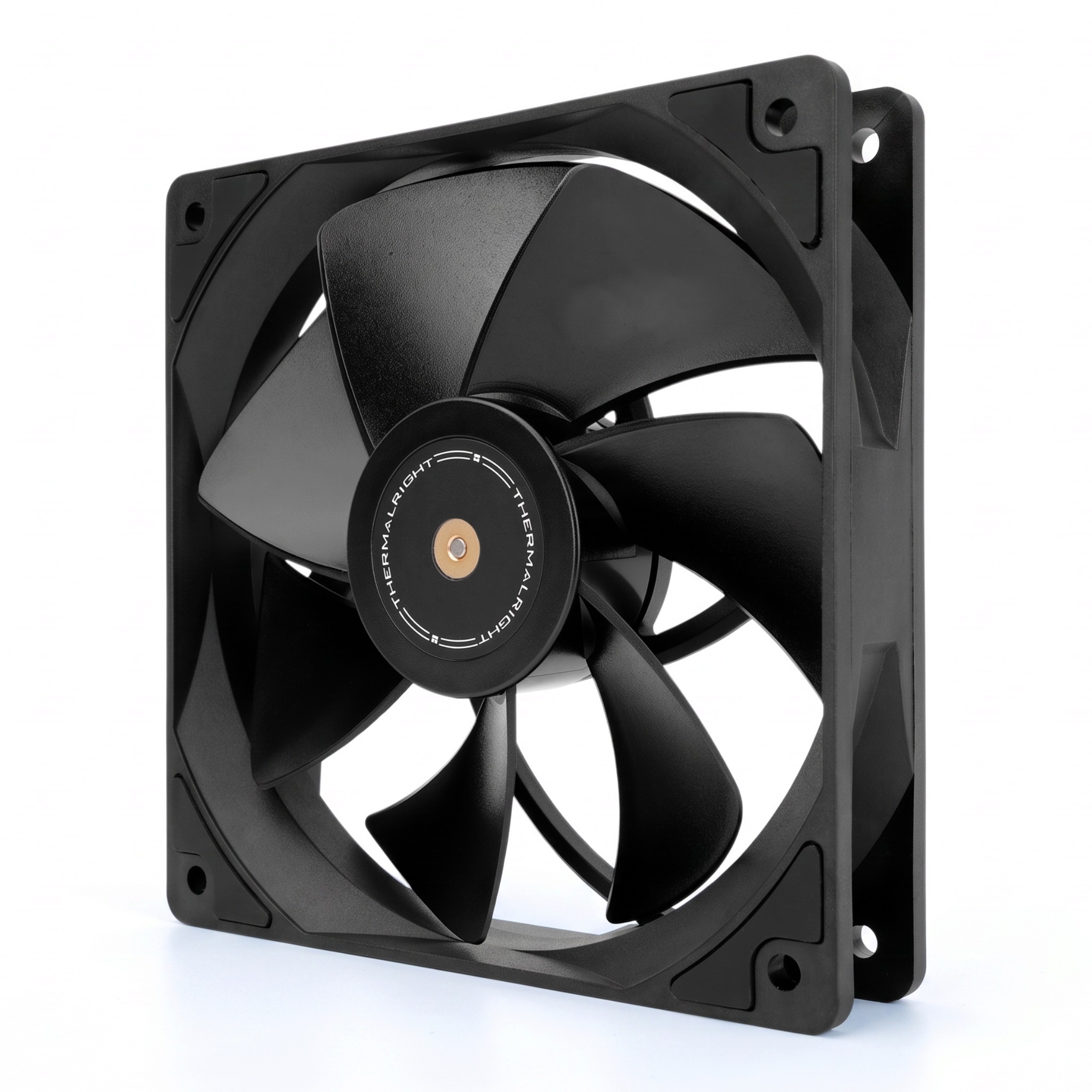

The 120 mm PC Fan TL-G12RB can be used in two ways, as a case fan for air exchange and as a fan for a tower CPU cooler. The rotor with seven blades at a nominal speed of 1500 RPM delivers 62.6 CFM of air. The speed is controlled by the motherboard via a 4-pin PWM connector, allowing it to adjust according to the current temperature. The label on the back indicates a power supply of 12 V DC with a current of 0.15 A and a hydraulic bearing. Both the frame measuring 120 x 120 x 25 mm and the blades are black.

  • Two Mounting Options – the fan can be screwed into the standard 120 mm position on the wall of the case, or it can be clipped onto the fins of the CPU cooler using wire clips. The format 120 x 120 x 25 mm fits most coolers and cases. It is advisable to check beforehand that the cooler's mounts are designed for 120 mm fans.

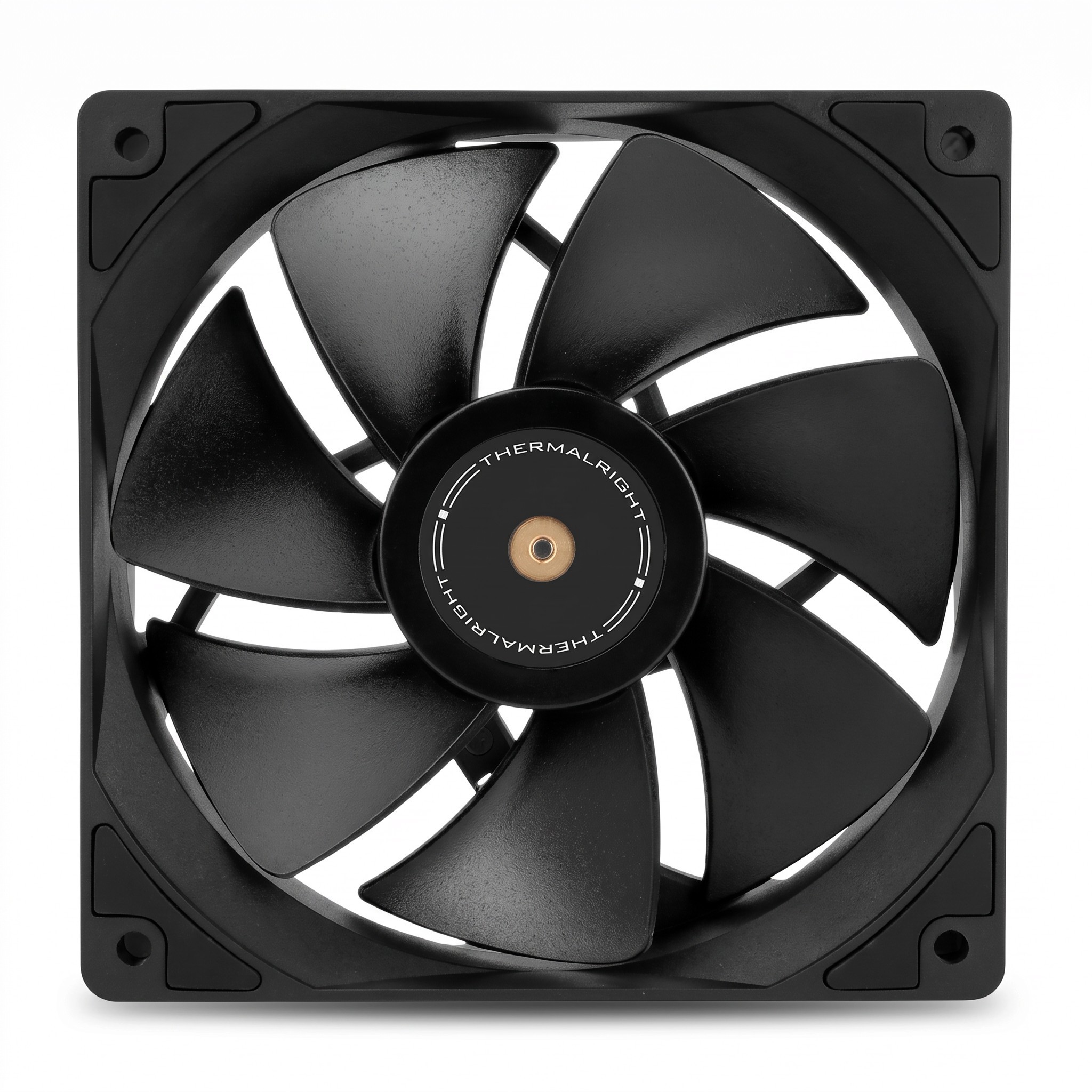

  • Seven-Blade Rotor – wide, curved blades are arranged around a circular hub with a small gap from the edge of the frame. At 1500 RPM, it achieves a nominal airflow of 62.6 CFM.
  • Speed Regulation – the four-wire cable with a PWM connector transmits a control signal from the motherboard. Under low load, the fan slows down, and at higher temperatures of the CPU or graphics card, it speeds up. The speed curve can usually be adjusted in the motherboard BIOS.
  • Hydraulic Bearing – the rotor shaft is housed in a hydraulic bearing, as indicated by the label on the back of the fan along with the RPM and power supply. The label also allows for easy verification of the model designation for later replacement or purchase of an additional unit.
  • Vibration Dampening – there are damping pads in the corners of the frame around the mounting holes, which reduce the transmission of vibrations from the fan to the case or cooler. This is particularly useful when mounting on thin metal walls of the case, which easily transmit vibrations.
  • 12 V DC Power Supply – the nominal current of 0.15 A allows the fan to be connected to a standard header on the motherboard or to a fan hub. When connecting multiple fans to one output, it is necessary to consider the sum of their currents.

Contents of the Package:

  • 1x TL-G12RB Fan

The TL-G12RB fan is a practical choice for replacing a fan on a CPU cooler as well as for enhancing airflow in the case. The seven blades and airflow of 62.6 CFM at 1500 RPM ensure air exchange in both types of use. Thanks to PWM control, it adjusts the speed according to temperature and does not need to run at full power during normal operation. It connects to a 4-pin header on the motherboard or to a hub with PWM ports. The black finish fits well with dark builds and coolers with black covers.
