Panel Frequency Inverter with RS485, 750 W, Output 0.4 kW, 220 V, 6x10.2x13.2 cm, Black, for Driving Three-Phase Motors and Machines

Panel Frequency Inverter with RS485, 750 W, Output 0.4 kW, 220 V, 6x10.2x13.2 cm, Black, for Driving Three-Phase Motors and Machines

Compact panel-mounted inverter with RS485 support and integrated potentiometer. Control via MODE, FWD, REV/JOG, and STOP/RESET buttons. Full description
In stock
Delivery €1.59
30-day return policy
€67.21
Safe shopping Safe shopping
Overview
Panel Frequency Inverter with RS485, 750 W, Output 0.4 kW, 220 V, 6x10.2x13.2 cm, Black, for Driving Three-Phase Motors and Machines

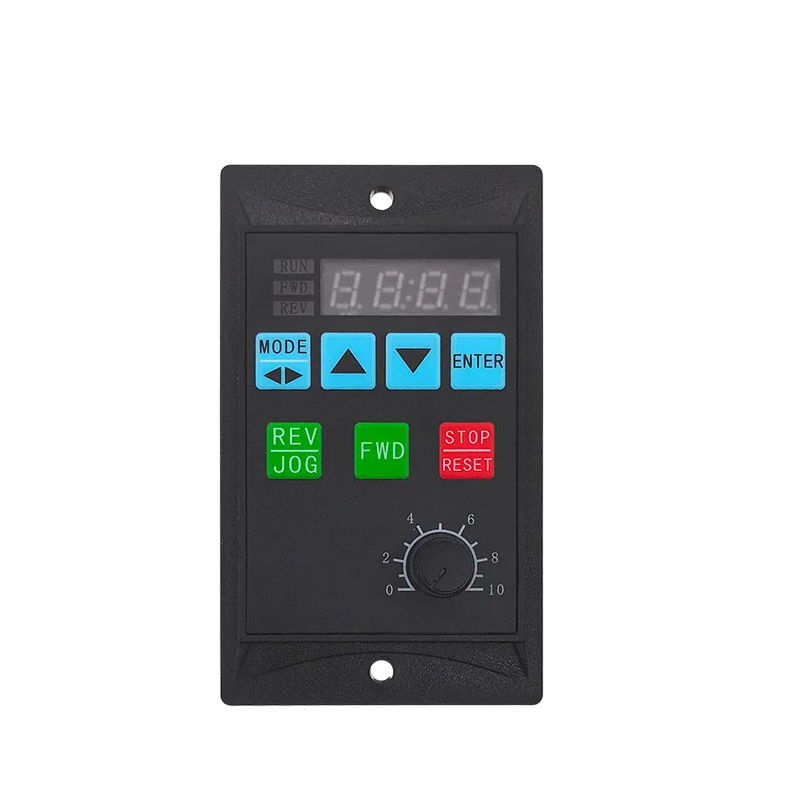

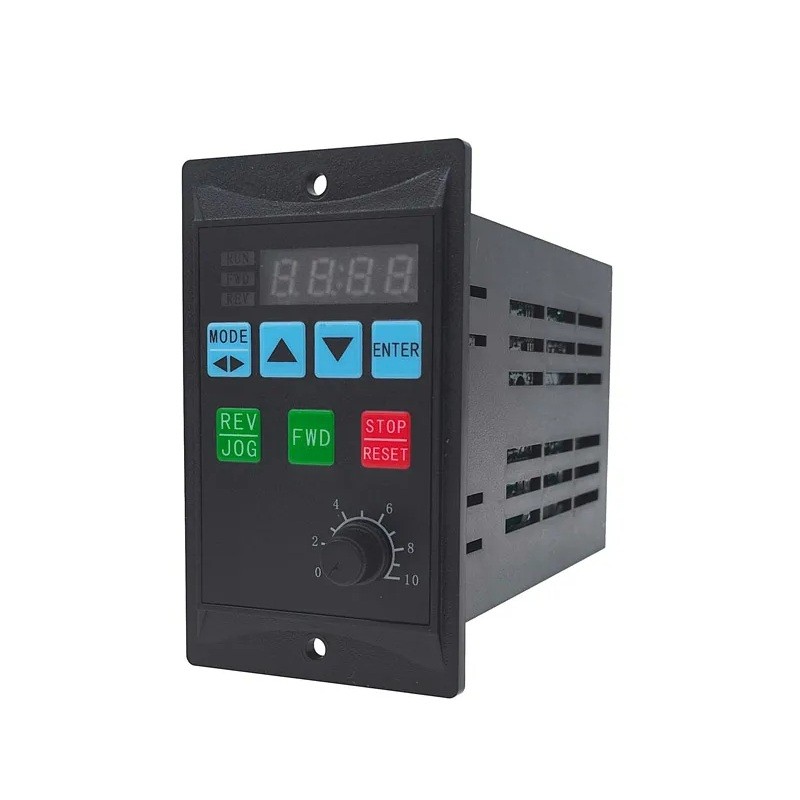

This compact panel-mounted frequency inverter offers control of three-phase motors with an output power of 0.4 kW when powered by 220 V. Its compact dimensions of 6 x 10.2 x 13.2 cm, along with mounting holes in the frame, allow for installation directly into the doors of the control cabinet or the machine's control panel. At the top of the panel, there is a four-digit digital display indicating the RUN, FWD, and REV statuses, which informs about the current operating mode. The control section consists of blue MODE, UP, DOWN, and ENTER buttons for menu navigation, complemented by colour-coded REV/JOG, FWD, and STOP/RESET buttons. At the bottom, there is a rotary potentiometer with a scale of 0–10 for manual speed regulation of the motor.

Features:

  • Panel mounting with mounting holes at the top and bottom of the frame
  • RS485 communication interface for remote control from a master system
  • Output 0.4 kW for three-phase motor powered directly from the inverter
  • Integrated 0–10 potentiometer for smooth manual frequency regulation
  • Digital display with status indication for RUN, FWD, and REV
  • Input power 220 V from a standard single-phase electrical network
  • MODE, UP, DOWN, ENTER buttons for navigating the parameter menu
  • FWD button for forward motion and REV/JOG for reverse motion and jogging
  • STOP/RESET button for stopping and resetting error states
  • Side louvered ventilation for cooling internal components

Contents of the package:

  • 1x panel frequency inverter
  • 1x user manual

This version of the inverter is suitable wherever convenient motor control is needed directly from the front of the machine without the placement of a separate control cabinet. The RS485 communication interface allows integration into higher-level control systems, PLCs, or touch panels in automated operations. The rotary potentiometer with a numerical scale allows for quick manual speed changes without navigating the digital menu. The JOG button is useful for machine adjustments, where the motor needs to be driven only in short pulses. It finds its application in small lathes, drills, conveyors, winders, and custom-built machines tailored to specific requirements.
