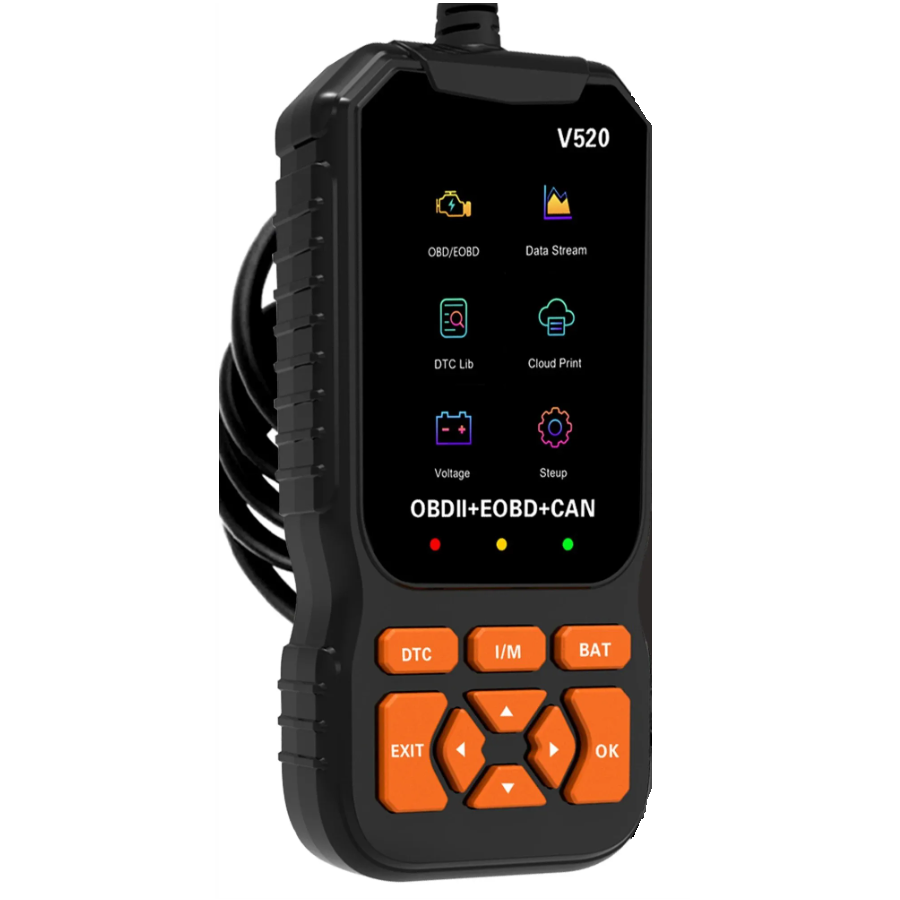

OBD2 Diagnostic Fault Reader with Colour Display and Battery Test Emission Readiness Mode Stored Snapshot Real Data V520
This advanced OBD2 Diagnostic Fault Reader V520 is designed for thorough vehicle condition checks. With a colour TFT display and user-friendly menu, it allows you to read and erase fault codes, display current sensor values, emission system readiness status, and also stored snapshot of the vehicle's operational state at the time of the fault. Additionally, it offers battery voltage testing, graph function, and software updates. It is compatible with 99% of vehicles manufactured after 1996 and supports 9 main OBD2 protocols.
- Reading and erasing fault codes for the engine and malfunction indicator light
- Displaying current operational data – RPM, temperature, voltage, engine load, fuel systems, etc.
- Stored snapshot of operational state at the time of error – complete data for retrospective analysis
- Emission readiness check – verifying proper function of systems before MOT
- Battery test – measuring battery voltage directly on the device
- Graphical display of live data – clear real-time performance monitoring
- Library of over 35,000 fault codes with explanations
- Supports 10 languages
- Data update and printing via Cloud Print function (via PC)
Dimensions and technical specifications:
Display: 2.8 inches, colour TFT
Dimensions: 17.1 x 8.5 x 2.5 cm
Supported protocols: SAE J1850, ISO9141-2, ISO14230-4, ISO15765-4 (including CAN)
Power supply: via vehicle OBD2 socket (no battery required)
Contents of the package:
1x OBD2 Diagnostic Reader V520
1x connection cable with 16-pin connector
Thanks to the combination of simple operation and extensive features, this reader is the ideal assistant for everyday drivers and garages. You will find out in time why the engine light is on, whether the vehicle is ready for the technical inspection, or how the battery condition is. The colour display, update capability, and support for a wide range of vehicles make this model an excellent choice even for demanding users.
