OBD-II LX Diagnostic Adapter with Bluetooth 3.0 Compatible with ELM327 and All OBD-II Protocols Green for Windows and Android

OBD-II LX Diagnostic Adapter with Bluetooth 3.0 Compatible with ELM327 and All OBD-II Protocols Green for Windows and Android

Wirelessly reads error codes and live data from the vehicle via the OBD-II socket. Supports CAN, KWP2000, ISO 9141, and J1850 protocols and the ELM327 command set. Full description
In stock
Delivery €1.59
30-day return policy
€226.59
Safe shopping Safe shopping
Overview
OBD-II LX Diagnostic Adapter with Bluetooth 3.0 Compatible with ELM327 and All OBD-II Protocols Green for Windows and Android

The LX diagnostic adapter plugs into the OBD-II diagnostic socket in the vehicle and transmits data wirelessly via Bluetooth 3.0 to a Windows computer or an Android device. In conjunction with a diagnostic application, it is used to read error codes, monitor live data, and check the readiness of emission systems. It is fully compatible with the ELM327 command set and additionally offers an extended ST command set, allowing it to be used with applications designed for ELM327 adapters. It supports all legally mandated OBD-II protocols, from CAN to KWP2000, as well as older ISO 9141 and SAE J1850. The year from which vehicles are required to have OBD-II interfaces varies by country of sale and, in some markets, by fuel type.

  • Wireless Connection – communication with a computer, tablet, or phone occurs via Bluetooth 3.0. The adapter works with devices running Windows and Android operating systems.
  • Supported Protocols – ISO 15765 (CAN), ISO 14230 (KWP2000), ISO 9141, SAE J1850 VPW for GM vehicles, SAE J1850 PWM for Ford vehicles, and SAE J1939 for heavy-duty vehicles.
  • Command Sets – full compatibility with the ELM327 command set and an extended parallel ST command set that adds additional functions beyond the ELM327 standard.
  • Data Transmission and Firmware – the UART interface operates at speeds from 38 b/s to 10 Mb/s and handles data transfers of up to 4 KB. The firmware is updated via a secure bootloader.

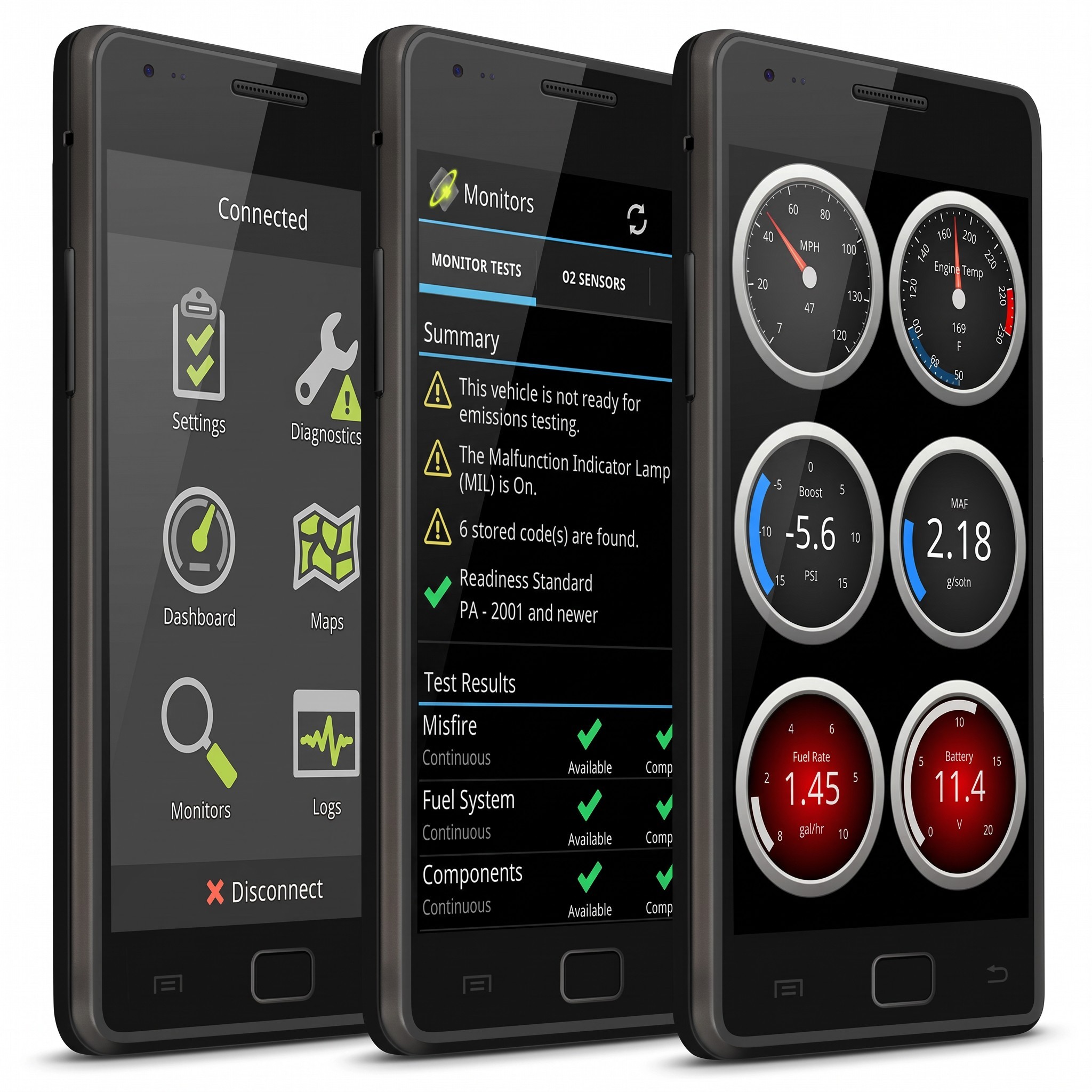

  • Application Functions – the application on the phone or computer displays stored error codes, the status of the check engine light, and the results of monitor tests. Live data can be monitored on gauges, such as speed, engine temperature, boost pressure, airflow, fuel consumption, and battery voltage.

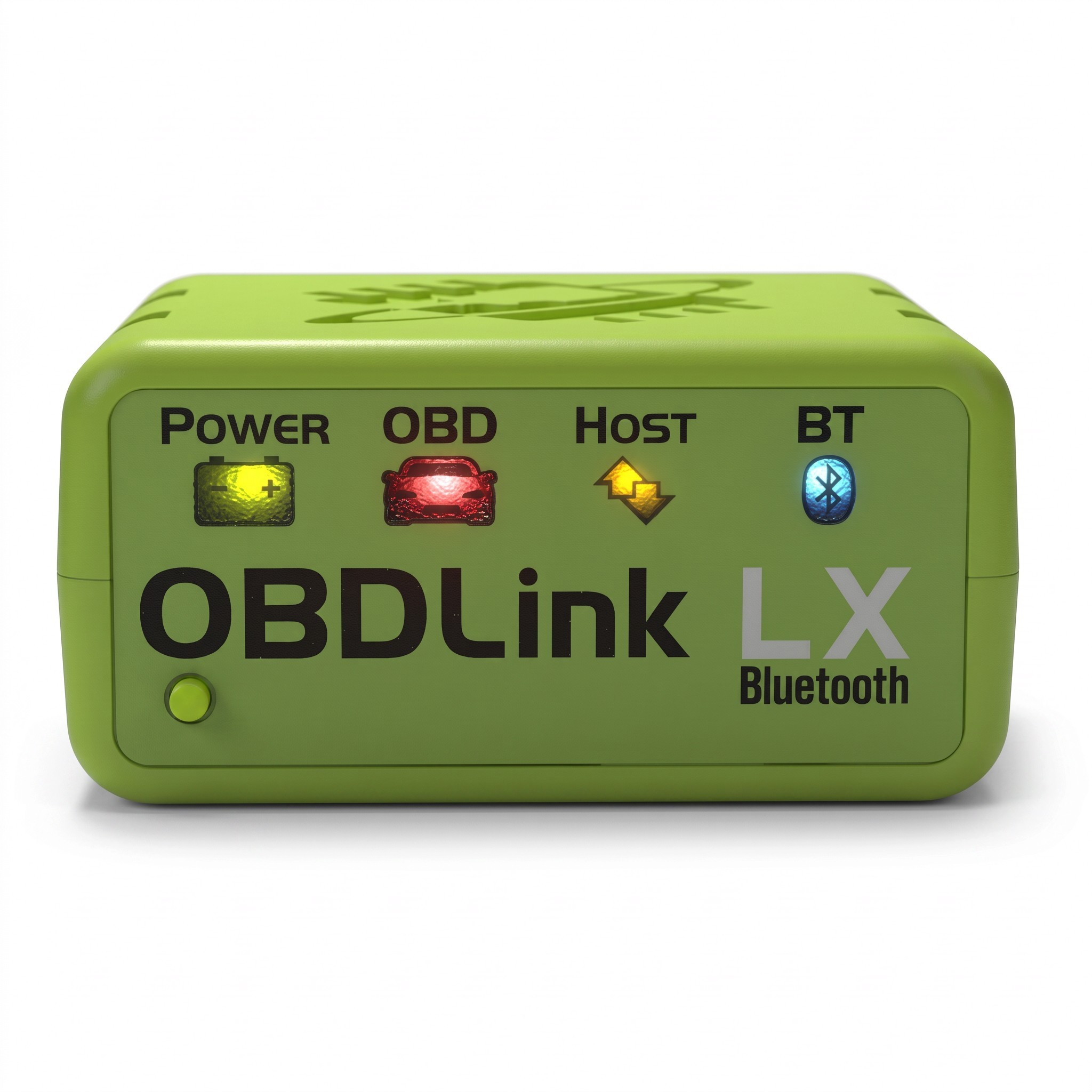

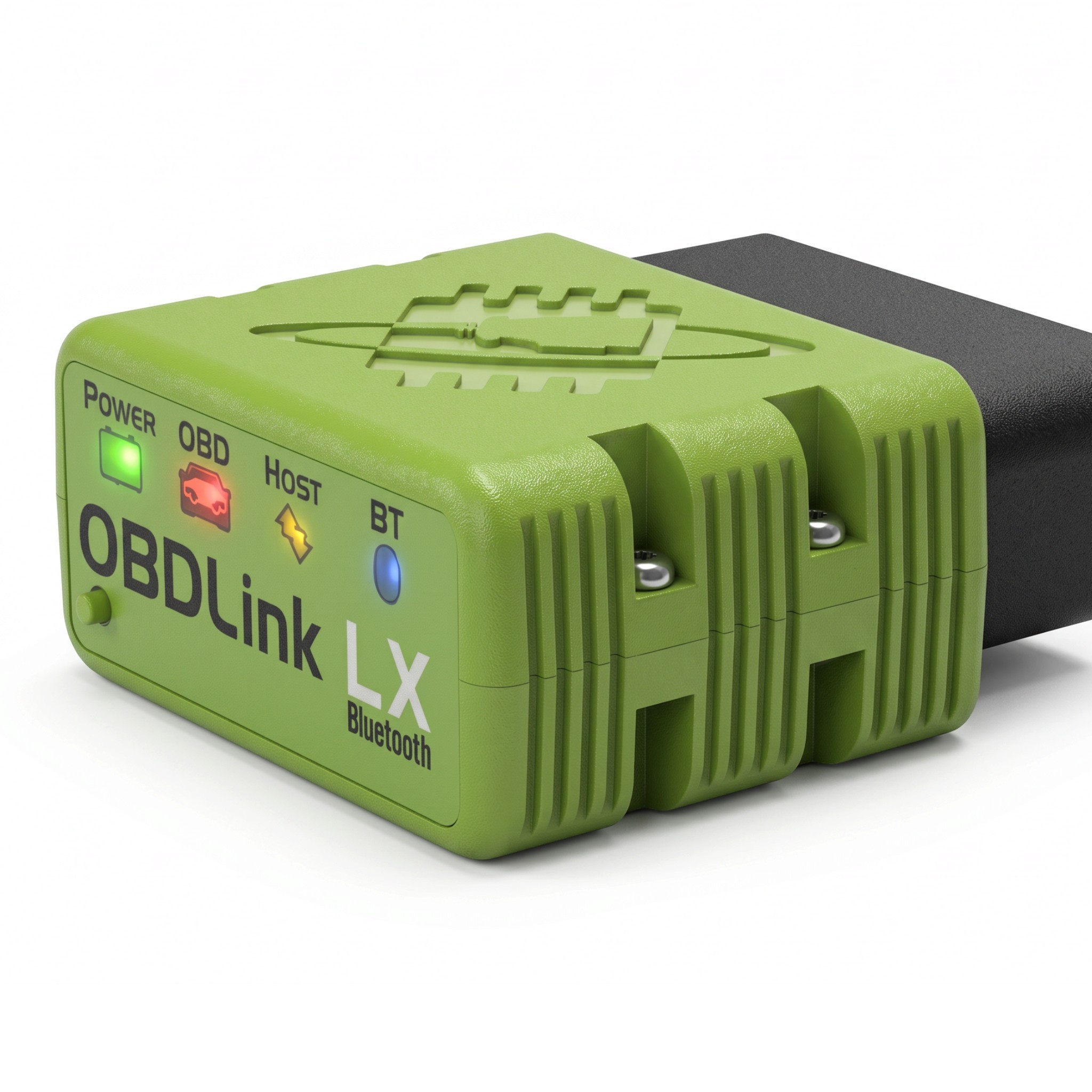

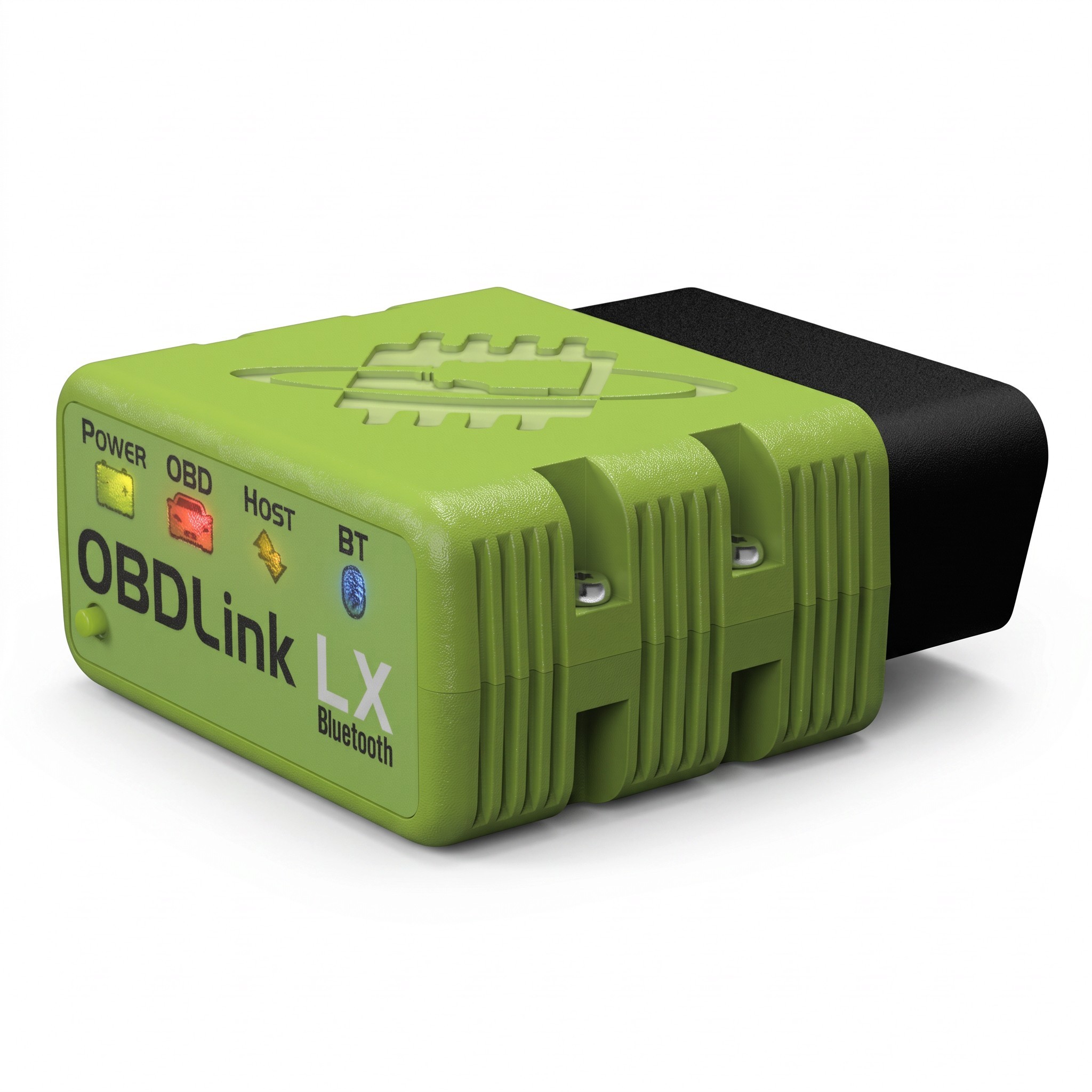

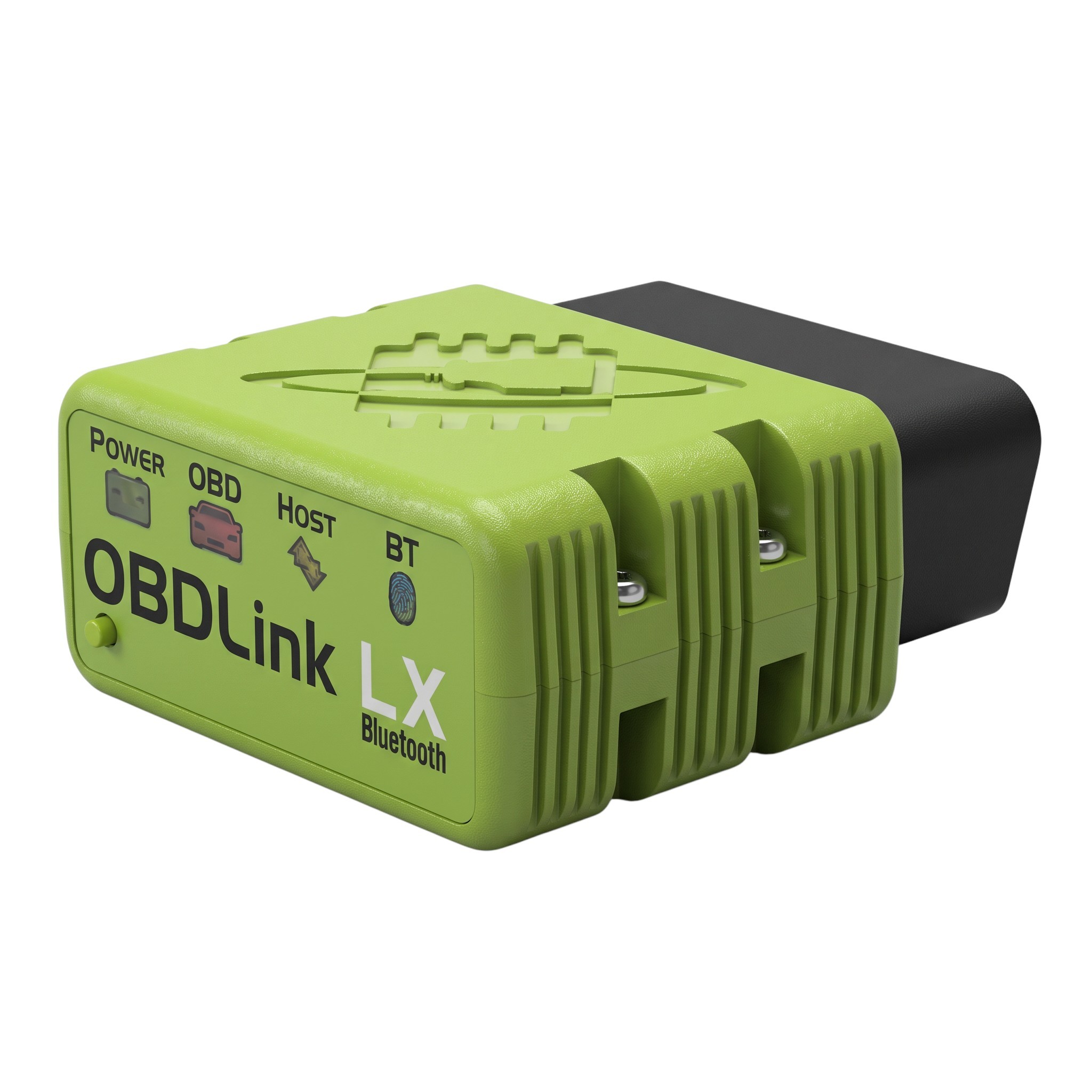

  • Design – compact green body with a black OBD-II connector features four status LEDs and a small button on the front. The LEDs continuously indicate power, communication with the vehicle, communication with the device, and Bluetooth status.

Package Contents:

  • 1x OBD-II LX Diagnostic Adapter

The LX adapter connects the vehicle to a computer or phone without a cable and transmits data directly to the diagnostic application. With support for devices running Windows and Android, a laptop, tablet, or smartphone can be used for diagnostics. Compatibility with ELM327 and the extended ST command set broadens the selection of applications the adapter works with. In addition to passenger cars, support also includes the SAE J1939 protocol for heavy-duty vehicles. The adapter's firmware can be updated via a secure bootloader, ensuring the device remains up to date.
