NAS Computer Case 30 x 27 x 27 cm with 8 Slots for 3.5" Hot-Swap Drives and SATA Backplane for MATX and ITX Motherboards and ATX Power Supply

NAS Computer Case 30 x 27 x 27 cm with 8 Slots for 3.5" Hot-Swap Drives and SATA Backplane for MATX and ITX Motherboards and ATX Power Supply

Case for home NAS server with 8 bays for 3.5" hot-swap drives. Supports Micro ATX and Mini ITX motherboards, ATX power supply, and four PCIe cards. Full description
In stock
Delivery €1.59
30-day return policy
Colour:
€319.61
Safe shopping Safe shopping
Overview
NAS Computer Case 30 x 27 x 27 cm with 8 Slots for 3.5" Hot-Swap Drives and SATA Backplane for MATX and ITX Motherboards and ATX Power Supply

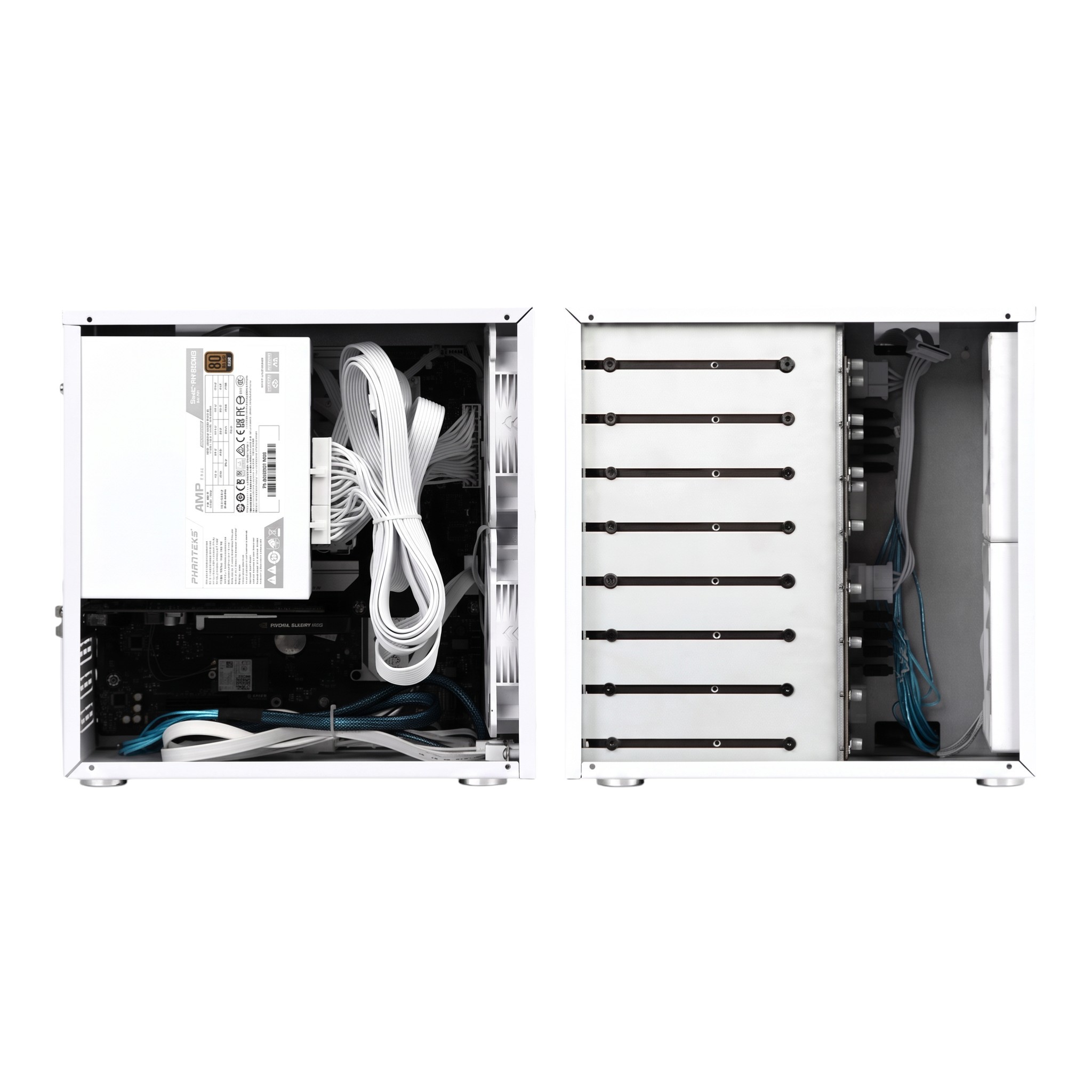

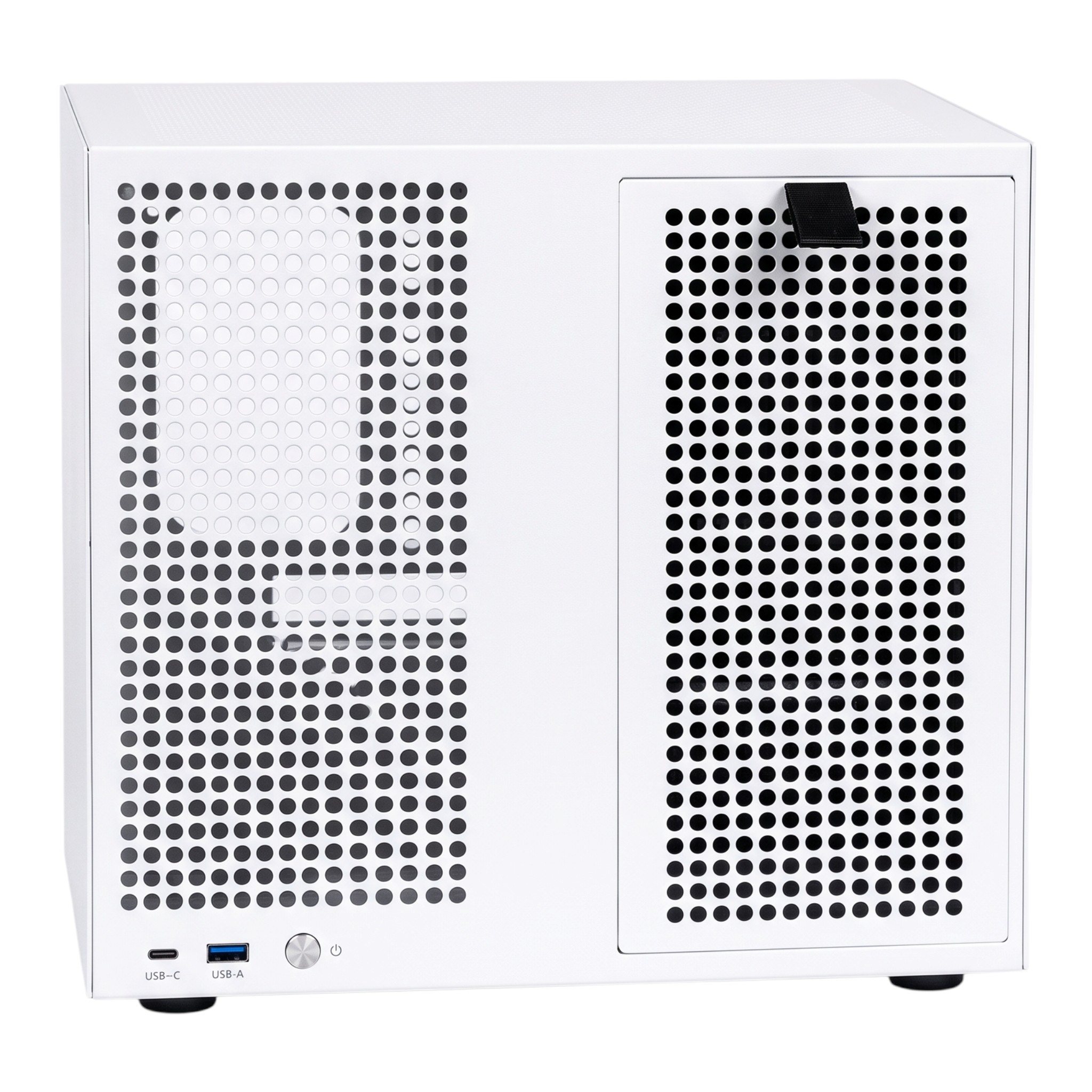

The computer case for home or business NAS storage offers 8 slots for 3.5" hot-swap drives and an additional two slots for 2.5" drives. With dimensions of 30 x 27 x 27 cm and a volume of 21.8 l, it accommodates a Micro ATX or Mini ITX motherboard, an ATX power supply, and full-height PCIe expansion cards. The internal space is divided into two separate chambers, one for the motherboard and power supply and the other for the drives, facilitating cable management and airflow. Drives connect via two SATA backplanes and can be swapped from the front after removing the magnetic cover. The front panel features a USB-C port, a USB-A port, and a power button.

  • Drive Slots – 8 bays for 3.5" drives with hot-swap support and 2 slots for 2.5" drives, for example, for a system SSD or storage cache.
  • Two SATA Backplanes – each backplane has 4 SATA connectors for drives and a Molex power connector, so drives do not need to be individually wired to the power supply.
  • Motherboard and Cards – supports Micro ATX motherboards up to 245 x 245 mm and Mini ITX 170 x 170 mm, 4 full-height PCIe slots for cards up to 220 mm in length and a CPU cooler with a height of up to 55 mm.
  • Power Supply – the case is designed for an ATX power supply up to 170 mm in length; SFX or Flex ATX power supplies can be used with a custom mounting adapter, which is not included.
  • Cooling – two positions for 120 mm fans in the drive chamber and two in the motherboard chamber; perforated panels throughout allow for air intake and exhaust.
  • Construction – internal frame made of 0.8 mm thick galvanised steel sheet, external shell made of 0.8 mm thick cold-rolled painted steel sheet with laser-cut openings and rounded edges.

Package Contents:

  • 1x NAS computer case

The NAS computer case with eight slots for 3.5" drives is suitable for building a home server, backup storage, or a multimedia centre with large capacity. Hot-swapping drives via SATA backplanes simplifies expansion and replacement of storage without disassembling the case. Support for Micro ATX and Mini ITX motherboards, four full-height PCIe cards, and ATX power supply provides ample options when selecting components. Two separate chambers and positions for four 120 mm fans help maintain acceptable temperatures for both drives and the motherboard. Compact dimensions of 30 x 27 x 27 cm allow the case to be placed on a desk, in a shelf, or in a technical room.
