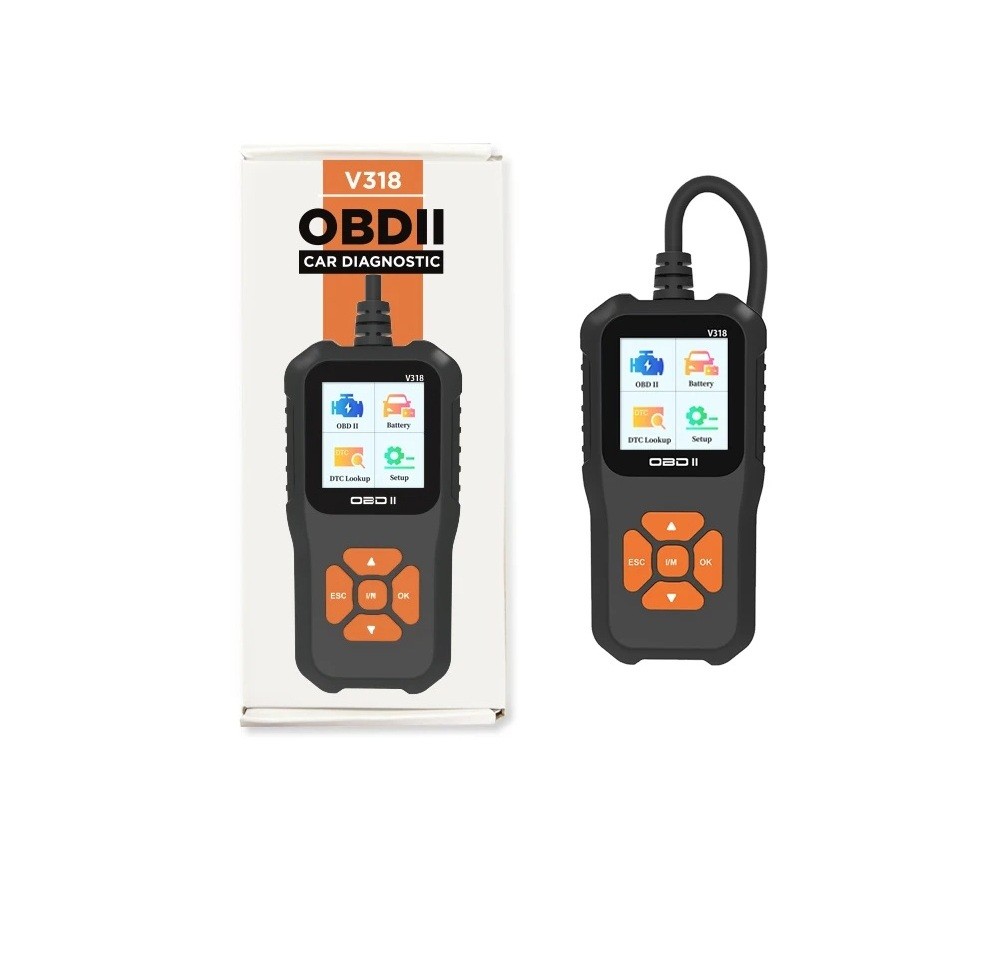

Multifunctional Diagnostic OBD2 Fault Reader V318 with Display and Speaker Support for Emission Testing and Graphs for Cars from 1996
This professional OBD2 fault reader V318 is designed for thorough diagnostics of vehicles equipped with OBD2 or CAN systems. It can read and erase engine fault codes, displays current operational data, tests emission system readiness, shows frozen frame data upon fault, and provides graphical representation of selected values. It features a colour display, over 3000 definitions of fault codes, and is compatible with most vehicles manufactured after 1996.
The reader supports 10 languages including Czech, has integrated memory for data storage, and allows transfer to a computer via cable. It is suitable for both petrol and diesel engines.
- Reading and erasing engine fault codes – display of faults and their meanings
- Display of engine operational values – RPM, temperature, speed, fuel pressure, lambda sensor voltage, and more
- Frozen frame data upon fault – recorded values at the moment of failure
- Emission readiness test – overview of emission system status
- Test of oxygen sensors and fuel evaporation system
- Graph display and data logging – monitoring values in real-time
- Integrated memory and data printing capability via computer
- Colour LED indicators and speaker for audio alerts
Technical Specifications:
Power supply: from diagnostic socket (12V)
Display: colour TFT
Supported protocols: OBD2 and CAN
Languages: Czech, German, French, Spanish, Italian, Russian, Chinese, Japanese, Korean, Dutch
Compatibility: vehicles from 1996 (USA), 2003 (EU), 2007 (Asia), 2011 (China)

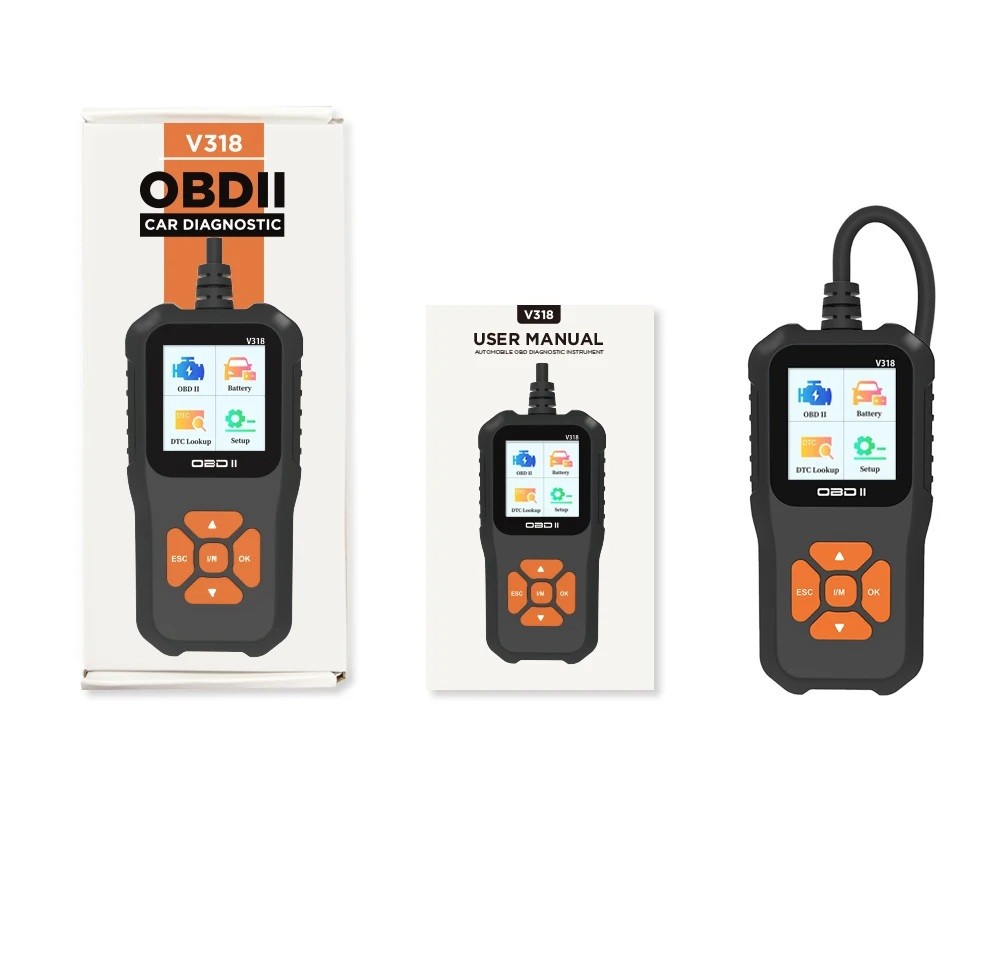

Package Contents:
1x Fault Reader V318
1x Diagnostic Cable
1x User Manual
1x Packaging
🛠️ User Manual
- Connecting the device:
- Turn off the ignition.
- Locate the 16-pin diagnostic connector (usually under the steering wheel).
- Insert the cable into the OBD2 connector.
- Turn on the ignition (the engine may be off or running).
- The display will automatically detect the protocol.
- Diagnostic functions:
- Reading faults: display of all current fault codes and their descriptions.
- Erasing faults: removal of errors from the control unit's memory (including frozen frame and emission status).
- Display of frozen frame data: vehicle values at the time of fault occurrence.
- Emission control: overview of the status of individual emission components before inspection.
- Data stream: real-time values such as RPM, load, temperature, pressure, voltage, etc.
- Real-time graphs: display of changes in clear curves.
- Oxygen sensor tests: measurement of values from lambda sensors.
- Fuel evaporation system test: vacuum value and system tightness.
- Vehicle identification: display of VIN code and other control unit data.
- Battery test:
- The reader will display the current voltage of the car battery in real-time.
- Searching for fault codes:
- Manually enter the code (e.g., P0123) and the device will display its meaning.
- Additional features:
- Language selection – support for Czech.
- Unit settings – metric or imperial.
- Data storage and printing via computer (Windows XP to Windows 10).
- Important notices:
- The device is not suitable for electric vehicles, hybrids, and cars without OBD2.
- Do not make modifications – the device has no serviceable parts.
- Protect from water, fire, and high temperatures.
The V318 is a reliable and easy-to-use reader that will help you identify faults in time and save on repair costs. Suitable for both home and professional use.
