MUCAR CDE900 Diagnostic Fault Reader with Display OBD2 Engine, ABS, Airbags, Transmission and WiFi Updates
You already have the maximum available quantity in your cart.
Professional Diagnostic Fault Reader MUCAR CDE900 with Touchscreen and Support for Engine, Airbags, ABS and Transmission

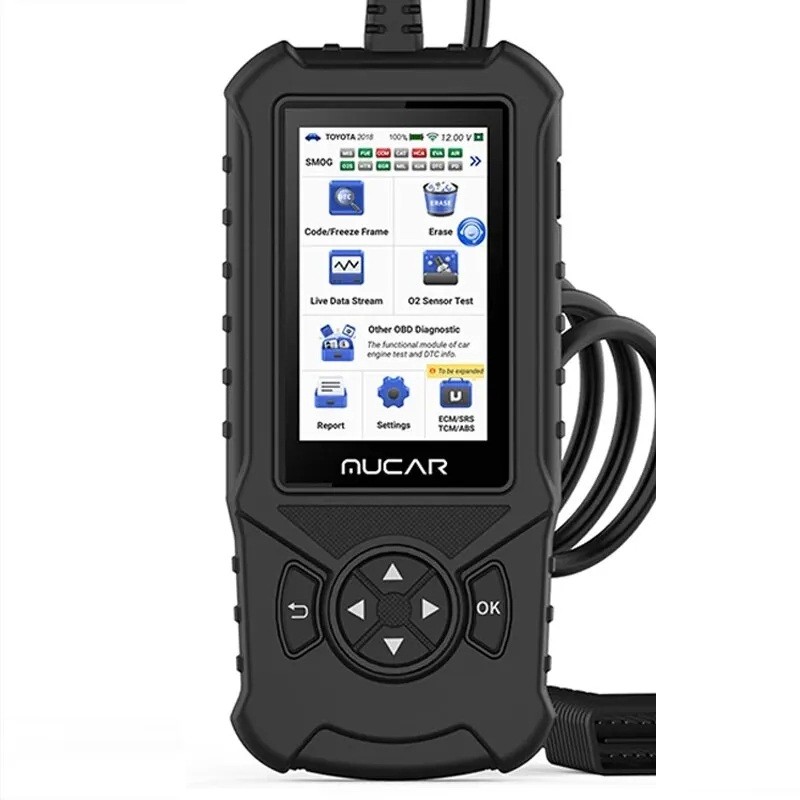

The diagnostic device MUCAR CDE900 is an advanced tool for comprehensive monitoring of a vehicle's technical condition. It allows reading and clearing faults not only in the engine but also in the ABS, airbags (SRS), automatic transmission (TCM) and other control units. It features a four-inch colour touchscreen, a powerful system, and the ability to connect to Wi-Fi for software updates. Suitable for vehicles with OBD2/CAN interface from 1996 (USA) and newer vehicles in Europe and Asia.
🔧 Main Features:
- Diagnostics of 4 main systems: engine (ECM), transmission (TCM), airbags (SRS), braking system (ABS)
- Reading and clearing fault codes in real time
- Display of data stream: monitoring engine values, sensors, load, temperature etc.
- Lambda sensor tests and fuel evaporation system tests
- Freeze frame function – recording the vehicle's status when a fault occurs
- Direct access to diagnostic protocols: ISO 14230, ISO 15765, ISO 9141, ISO 14229, SAE J1850
- Automatic updates via Wi-Fi (no PC required)
- Ability to generate diagnostic report in PDF format
📦 Package Contents:
- 1x MUCAR CDE900 diagnostic reader
- 1x diagnostic cable (1.2 m)
- 1x user manual
- 1x original packaging
🛠️ User Guide – Step by Step
- Connecting the device:
- Locate the 16-pin diagnostic connector in the vehicle (usually under the steering wheel).
- Plug the diagnostic cable into the OBD2 connector.
- Turn on the vehicle's ignition (the engine can be on or off).
- The diagnostic interface will automatically launch on the device.
- Basic diagnostics:
- Select the option "Code/Freeze Frame" to display current faults.
- To clear faults, select the option "Clear" and confirm by pressing the OK button.
- To monitor operational data, select "Live Data Stream".
- Additional features:
- Lambda sensor test: select "Lambda Sensor Test" and display the voltage of individual sensors.
- Fuel evaporation system diagnostics: display pressure and tightness values of the system.
- Fault code search: enter a specific code (e.g. P0123) to obtain its description.
- Device version: in the "Version Information" section, display the diagnostic protocol used.
- Advanced features:
- Diagnostics of engine, transmission, ABS and airbags systems: select the option "ECM/TCM/ABS/SRS" for extended diagnostics.
- Software updates: in the "Settings" section, click on "Updates".
- Generating reports: in the "Report" section, you can view and save results in PDF format.
- Important Notice:
- Do not use the device with the engine running and the throttle open.
- Supported voltage: 9–18 V.
- Grey indication – protocol not supported, green – no faults, red – fault found.
The MUCAR CDE900 is a powerful device for both professional and home use, combining ease of operation, advanced features, and expansion possibilities – an ideal assistant for anyone who wants to keep their vehicle under control.
