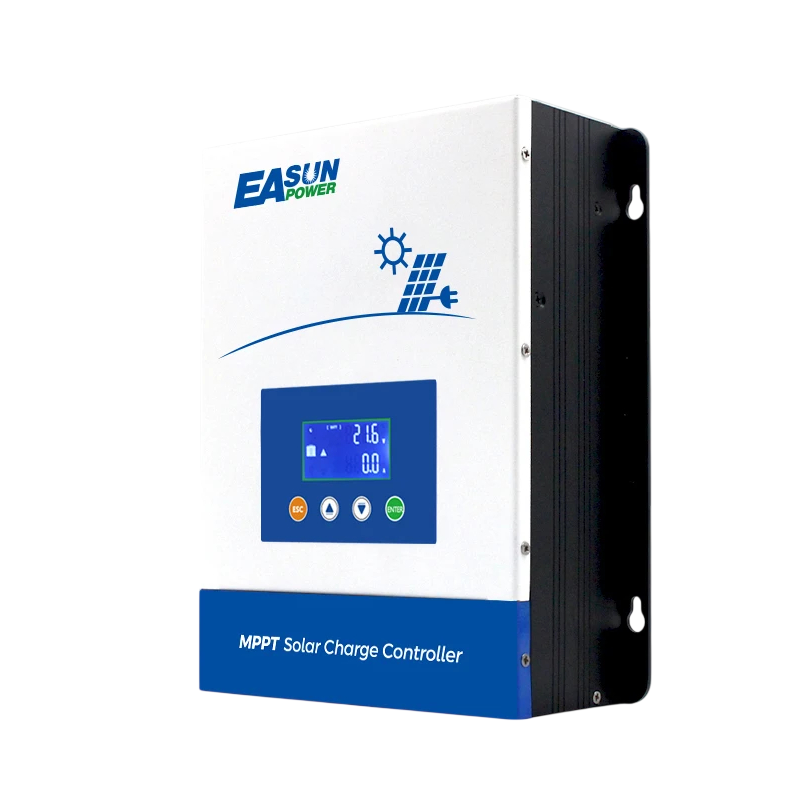

MPPT Solar Charge Controller 80A 22x15x7 cm 12V 24V 36V 48V LCD Display White Blue for Panel Battery and Lighting
You already have the maximum available quantity in your cart.
The 80A solar charge controller is designed to manage battery charging from solar panels in both off-grid and expanded energy systems. MPPT (Maximum Power Point Tracking) is a technology that automatically seeks the best operating point of the panel for more efficient use of solar energy. The controller supports 12V / 24V / 36V / 48V battery systems with automatic voltage recognition. The clear LCD display shows the battery status, voltage and operational data. Its compact size of 22x15x7 cm facilitates wall or technical panel mounting.
Model 80A is suitable for cottages, caravans, boats, workshops, garden systems or more powerful home installations. The controller is compatible with lead-acid, gel, AGM and lithium batteries. It features protection against over-voltage, overload, short-circuit, overheating and reverse polarity. The IP30 rating is intended for use in dry indoor environments. The output for appliances allows connection of suitable DC loads, such as LED lighting.
Key features:
- MPPT Solar Controller 80A
- Support for 12V / 24V / 36V / 48V systems
- LCD display for displaying operational data
- Compact dimensions of 22x15x7 cm
- Compatible with AGM, gel, lead-acid and lithium batteries
- Protection against over-voltage, short-circuit, overheating and reverse polarity
- IP30 rating for indoor use
- Maximum input voltage of panels 150V DC
- Maximum power of panels 1040W at 12V / 2080W at 24V / 3120W at 36V / 4160W at 48V
- Rated charging current 80A
Instructions for use
- 1. Mount the controller on a solid non-flammable surface in a dry and ventilated area.
- 2. First connect the battery to the controller terminals with the correct polarity.
- 3. Then connect the solar panel and finally the appliance to the controller output.
- 4. After starting, check the data on the display.
- 5. When disconnecting, proceed in reverse order: first the appliance, then the panel and finally the battery.
- 6. Do not exceed the recommended input voltage of the panels and the current of the device.
Contents of the package
- 1x MPPT Solar Charge Controller 80A
The controller is suitable for users who want to reliably charge batteries from solar panels and keep track of the system's operation. With support for multiple voltage systems, it is usable in various installations. Integrated protections help enhance safety during use. A practical solution for both home and mobile solar setups.
