MPPT Solar Charge Controller 35A 16x14x7 cm 12V 24V LCD Display Black Orange for Solar Panel Battery and LED Lighting

MPPT Solar Charge Controller 35A 16x14x7 cm 12V 24V LCD Display Black Orange for Solar Panel Battery and LED Lighting

Solar MPPT controller 25A for 12V and 24V systems with LCD display. For charging batteries from solar panels and powering LED lighting. Full description
In stock
Delivery €1.59
30-day return policy
€107.38
Safe shopping Safe shopping
Overview
MPPT Solar Charge Controller 35A 16x14x7 cm 12V 24V LCD Display Black Orange for Solar Panel Battery and LED Lighting

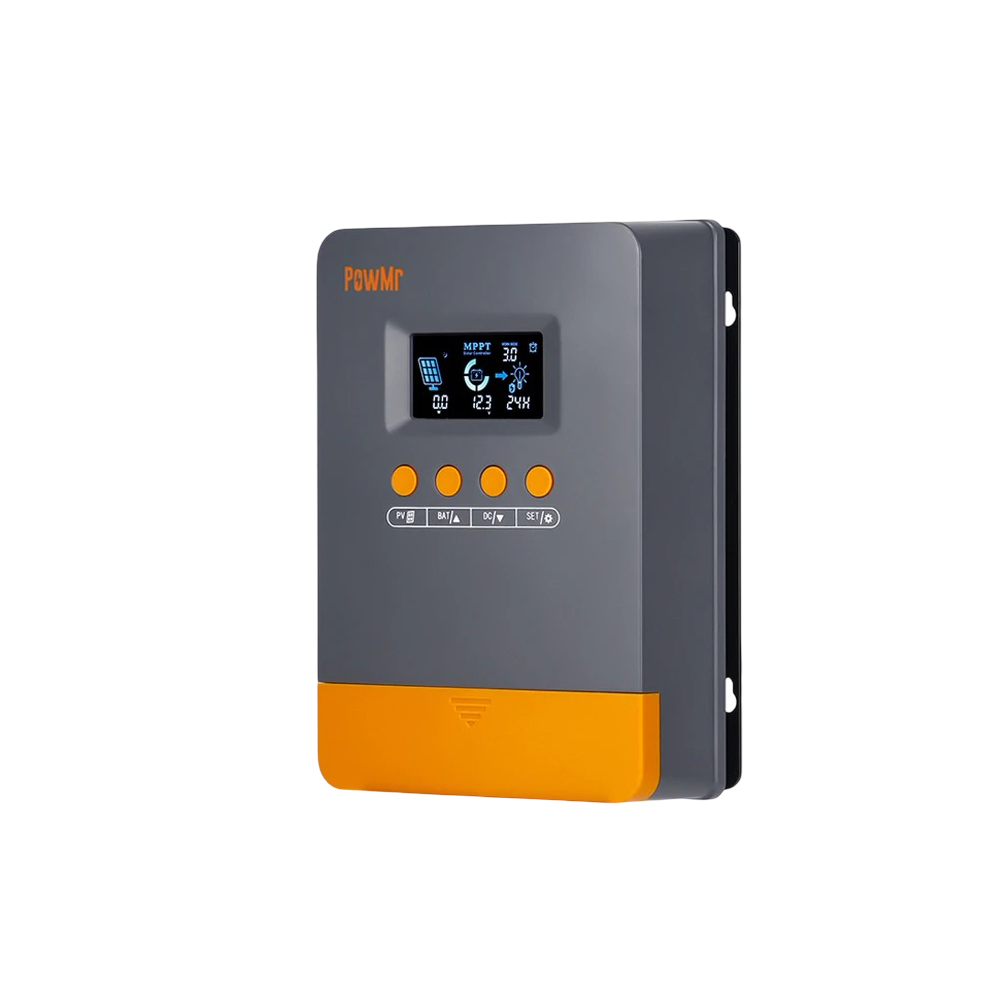

The 35A solar charge controller is used to manage the charging of batteries from solar panels in off-grid systems. MPPT (Maximum Power Point Tracking) is a technology that automatically evaluates the most suitable operating point of the panel and helps to utilise more generated energy. The controller supports 12V / 24V battery systems with automatic voltage recognition. The clear LCD display shows data about the panel, battery, and output. Its compact size of 16x14x7 cm makes installation in technical spaces easier.

Model 35A is suitable for cottages, caravans, boats, garden systems, or medium-sized solar installations. The device is compatible with lead-acid, gel, AGM, and lithium batteries. It features protection against overvoltage, overload, overheating, short circuits, and reverse polarity. The output for appliances allows for the connection of suitable DC loads, such as LED lighting. The black and orange design appears modern and clear.

Key features:

  • MPPT Solar Controller 35A
  • Support for 12V / 24V systems
  • LCD display for operational data

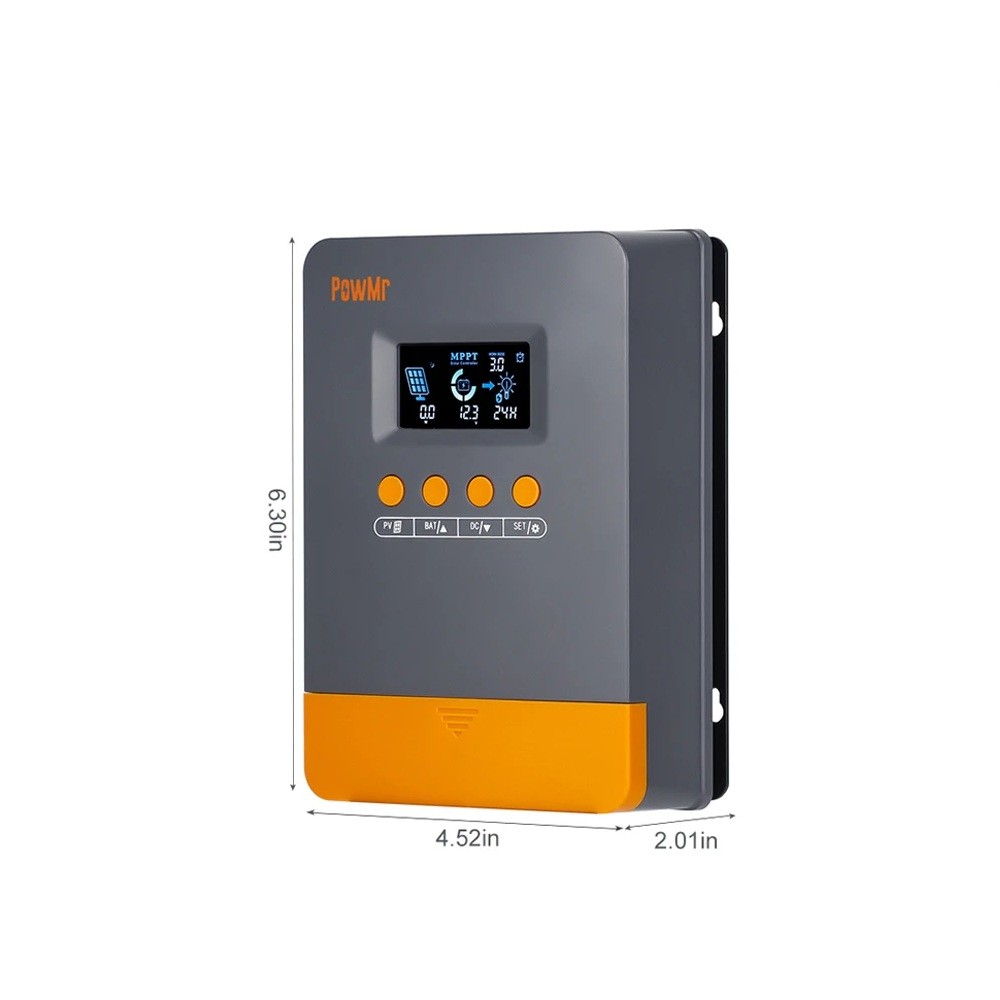

  • Compact dimensions 16x14x7 cm
  • Compatible with AGM, gel, lead-acid, and lithium batteries
  • Protection against overvoltage, short circuits, overheating, and reverse polarity
  • Output for LED lighting and other suitable appliances
  • Maximum panel power of 420W for 12V system / 840W for 24V system
  • Rated output for appliances 20A

Instructions for use

  • 1. Mount the controller vertically on a solid non-flammable surface in a dry and ventilated area.
  • 2. First, connect the battery to the controller terminals with the correct polarity.
  • 3. Then connect the solar panel and finally the appliance to the controller output.
  • 4. After starting, check the display and status indicators.
  • 5. When disconnecting, proceed in reverse: first the appliance, then the panel, and finally the battery.
  • 6. Do not connect the inverter to the controller output, but directly to the battery.

Contents of the package

  • 1x MPPT Solar Controller 35A

The controller is suitable for users who want to reliably charge batteries from solar panels and keep track of system operation. With automatic voltage recognition, installation is simpler. Integrated protections help enhance safety during use. A practical solution for both home and mobile solar setups.
