MPPT Solar Charge Controller 20A 18x13x5 cm 12V 24V LCD Display White Blue for Panel Battery and Lighting

MPPT Solar Charge Controller 20A 18x13x5 cm 12V 24V LCD Display White Blue for Panel Battery and Lighting

Automatic voltage recognition, efficient battery charging and clear display of operating values. Suitable for smaller off-grid systems. Full description
In stock
Delivery €1.59
30-day return policy
€62.40
Safe shopping Safe shopping
Overview

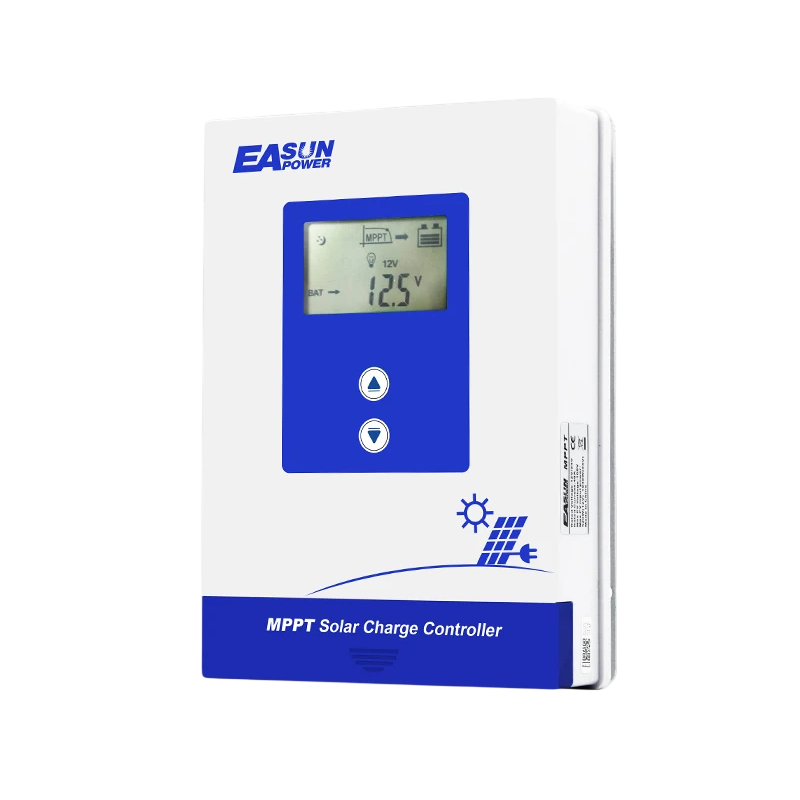

MPPT Solar Charge Controller 20A 18x12x5 cm 12V 24V LCD Display White Blue for Panel Battery and Lighting

The 20A solar charge controller is designed to manage the charging of batteries from solar panels in smaller off-grid systems. MPPT (Maximum Power Point Tracking) is a technology that automatically searches for the optimal operating point of the panel for more efficient use of solar energy. The controller supports 12V / 24V battery systems with automatic voltage recognition. The clear LCD display shows the battery status, voltage, and operating data. The compact size of 18x12x5 cm facilitates wall or technical panel mounting.

The 20A model is suitable for cabins, caravans, boats, garden systems, or smaller home installations. The controller is compatible with lead-acid, gel, AGM, and lithium batteries. It features protection against over-voltage, overload, short circuit, overheating, and reverse polarity. The output for appliances allows the connection of suitable DC loads, such as LED lighting. The white and blue design appears clean and clear.

Key features:

  • MPPT Solar Controller 20A
  • Support for 12V / 24V systems
  • LCD Display for displaying operating data
  • Compact dimensions 18x12x5 cm
  • Compatible with AGM, gel, lead-acid, and lithium batteries
  • Protection against over-voltage, short circuit, overheating, and reverse polarity
  • Output for LED lighting and other suitable appliances
  • Maximum panel power 260W for 12V system / 520W for 24V system
  • Rated charging current 20A

Instructions for use

  • 1. Mount the controller on a solid non-flammable surface in a dry and ventilated area.
  • 2. First, connect the battery to the controller terminals with the correct polarity.
  • 3. Then connect the solar panel and finally the appliance to the controller output.
  • 4. After starting, check the data on the display.
  • 5. When disconnecting, proceed in reverse: first the appliance, then the panel, and finally the battery.
  • 6. Do not exceed the recommended power of the panels and the current of the devices.

Package contents

  • 1x MPPT Solar Charge Controller 20A

The controller is suitable for users who want to reliably charge batteries from solar panels and keep track of the system's operation. With automatic voltage recognition, installation is simpler. Integrated protections help enhance safety during use. A practical solution for smaller home and mobile solar setups.
