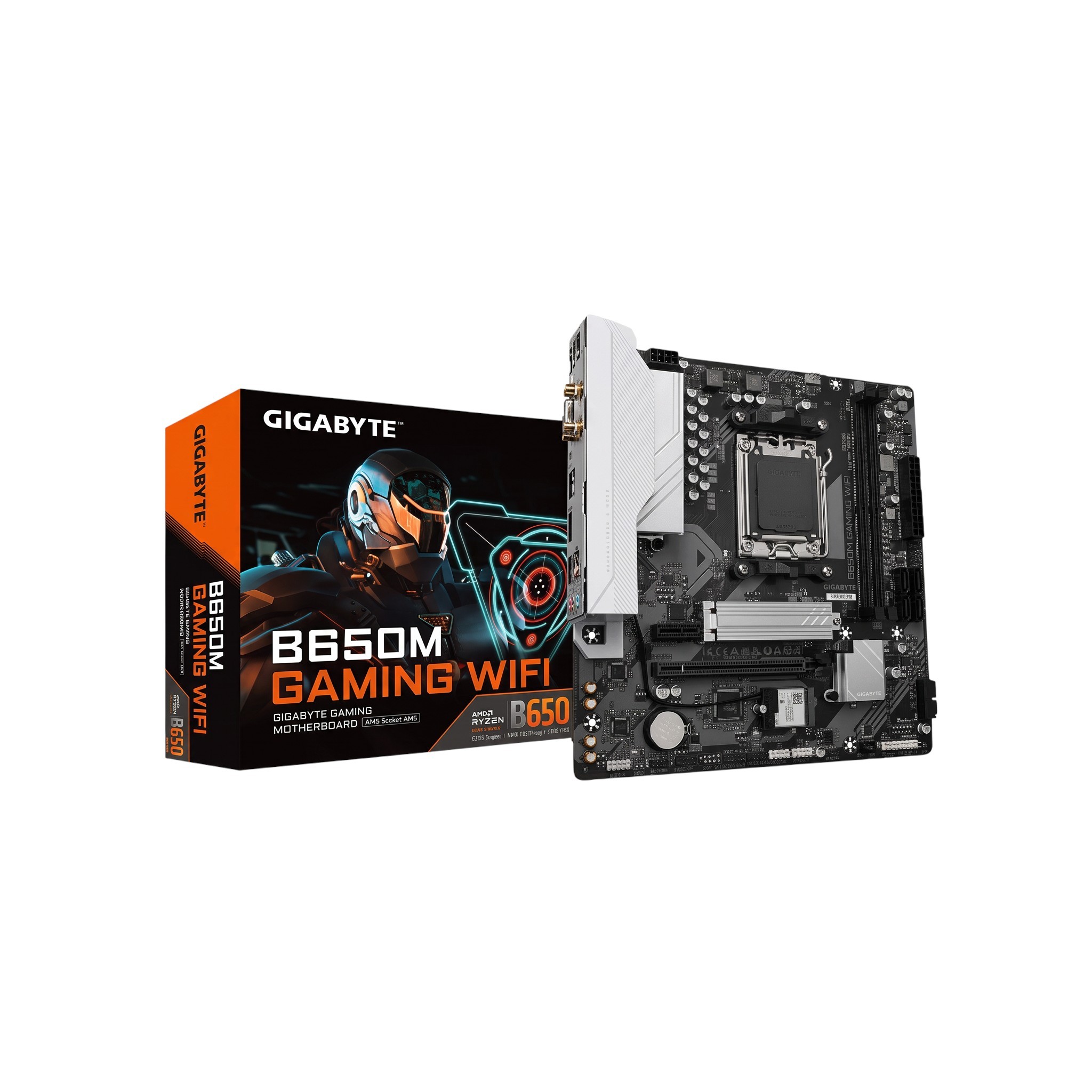

Motherboard with AM5 Socket and B650 Chipset for AMD Ryzen 7000 to 9000 with DDR5 Wi-Fi and 2.5Gb LAN and M.2 PCIe 4.0 in Black and White Design

Motherboard with AM5 Socket and B650 Chipset for AMD Ryzen 7000 to 9000 with DDR5 Wi-Fi and 2.5Gb LAN and M.2 PCIe 4.0 in Black and White Design

Dual-channel DDR5 with EXPO and XMP profiles, fast M.2 PCIe 4.0 drive with heatsink, Wi-Fi and 2.5 Gb/s network, and BIOS update button without processor. Full description
In stock
Delivery €1.59
30-day return policy
€365.46
Safe shopping Safe shopping
Overview
Motherboard with AM5 Socket and B650 Chipset for AMD Ryzen 7000 to 9000 with DDR5 Wi-Fi and 2.5Gb LAN and M.2 PCIe 4.0 in Black and White Design

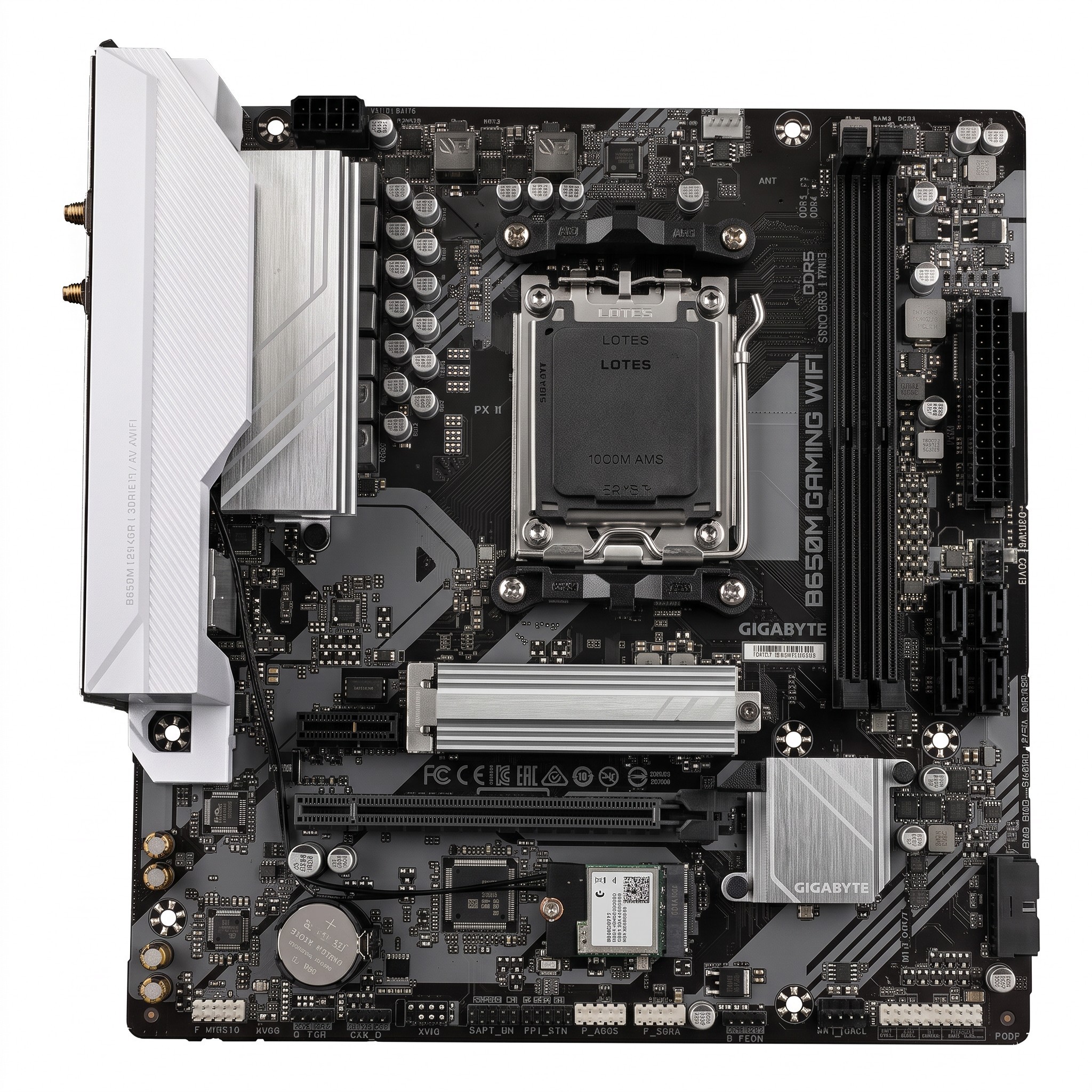

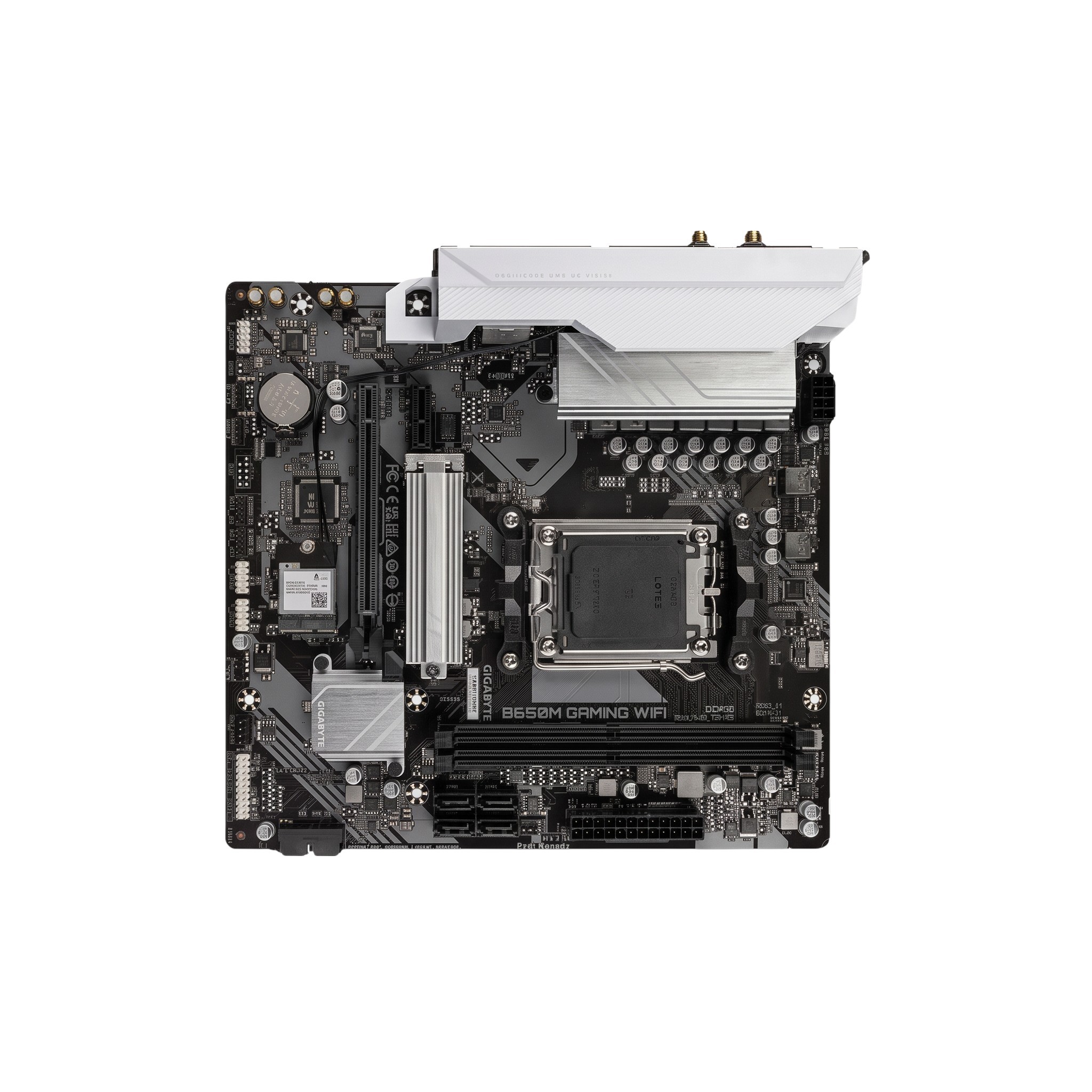

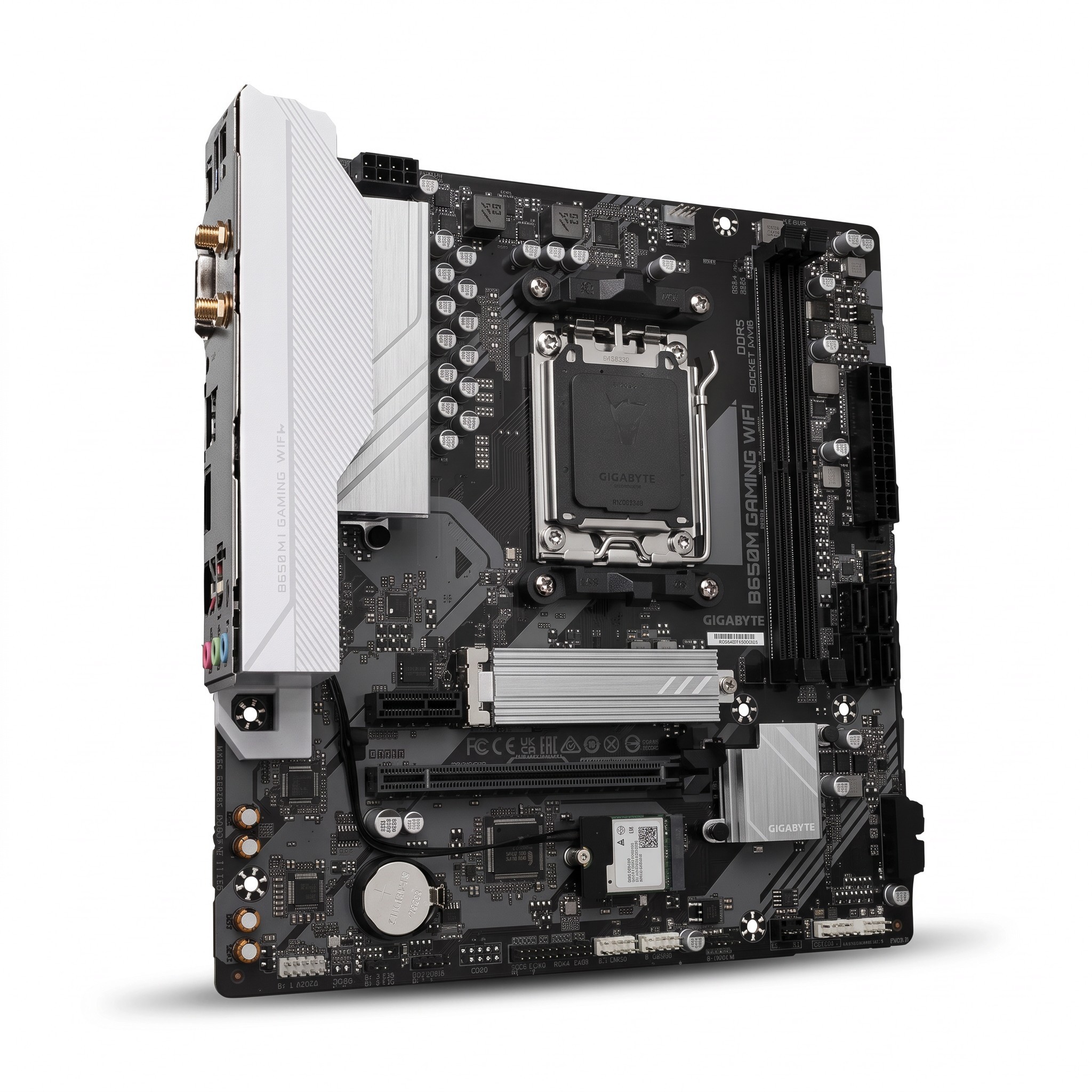

The motherboard with B650 chipset and AM5 socket for AMD Ryzen series 7000, 8000, and 9000 is ready for modern gaming and work computers with DDR5 memory. Two memory slots operate in dual-channel mode and support AMD EXPO and Intel XMP profiles for easy higher frequency settings. The system drive is inserted into the M.2 slot with PCIe 4.0 x4 interface, which is covered by its own heatsink. For internet connection, there is a 2.5 Gb/s network port as well as wireless Wi-Fi with antenna connectors on the rear panel. The black board with white power and chipset heatsinks offers HDMI and VGA outputs for processors with integrated graphics.

  • Memory – 2 DDR5 slots in dual-channel configuration supporting AMD EXPO and Intel XMP, memory overclocking up to 6400 MHz and beyond.
  • Storage and Expansion – 1x M.2 PCIe 4.0 x4 slot with heatsink, 4 SATA ports with 6 Gb/s speed, and 1x PCIe 4.0 x16 slot for a graphics card. The slot features an EZ-Latch mechanism, allowing the graphics card to be released with a single press without tools.
  • Power Supply – digital power circuits in a 5+2+2 phase arrangement with low-resistance MOSFET transistors, 24-pin ATX connector, and 8-pin connector for processor power.

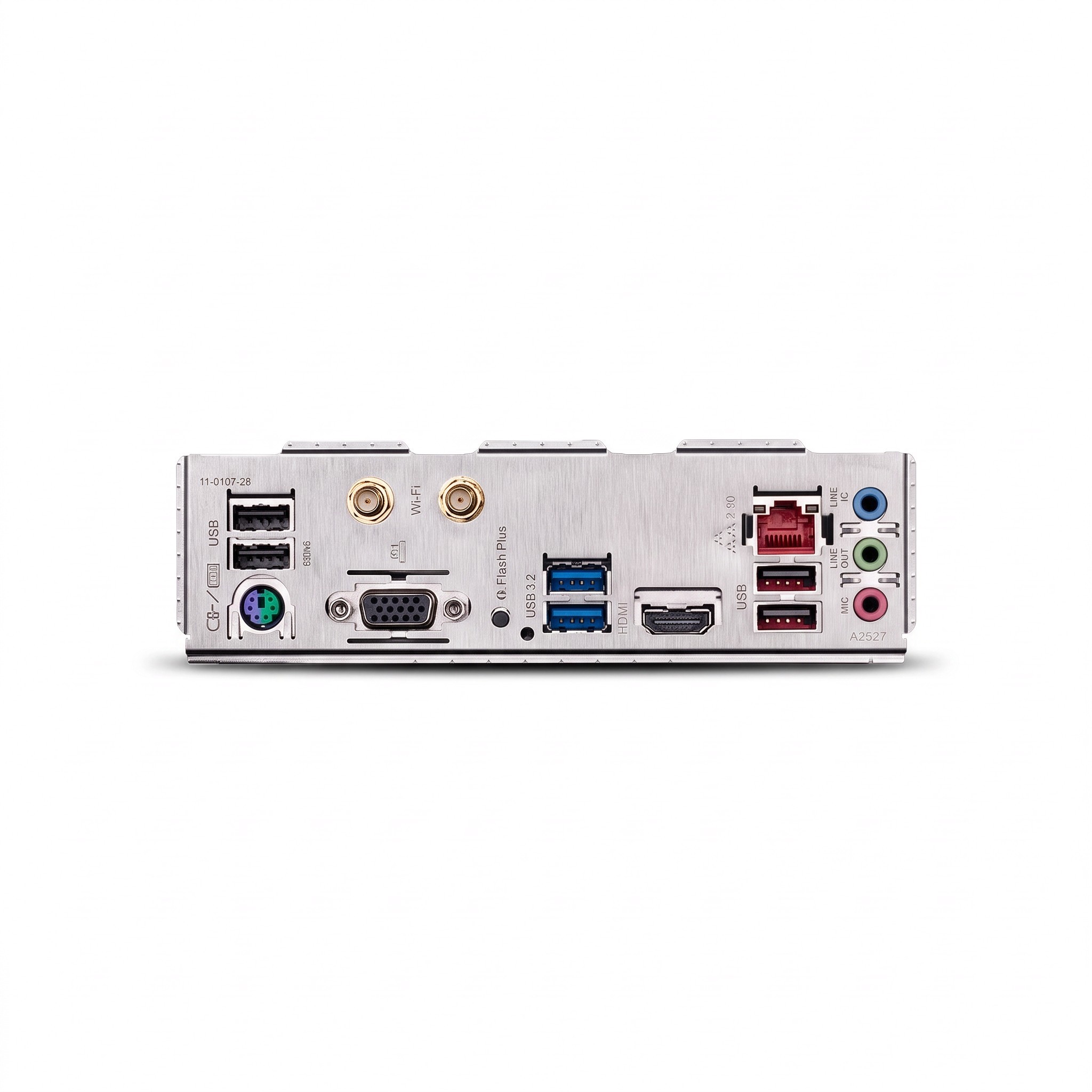

  • Rear Panel – 4x USB 2.0, 2x USB 3.2 Gen1, PS/2 port, HDMI, VGA (D-sub), 2.5 Gb/s network port, connectors for Wi-Fi 802.11ac antennas, Q-Flash Plus button, and three audio jack connectors.
  • Audio and Lighting – 8-channel HD audio with a separate audio section on the board and audio capacitors; for case lighting, there is 1 connector for addressable ARGB LED and 1 connector for RGB LED.
  • Cooling and BIOS – 3 connectors for PWM/DC fans, several temperature sensors, and FAN STOP function that stops fans at low temperatures. The Q-Flash Plus button updates the BIOS from a USB flash drive without an installed processor, memory, or graphics card.

Package Contents:

  • 1x motherboard

The AM5 platform with B650 chipset is suitable for building a new computer with a Ryzen processor or for gradual upgrades, as the socket supports several generations of processors. DDR5 memory and M.2 PCIe 4.0 slot ensure fast loading of games, applications, and the system. The combination of Wi-Fi and 2.5 Gb/s network port allows for wired and wireless connections without the need to purchase a network card. Thanks to the HDMI and VGA outputs, a computer with a processor featuring integrated graphics can be operated without a dedicated graphics card. The 5+2+2 phase power supply with heatsink is designed for high-performance Ryzen processors under sustained load.
