Motherboard 220 x 200 mm with AM4 Socket and B450 Chipset for AMD Ryzen Processors Supporting DDR4 up to 64 GB and M.2 NVMe in White Finish

Motherboard 220 x 200 mm with AM4 Socket and B450 Chipset for AMD Ryzen Processors Supporting DDR4 up to 64 GB and M.2 NVMe in White Finish

Motherboard for Ryzen 1st to 5th Generation offers two DDR4 slots up to 3600 MHz, M.2 slot for NVMe and SATA drives, four SATA 3.0 ports and gigabit networking. Full description
In stock
Delivery €1.59
30-day return policy
€165.02
Safe shopping Safe shopping
Overview
Motherboard 220 x 200 mm with AM4 Socket and B450 Chipset for AMD Ryzen Processors Supporting DDR4 up to 64 GB and M.2 NVMe in White Finish

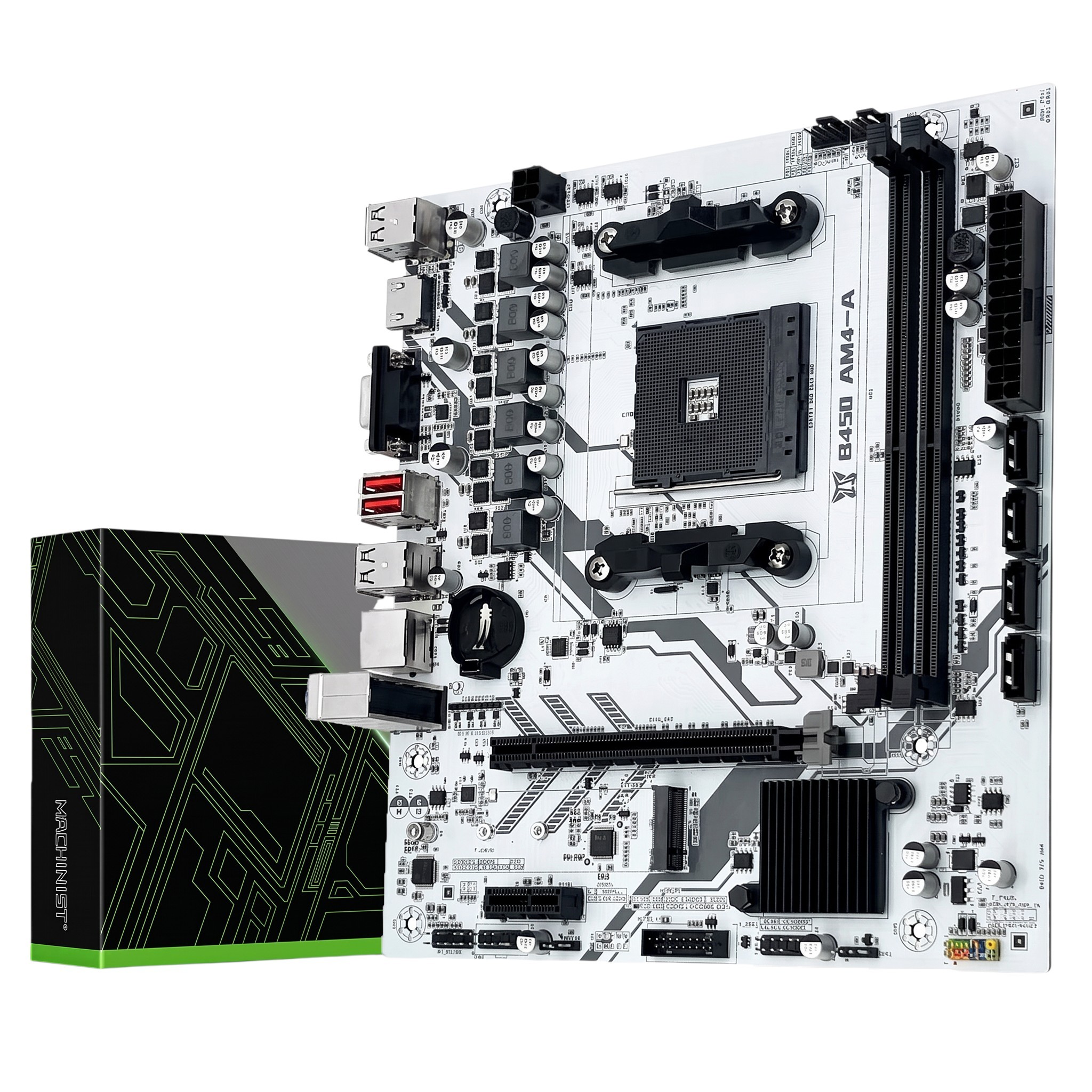

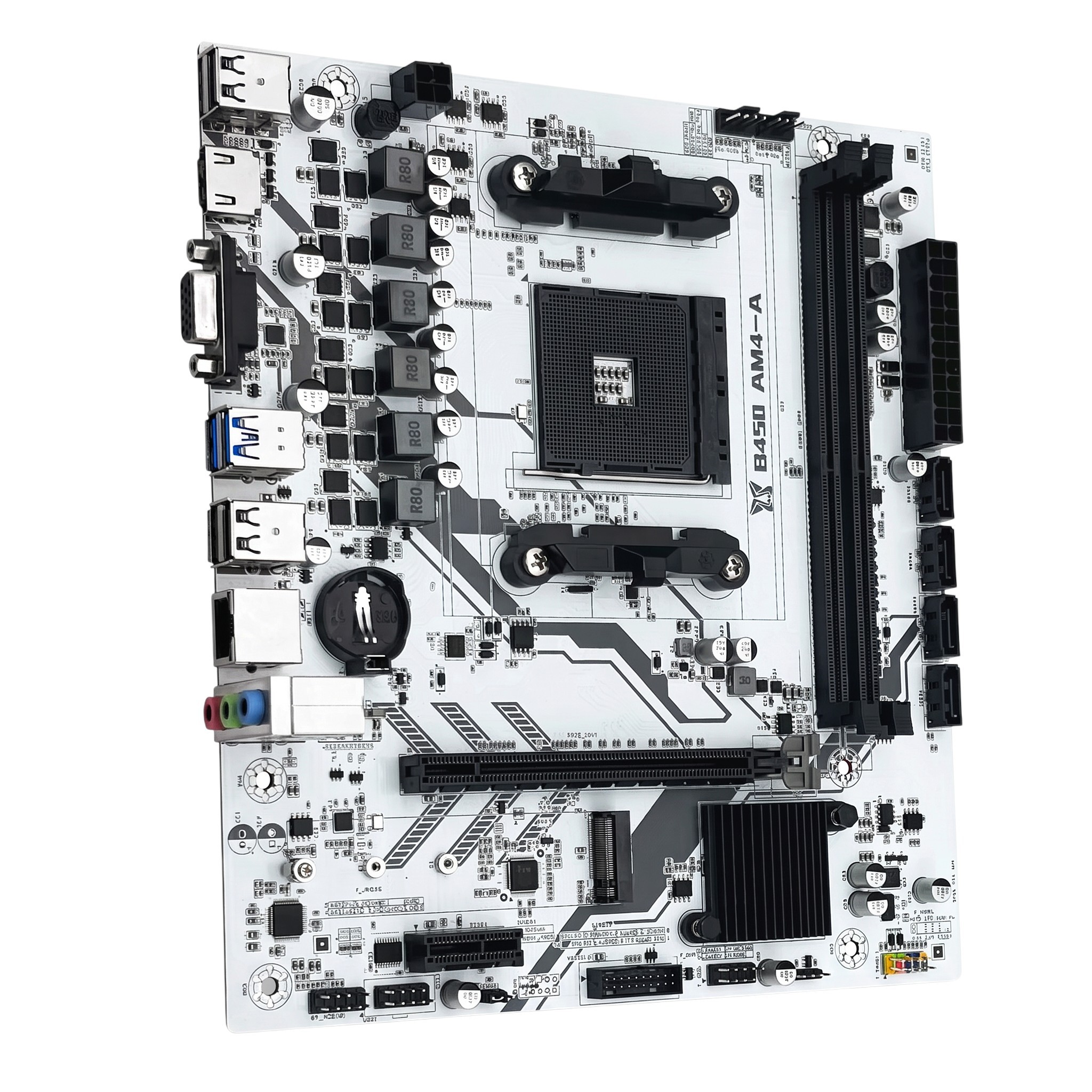

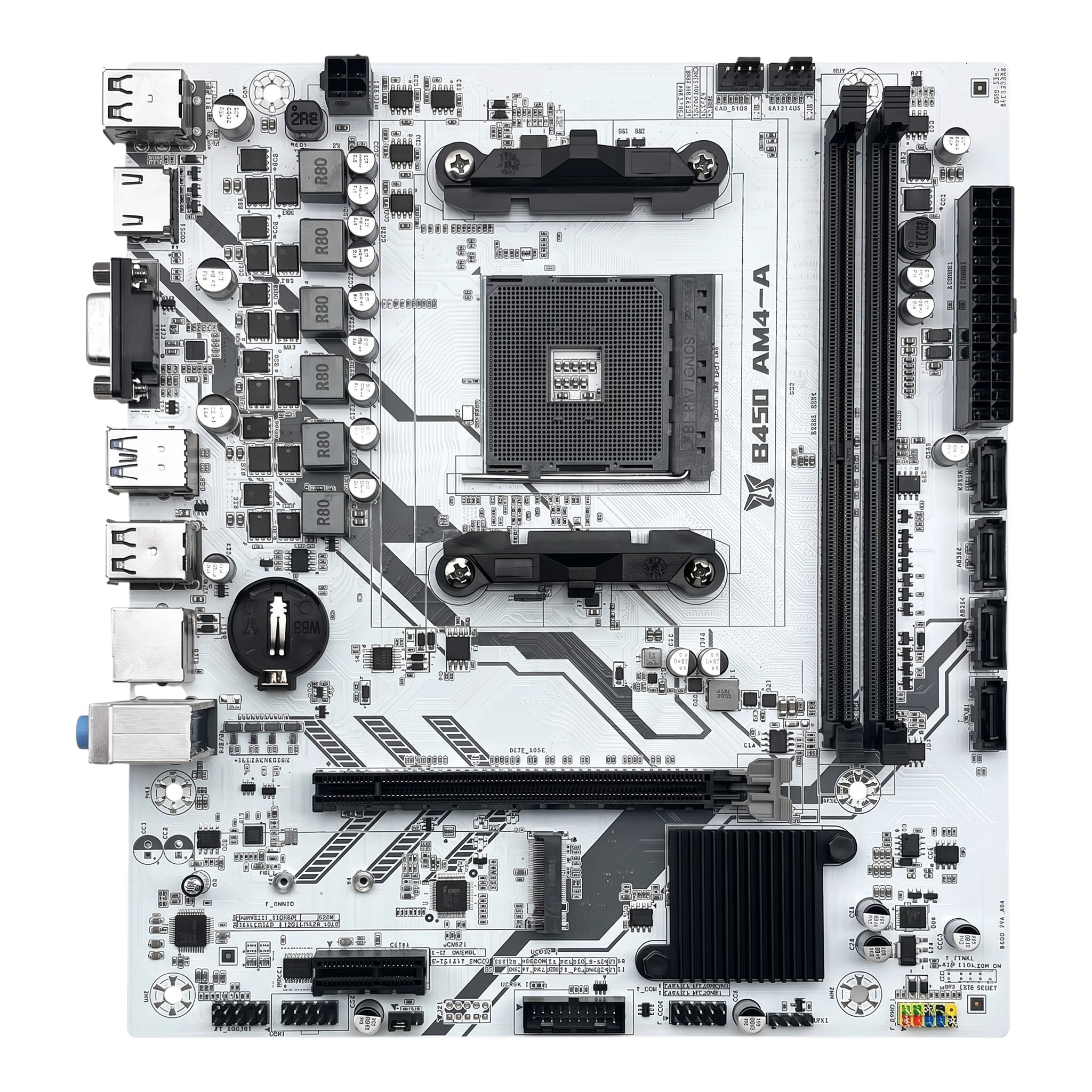

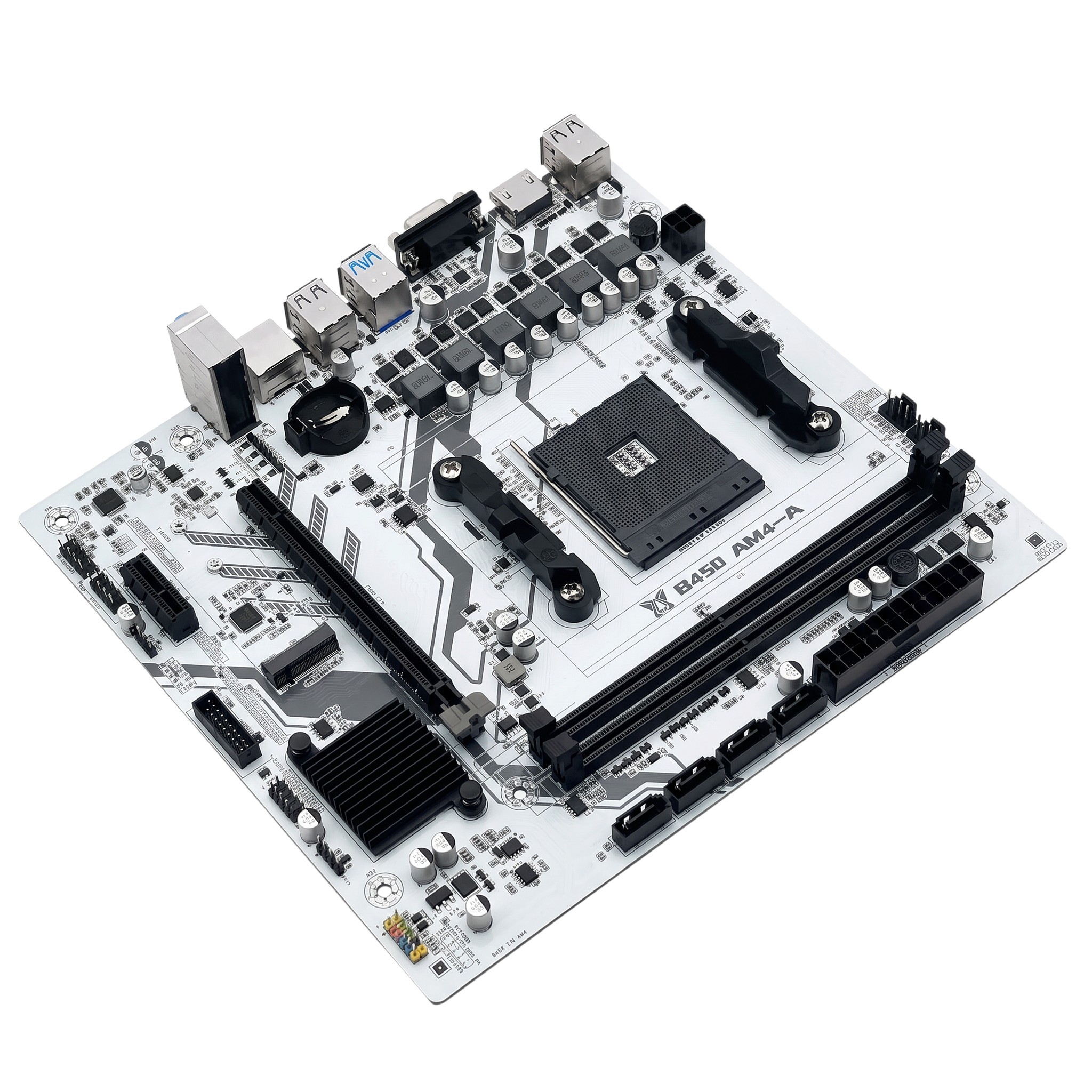

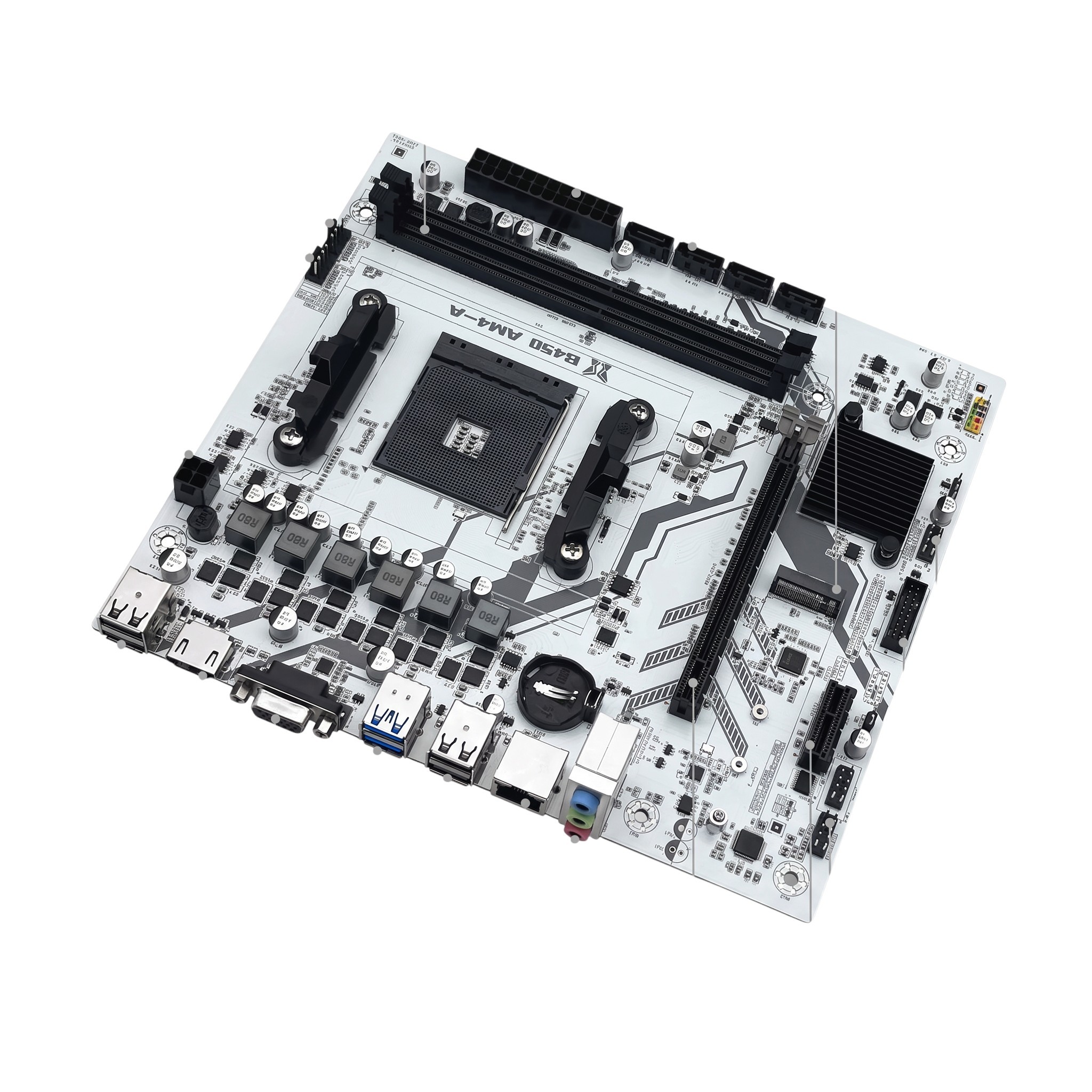

The white motherboard with B450 chipset and AM4 socket is designed for building a home, office or gaming PC with a 1st to 5th Generation AMD Ryzen processor, such as the Ryzen 5 5500, 5600 or 5600G. The compact board measuring 220 x 200 mm fits into smaller computer cases while offering everything essential for both everyday and more demanding tasks. Two memory slots operate in dual-channel mode and accommodate up to 64 GB of DDR4 memory with frequencies up to 3600 MHz. For fast storage, there is an M.2 slot that accepts both NVMe and SATA drives. Video is transmitted via HDMI and VGA outputs, while additional components connect through PCIe slots and four SATA ports.

  • Memory – 2 slots for 288-pin desktop DDR4 modules in dual-channel configuration, maximum 2x 32 GB, supported frequencies 2133, 2666, 3000, 3200 and 3600 MHz; ECC memory is not supported by the motherboard.
  • Storage – the M.2 slot automatically detects NVMe or SATA drives without manual switching, reaching read and write speeds of up to 3600 MB/s in NVMe mode; additionally, the board features 4 SATA 3.0 ports for traditional SSD and HDD drives.
  • Expansion Slots – PCIe 3.0 x16 slot for a dedicated graphics card and PCIe 2.0 x1 slot for additional expansion cards, such as network or sound cards.
  • Video Outputs – HDMI and VGA supporting resolutions of 1080p and 2K; video output from the board requires a processor with integrated graphics, such as the Ryzen 5 5600G.

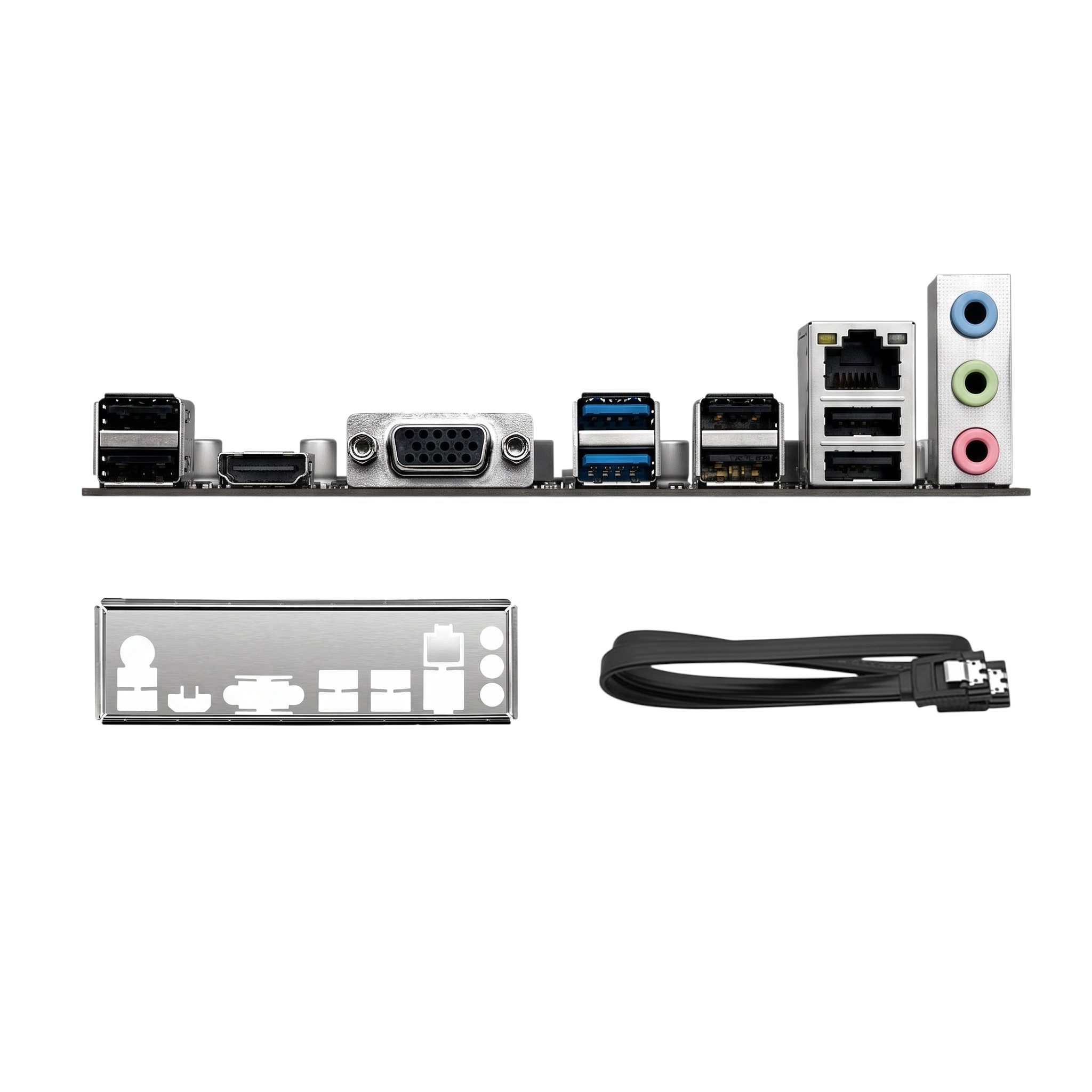

  • Rear Panel – USB 3.0 and USB 2.0 ports, gigabit network port with Realtek 8111H chip with speeds of up to 1000 Mb/s and audio connectors for microphone, line input and line output.
  • Power Supply – 4+2 phase power circuits with fully solid capacitors, six-layer printed circuit board, 24-pin ATX power connector and 4-pin connector for processor power supply.
  • Cooling and Case Connections – 4-pin connector for CPU fan, 4-pin connector for system fan, internal USB and audio connectors for the front panel, and connector for case buttons and LEDs.

Package Contents:

  • 1x motherboard

The AM4 socket motherboard serves as the foundation for a new computer or as a replacement for an older board in a Ryzen processor setup. The combination of M.2 NVMe slot and PCIe 3.0 x16 slot allows for the use of a fast system drive and a dedicated graphics card. The smaller size of 220 x 200 mm facilitates installation in compact cases. The white finish of the board complements the light interior of a glass case. The processor is powered by 4+2 phase circuits with solid capacitors, which are rated for full load.
