Motherboard 215 x 190 mm with LGA 2011-3 socket and X99 chipset for Intel Xeon E5 with 4 DDR4 slots up to 128 GB and M.2 NVMe in white

Motherboard 215 x 190 mm with LGA 2011-3 socket and X99 chipset for Intel Xeon E5 with 4 DDR4 slots up to 128 GB and M.2 NVMe in white

Four DDR4 slots for desktop and server REG ECC memory, M.2 slot for NVMe and NGFF drives, 4x SATA 3.0 and gigabit network for workstation. Full description
In stock
Delivery €1.59
30-day return policy
€141.00
Safe shopping Safe shopping
Overview
Motherboard 215 x 190 mm with LGA 2011-3 socket and X99 chipset for Intel Xeon E5 with 4 DDR4 slots up to 128 GB and M.2 NVMe in white

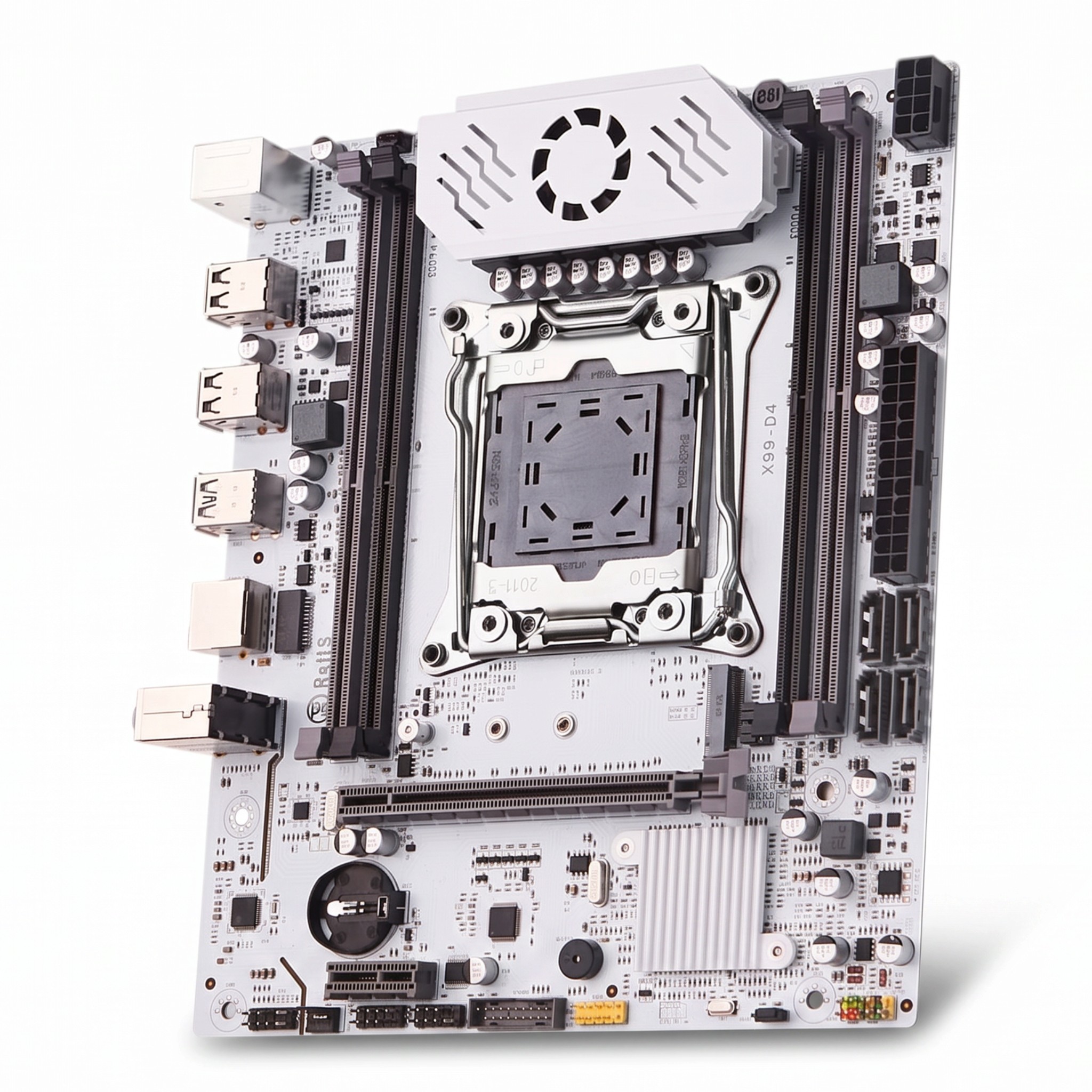

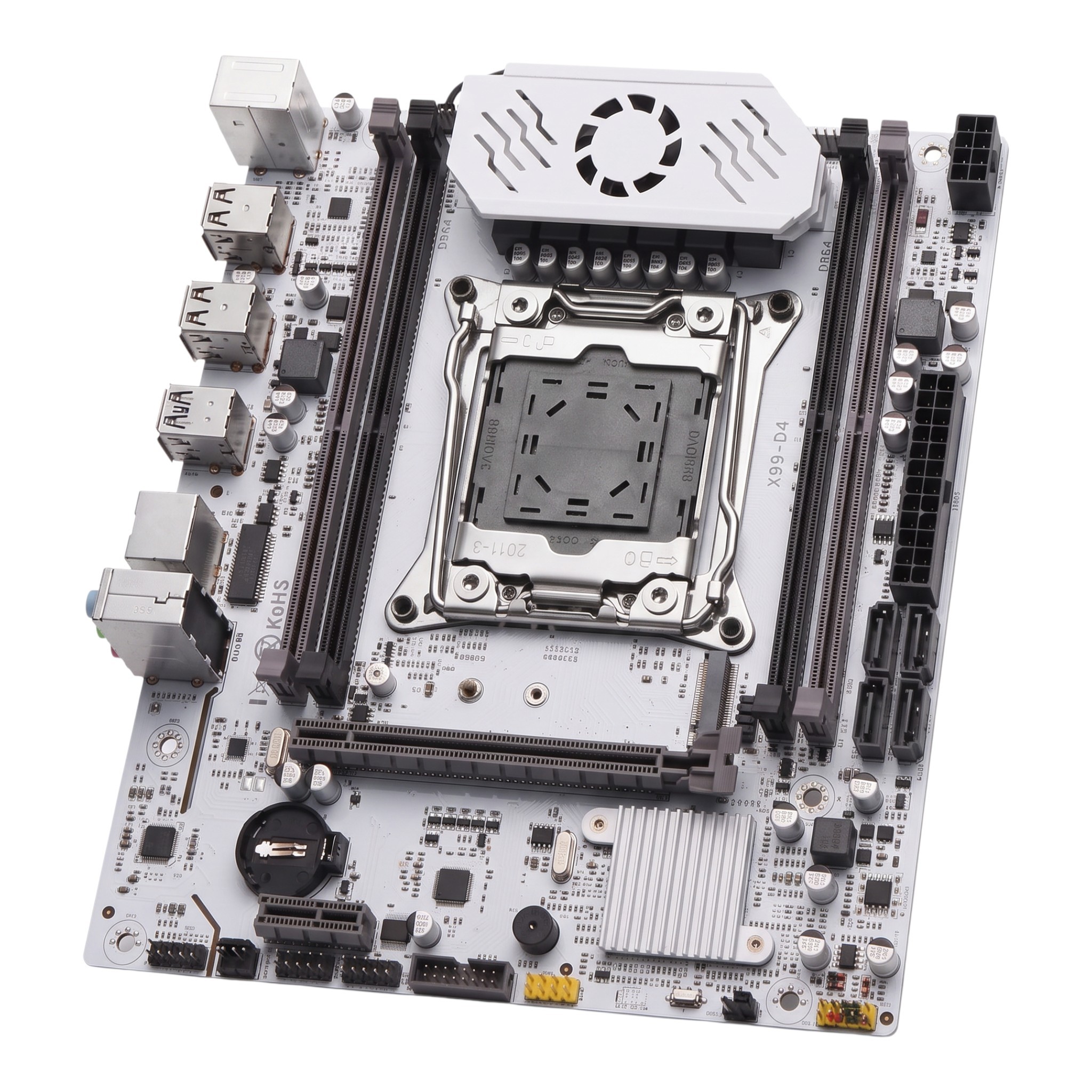

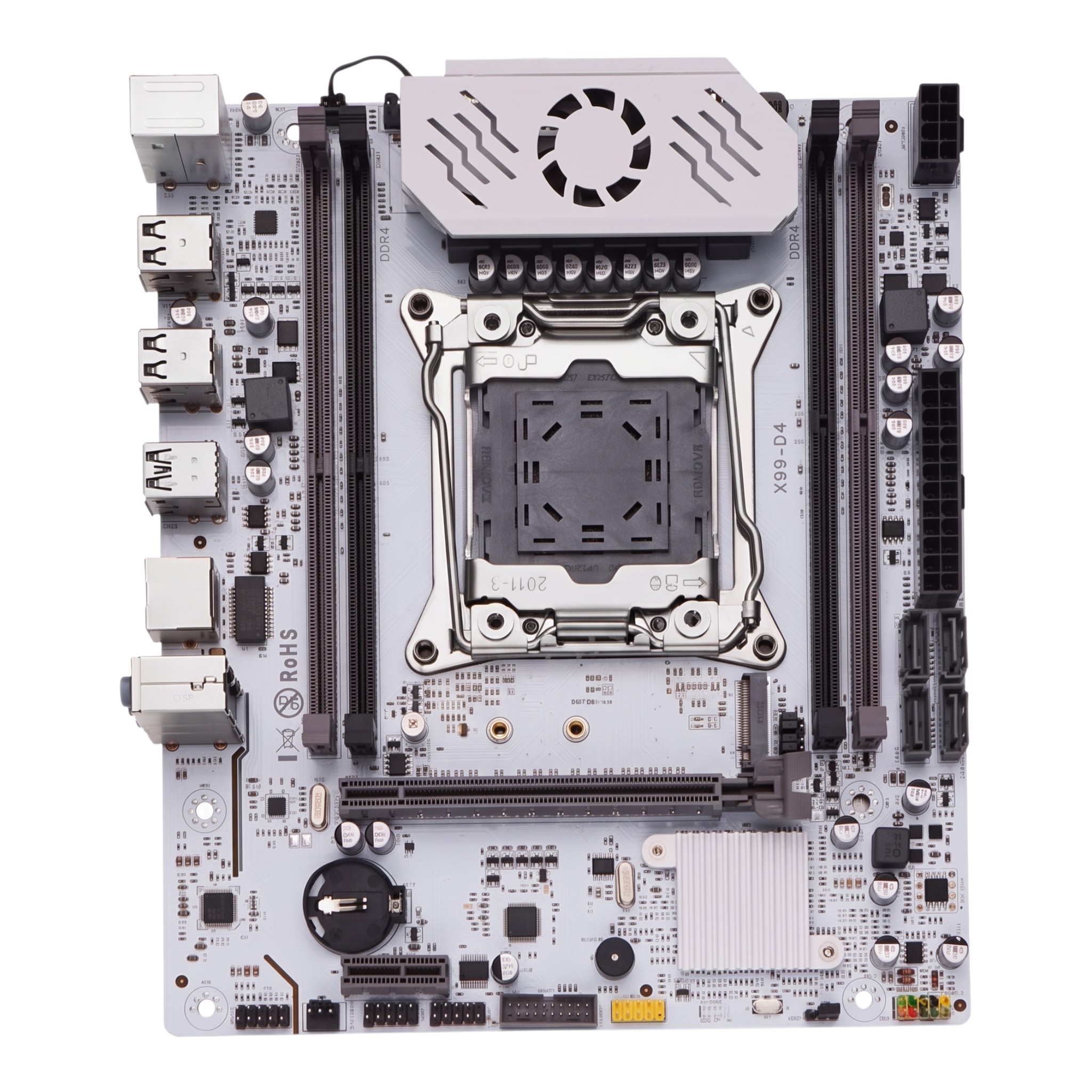

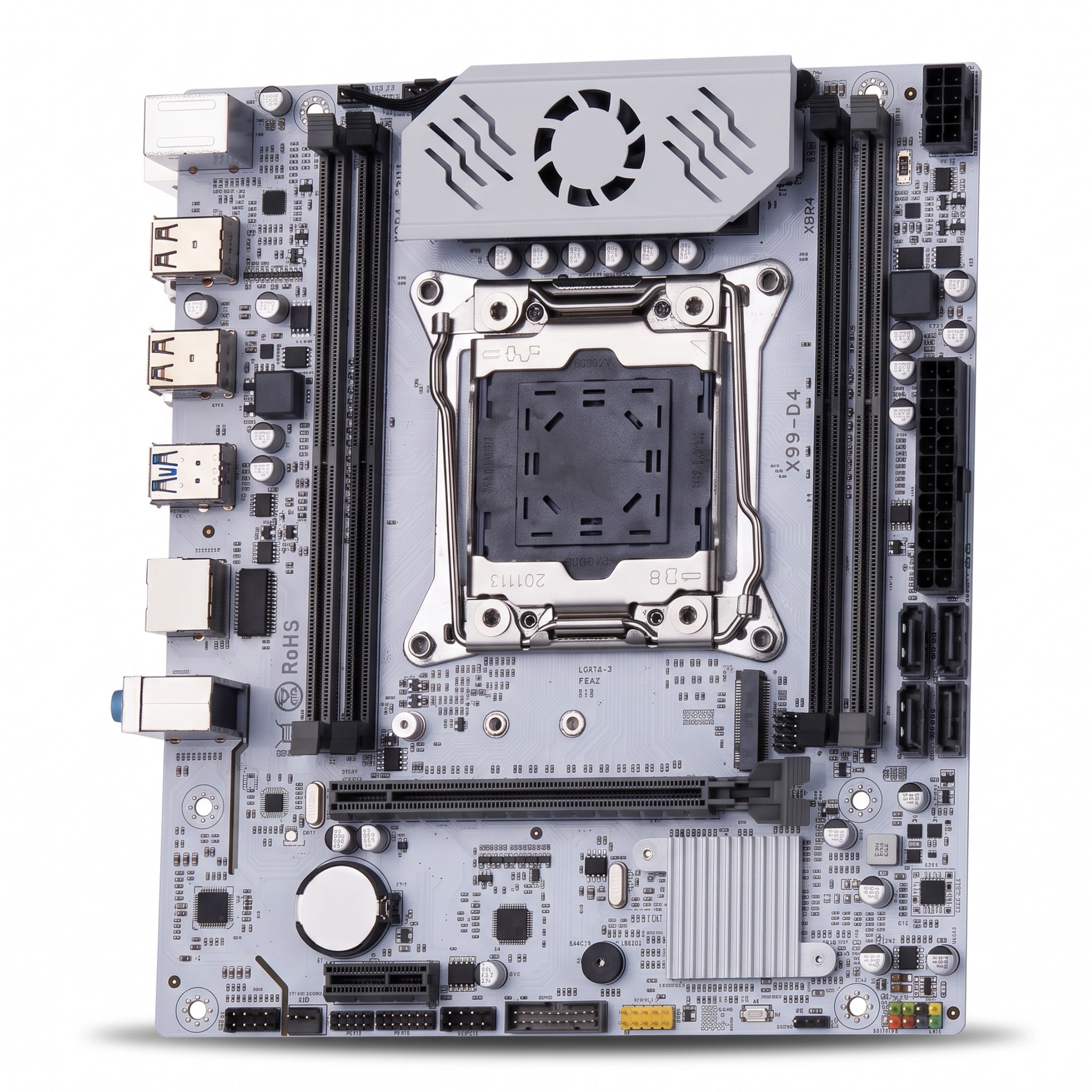

The motherboard with X99 (C612) chipset and LGA 2011-3 socket for Intel Xeon E5 processors is suitable for a powerful workstation, home server, or gaming setup with a large amount of RAM. In a micro ATX format measuring 215 x 190 mm, it offers four memory slots that can accommodate up to 128 GB of DDR4 memory. The board works with both standard desktop modules and server REG ECC memory. The system disk is inserted into the M.2 slot for NVMe and NGFF SSDs, while additional drives connect via four SATA 3.0 ports. The white design of the board is complemented by a power circuit cooler with a fan.

  • Memory – 4 DDR4 slots with a capacity of up to 128 GB; supports both desktop and server REG ECC memory, but both types cannot be combined in one setup. When installing one or two modules, the grey slots are filled first.
  • Storage – M.2 slot for NVMe and NGFF drives and 4 SATA 3.0 ports for SSDs and hard drives.
  • Expansion slots – PCIe 3.0 x16 for graphics card and PCIe 2.0 x1 for additional expansion card. The board does not have its own video output, so the image is provided by a dedicated graphics card.
  • Rear panel – 4x USB 2.0, 2x USB 3.0, PS/2 connectors for keyboard and mouse, gigabit network port, and three audio jack connectors.
  • Internal connectors – USB 3.0 connector and USB 2.0 connector for the front panel of the case, front audio connector, TPM 2.0 connector, and connector for case buttons and LEDs. The front USB connects to the yellow-marked connector.
  • Power and cooling – 24-pin ATX connector and 8-pin connector for CPU power, fully solid capacitors, and a power circuit cooler with a fan that dissipates heat during prolonged load.
  • Booting – the board will only boot with a CR2032 battery inserted in the holder on the board.

Package contents:

  • 1x motherboard
  • 1x cooler adapter
  • 1x SATA cable

The X99 platform with LGA 2011-3 socket represents a solution for setups that require a multi-core Xeon processor and a lot of RAM, for instance, for virtualisation, video editing, or running a server at home or in the office. With support for server REG ECC memory, it is possible to install the board with error-correcting memory. A fast NVMe drive in the M.2 slot reduces system boot time and application loading. The compact size of 215 x 190 mm allows installation in cases for micro ATX boards. The temperature of the power circuits is managed by a cooler with its own fan, which helps maintain stable operation even under continuous processor load.
