Middle Exhaust Connector for BMW F750GS and F850GS 2019–2020 Connecting Pipe 47 mm to 50 mm Length 370 mm With Bracket Silver Slip-on
You already have the maximum available quantity in your cart.

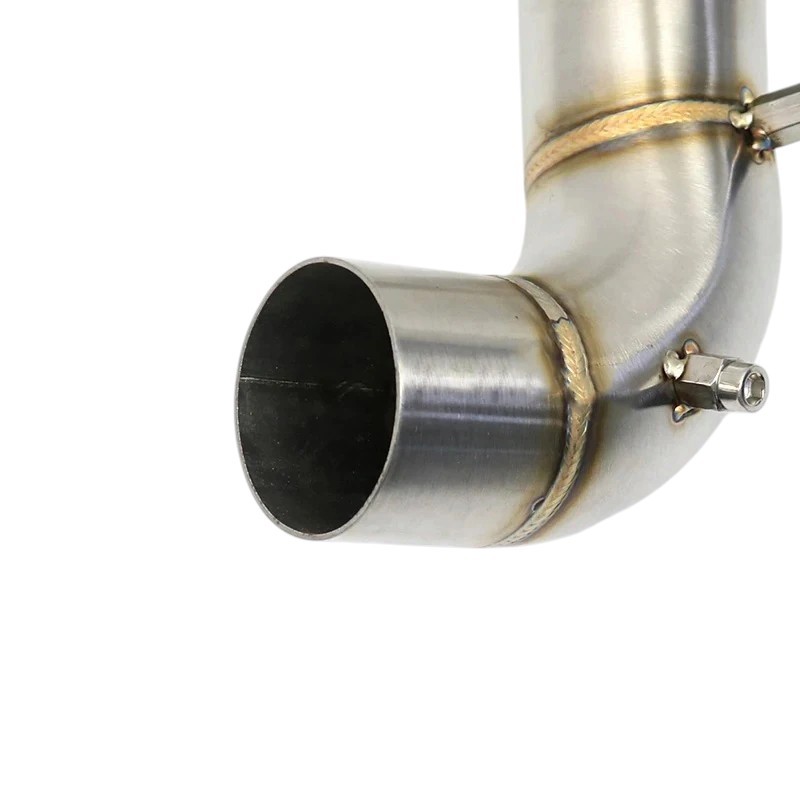

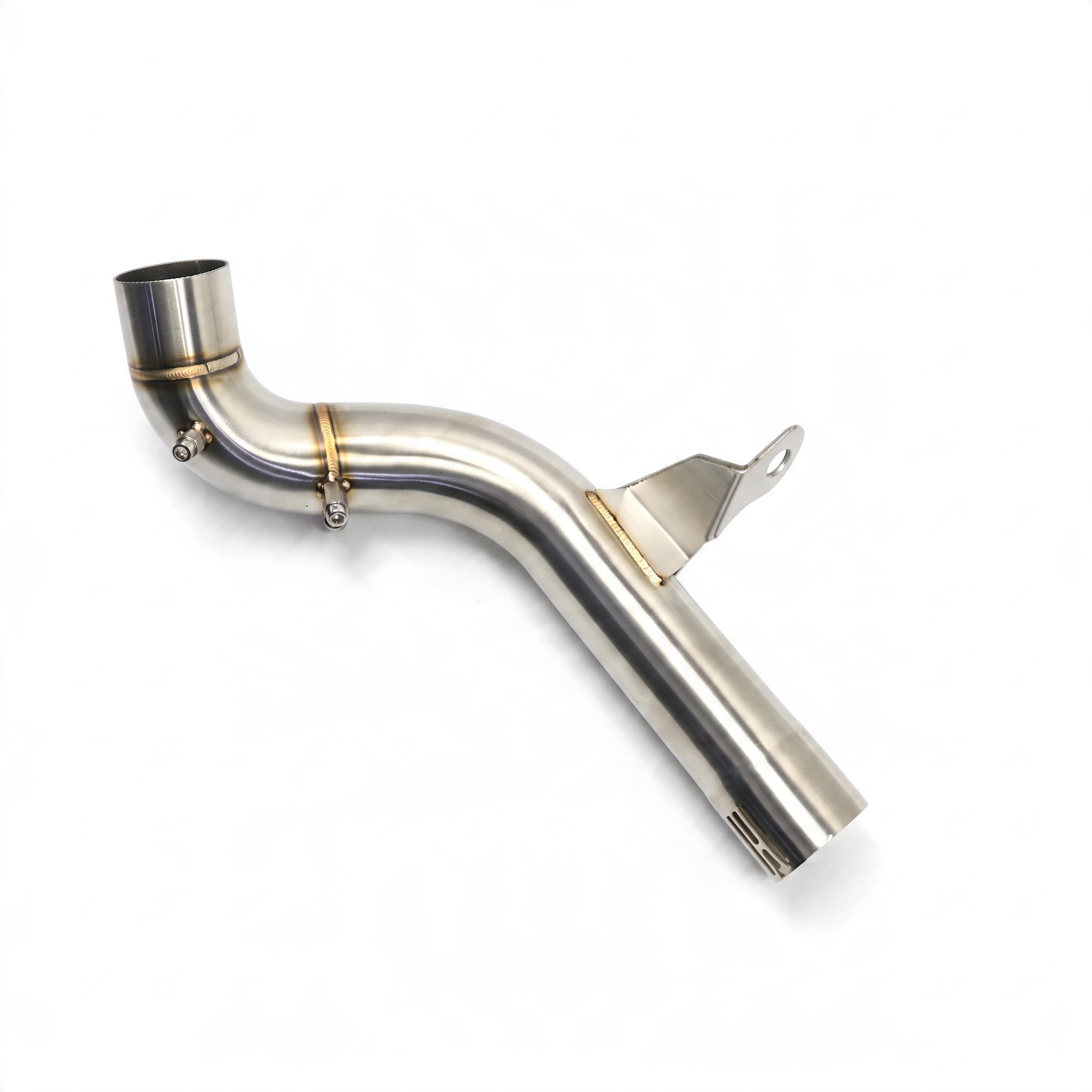

The middle exhaust connector is a connecting pipe that links the exhaust headers to the silencer. It is designed for BMW F750GS and F850GS motorcycles from the years 2019 and 2020 and is suitable for fitting a slip-on type silencer. The inlet end has a diameter of 47 mm, the outlet end for the silencer has a diameter of 50 mm, and the total length of the pipe is 370 mm. The pipe is shaped into a curve that follows the exhaust routing along the rear of the motorcycle. The silver finish with visible welds matches most silencers.
- Compatibility — The connector is intended for BMW F750GS, BMW F850GS, and BMW F850GS Adventure, models from 2019 and 2020. We recommend verifying the model and year of your motorcycle before ordering.
- Dimensions — The inlet diameter is 47 mm, the outlet diameter is 50 mm. The total length of the pipe is 370 mm, with a straight outlet section for the silencer measuring 130 mm.

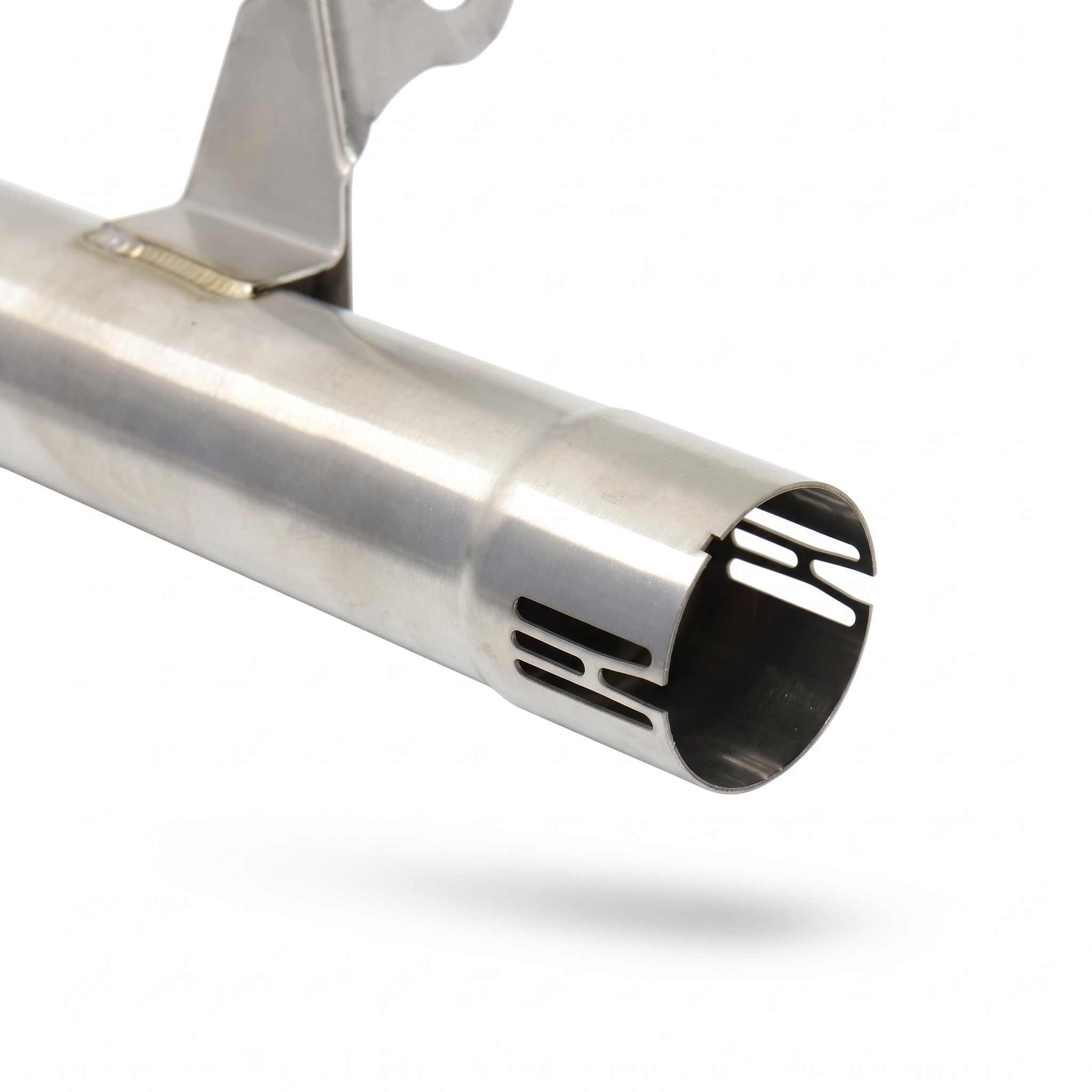

- Notched Outlet — The end for the silencer has longitudinal notches, which allow the pipe to be securely tightened after the silencer clamp is fastened, keeping the connection in place.

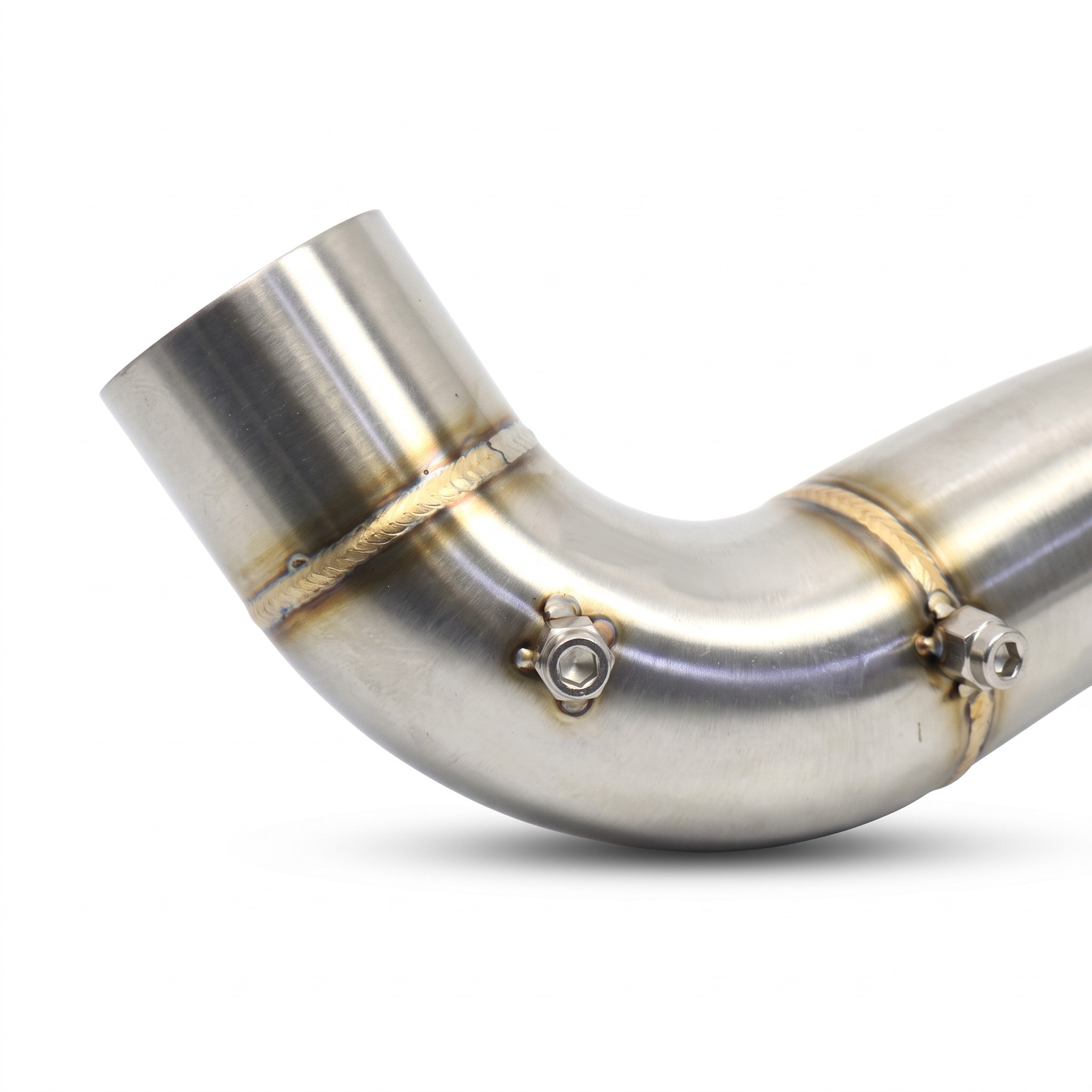

- Spring Hooks — Two hooks are welded onto the inlet section, into which springs are attached. These hold the connector in the exhaust header and prevent it from loosening.
- Silencer Bracket — The pipe has a welded bracket with a hole for a screw, which secures the connector and silencer to the motorcycle frame.
- Shaped Pipe — The pipe is composed of welded bends and a straight section. The shape follows the original headers and directs the silencer alongside the rear wheel.

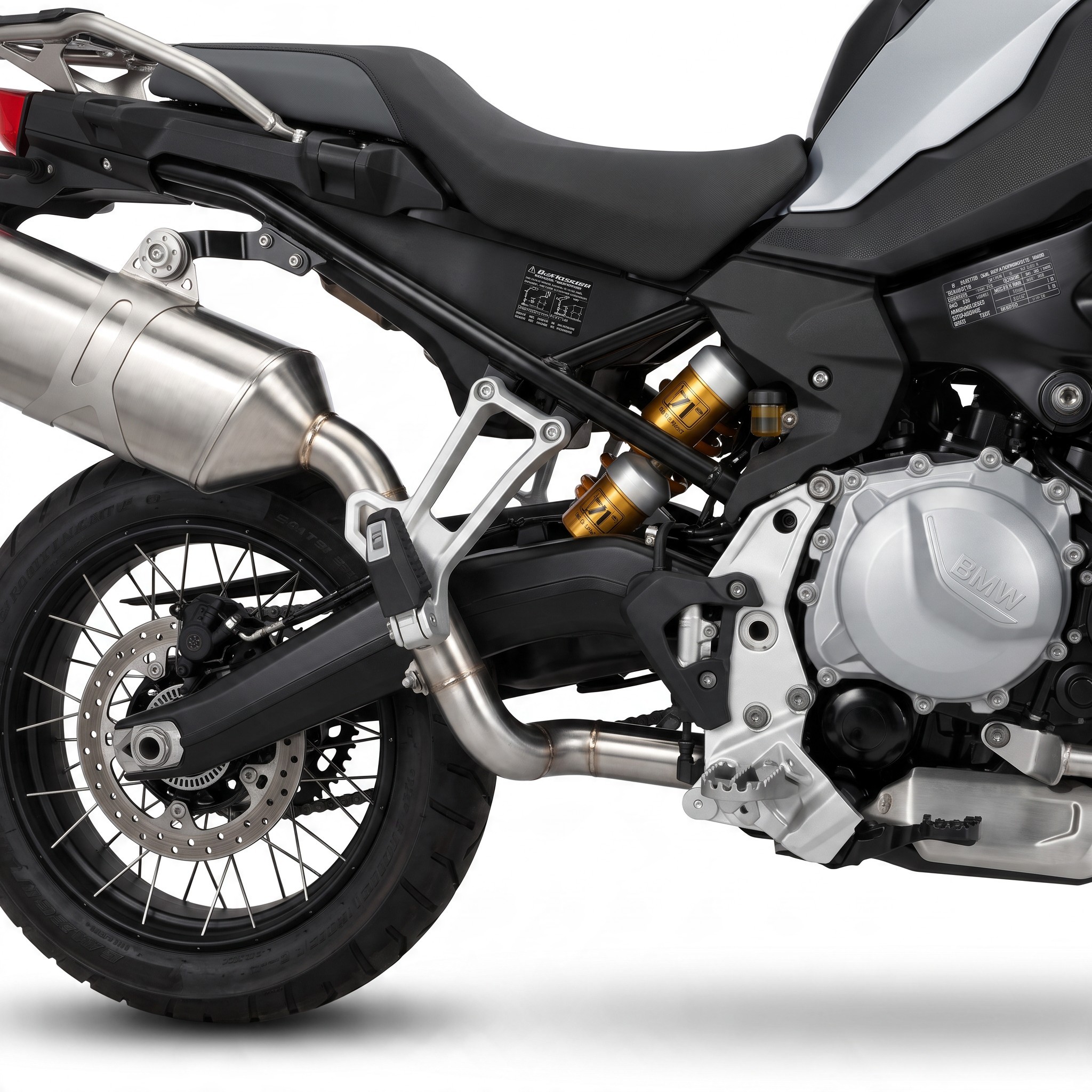

- Installation — The original silencer and connection are removed, the connector is slid into the header and secured with springs. Then the bracket is bolted to the frame, and the slip-on silencer is attached to the outlet end.
- For Slip-on Silencers — The connector is used to attach silencers that slide onto a pipe with a diameter of 50 mm. Please verify the diameter of your silencer's inlet before purchasing.
- Post-installation Check — After the first few kilometres, we recommend checking the attachment of the springs, tightening the bracket screw, and the silencer clamp. Tighten screws with the exhaust cooled down.
- Colour — The connector is silver with a brushed finish and golden traces from the welds, making it visually compatible with most silver and dark silencers.
- Package Contents — 1x middle exhaust connector with bracket
The middle exhaust connector is a practical part for owners of BMW F750GS and F850GS who wish to install a different silencer. The 370 mm long pipe connects the exhaust headers to a silencer with a 50 mm inlet diameter. The spring hooks and welded bracket secure the connector in the header and on the motorcycle frame. Please note that the silencer, springs, and clamp are not included in the package. Before purchasing, verify that your motorcycle corresponds to the years 2019 and 2020.
