Magene PES P515 ANT+ and Bluetooth Power Meter Set 17 cm Cranks 50-34T Chainrings 24 mm Steel Axle 7075 Aluminium Black Road Bike
You already have the maximum available quantity in your cart.
The Magene PES P515 power meter set is designed for cyclists who want to monitor their power output in watts while riding and training on a road bike. The complete set includes 17 cm cranks and 50-34T chainrings. This is a compact gearing system commonly used on road bikes. The measured data is transmitted wirelessly via ANT+ and Bluetooth, allowing it to be displayed on a compatible cycle computer, sports watch, or mobile app. The power meter is made from 7075 aerospace aluminium. The cranks feature a triple hollow construction which contributes to low weight and high stiffness. The set is complemented by a steel axle and a black finish that suits most modern road bikes.

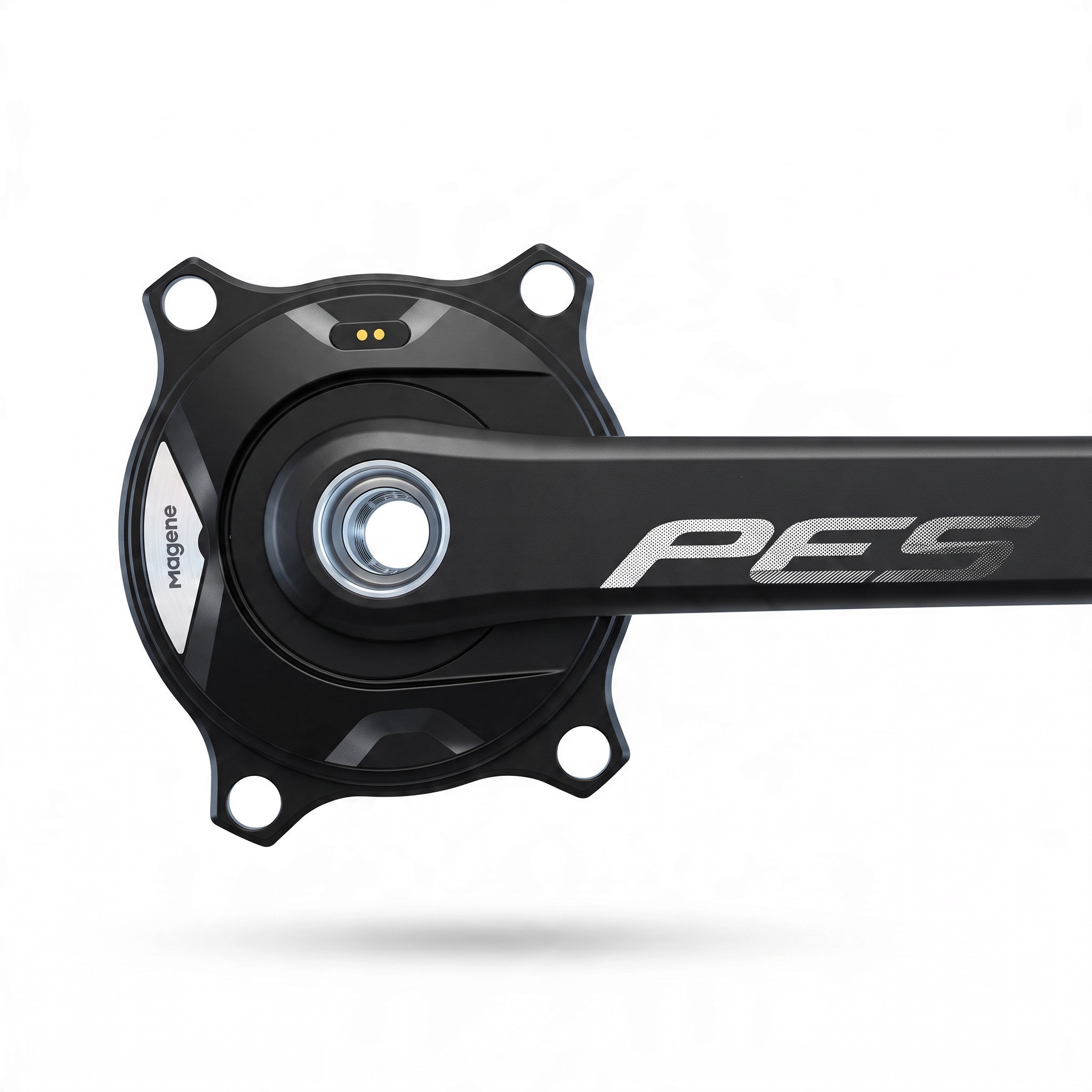

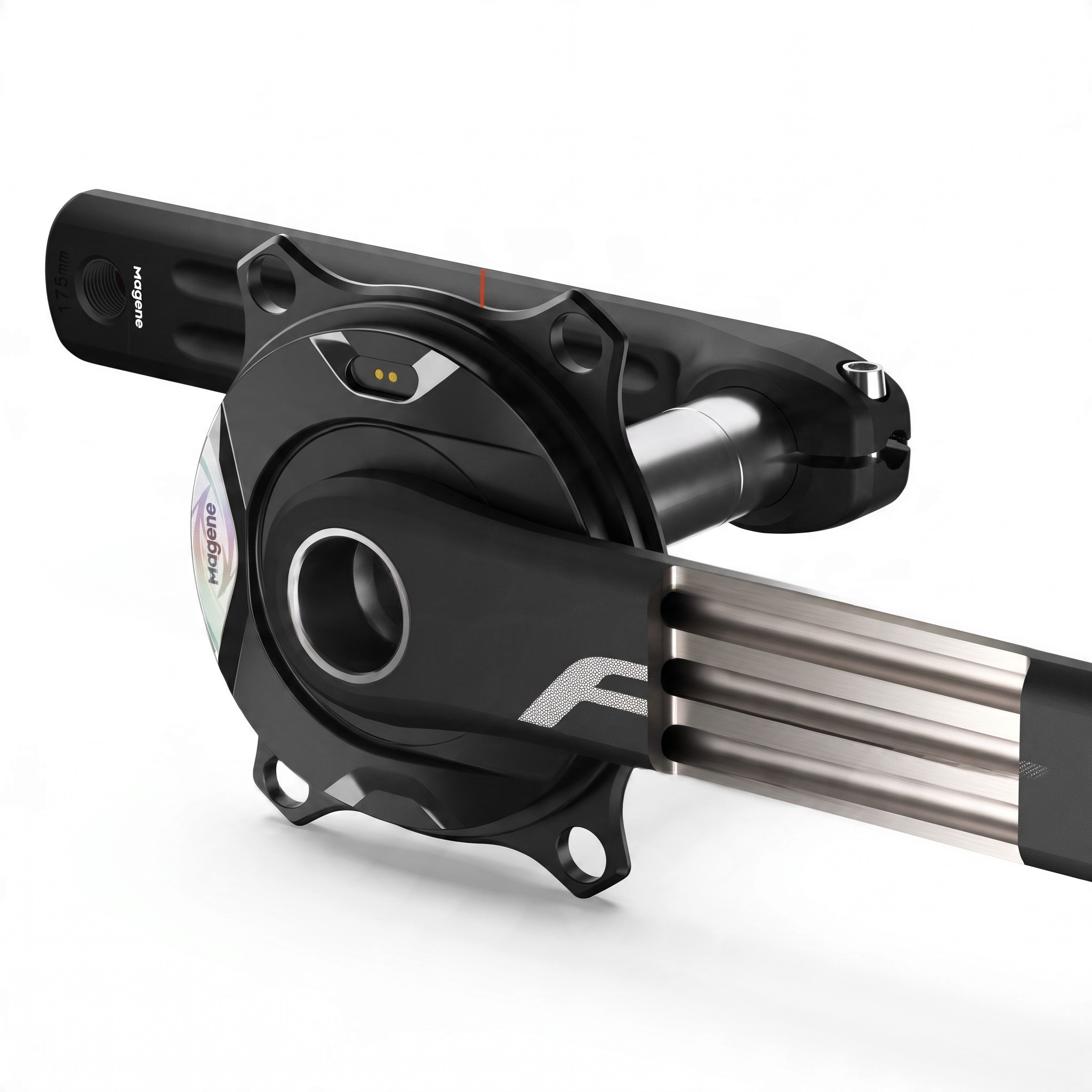

- Power Measurement – the power meter is located in the spider of the right crank, onto which the chainrings are mounted. You can monitor power during interval training, races, and regular rides. The measured data can then be evaluated in training applications.
- Wireless Connection – data is transmitted via ANT+ and Bluetooth. This allows the meter to connect with cycle computers, sports watches, and mobile devices that support these protocols. Thanks to both standards, it can be connected to most current cycle computers and training apps for use on a turbo trainer.

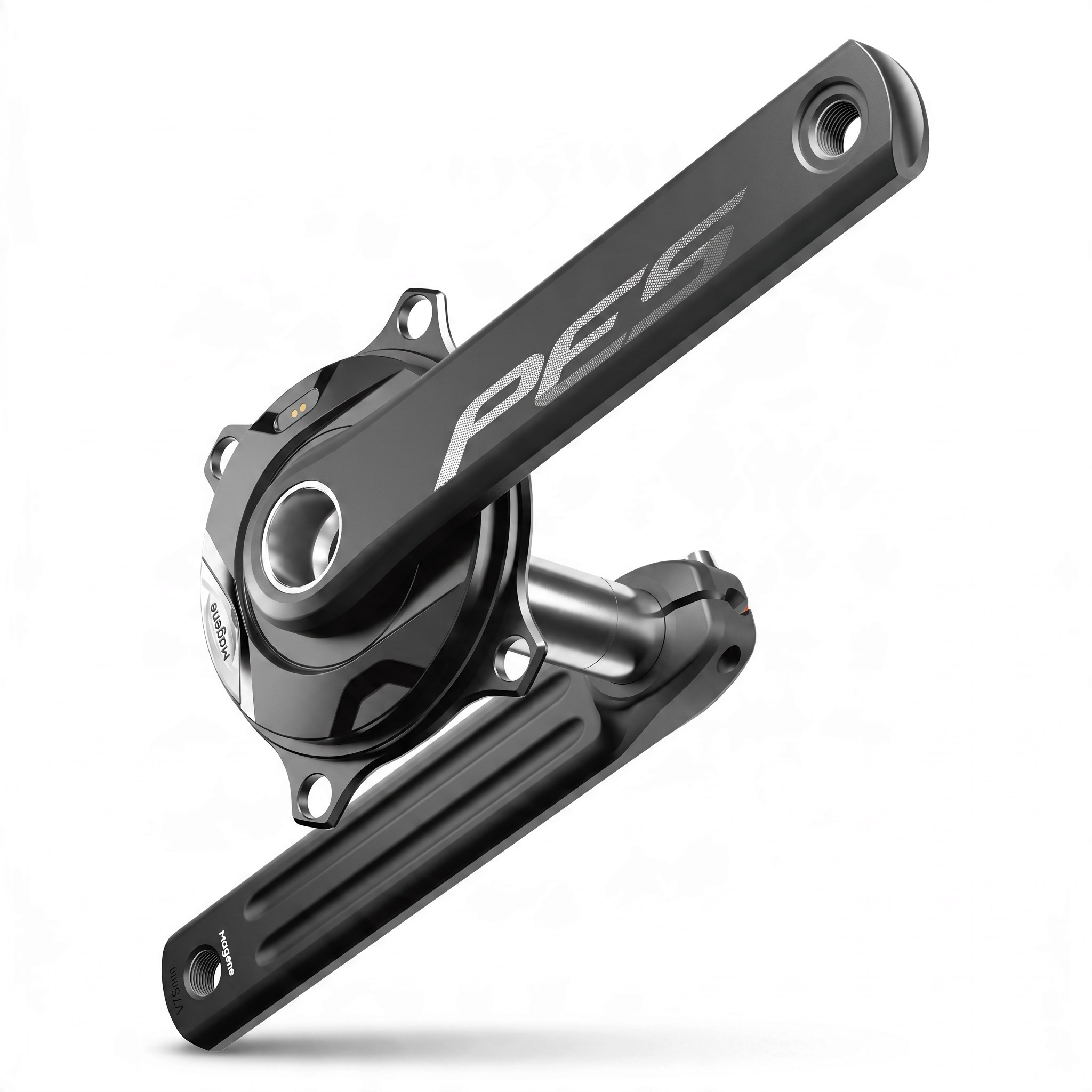

- 17 cm Cranks – the cranks have a triple hollow construction designed for low weight and high stiffness during pedalling.
- 50-34T Chainrings – the compact combination of 50 and 34 teeth offers a wide range of gears for flat riding and climbing. The smaller chainring makes it easier to tackle longer and steeper hills. It is a popular choice for competitive road riding and longer rides with elevation gain.

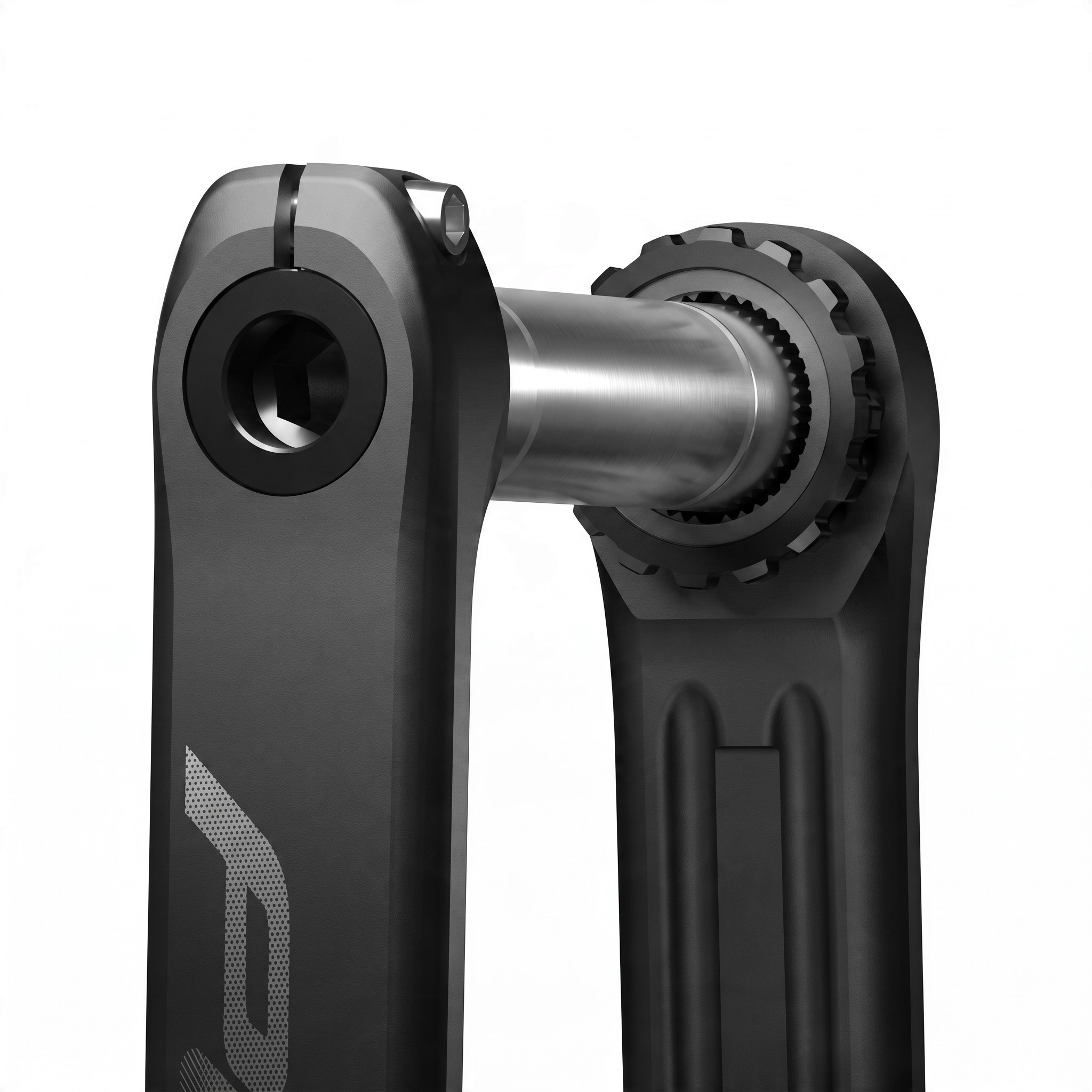

- Axle and Compatibility – the 24 mm steel axle fits standard bottom brackets for road bikes with a width of 68–86.5 mm and is compatible with Shimano bottom brackets. Therefore, the set can be installed on a wide range of road frames.
- Material – the power meter is made from 7075 aerospace aluminium, and the axle is steel. The aluminium cranks with the steel axle ensure durability with regular use.
- Weight – the manufacturer states a weight of 625 g.
- Colour – black, with the Magene logo and PES graphics on the crank.
- Package Contents – Magene PES P515 power meter set with 17 cm cranks, 24 mm steel axle, and 50-34T chainrings.
The Magene PES P515 is an excellent choice for road cyclists who want to add power measurement to their bike while also replacing their cranks. The set combines 17 cm cranks and 50-34T chainrings with a 24 mm steel axle for standard road bottom brackets with a width of 68–86.5 mm. With wireless connectivity via ANT+ and Bluetooth, it can be paired with common cycle computers and training applications. The 7075 aluminium and triple hollow cranks contribute to the low weight of the entire set. Before installation, please check the width of your frame's bottom bracket and compatibility with existing bike components.
