Magene PES P515 ANT+ and Bluetooth Power Meter Set 17.5 cm Cranks 52-36T Steel Axle 24 mm Aluminium 7075 Black Road Bike
You already have the maximum available quantity in your cart.

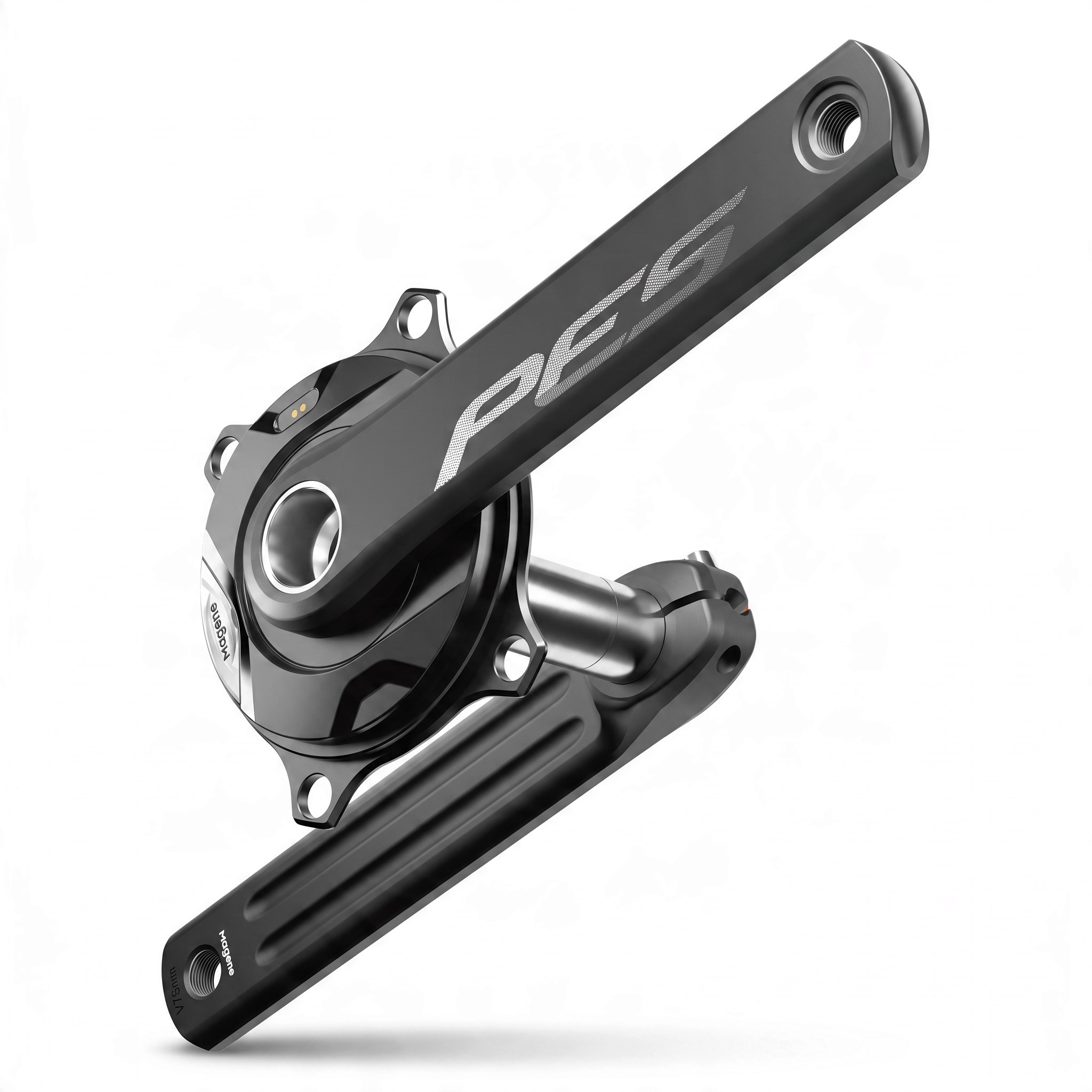

The Magene PES P515 power meter set is designed for cyclists who wish to monitor their performance in watts while riding and training on a road bike. The complete set includes 17.5 cm cranks and 52-36T chainrings, providing semi-compact gearing popular among road cyclists. The measured data is transmitted wirelessly via ANT+ and Bluetooth, allowing you to display it on a compatible cycle computer, sports watch, or mobile application. The power meter is made from aircraft-grade aluminium 7075 and features a triple hollow construction in the cranks, contributing to low weight and high stiffness. The set is complemented by a steel axle and a black finish that matches most modern road bikes.

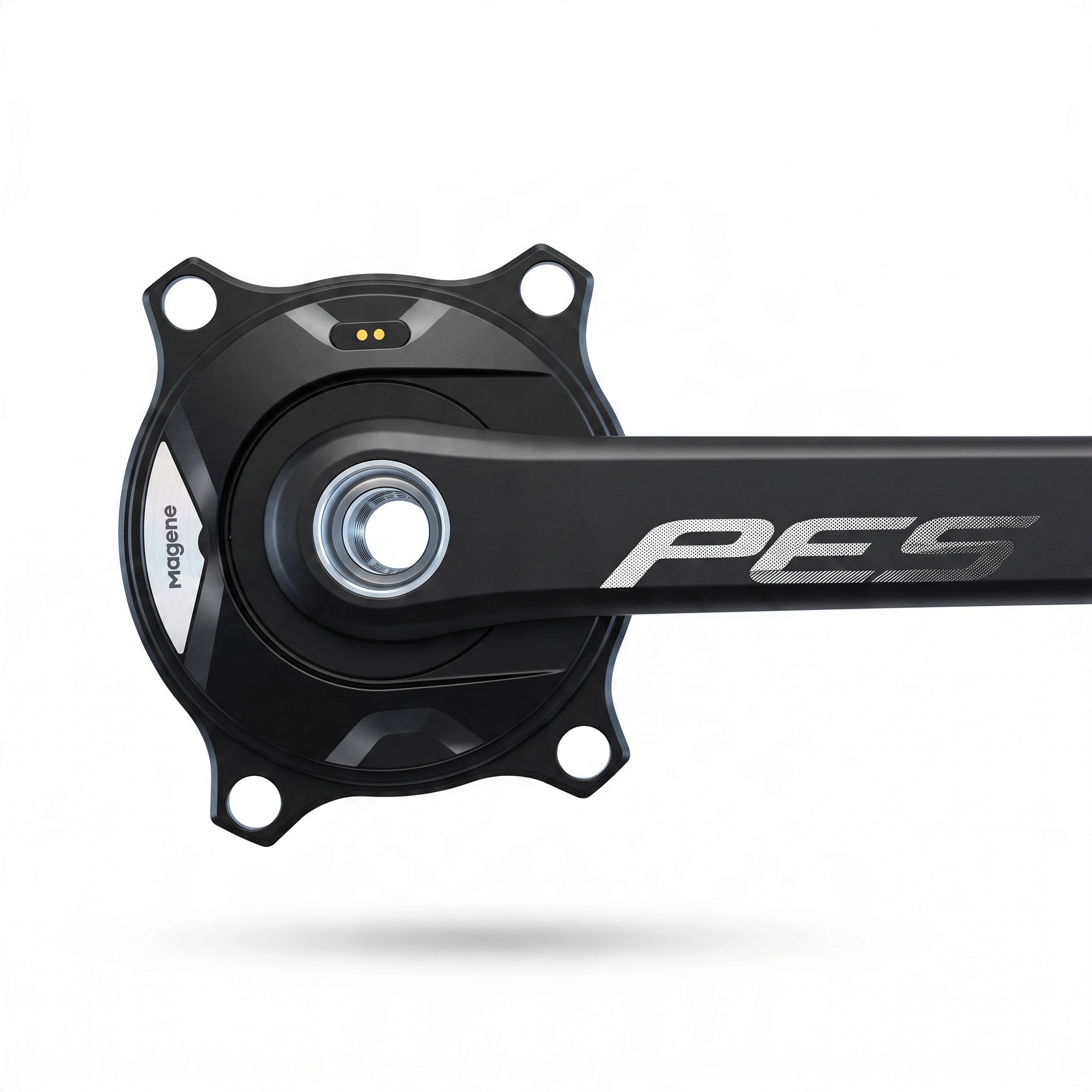

- Power Measurement – the power meter is located in the spider of the right crank, to which the chainrings are mounted. You can monitor power during interval training, races, and regular rides, and further analyse the data in training applications.

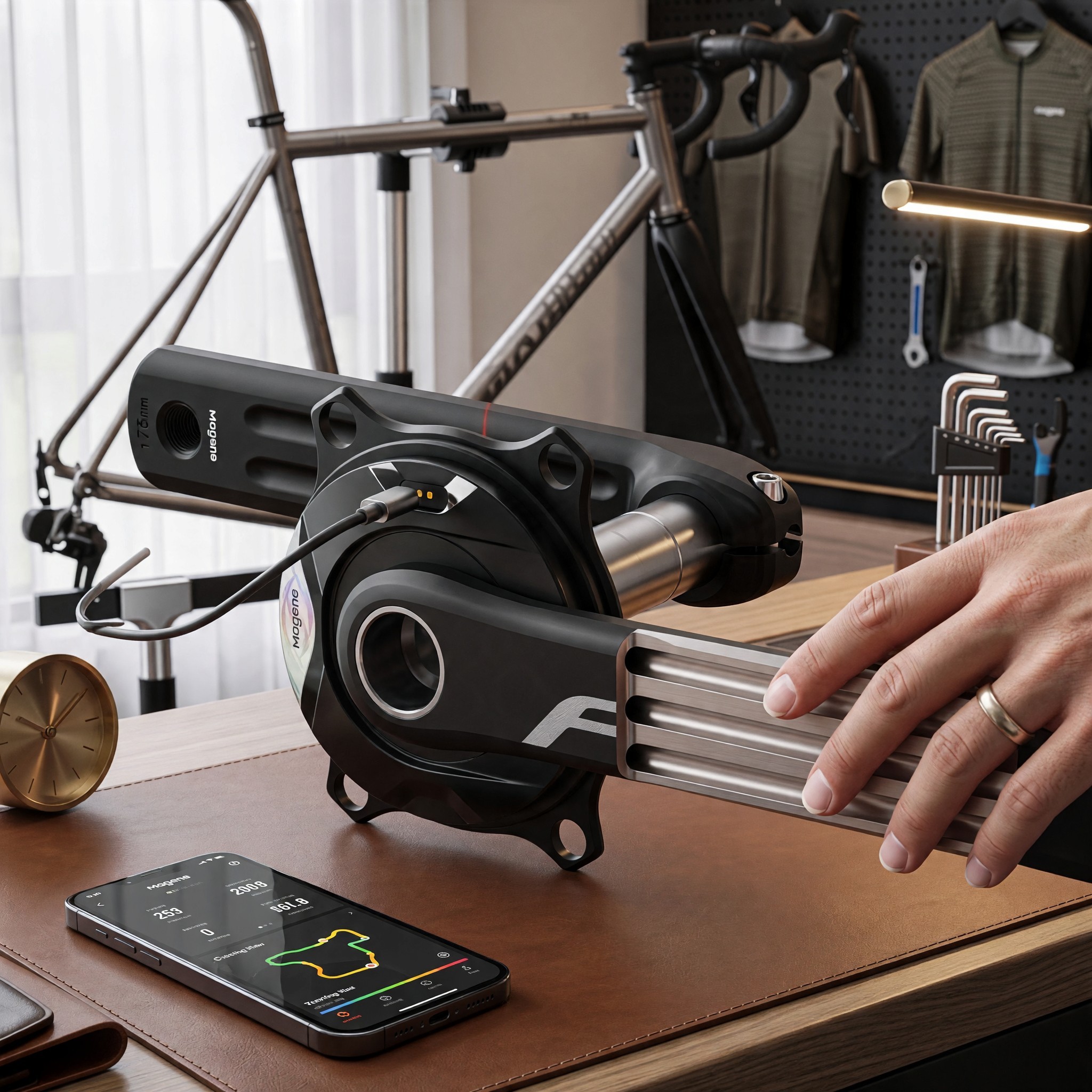

- Wireless Connection – data transmission occurs via ANT+ and Bluetooth, enabling connection to cycle computers, sports watches, and mobile devices that support these protocols. With support for both standards, the meter can connect to most current cycle computers and training applications for turbo trainers.

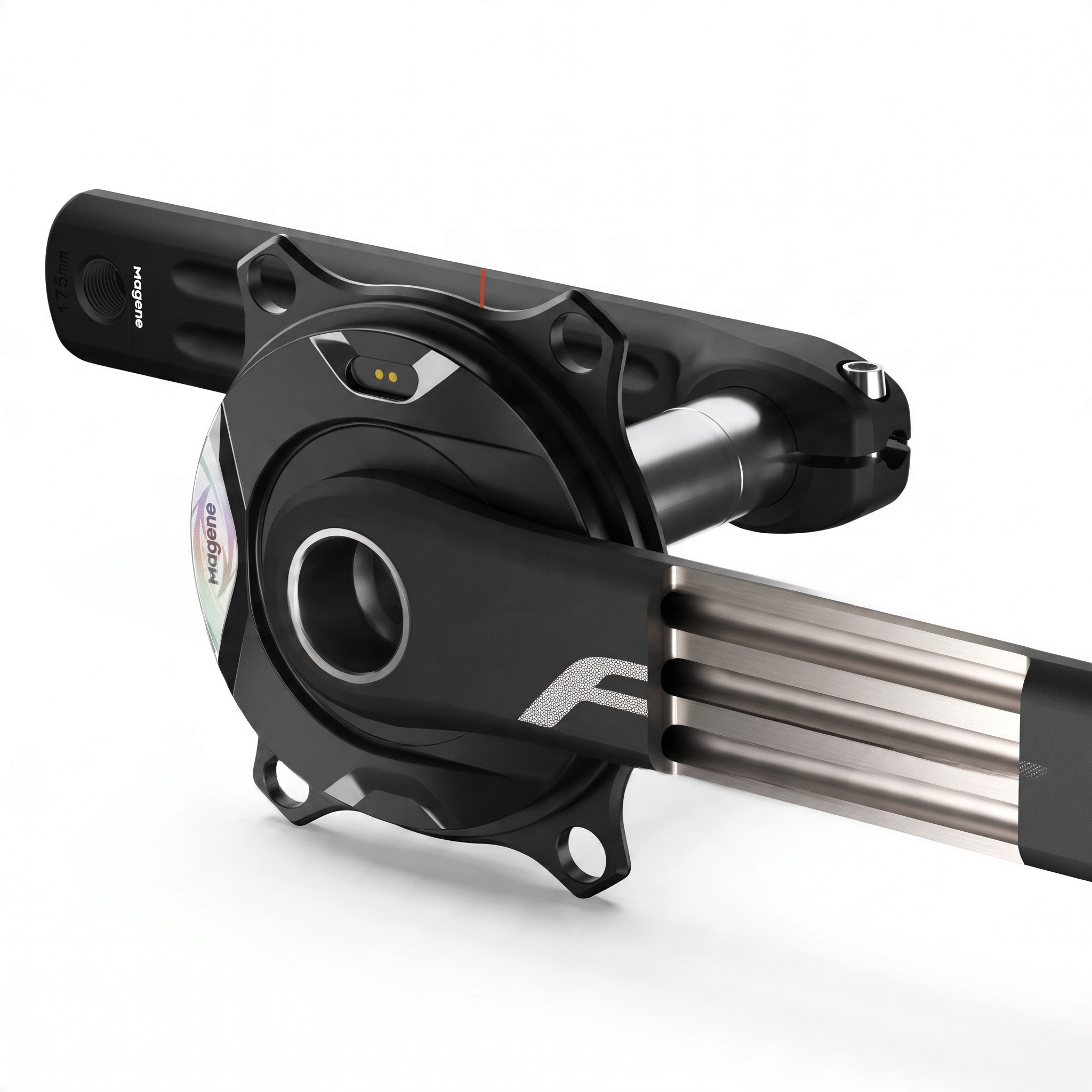

- 17.5 cm Cranks – the cranks feature a triple hollow design aimed at low weight and high stiffness during pedalling.
- 52-36T Chainrings – the semi-compact combination of 52 and 36 teeth offers higher gears for faster riding on flat terrain while also providing a sufficiently low gear for climbing. This is a popular choice for competitive road riding and higher-tempo training.

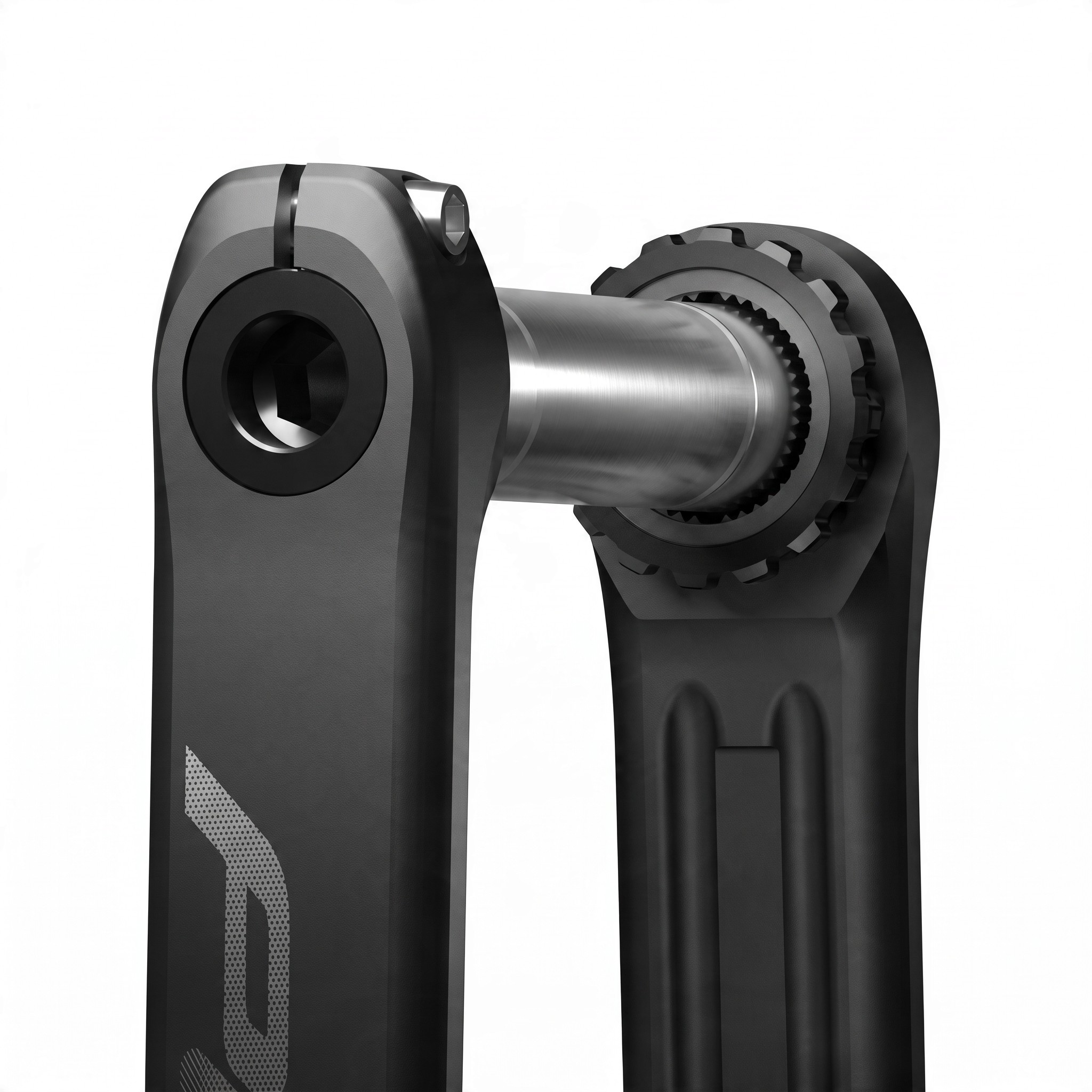

- Axle and Compatibility – the steel axle with a diameter of 24 mm is compatible with standard bottom brackets for road bikes with a width of 68–86.5 mm and is suitable for Shimano bottom brackets. Thus, the set can be installed in a wide range of road frames.
- Material – the power meter is made from aircraft-grade aluminium 7075, and the axle is made of steel. The combination of aluminium cranks and a steel axle ensures durability with regular use.
- Weight – the manufacturer's stated weight is 625 g.
- Colour – black with the Magene logo and PES graphics on the crank.
- Package Contents – Magene PES P515 power meter set with 17.5 cm cranks, 24 mm steel axle, and 52-36T chainrings.

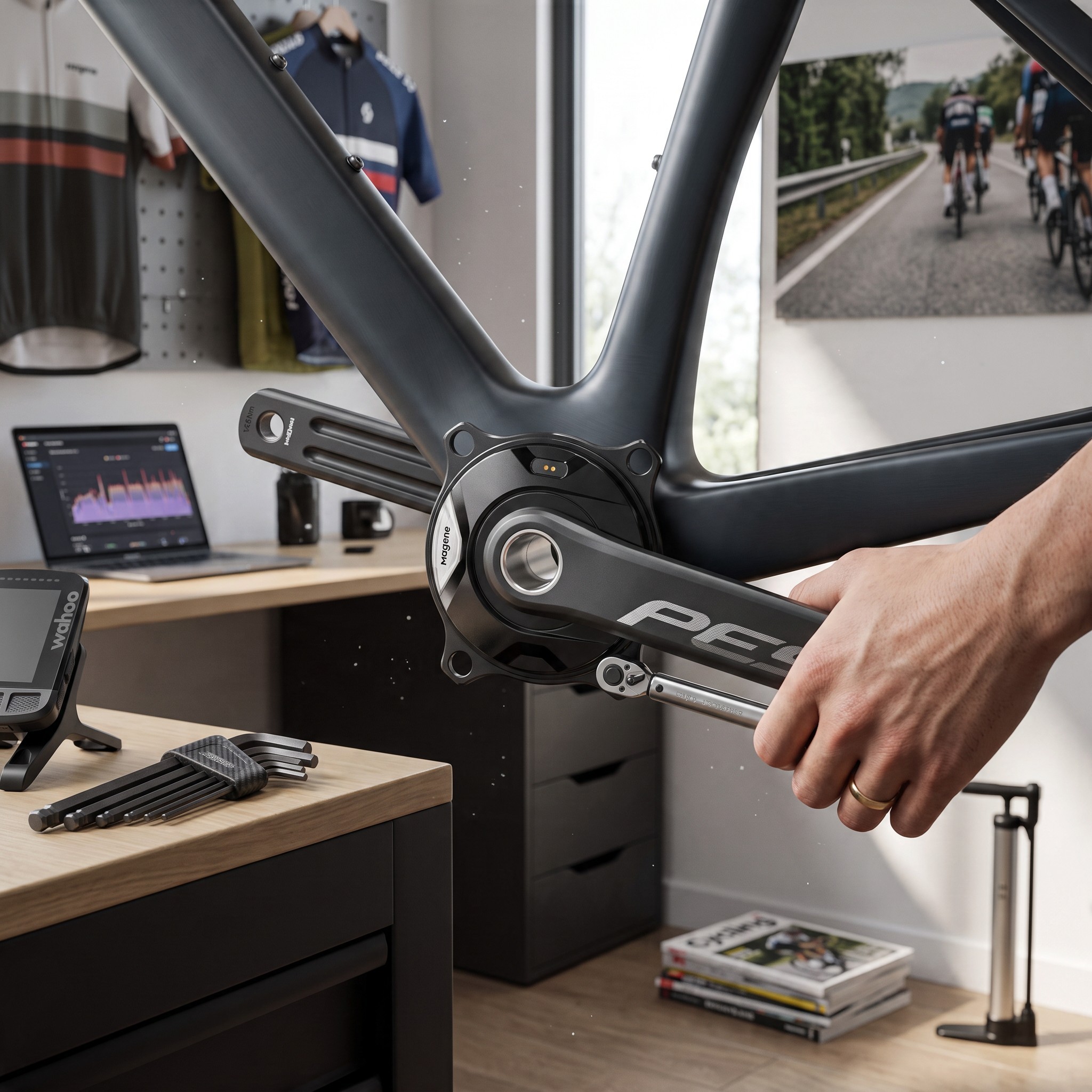

The Magene PES P515 is a practical choice for road cyclists who want to add power measurement to their bike while also upgrading their cranks. The set combines 17.5 cm cranks and 52-36T chainrings with a 24 mm steel axle for standard road bottom brackets with a width of 68–86.5 mm. The wireless connection via ANT+ and Bluetooth ensures compatibility with commonly used cycle computers and training applications. The construction from aluminium 7075 and the triple hollow cranks contribute to the low weight of the entire set. Before installation, we recommend checking the width of your frame's bottom bracket and compatibility with existing bike components.
