Magene PES P515 ANT+ and Bluetooth Power Meter Set 17.2 cm Cranks 52-36T Chainrings Steel Axle 24 mm Aluminium 7075 Black Road Bike
You already have the maximum available quantity in your cart.
The Magene PES P515 power meter set is designed for cyclists who want to monitor their power output in watts while riding and training on a road bike. The complete set includes 17.2 cm cranks and 52-36T chainrings, providing a semi-compact gearing option popular among road cyclists. The measured data is wirelessly transmitted via ANT+ and Bluetooth, allowing you to display it on a compatible cycle computer, sports watch, or mobile app. The power meter is made from 7075 aerospace aluminium and the cranks feature a triple hollow construction, contributing to low weight and high stiffness. The set is complemented by a steel axle and a black finish that matches most modern road bikes.

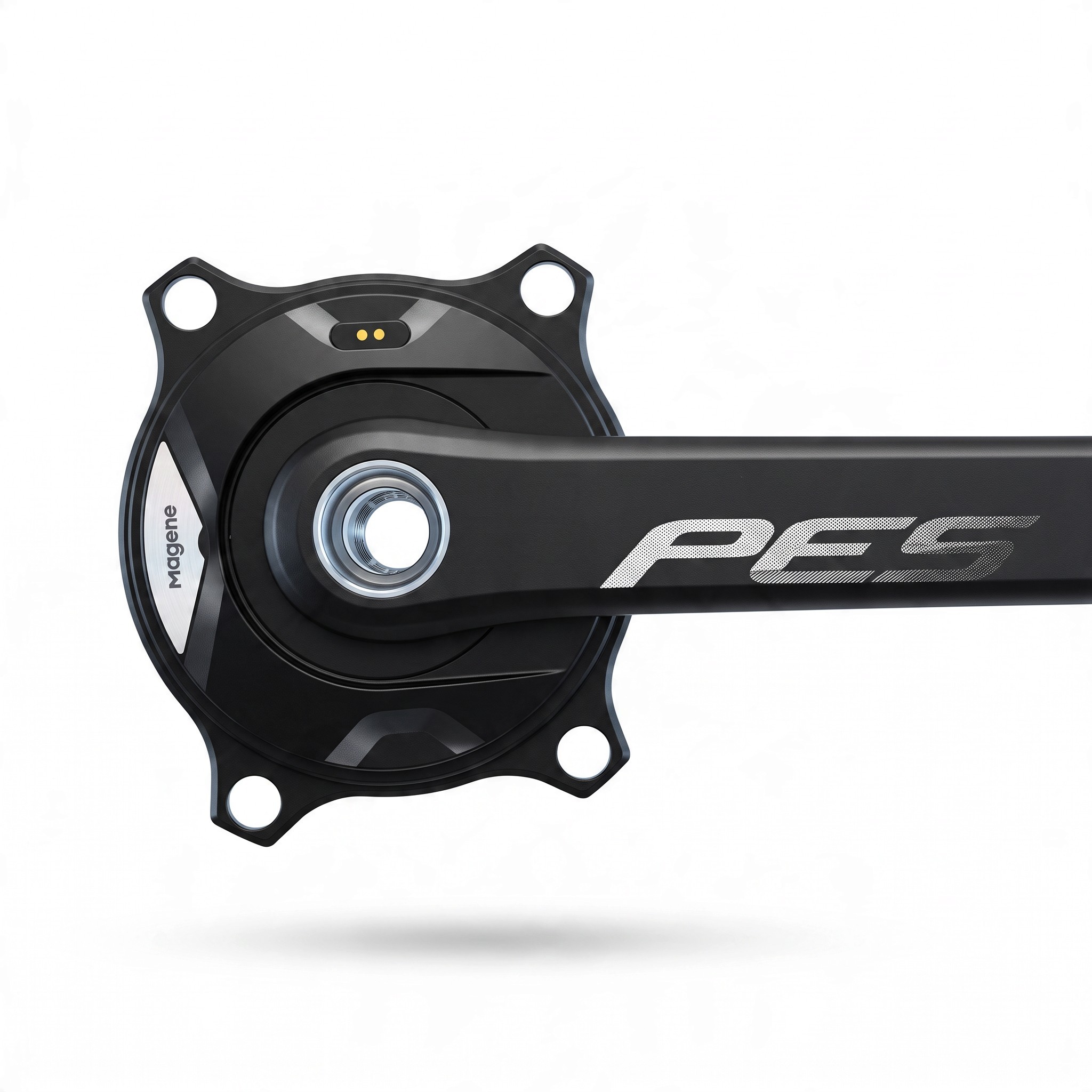

- Power Measurement – the power meter is located in the spider of the right crank, to which the chainrings are mounted. You can monitor your power during interval training, racing, and regular rides, and further analyse the recorded data in training applications.
- Wireless Connectivity – data transmission occurs via ANT+ and Bluetooth, enabling connection with cycle computers, sports watches, and mobile devices that support these protocols. Thanks to support for both standards, the meter can be connected to most current cycle computers and training apps for use on a turbo trainer.

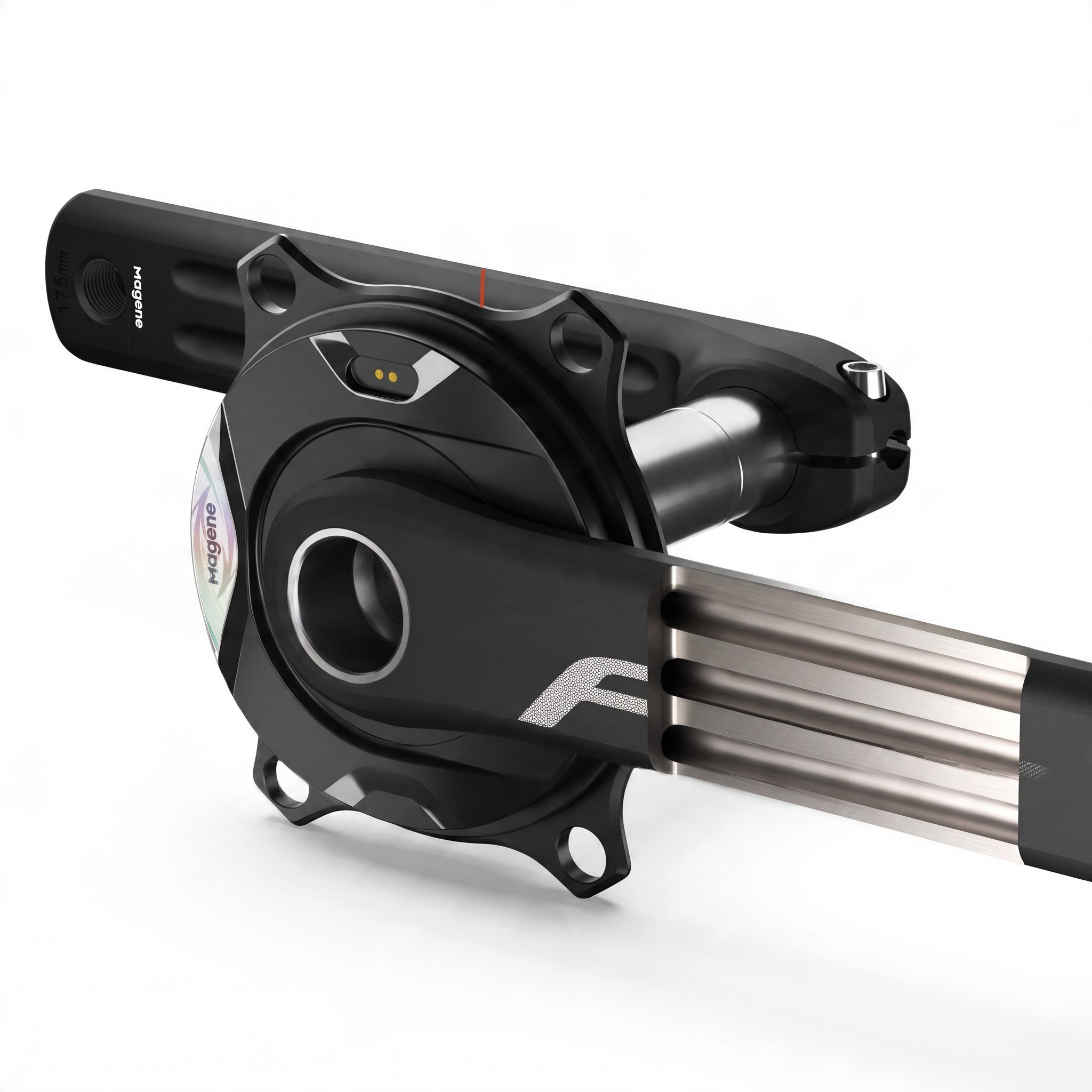

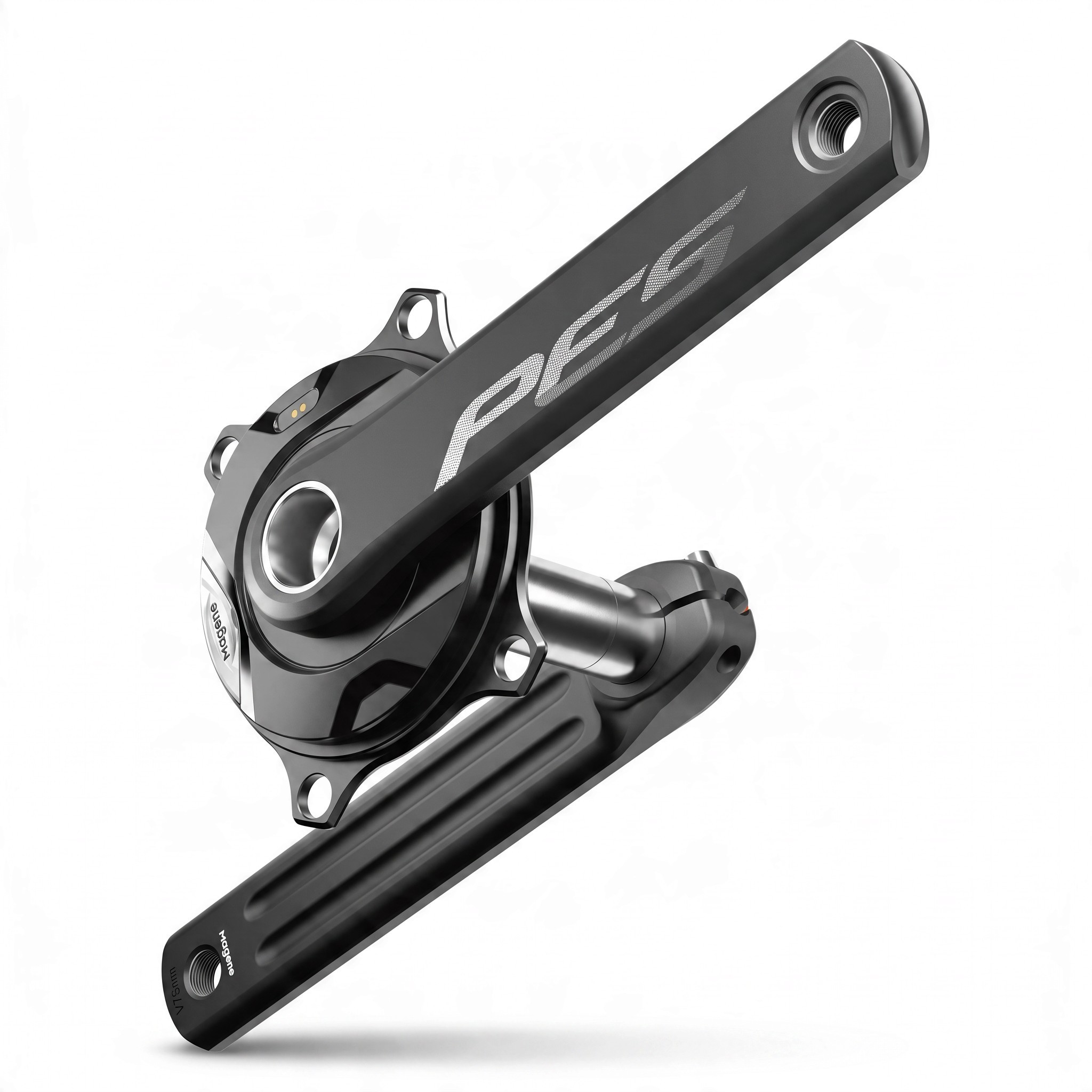

- 17.2 cm Cranks – the cranks feature a triple hollow construction designed with low weight and high stiffness in mind during pedalling.
- 52-36T Chainrings – the semi-compact combination of 52 and 36 teeth offers higher gears for faster riding on flat terrain while still providing a sufficiently low gear for climbing. This is a popular choice for competitive road riding and higher tempo training.

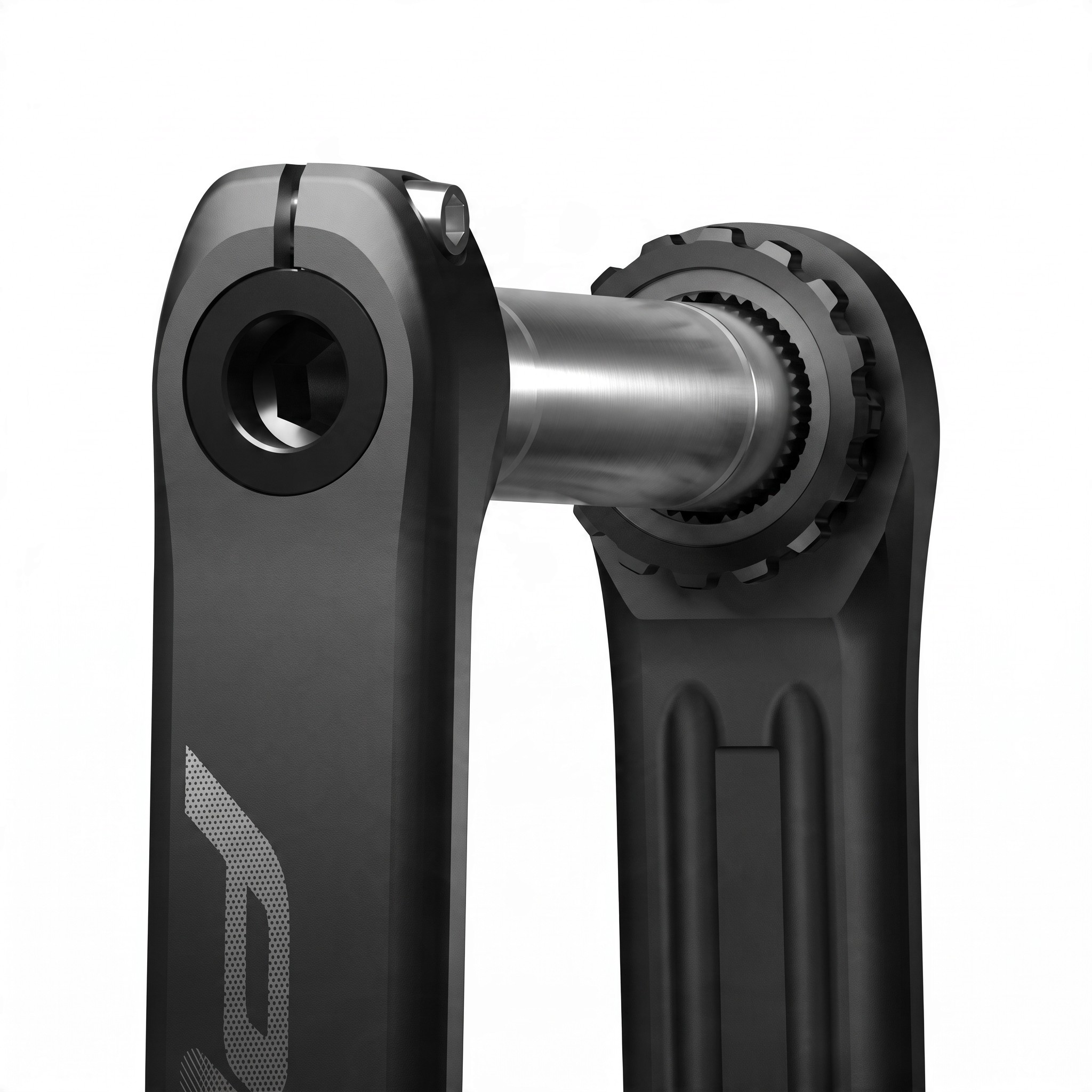

- Axle and Compatibility – the 24 mm steel axle is compatible with standard bottom brackets for road bikes with a width of 68–86.5 mm and is suitable for Shimano bottom brackets. Thus, the set can be installed in a wide range of road frames.
- Material – the power meter is made from 7075 aerospace aluminium, and the axle is made of steel. The combination of aluminium cranks and a steel axle ensures durability with regular use.
- Weight – the manufacturer's stated weight is 625 g.
- Colour – black with the Magene logo and PES graphics on the crank.
- Package Contents – Magene PES P515 power meter set with 17.2 cm cranks, 24 mm steel axle, and 52-36T chainrings.
The Magene PES P515 is a practical choice for road cyclists who want to add power measurement to their bike while also upgrading their cranks. The set combines 17.2 cm cranks and 52-36T chainrings with a 24 mm steel axle for standard road bottom brackets with a width of 68–86.5 mm. Wireless connectivity via ANT+ and Bluetooth ensures compatibility with commonly used cycle computers and training applications. The construction from 7075 aluminium and triple hollow cranks contributes to the low weight of the entire set. Before installation, we recommend checking the width of your frame's bottom bracket and compatibility with existing bike components.
