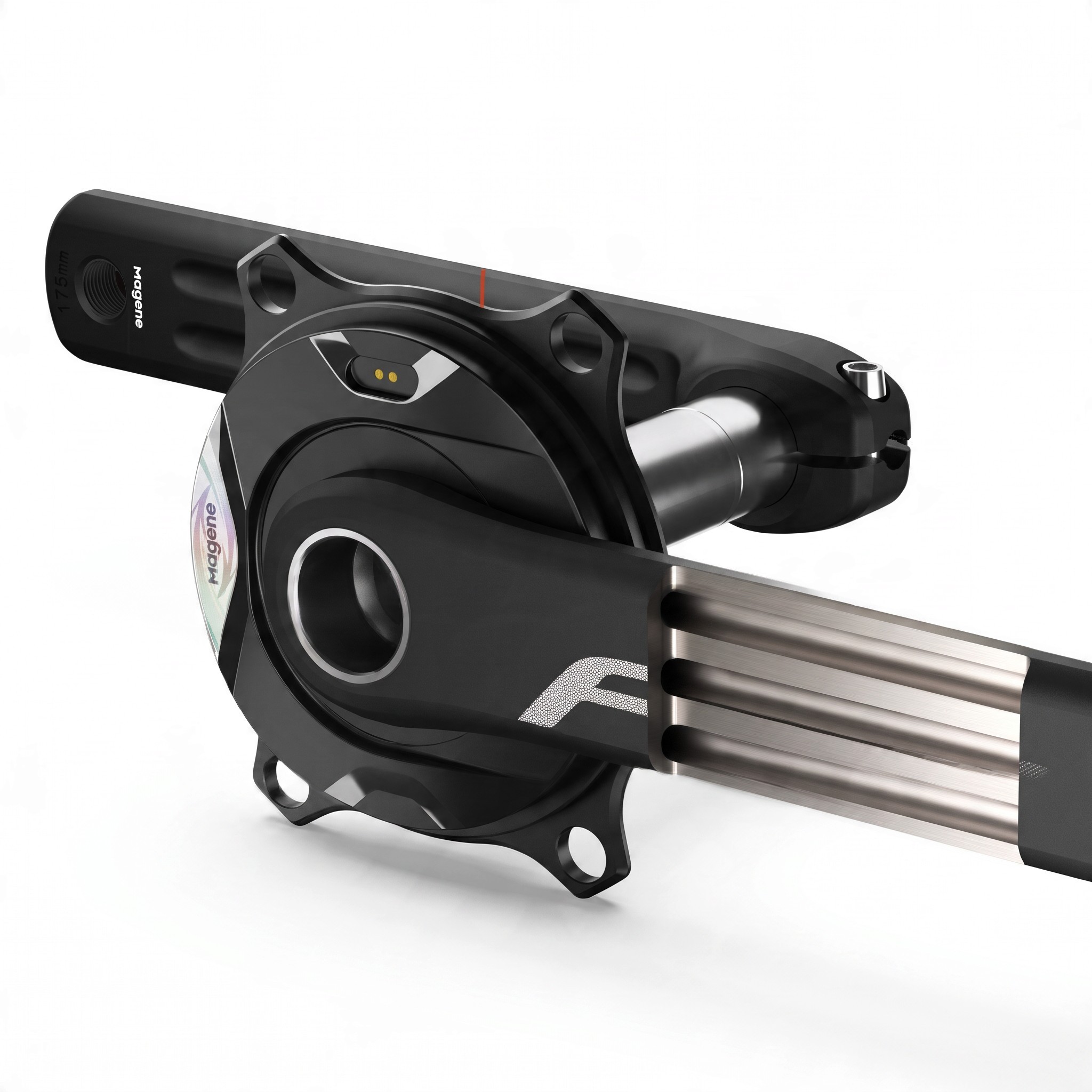

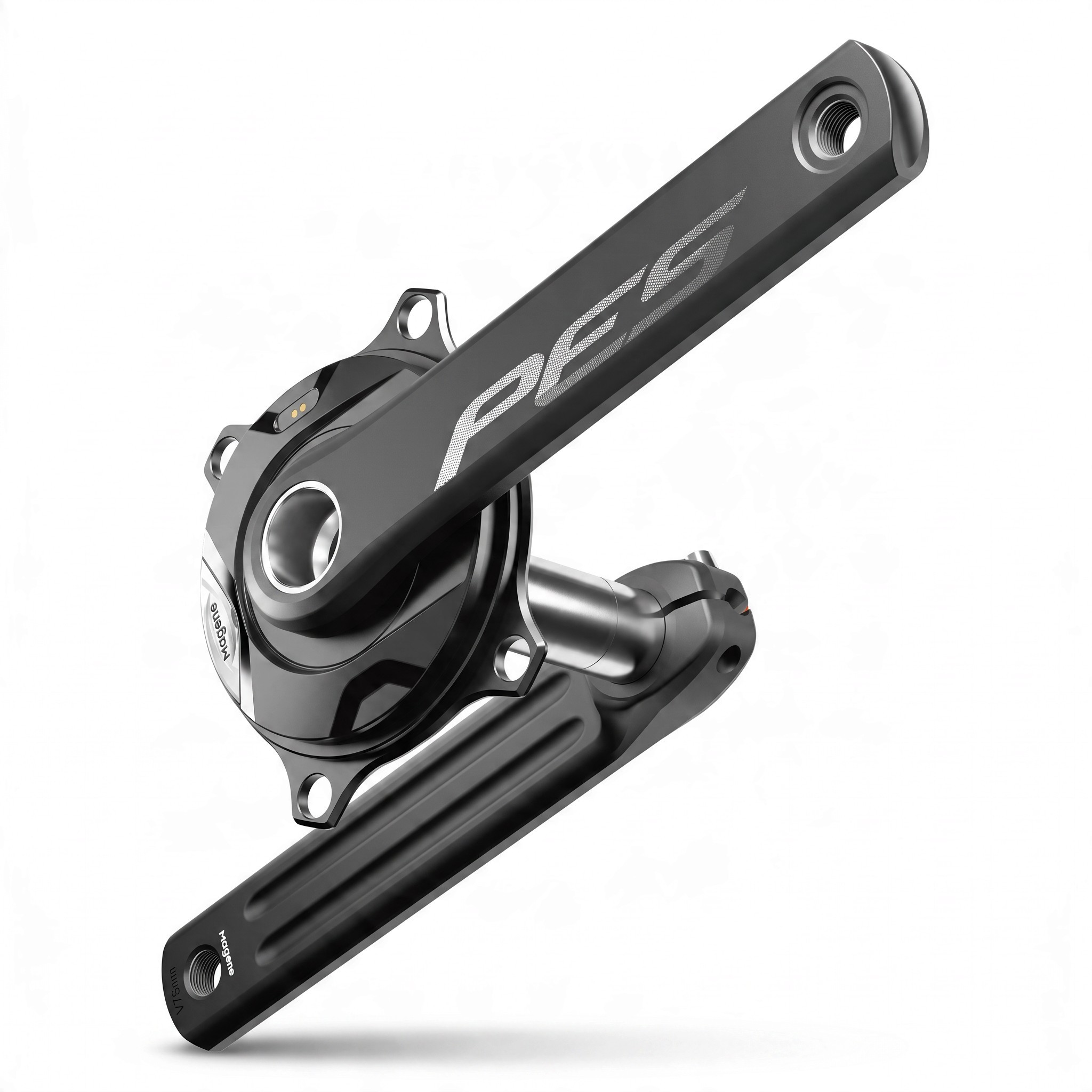

Magene PES P515 ANT+ and Bluetooth Power Meter Set 17.2 cm Cranks 50-34T Steel Axle 24 mm Aluminium 7075 Black Road Bike
You already have the maximum available quantity in your cart.
The Magene PES P515 power meter set is designed for cyclists who want to monitor their performance in watts while riding and training on a road bike. The complete set includes 17.2 cm cranks and 50-34T chainrings, which provide compact gearing commonly used on road bikes. The measured data is transmitted wirelessly via ANT+ and Bluetooth, allowing it to be displayed on a compatible cycle computer, sports watch, or mobile app. The power meter is made from aircraft-grade aluminium 7075 and the cranks feature a triple hollow construction that contributes to low weight and high stiffness. The set is complemented by a steel axle and a black finish that suits most modern road bikes.

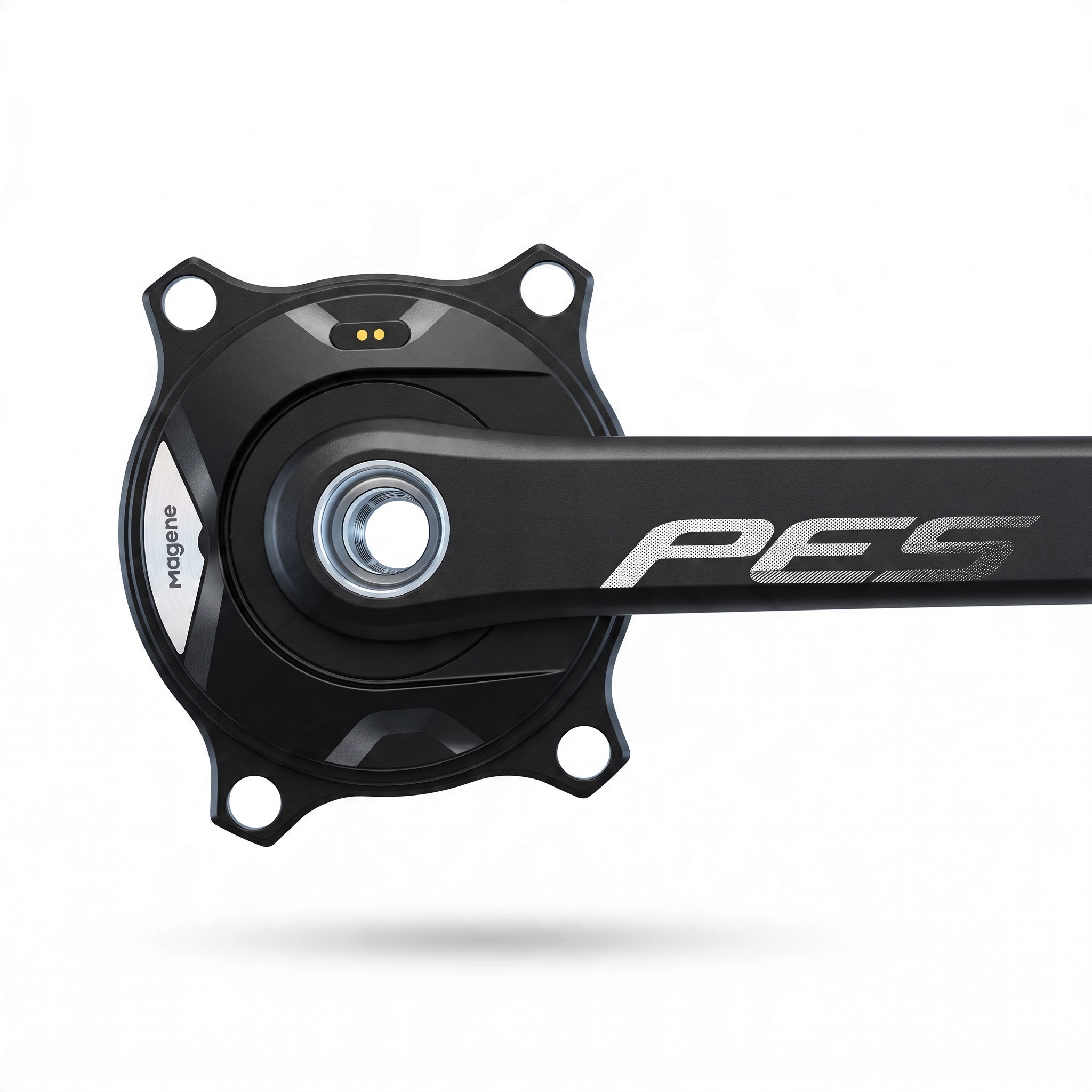

- Power Measurement – the power meter is located in the spider of the right crank, to which the chainrings are mounted. You can monitor your power during interval training, racing, or regular rides. The measured data can then be evaluated in training applications.
- Wireless Connection – data is transmitted via ANT+ and Bluetooth. This allows the meter to connect with cycle computers, sports watches, and mobile devices that support these protocols. Thanks to both standards, it can be connected to most current cycle computers and training apps for use on a turbo trainer.
- 17.2 cm Cranks – the cranks have a triple hollow construction designed for low weight and high stiffness during pedalling.
- 50-34T Chainrings – the compact combination of 50 and 34 teeth offers a wide range of gears for flat riding and climbing. The small chainring makes it easier to tackle longer and steeper hills. It is a popular choice for competitive road cycling and longer rides with elevation gain.

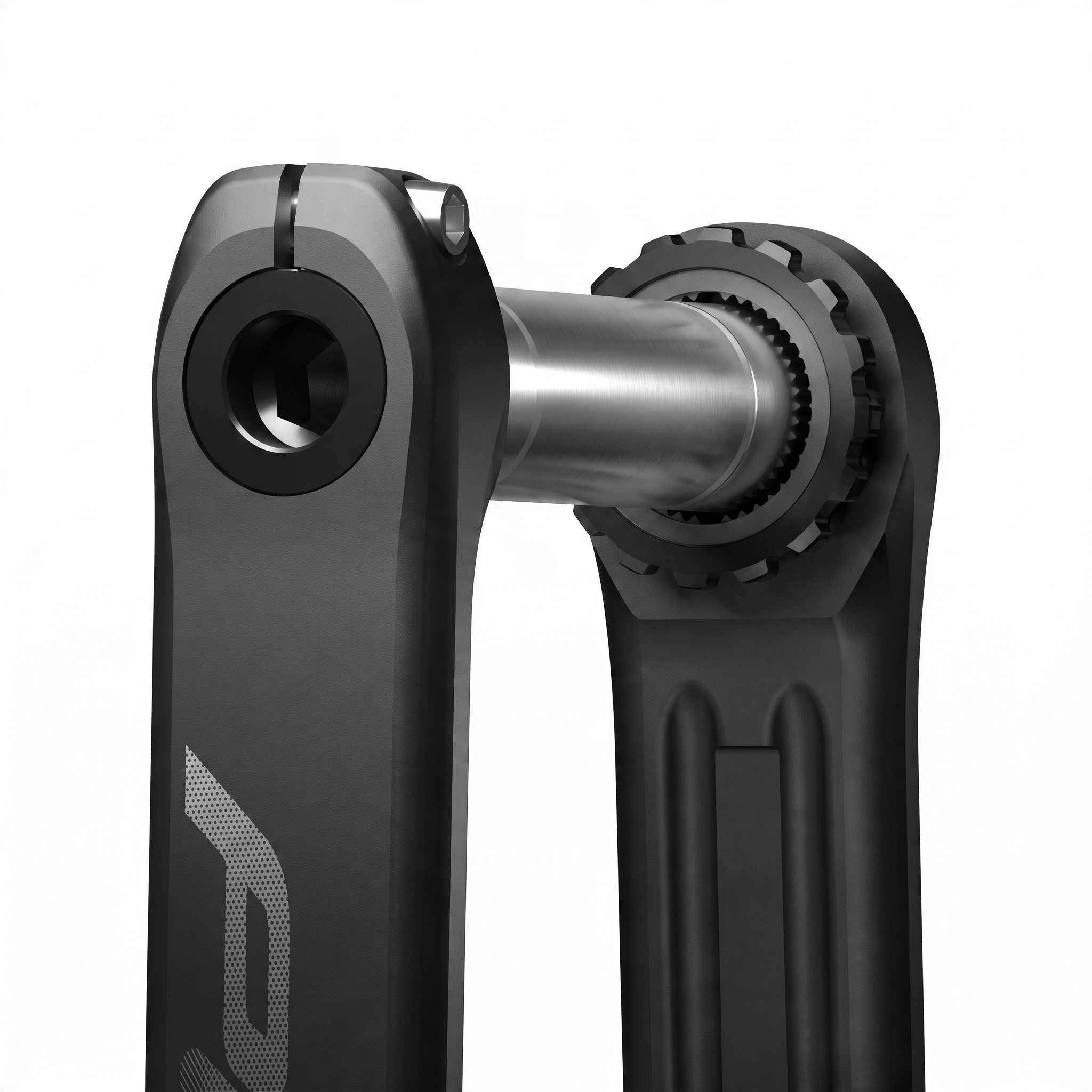

- Axle and Compatibility – the steel axle with a diameter of 24 mm fits standard bottom brackets for road bikes with a width of 68–86.5 mm and is compatible with Shimano bottom brackets. This allows the set to be mounted on a wide range of road frames.
- Material – the power meter is made from aircraft-grade aluminium 7075, and the axle is steel. The aluminium cranks with a steel axle ensure durability during regular use.
- Weight – the manufacturer states a weight of 625 g.
- Colour – black, with the Magene logo and PES graphics on the crank.
- Package Contents – Magene PES P515 power meter set with 17.2 cm cranks, 24 mm steel axle, and 50-34T chainrings.
The Magene PES P515 is a suitable choice for road cyclists who want to add power measurement to their bike while also replacing their cranks. The set combines 17.2 cm cranks and 50-34T chainrings with a 24 mm steel axle for standard road bottom brackets with a width of 68–86.5 mm. With wireless connectivity via ANT+ and Bluetooth, it can be linked to common cycle computers and training applications. Aluminium 7075 and the triple hollow cranks contribute to the low weight of the entire set. Before installation, please check the width of your frame's bottom bracket and compatibility with your existing bike components.
