Magene PES P515 ANT+ and Bluetooth Power Meter Set 16.5 cm Cranks 52-36T Chainrings Steel Axle 24 mm Aluminium 7075 Black Road Bike
You already have the maximum available quantity in your cart.

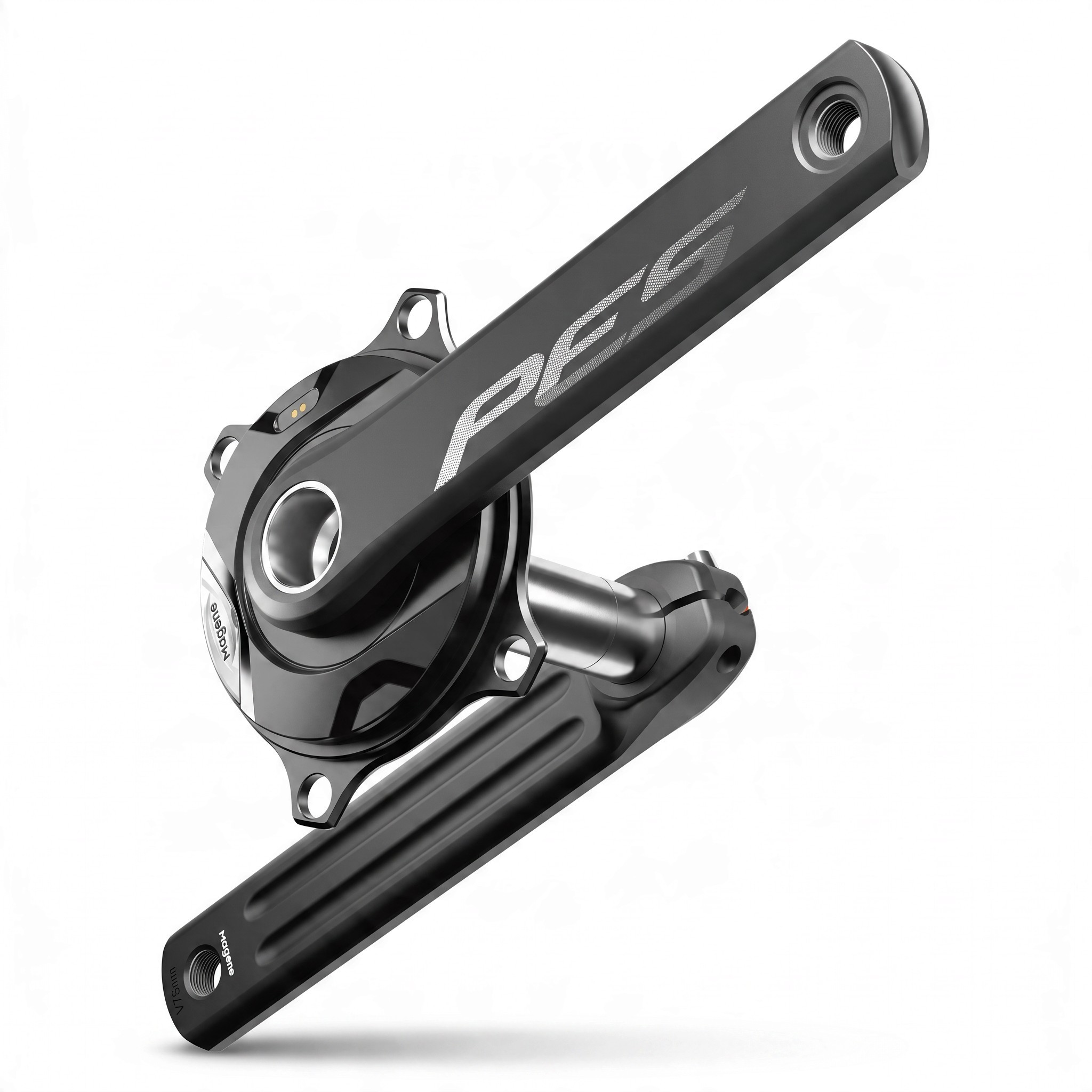

The Magene PES P515 power meter set is designed for cyclists who want to monitor their performance in watts while riding and training on a road bike. The complete set includes 16.5 cm cranks and 52-36T chainrings. It features semi-compact gearing, which is popular among road cyclists. The measured data is transmitted wirelessly via ANT+ and Bluetooth, allowing you to display it on a compatible bike computer, sports watch, or mobile app. The power meter is made from aircraft-grade aluminium 7075. The cranks have a triple hollow construction, contributing to low weight and high stiffness. The set is complemented by a steel axle and a black finish that suits most modern road bikes.

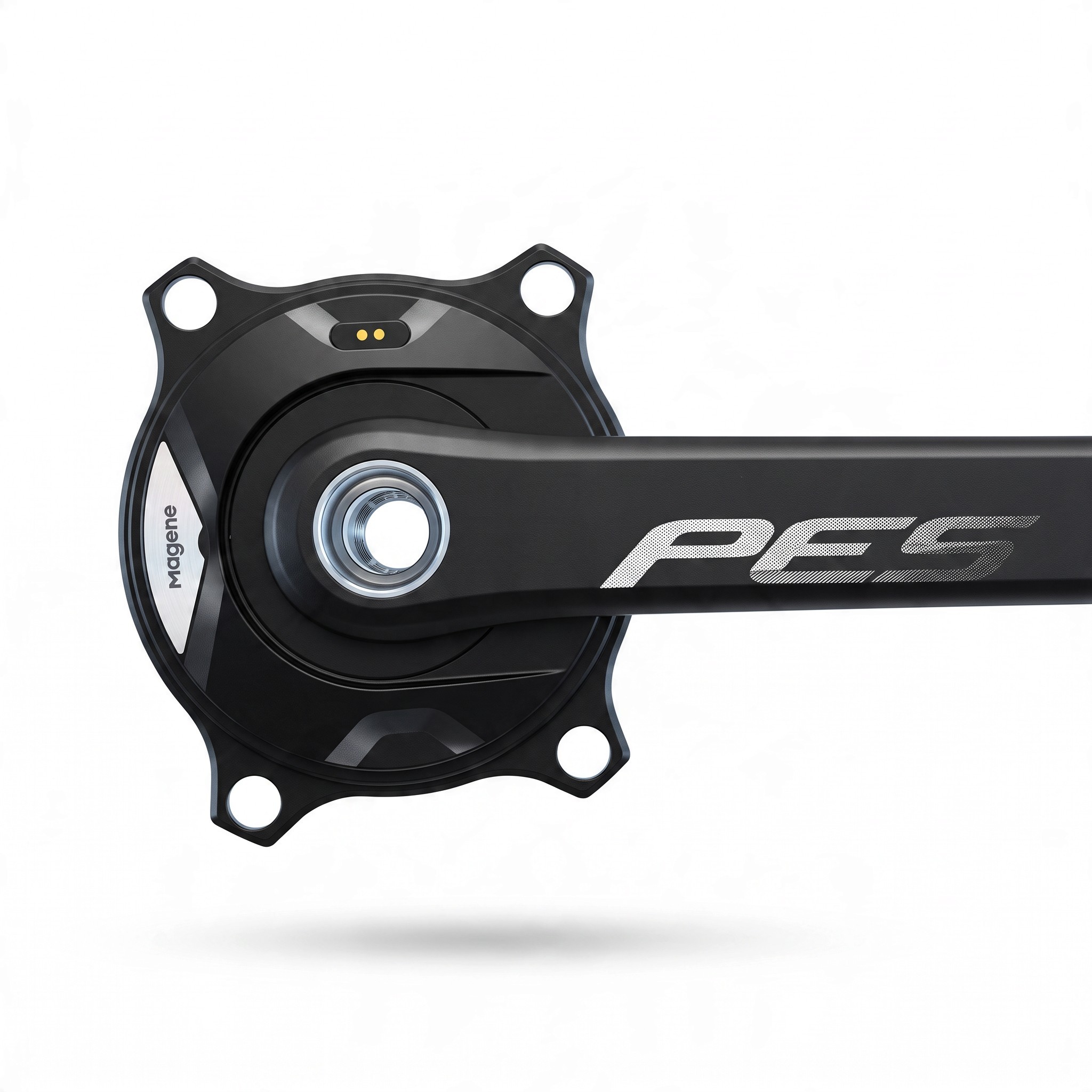

- Power Measurement – the power meter is located in the spider of the right crank, to which the chainrings are mounted. You can monitor your power during interval training, racing, or a casual ride. The measured data can then be evaluated in training applications.
- Wireless Connectivity – data is transmitted via ANT+ and Bluetooth. This allows the meter to connect with bike computers, sports watches, and mobile devices that support these protocols. Thanks to both standards, you can connect it to most current bike computers and training apps for turbo trainers.
- 16.5 cm Cranks – the cranks feature a triple hollow construction designed for low weight and high stiffness while pedalling.
- 52-36T Chainrings – a semi-compact combination of chainrings with 52 and 36 teeth. The higher gears are suitable for faster riding on flat terrain, while the smaller chainring remains light enough for climbing. This is a popular choice for competitive road riding and training at higher intensities.

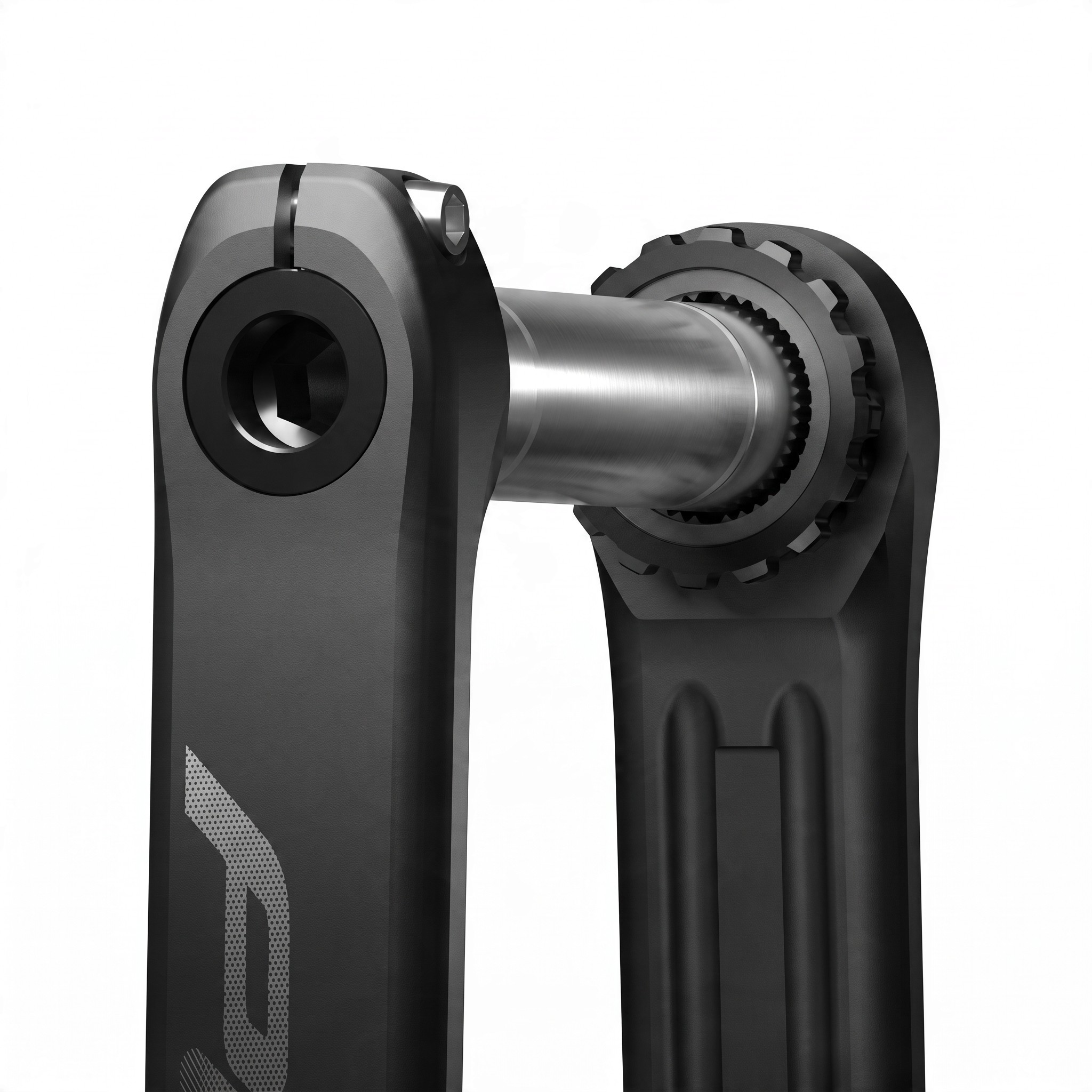

- Axle and Compatibility – steel axle with a diameter of 24 mm fits standard bottom brackets for road bikes with widths of 68–86.5 mm and is compatible with Shimano bottom brackets. Thus, the set can be mounted on a wide range of road frames.
- Material – the power meter is made from aircraft-grade aluminium 7075, and the axle is steel. The aluminium cranks with the steel axle ensure durability during regular use.
- Weight – the manufacturer states a weight of 625 g.
- Colour – black, with the Magene logo and PES graphics on the crank.
- Package Contents – Magene PES P515 power meter set with 16.5 cm cranks, 24 mm steel axle, and 52-36T chainrings.
The Magene PES P515 is a suitable choice for road cyclists who want to add power measurement to their bike while also replacing the cranks. The set combines 16.5 cm cranks and 52-36T chainrings with a 24 mm steel axle for standard road bottom brackets with widths of 68–86.5 mm. With wireless connectivity via ANT+ and Bluetooth, you can connect it to common bike computers and training applications. Aluminium 7075 and the triple hollow cranks contribute to the low weight of the entire set. Before installation, please check the width of your bottom bracket and compatibility with your existing bike components.
