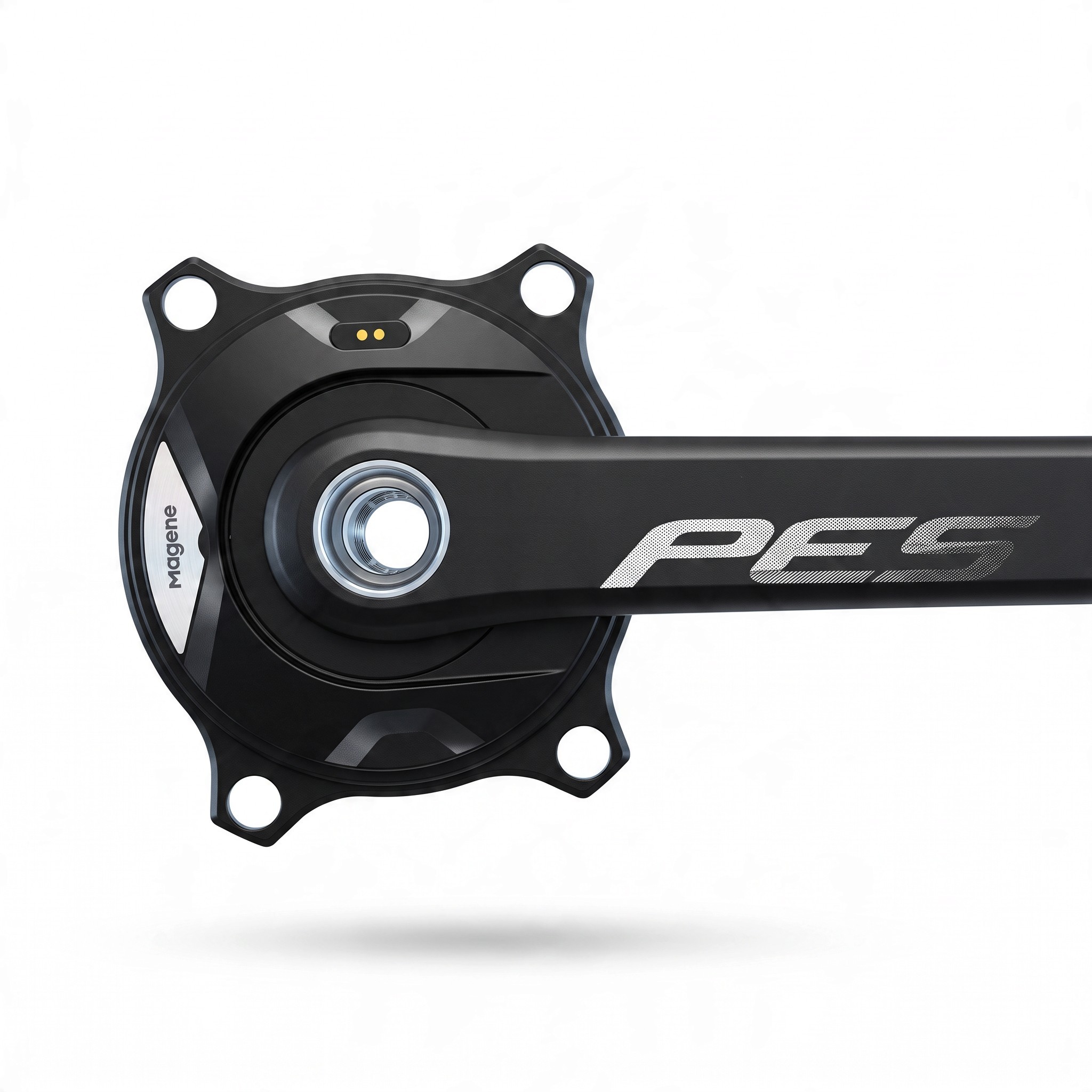

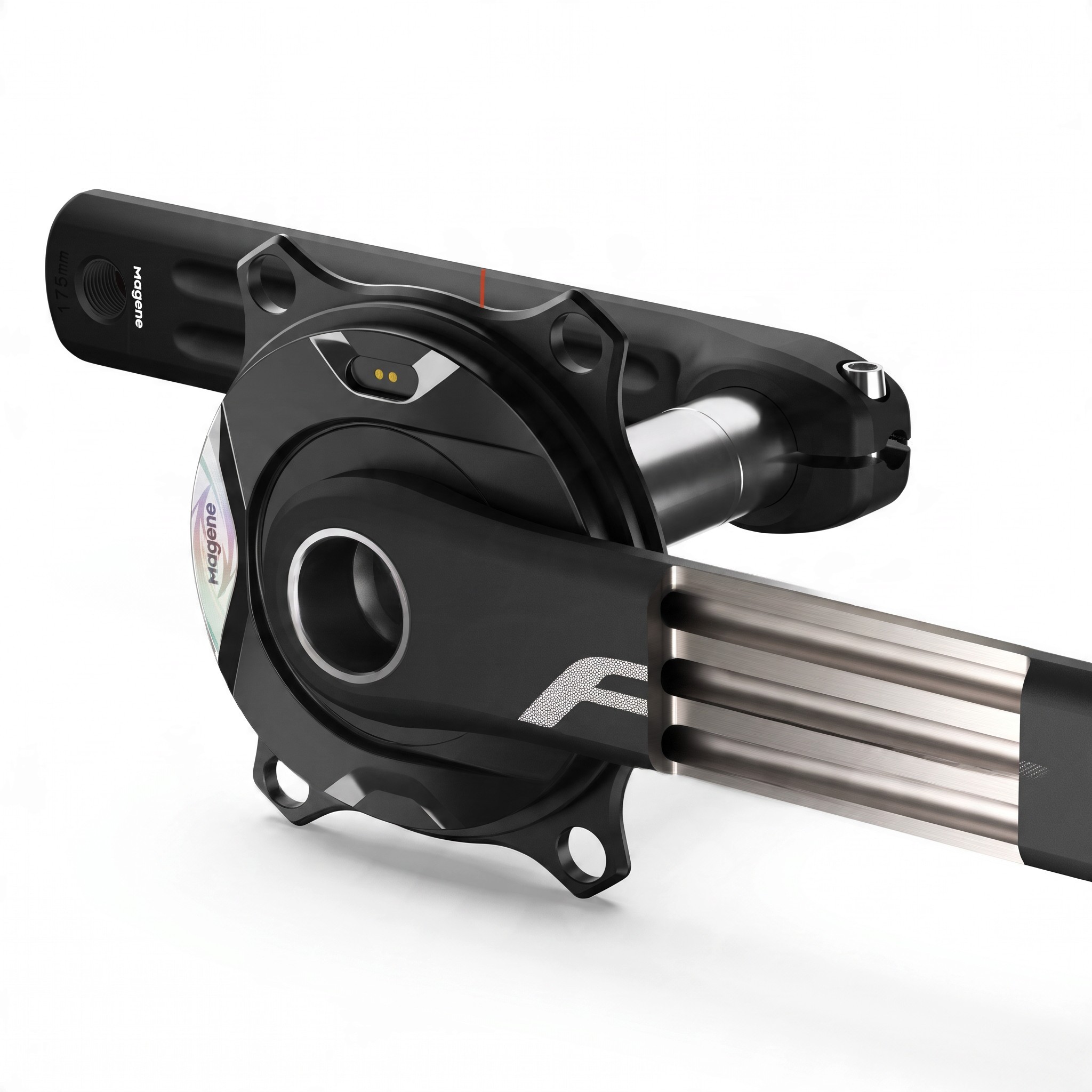

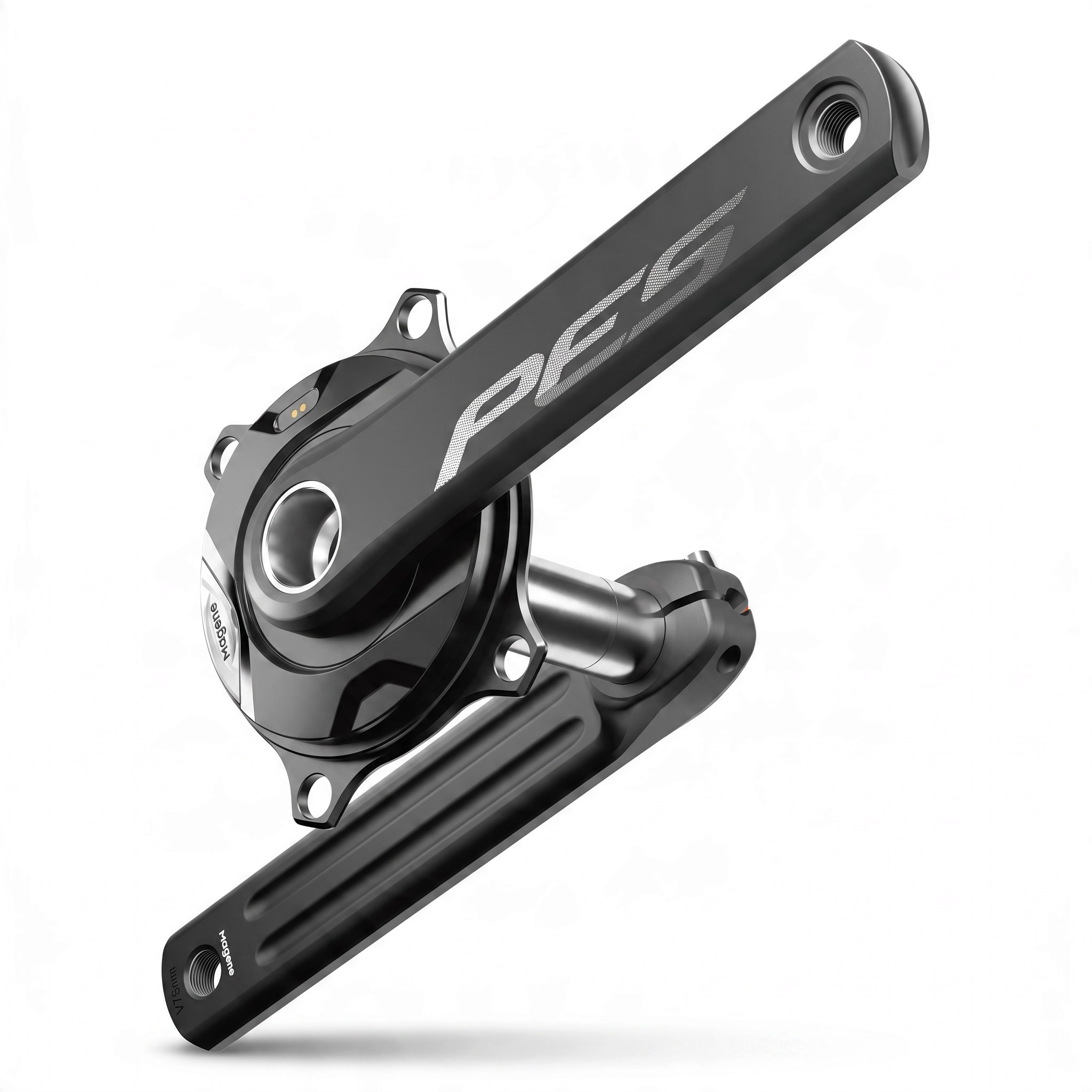

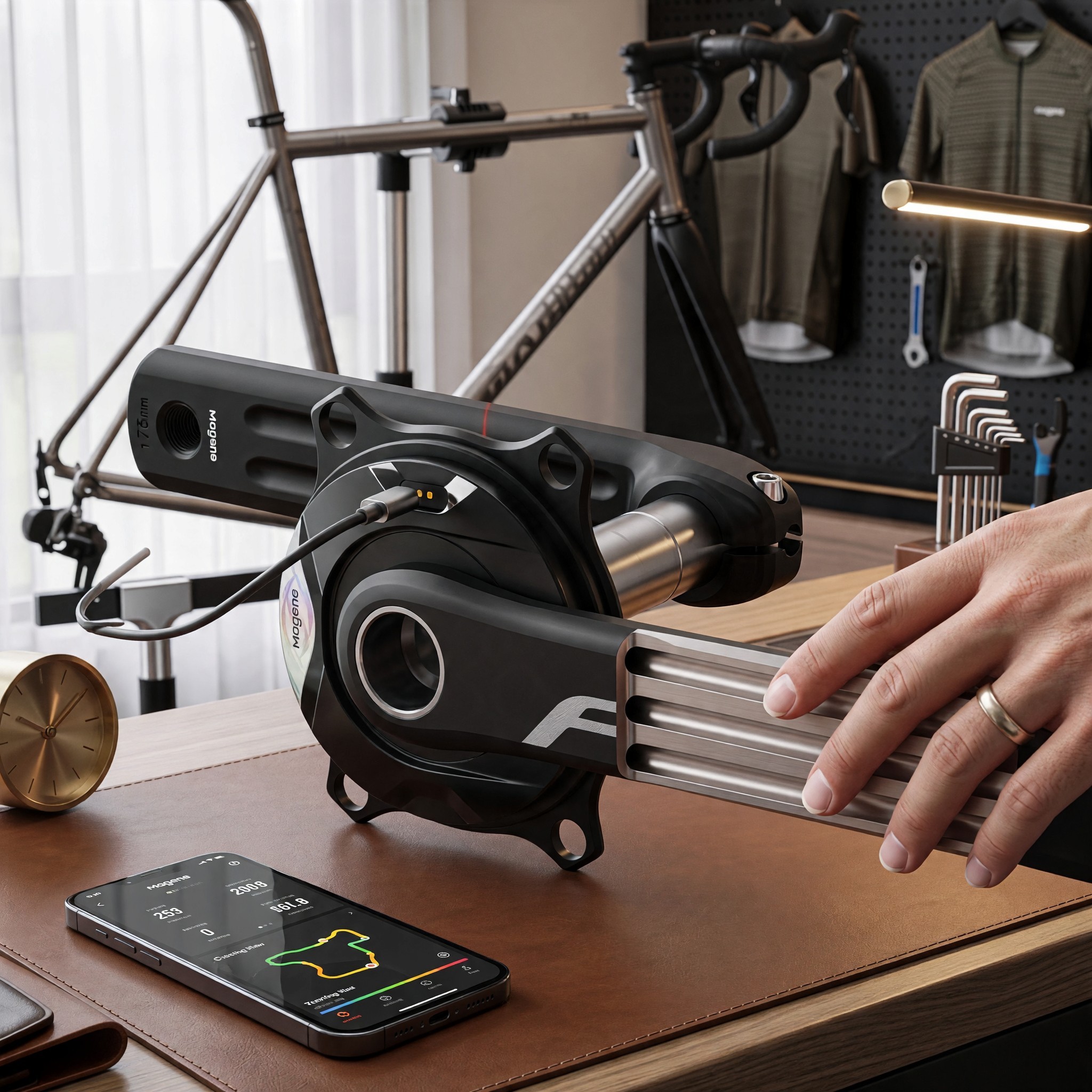

Magene PES P515 ANT+ and Bluetooth Power Meter Set 16.5 cm Cranks 50-34T Steel Axle 24 mm Aluminium 7075 Black Road Bike
You already have the maximum available quantity in your cart.
The Magene PES P515 power meter set is designed for cyclists who want to monitor their power output in watts while riding and training on a road bike. The complete set includes 16.5 cm cranks and 50-34T chainrings, providing a compact gearing commonly used on road bikes. The measured data is transmitted wirelessly via ANT+ and Bluetooth, allowing you to display it on a compatible cycle computer, sports watch, or mobile app. The power meter is made from aircraft-grade aluminium 7075 and the cranks feature a triple hollow construction, contributing to low weight and high stiffness. The set is complemented by a steel axle and a black finish that matches most modern road bikes.
- Power Measurement – the power meter is located in the spider of the right crank, onto which the chainrings are mounted. This allows you to monitor power during interval training, racing, and regular rides, and further evaluate the recorded data in training applications.
- Wireless Connectivity – data transmission occurs via ANT+ and Bluetooth, enabling connection with cycle computers, sports watches, and mobile devices that support these protocols. With support for both standards, the meter can connect to most current cycle computers and training applications for use on a trainer.
- 16.5 cm Cranks – the cranks feature a triple hollow construction designed for low weight and high stiffness while pedalling.
- 50-34T Chainrings – the compact combination of 50 and 34 tooth chainrings offers a wide range of gears for flat rides as well as climbs. This is a popular choice for competitive road riding and longer rides with elevation gain.

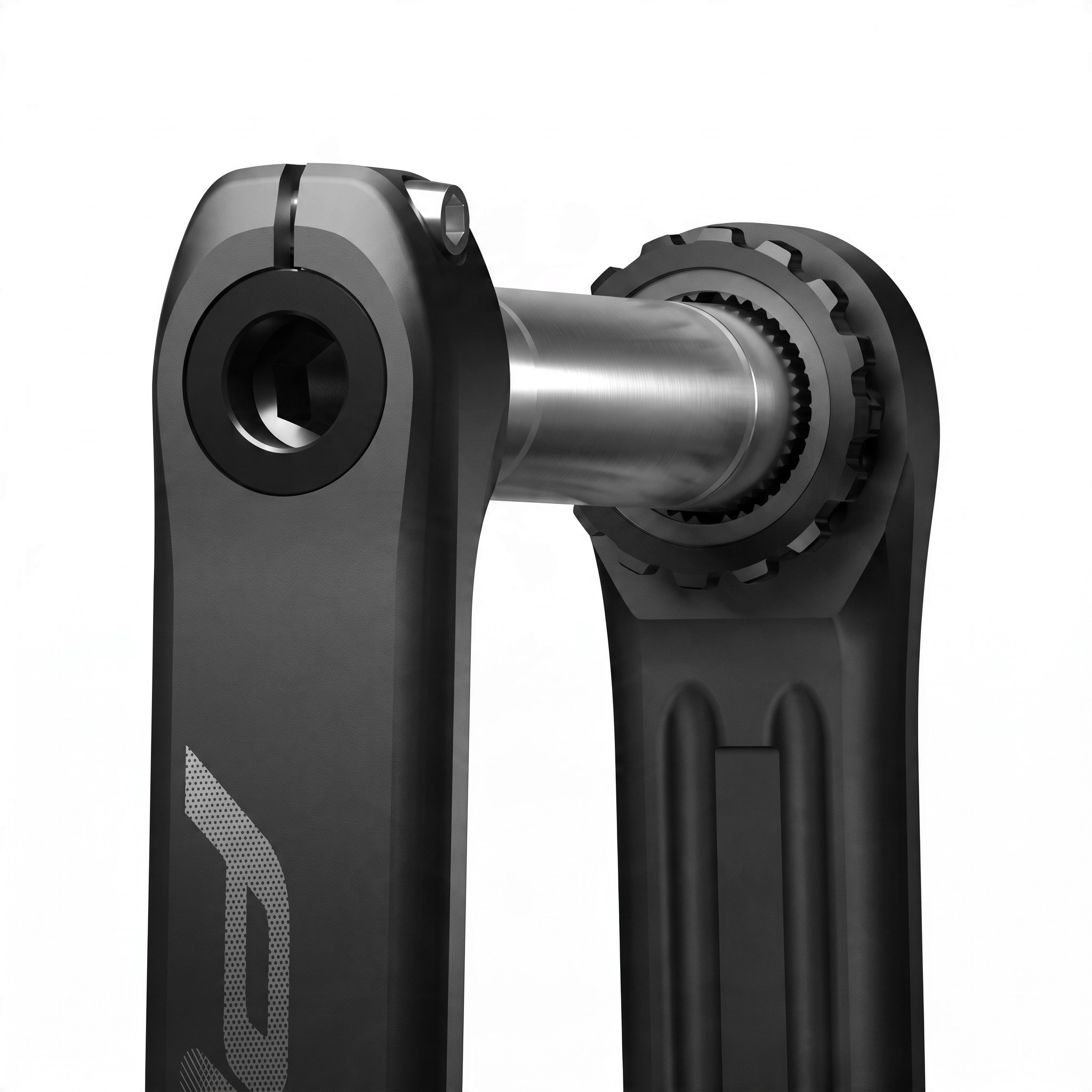

- Axle and Compatibility – the 24 mm steel axle is compatible with standard bottom brackets for road bikes with widths of 68–86.5 mm and is suitable for Shimano bottom brackets. The set can thus be installed in a wide range of road frames.
- Material – the power meter is made from aircraft-grade aluminium 7075, and the axle is made of steel. The combination of aluminium cranks and a steel axle ensures durability during regular use.
- Weight – the manufacturer's stated weight is 625 g.
- Colour – black with the Magene logo and PES graphics on the crank.
- Package Contents – Magene PES P515 power meter set with 16.5 cm cranks, 24 mm steel axle, and 50-34T chainrings.

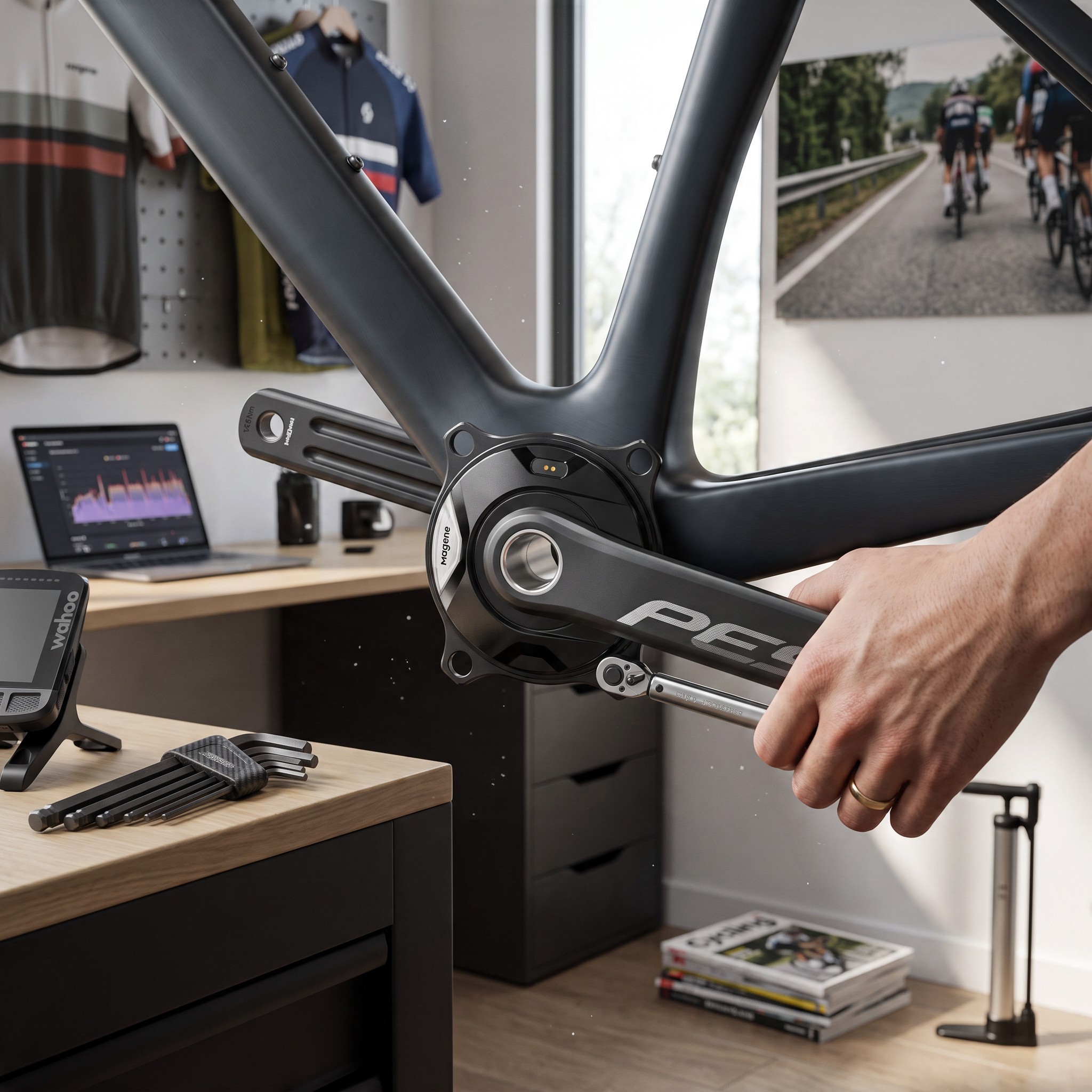

The Magene PES P515 is a practical choice for road cyclists who want to incorporate power measurement into their bike while also upgrading their cranks. The set combines 16.5 cm cranks and 50-34T chainrings with a 24 mm steel axle for standard road bottom brackets with widths of 68–86.5 mm. Wireless connectivity via ANT+ and Bluetooth ensures compatibility with commonly used cycle computers and training applications. The construction from aluminium 7075 and triple hollow cranks contributes to the low weight of the entire set. Before installation, we recommend checking the width of your frame's bottom bracket and compatibility with existing bike components.
