Lifting Mechanism for Router 115 x 100 x 51 mm Aluminium CNC Base Height Adjustment for Router into Table
This lifting mechanism is designed for precise and convenient height adjustment of the router when used in a routing table. It allows for smooth lifting and lowering of the router motor without the need for disassembly, significantly speeding up work and increasing accuracy when machining wood. The design is intended to provide maximum stability during operation and minimise vibrations. Due to its robust construction, it is suitable for both home workshops and more demanding workshop use.

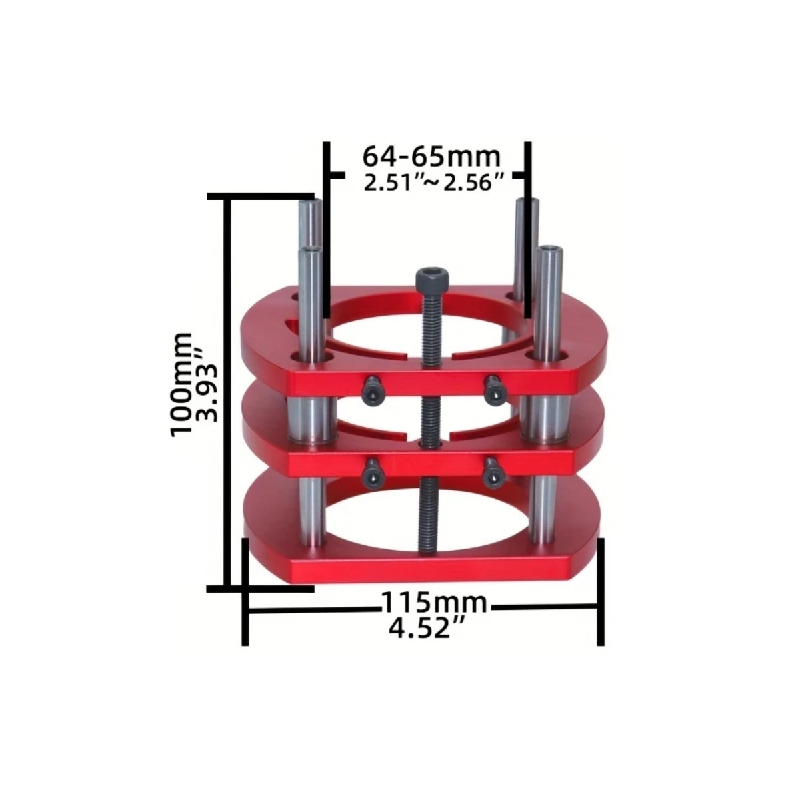

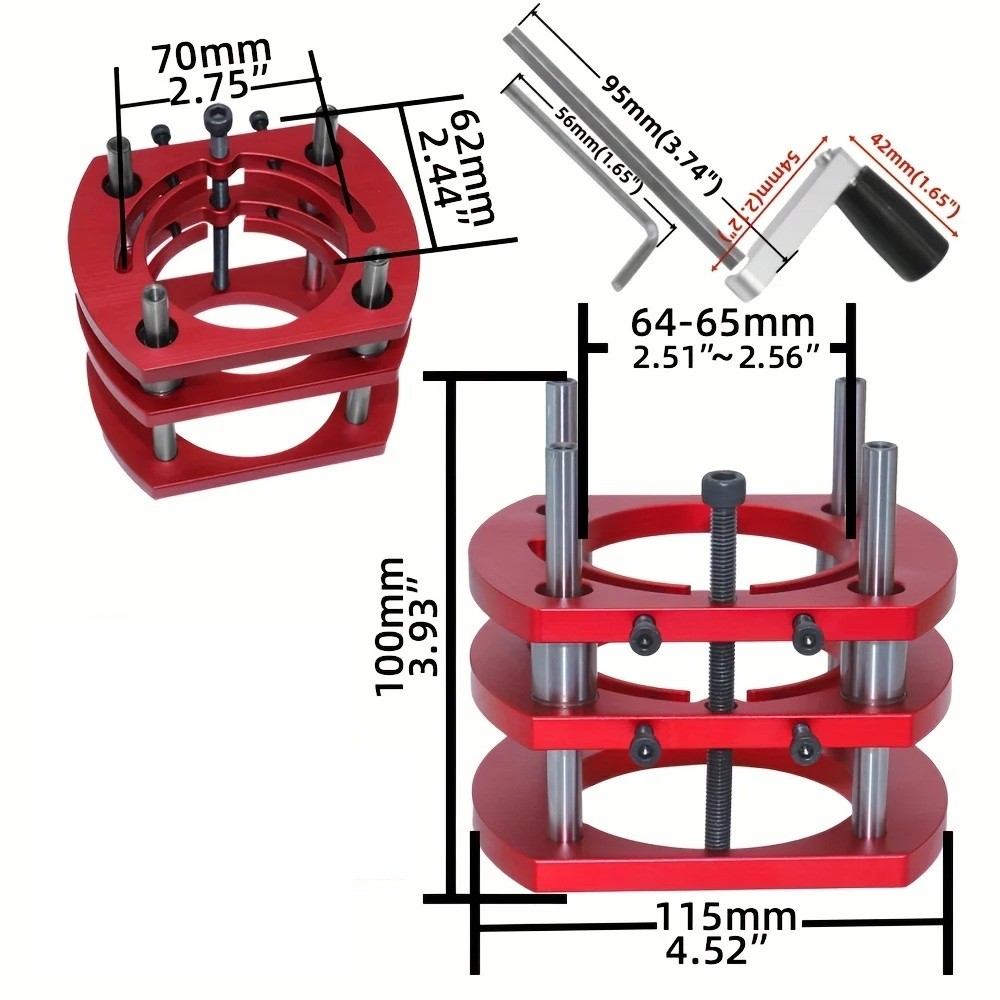

The base is made from CNC machined aluminium alloy, ensuring high strength, precision, and long durability. The overall dimensions of 115 x 100 x 51 mm provide a compact construction while maintaining sufficient lift. The maximum lift of the mechanism is 51 mm, allowing for fine height adjustment of the router according to current needs. The mechanism is compatible with router motors with a diameter of 64–65 mm.
- Precise height adjustment of the router without the need to disassemble the motor
- CNC aluminium construction for high strength and long durability
- Compact dimensions 115 x 100 x 51 mm suitable for integration into the routing table
- Maximum lift 51 mm for fine and smooth adjustment
- Compatibility with motors 64–65 mm used in routers
- Stable guidance minimising vibrations during operation

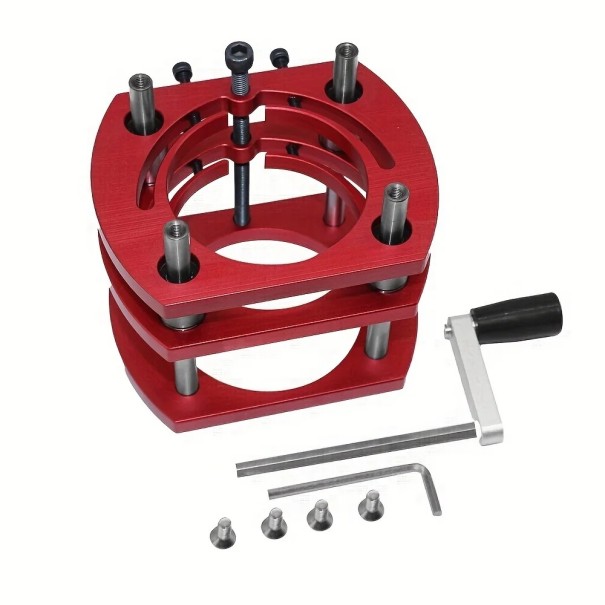

- Package contents: 1x lifting mechanism, control handle, mounting screws, and hex key
The use of the mechanism is simple and intuitive. The router is secured in the centre of the construction and the height is adjusted by turning the control handle. Thanks to the threaded system, the movement is smooth and precise, allowing for repeated settings with high accuracy. The mechanism is intended for installation in a routing table or worktop and is ideal for precise grooving, edge profiling, and serial production.
The lifting mechanism for the router is a practical solution for anyone who demands precise control over the depth of routing. It increases work comfort, saves time during adjustments, and contributes to professional results when working with wood and sheet materials.
